2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature display
P. 335
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 199
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, meter light control and multi-
information display
P. 199, 210
Clock
P. 334
Clock adjusting buttons
P. 334

199 2-2. Instrument cluster
2
When driving
Changing the display
Items displayed can be switched
by pressing the display change
button.
Odometer
Tr ip m eter
Stop & Start system operation time (if equipped)
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Displays the total amount of time the Stop & Start
system has operated (total engine stop time due to
the Stop & Start system) from the engine switch
being turned to “ON” until it is turned to “LOCK”
(vehicles without smart entry & start system) or from
the “ENGINE START STOP” switch being changed
to IGNITION ON mode until it is changed to off (vehi-
cles with a smart entry & start system).

201 2-2. Instrument cluster
2
When driving

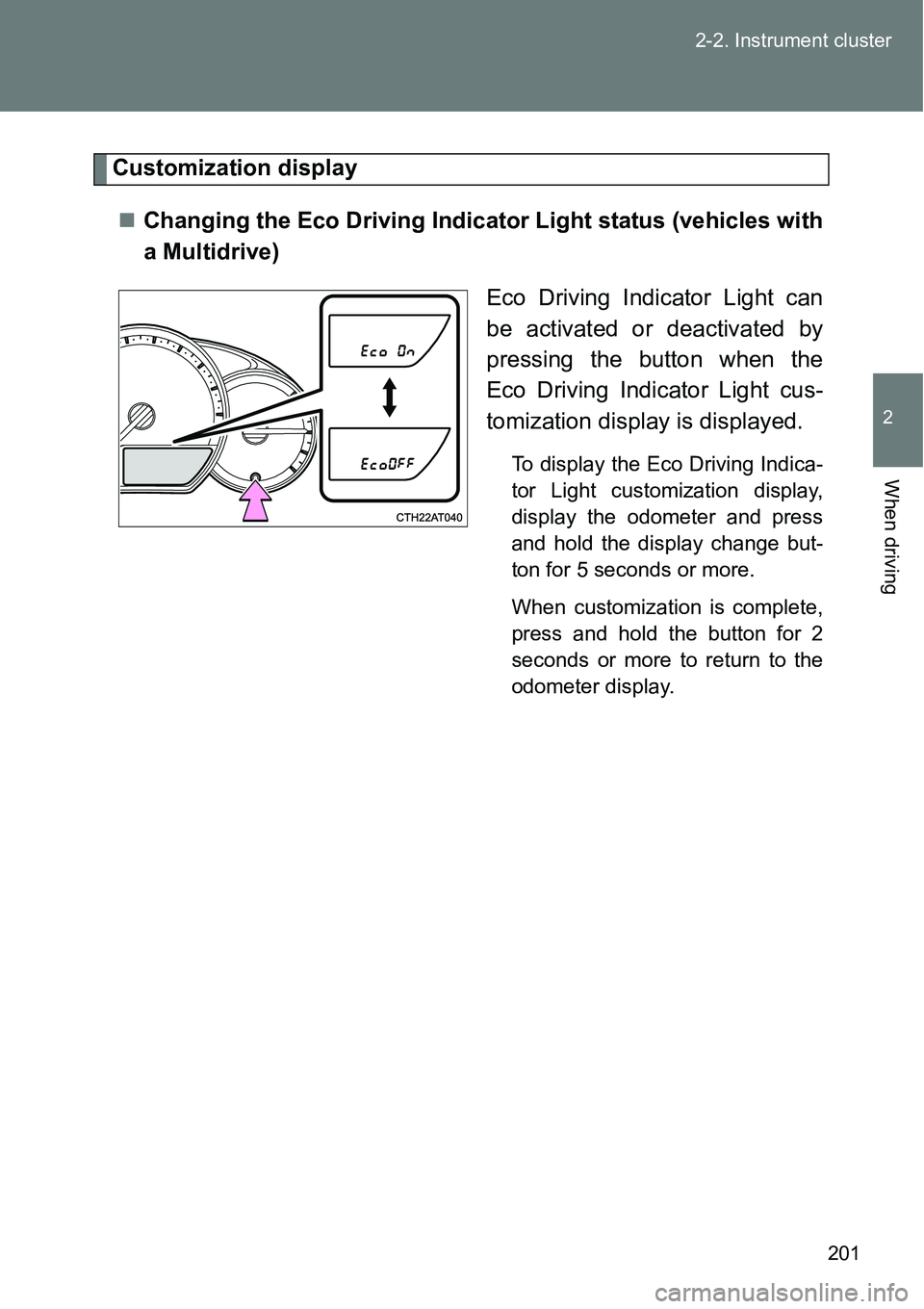

Customization display
Changing the Eco Driving Indicator Light status (vehicles with
a Multidrive)
Eco Driving Indicator Light can
be activated or deactivated by
pressing the button when the
Eco Driving Indicator Light cus-
tomization display is displayed.
To display the Eco Driving Indica-
tor Light customization display,
display the odometer and press
and hold the display change but-
ton for 5 seconds or more.
When customization is complete,
press and hold the button for 2
seconds or more to return to the
odometer display.

210
2-2. Instrument cluster
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 199)
Trip meter (P. 199)
Stop & Start system opera-
tion time (if equipped)
(P. 199)
Stop & Start system total
operation time (if equipped)
(P. 200)
Trip information (P. 2 1 1 )
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Meter light control (P. 200)
Eco Driving Indicator Light
customization (if equipped)
(P. 201)

211 2-2. Instrument cluster
2
When driving
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
P. 199
Tr ip m eter
P. 199
Stop & Start system operation time (if equipped)
P. 199
Stop & Start system total operation time (if equipped)
P. 200
Instantaneous fuel consumption
Displays instantaneous fuel consumption.
