2015 TOYOTA VERSO S fog light bulb

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 536)
Front bulb locations
Front fog lights
(if equipped)
Headlights
Front turn
signal lights

424 4-3. Do-it-yourself maintenance
Replacing light bulbs
Headlights
Remove the cover.
Turn the bulb base counterclock-
wise remove it.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic)
License plate
lights
Rear turn signal lights
STEP1
STEP2

427 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
STEP4
STEP5
STEP6
STEP1STEP7STEP1STEP2
STEP1STEP1

430 4-3. Do-it-yourself maintenance
Install the lamp assembly and
then install the 2 bolts.
Align the guide and pin on
the lamp assembly with the
mounting when installing it.
Back-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
STEP5
STEP1
STEP2

536 6-1. Specifications
Light bulbs
A: HIR2 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs
*1: Vehicles without a panoramic roof shade
*2: Vehicles with a panoramic roof shade
Light bulbsWTy p e
ExteriorHeadlights 55 A
Front fog lights (if equipped) 55 B
Front turn signal lights 21 D
Back-up light 16 C
Rear fog light 21 C
License plate lights 5 C
Rear turn signal lights 21 D
InteriorPersonal lights
*18C
Personal/interior lights
*28C
Interior light 8 E
Luggage compartment light 5 E

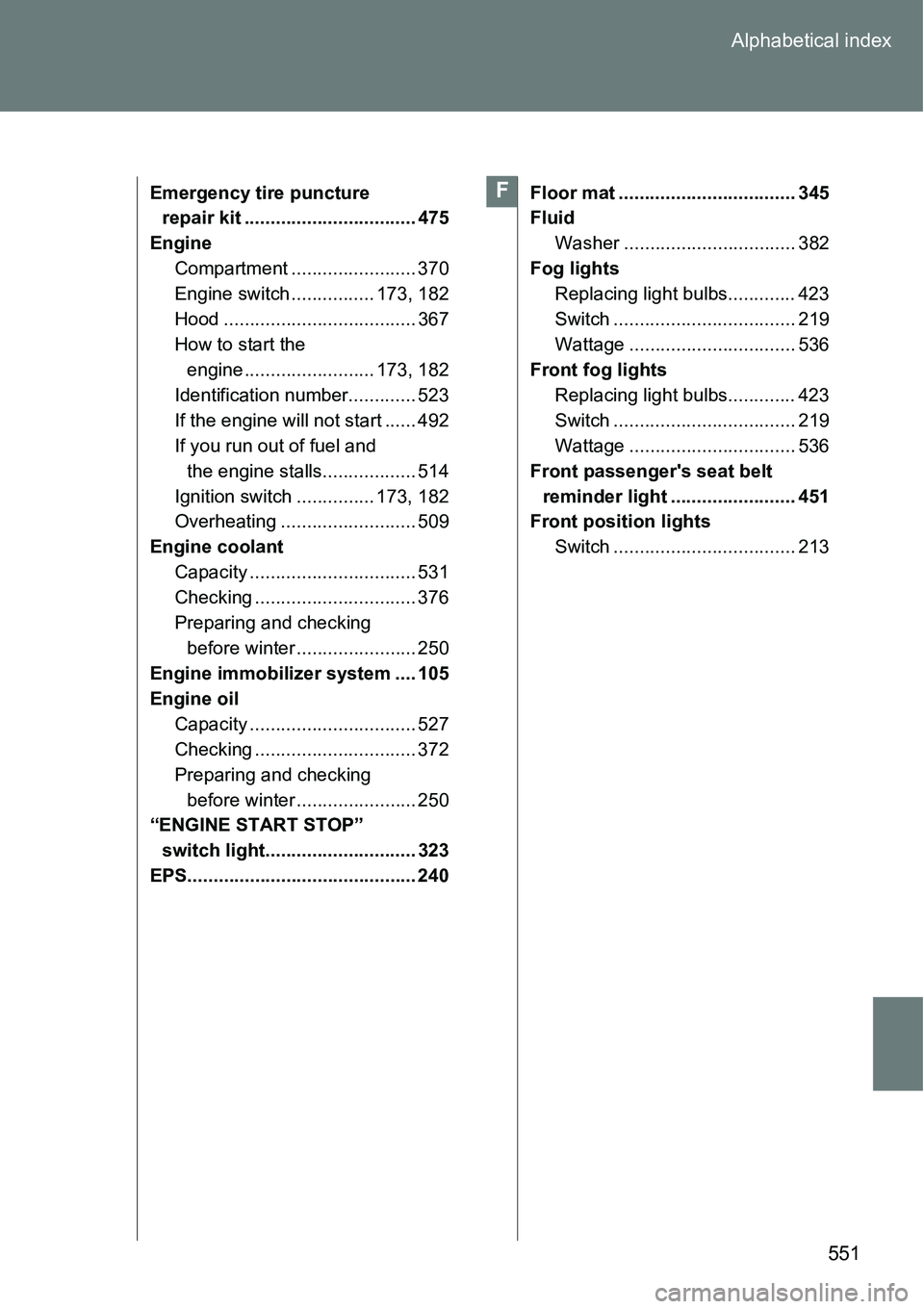

551 Alphabetical index
Emergency tire puncture
repair kit ................................. 475
Engine
Compartment ........................ 370
Engine switch ................ 173, 182
Hood ..................................... 367
How to start the
engine ......................... 173, 182
Identification number............. 523
If the engine will not start ...... 492
If you run out of fuel and
the engine stalls.................. 514
Ignition switch ............... 173, 182
Overheating .......................... 509
Engine coolant
Capacity ................................ 531
Checking ............................... 376
Preparing and checking
before winter ....................... 250
Engine immobilizer system .... 105
Engine oil
Capacity ................................ 527
Checking ............................... 372
Preparing and checking
before winter ....................... 250
“ENGINE START STOP”
switch light............................. 323
EPS............................................ 240Floor mat .................................. 345
Fluid
Washer ................................. 382
Fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front passenger's seat belt
reminder light ........................ 451
Front position lights
Switch ................................... 213F

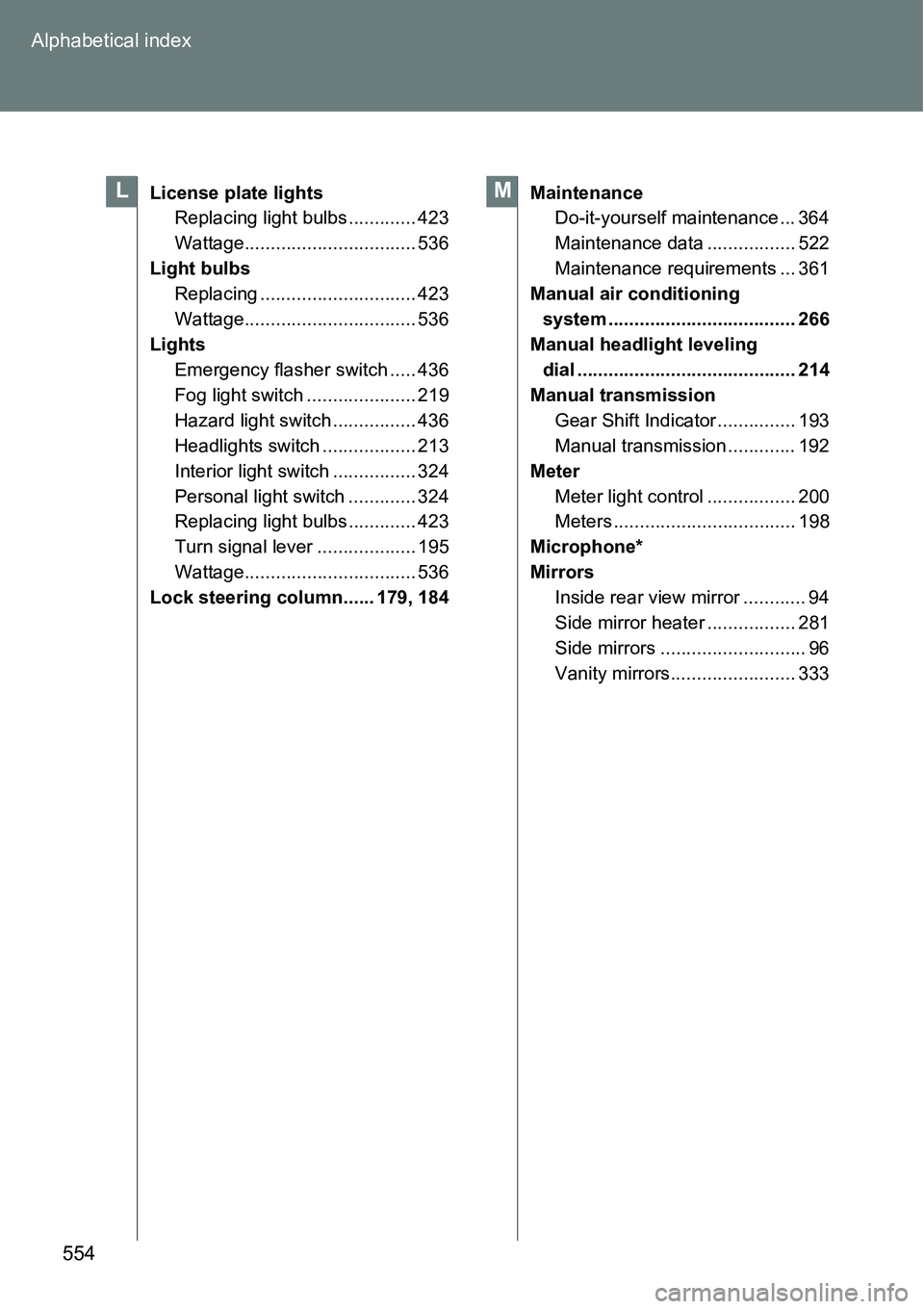

554 Alphabetical index
