2015 TOYOTA VERSO S steering wheel adjustment

77
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)

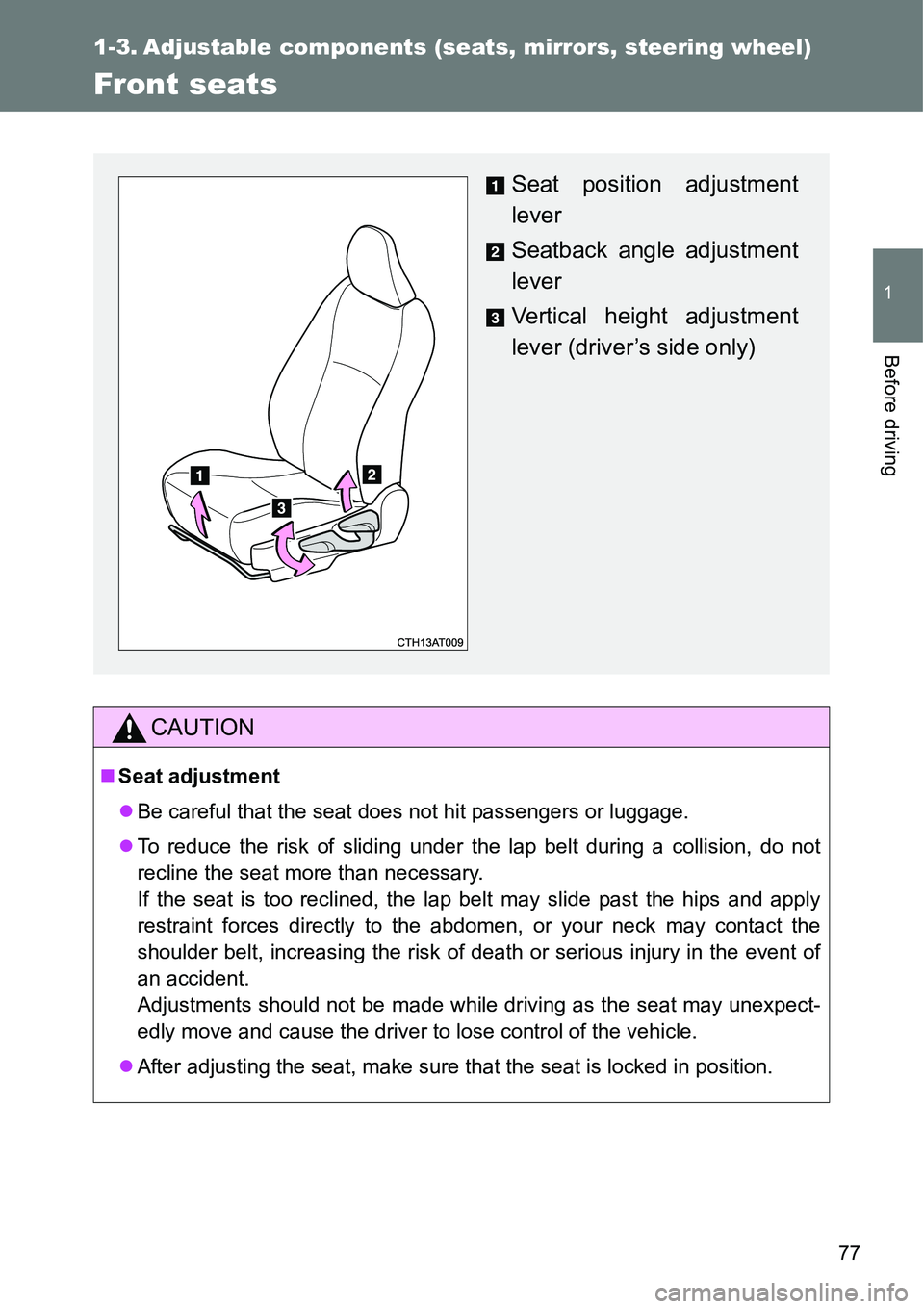

Front seats
CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

78
1-3. Adjustable components (seats, mirrors, steering wheel)

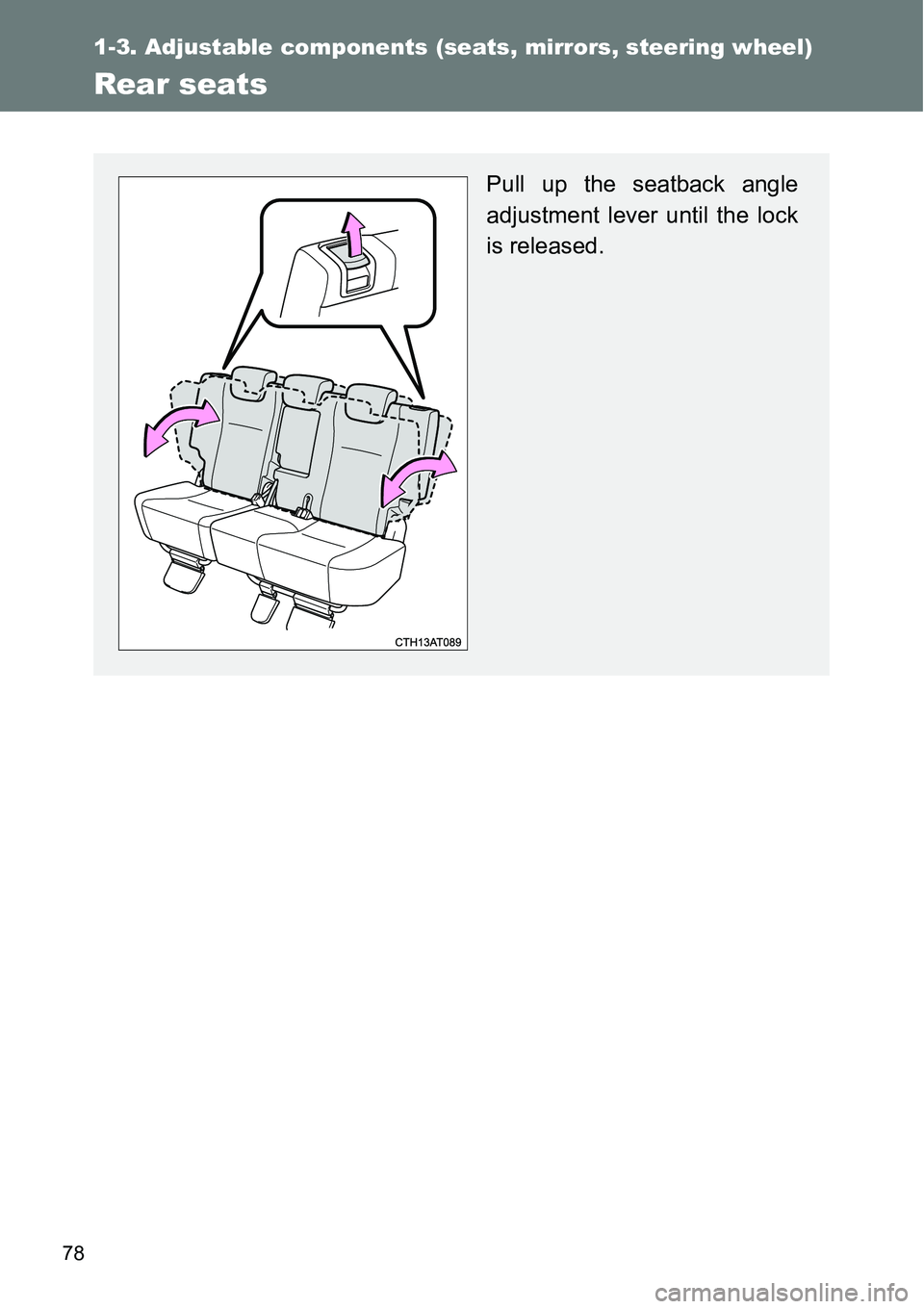

Rear seats
Pull up the seatback angle
adjustment lever until the lock
is released.

80 1-3. Adjustable components (seats, mirrors, steering wheel)

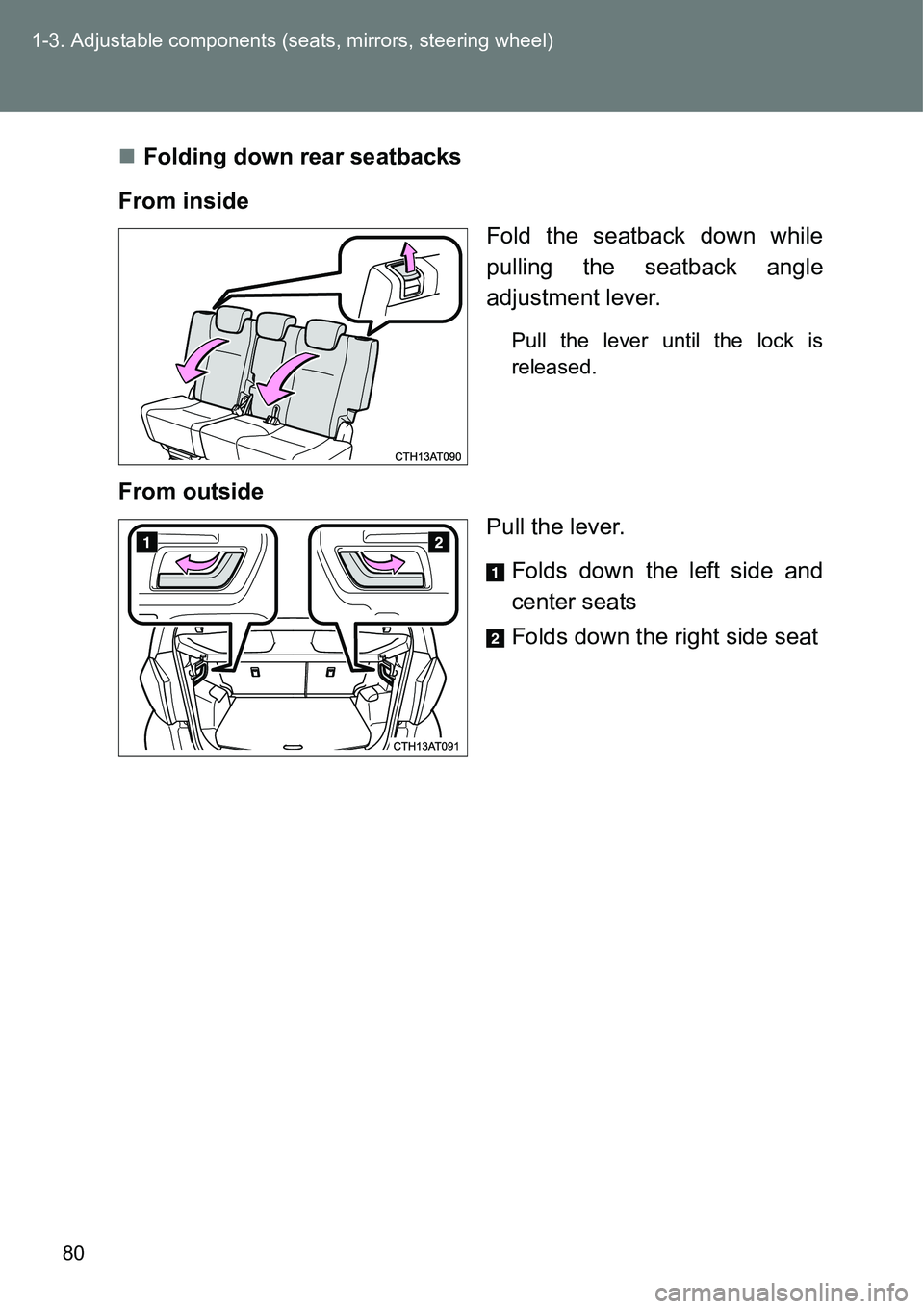

Folding down rear seatbacks
From inside
Fold the seatback down while
pulling the seatback angle
adjustment lever.
Pull the lever until the lock is
released.
From outside
Pull the lever.
Folds down the left side and
center seats
Folds down the right side seat

81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the rear seatback when rear passengers sit on the rear seats
or luggage is placed on the seat. Make sure that no passengers or lug-
gage are on the rear seat. Be especially careful when operating the rear
seat from the luggage compartment.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (vehicles with a Multidrive) or N (vehicles with a manual trans-
mission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Do not allow anyone sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
Be careful not to catch your hand when folding the rear seatbacks.
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
Be careful not to catch your hand when adjusting the rear seats.

92
1-3. Adjustable components (seats, mirrors, steering wheel)

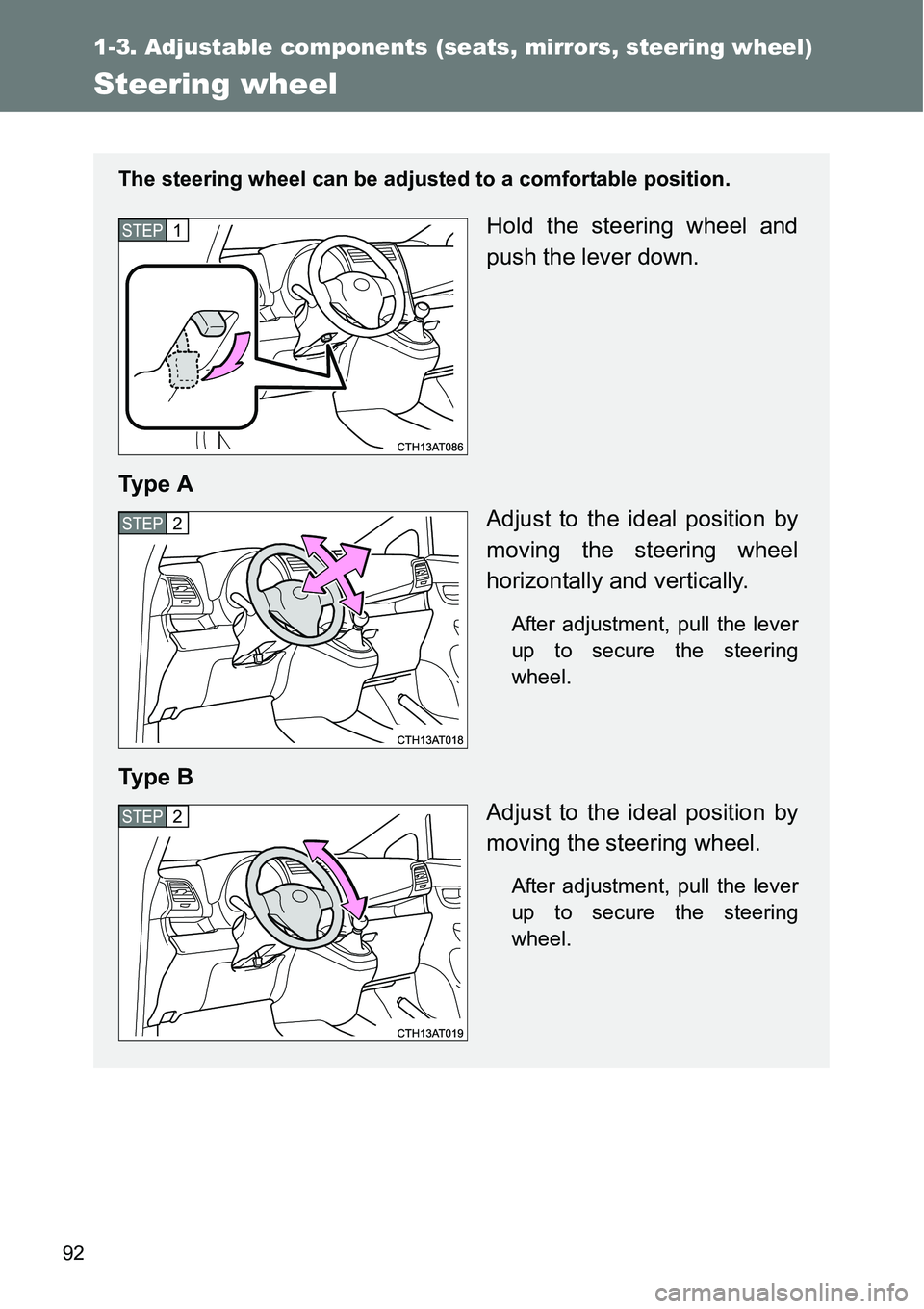

Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Ty p e A
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
Ty p e B
Adjust to the ideal position by
moving the steering wheel.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP1
STEP2
STEP2

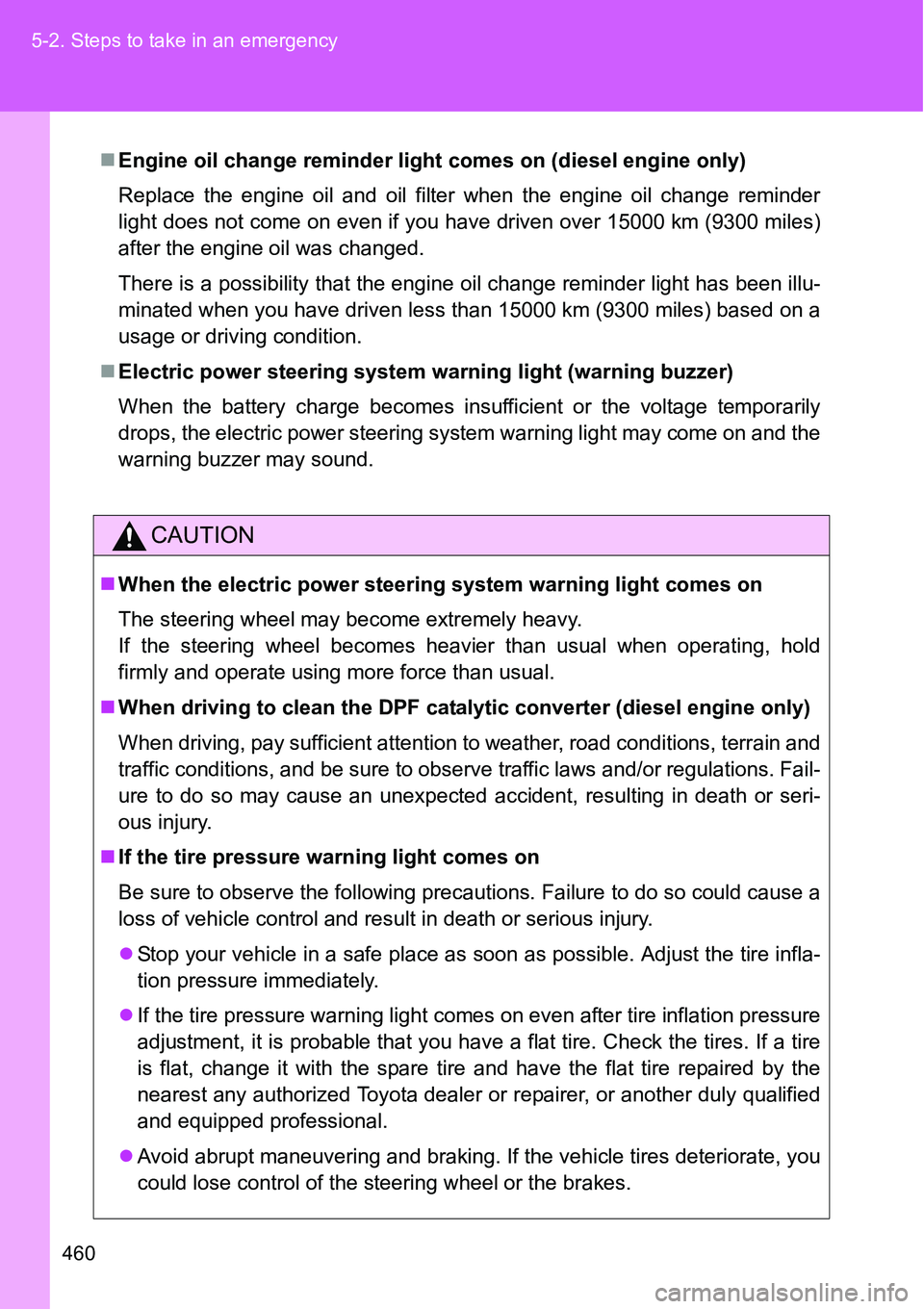

460 5-2. Steps to take in an emergency
Engine oil change reminder light comes on (diesel engine only)
Replace the engine oil and oil filter when the engine oil change reminder
light does not come on even if you have driven over 15000 km (9300 miles)
after the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illu-
minated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
CAUTION
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter (diesel engine only)
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or seri-
ous injury.
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.

557 Alphabetical index
Seats
Adjustment .............................. 77
Adjustment precautions .......... 77
Child seats/child restraint
system installation .............. 145
Cleaning ................................ 358
Head restraint ......................... 83
Properly sitting in the seat..... 120
Rear seat adjustment .............. 78
Rear seat adjustment
precautions ........................... 81
Seat heaters.......................... 338
Service reminder
indicators .............................. 204
Shift lever
Manual transmission ............. 192
Multidrive............................... 186
Shift lock system ..................... 495
Side airbags ............................. 122
Side mirror
Adjusting and folding............... 96
Smart entry & start system
Entry function .......................... 33
Starting the engine ................ 173
Spare tire
Inflation pressure .................. 535
Storage location .................... 462Spark plug ................................ 531
Specifications .......................... 522
Speedometer ............................ 198
Steering
Column lock release ..... 179, 184
Steering wheel
Adjustment .............................. 92
Audio switches ...................... 320
Stop & Start cancel switch ..... 231
Stop & Start system ................ 229
Stop & Start system
operation time ....................... 199
Stop & Start system total
operation time ....................... 200
Storage feature ........................ 326
Storage precautions ................ 248
Stuck
If your vehicle becomes
stuck ................................... 516
Sun visors ................................ 332
*: Refer to “Navigation and multimedia system Owner’s manual”.
