10
Power window switches  P. 98

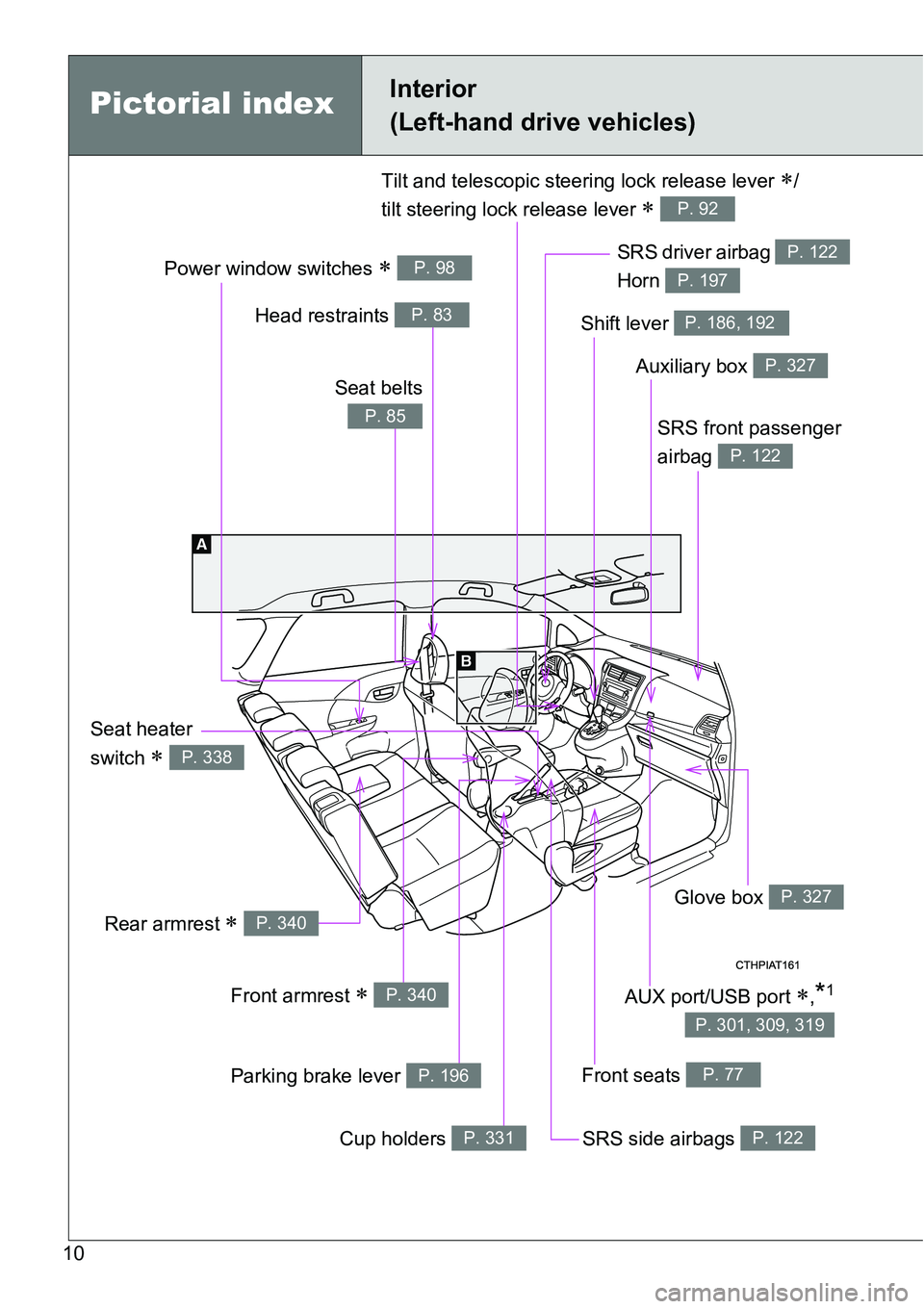

Pictorial indexInterior
(Left-hand drive vehicles)
SRS front passenger
airbag
P. 122
SRS driver airbag
Horn P. 122
P. 197
Front seats P. 77
SRS side airbags P. 122
Glove box P. 327
Auxiliary box P. 327
Shift lever P. 186, 192
Seat heater
switch
 P. 338
Tilt and telescopic steering lock release lever /
tilt steering lock release lever
 P. 92
Rear armrest  P. 340
Front armrest  P. 340
Parking brake lever P. 196
Cup holders P. 331
Head restraints P. 83
Seat belts
P. 85
AUX port/USB port ,*1
P. 301, 309, 319

11
: If equipped
*1: For vehicles with a navigation/multimedia system, refer to “Navigation and multime-
dia system Owner’s manual”.
*2: NEVER use a rearward facing child re-
straint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. (P. 154)

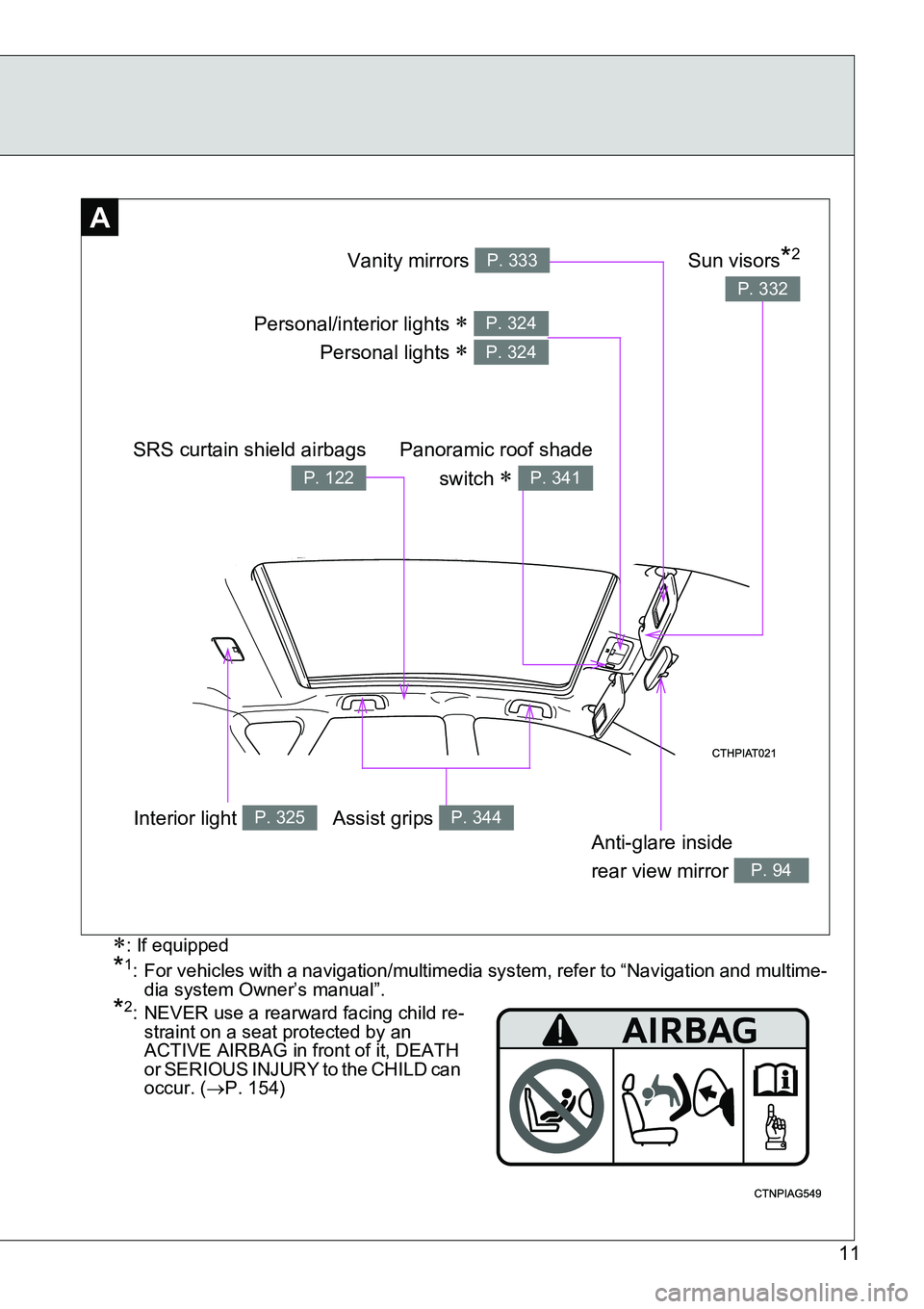

Anti-glare inside
rear view mirror
P. 94
Interior light P. 325
Vanity mirrors P. 333
Personal/interior lights 
Personal lights

P. 324
P. 324
A
Panoramic roof shade
switch
 P. 341
SRS curtain shield airbags
P. 122
Assist grips P. 344
Sun visors*2
P. 332

13
: If equipped*: Refer to “Navigation and multimedia system Owner’s manual”.
Emergency flasher switch P. 436
Cup holders P. 331
Windshield wiper and
washer switch
P. 221, 227Hood lock release lever
P. 367
Gauges and meters P. 198
Audio system 
Navigation/Multimedia system
,*
P. 283
Shift lock override button 
P. 495
SRS driver knee
airbag
P. 122
Fuel filler door
opener
P. 101
Engine (ignition) switch
(vehicles with a smart entry &
start system)
P. 173
Floor mat P. 345
Power outlet P. 336
Pictorial indexInstrument panel
(Left-hand drive vehicles)
Headlight switch
Turn signal lever
Fog light switch P. 213
P. 195
P. 219

16
Tilt and telescopic steering lock release lever P. 92
Power window
switches
P. 98
Seat belts P. 85
SRS front
passenger airbag
P. 122
Head restraints P. 83
Cup holders P. 331
Front armrest  P. 340
Front seats P. 77
Glove box
P. 327
Parking brake lever P. 196
Rear
armrest
 P. 340

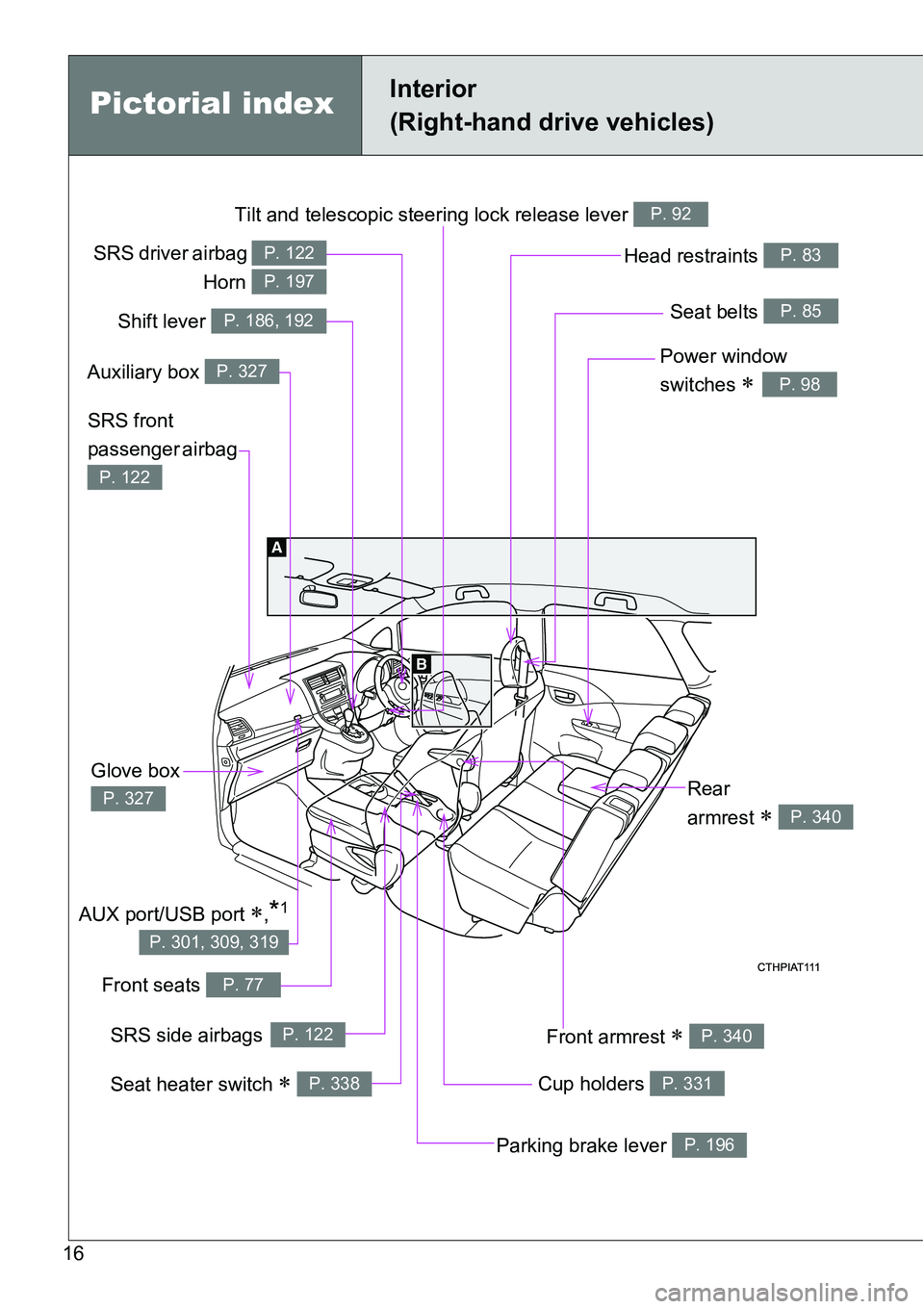

Pictorial indexInterior
(Right-hand drive vehicles)
SRS driver airbag
Horn P. 122
P. 197
Shift lever P. 186, 192
Auxiliary box P. 327
SRS side airbagsP. 122
Seat heater switch  P. 338
AUX port/USB port ,*1
P. 301, 309, 319

17
*2: NEVER use a rearward facing child re-
straint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. (P. 154)

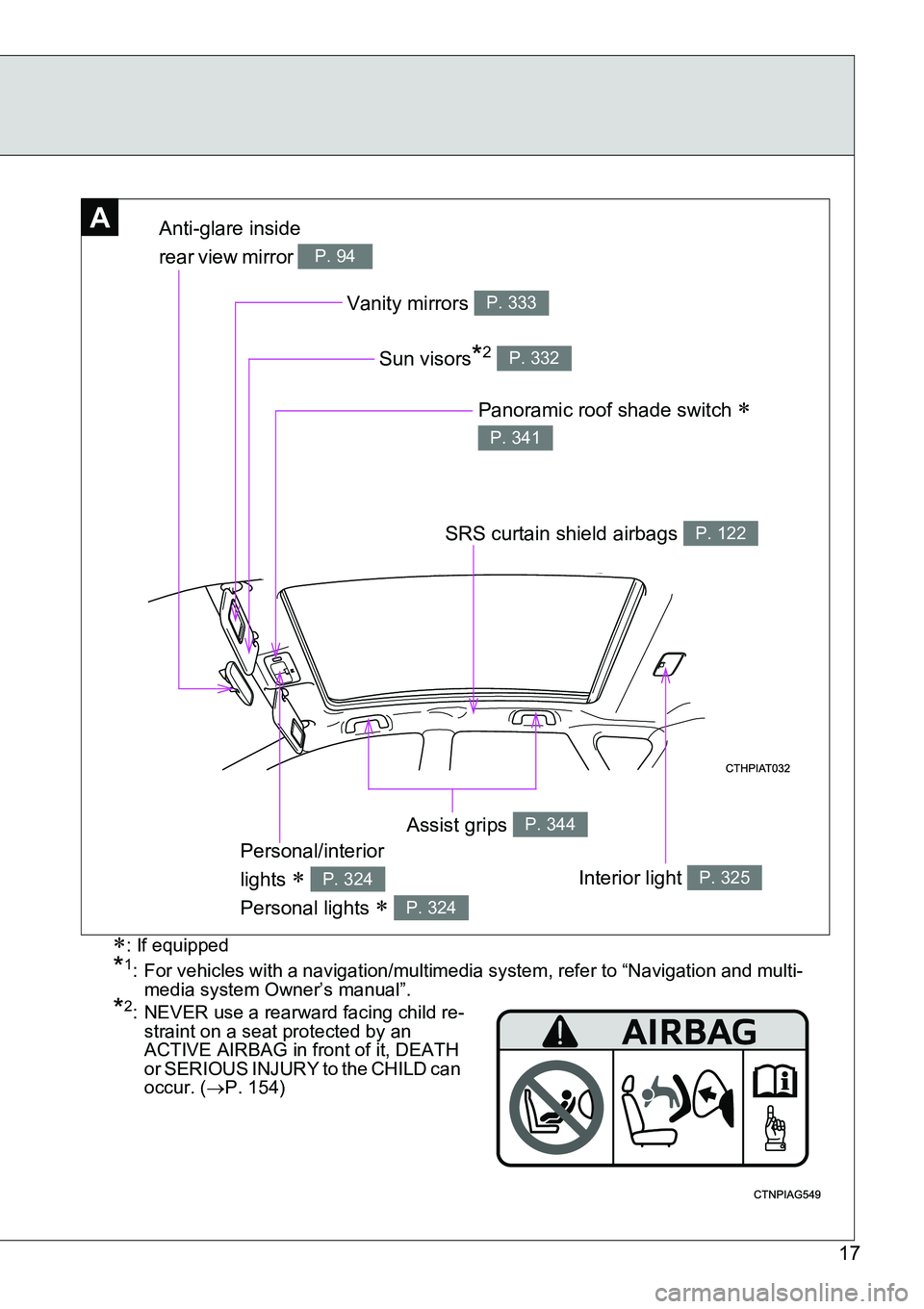

AAnti-glare inside
rear view mirror
P. 94
Panoramic roof shade switch 
P. 341
Interior light P. 325
Vanity mirrors P. 333
Personal/interior
lights

Personal lights

P. 324
P. 324
Sun visors*2 P. 332
SRS curtain shield airbags P. 122
: If equipped
*1: For vehicles with a navigation/multimedia system, refer to “Navigation and multi-
media system Owner’s manual”.
Assist grips P. 344

19
Headlight switch
Turn signal lever
Fog light switch P. 213
P. 195
P. 219
Hood lock release lever
P. 367
SRS driver knee
airbag
P. 122
Audio system 
Navigation/Multimedia system
,*
P. 283
Fuel filler door
opener
P. 101
Floor mat
P. 345
Emergency flasher switch P. 436
Gauges and meters P. 198
Windshield wiper and
washer switch
P. 221, 227
Shift lock override
button
 P. 495
Power outlet P. 336
: If equipped*: Refer to “Navigation and multimedia system Owner’s manual”.
Cup holders P. 331
Pictorial indexInstrument panel
(Right-hand drive vehicles)

123 1-7. Safety information
1
Before driving
SRS airbag system components
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.Curtain shield airbags
Side airbags
“PASSENGER AIR BAG”
indicator lights
Side impact sensors (rear)
SRS warning light
Side impact sensors (front)Seat belt pretensioners and
force limiters
Driver airbag
Knee airbag
Airbag sensor assembly
Front impact sensor
Airbag manual on-off switch
Front passenger airbag

133
1
1-7. Safety information
Before driving
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
“PASSENGER AIR BAG”
indicator
Vehicles without a smart
entry & start system
This indicator light turns on
when the airbag system is on
(only when the engine switch is
in the “ON” position).
Vehicles with a smart entry &
start system
This indicator light turns on
when the airbag system is on
(only when the “ENGINE
START STOP” switch is in
IGNITION ON mode).
Airbag manual on-off switch
