2015 TOYOTA VERSO S Airbag switch

134 1-7. Safety information
Deactivating the front seat passenger airbag
Vehicles without a smart entry
& start system
Insert the key into the cylinder
and turn to the “OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry &
start system
Insert the mechanical key into
the cylinder and turn to the
“OFF” position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator light does not change when the airbag manual on-off switch
is switched to “ON” or “OFF”.

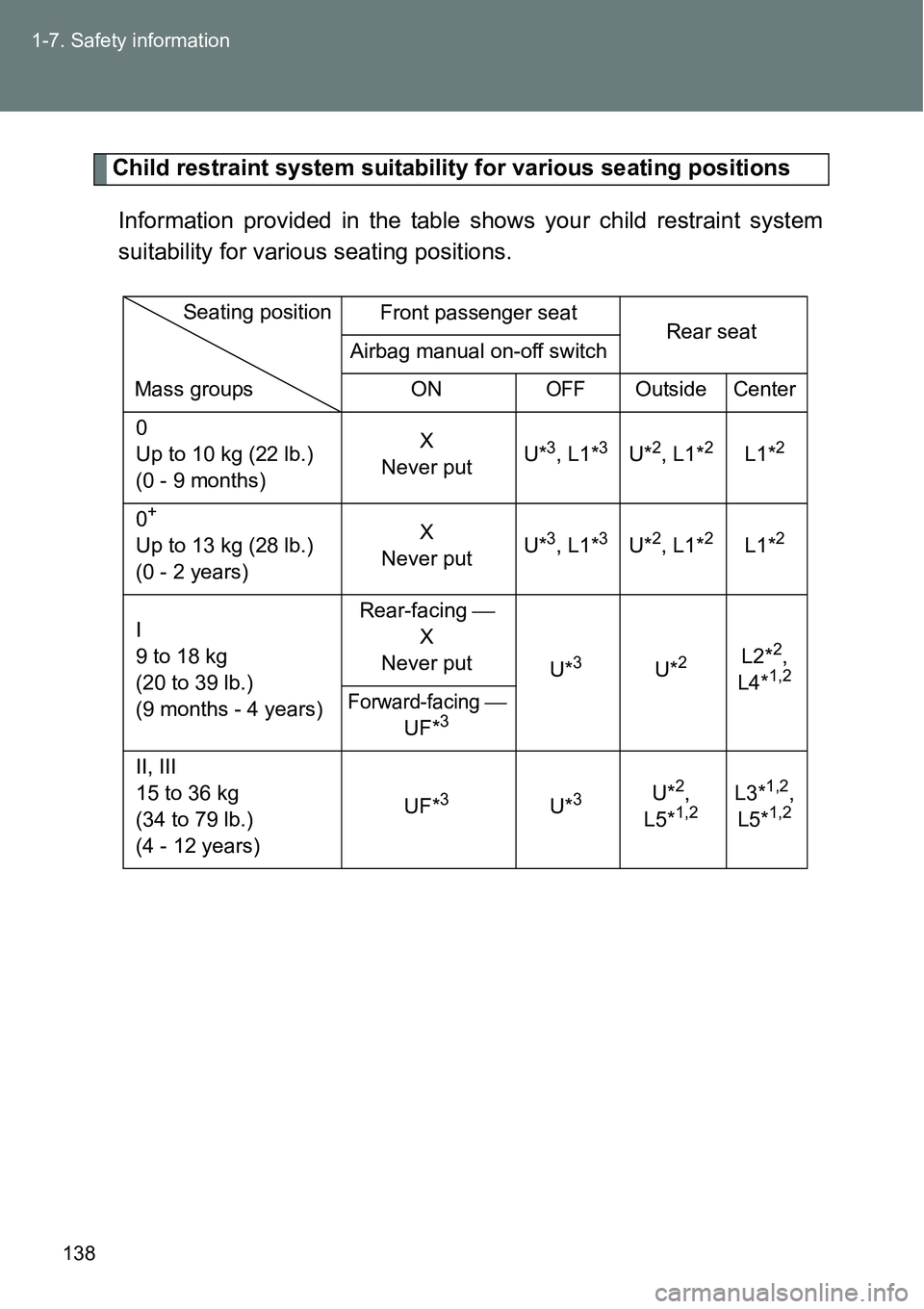

138 1-7. Safety information
Child restraint system suitability for various seating positions
Information provided in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
Rear seat
Airbag manual on-off switch
ON
OFFOutside Center
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU*
3, L1*3U*2, L1*2L1*2
0+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*3, L1*3U*2, L1*2L1*2
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Rear-facing 
X
Never put
U*
3U*2L2*2,
L4*1,2
Forward-facing 
UF*3
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF*
3U*3U*2,
L5*1,2L3*1,2,
L5*1,2
Mass groupsSeating position

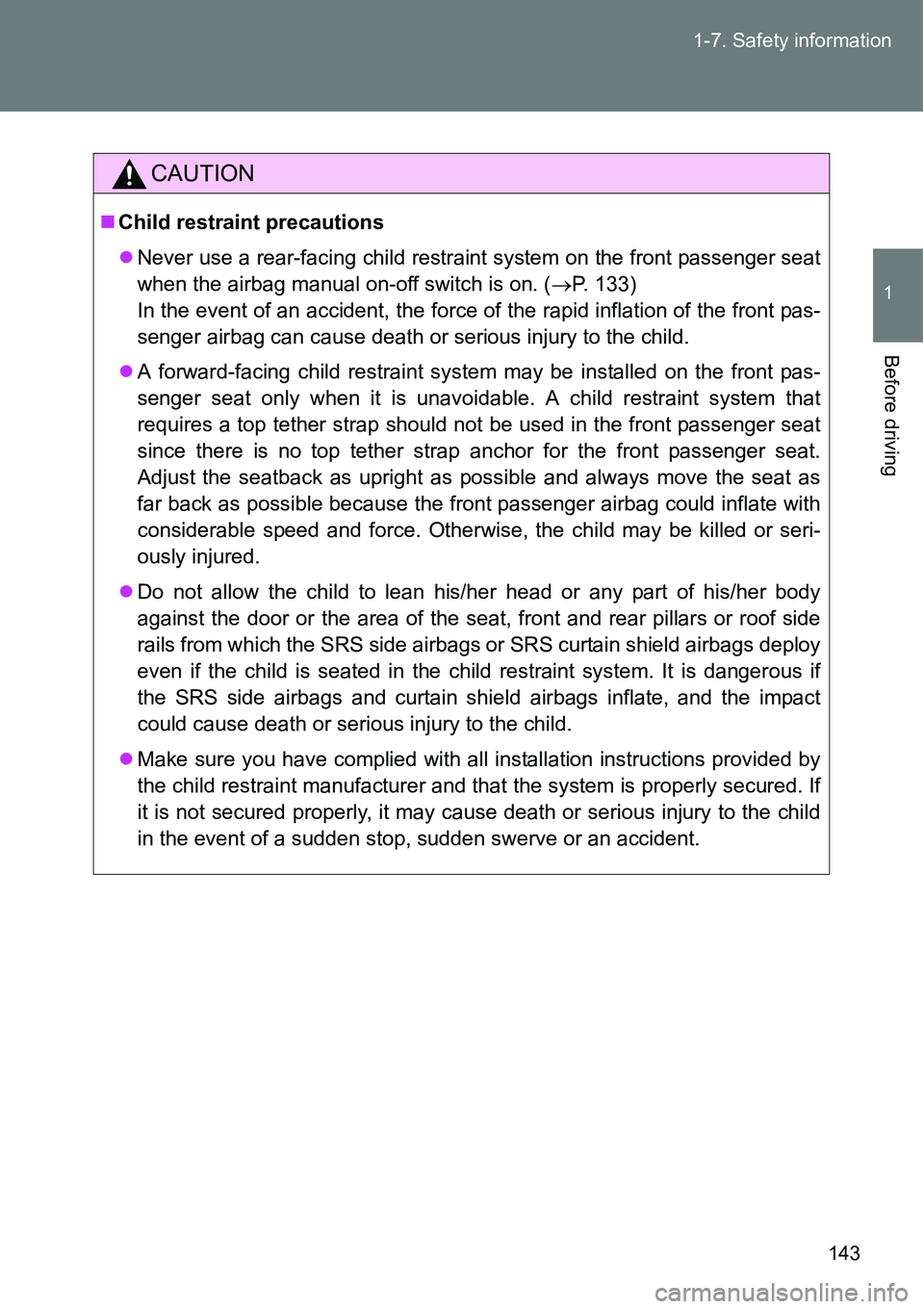

143 1-7. Safety information
1
Before driving
CAUTION
Child restraint precautions
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 133)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seri-
ously injured.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.

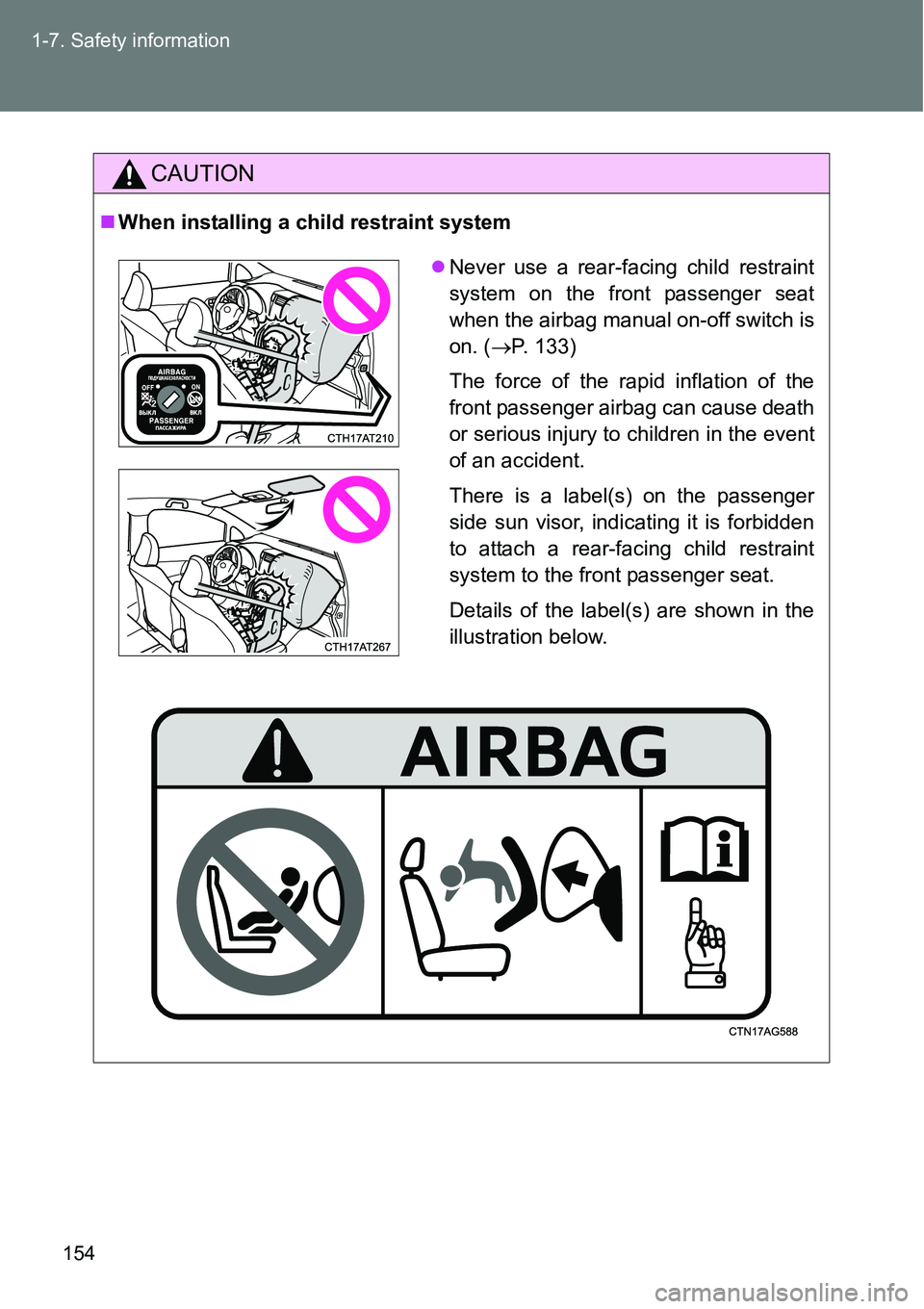

154 1-7. Safety information
CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 133)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

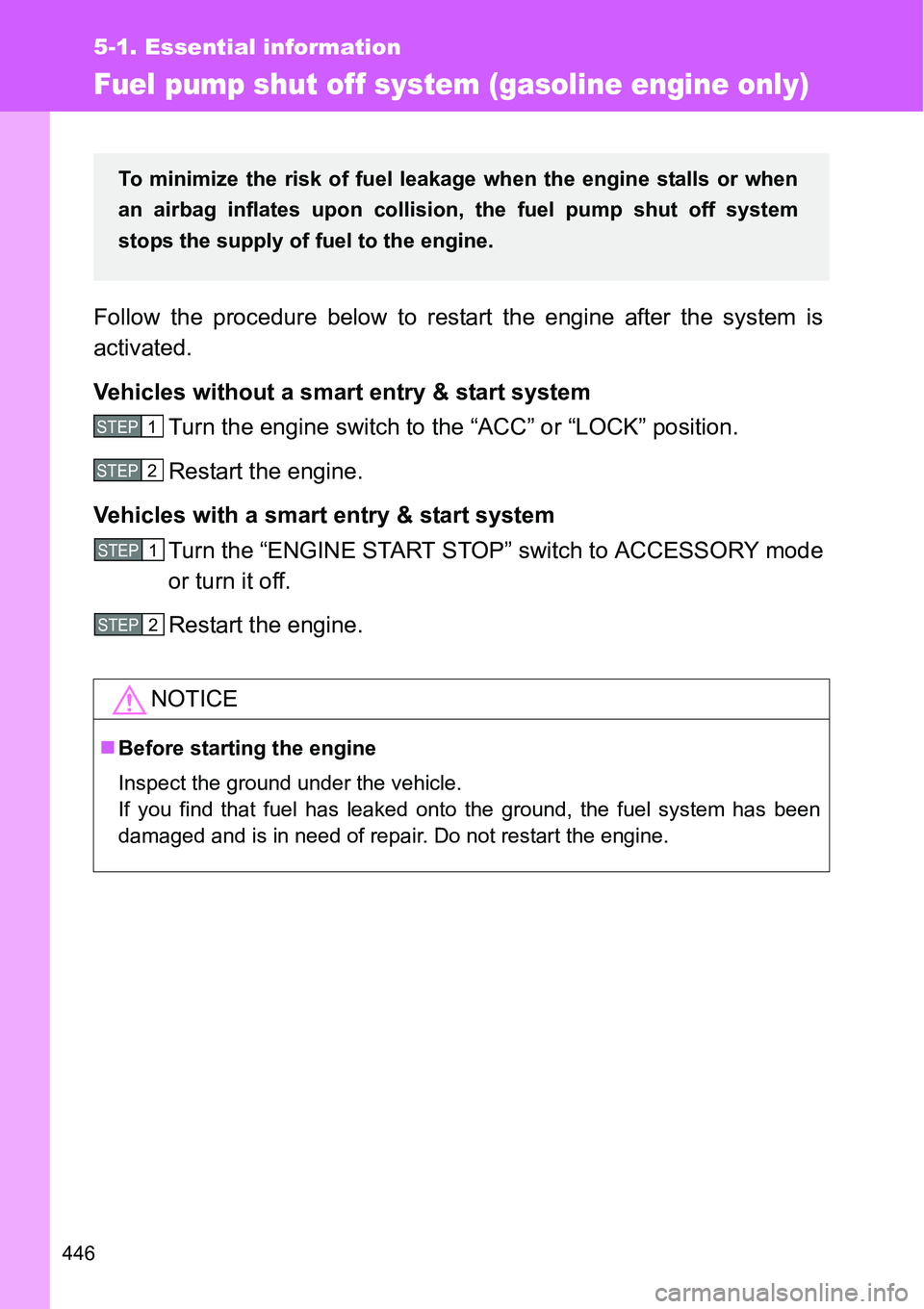

446
5-1. Essential information
Fuel pump shut off system (gasoline engine only)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when
an airbag inflates upon collision, the fuel pump shut off system
stops the supply of fuel to the engine.
STEP1
STEP2
STEP1
STEP2

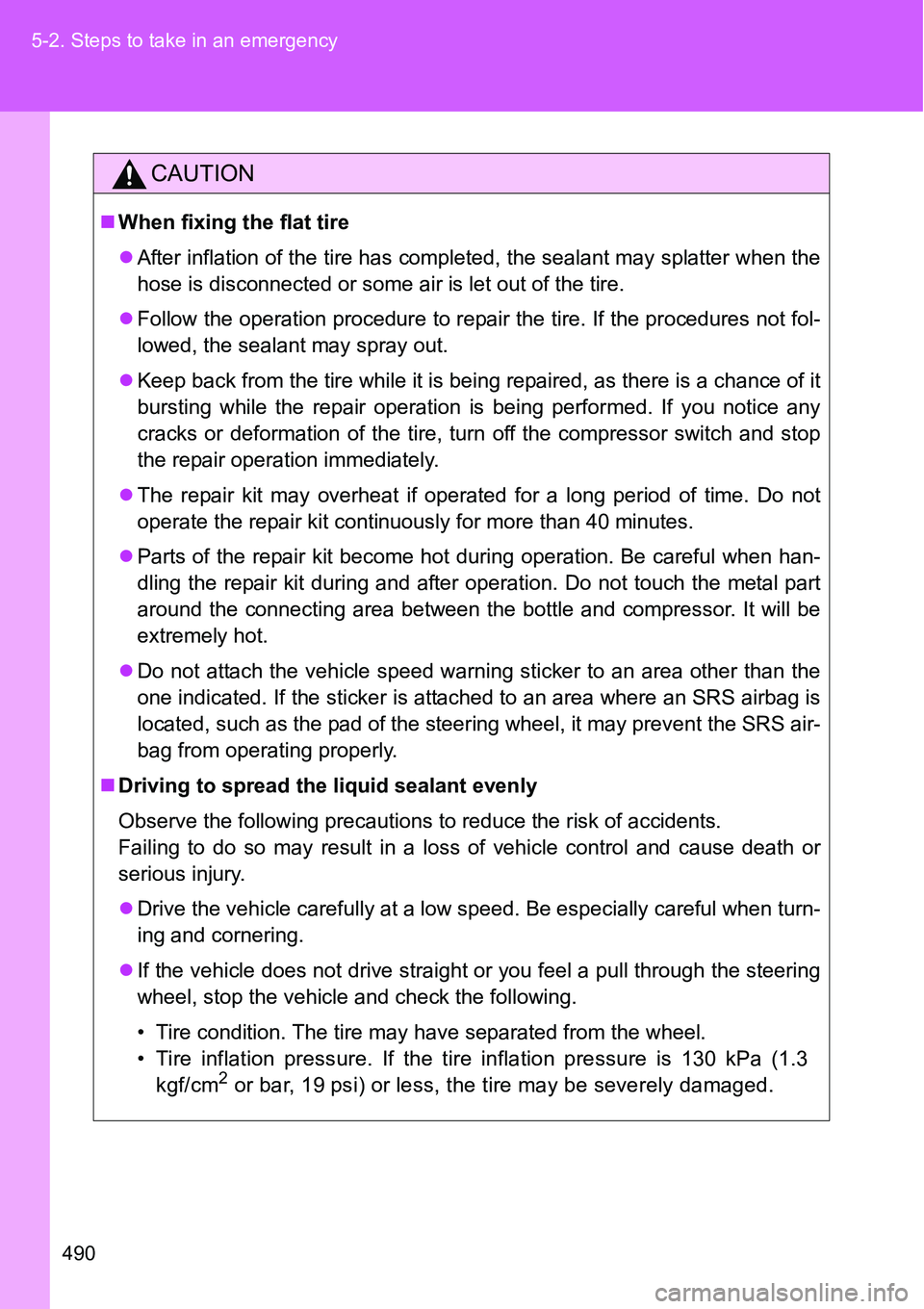

490 5-2. Steps to take in an emergency
CAUTION
When fixing the flat tire
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.
Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
around the connecting area between the bottle and compressor. It will be
extremely hot.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.
Driving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3
kgf/cm
2 or bar, 19 psi) or less, the tire may be severely damaged.

547
Alphabetical index
Alphabetical index
A/C..................................... 266, 272
ABS ........................................... 240
Air conditioning filter .............. 400
Air conditioning system
Air conditioning filter.............. 400
Automatic air conditioning
system ................................ 272
Manual air conditioning
system ................................ 266
Airbags
Airbag manual on-off
system ................................ 133
Airbag operating
conditions ........................... 124
Airbag precautions for
your child ............................ 128
Airbag warning light .............. 449
Curtain shield airbag
operating conditions ........... 124
Curtain shield airbag
precautions ......................... 128
General airbag precautions... 128
Locations of airbags .............. 122
Modification and disposal of
airbags ................................ 132
Proper driving posture... 120, 128
Side airbag operating
conditions ........................... 124
Side airbag precautions ........ 128
SRS airbags .......................... 122Antenna .................................... 357
Anti-lock brake system ........... 240
Armrest ..................................... 340
Assist grips .............................. 344
Audio input............................... 319
Audio system
Antenna ................................ 288
Audio input ............................ 319
AUX port ............................... 319
CD player .............................. 289
iPod....................................... 301
MP3/WMA disc ..................... 294
Optimal use........................... 317
Portable music player ........... 319
Radio .................................... 285
Steering wheel audio
switch ................................. 320
Type ...................................... 283
USB memory ........................ 309
Automatic air conditioning
system .................................... 272
Automatic light control
system .................................... 213
AUX port ................................... 319
Auxiliary box .................... 327, 348A

549 Alphabetical index
Child safety
Airbag precautions ................ 128
Battery precautions ....... 381, 507
Child-protectors....................... 68
Child restraint system ........... 136
How your child should wear
the seat belt .......................... 89
Installing child restraints........ 145
Panoramic roof shade
precautions ......................... 342
Power window lock switch ...... 98
Power window precautions ... 100
Removed key battery
precautions ......................... 406
Seat belt precautions .............. 89
Seat heater
precautions ......................... 339
Cleaning
Exterior.................................. 354
Interior ................................... 358
Seat belts .............................. 359Clock ......................................... 334
Condenser ................................ 378
Cooling system
Engine overheating ............... 509
Cruise control .......................... 236
Cup holders.............................. 331
Curtain shield airbags ............. 122
Customizable features ............ 540
*: Refer to “Navigation and multimedia system Owner’s manual”.
