2015 LEXUS RX350 Owners Manual

5
When trouble arises
7615-2. Steps to take in an emergency

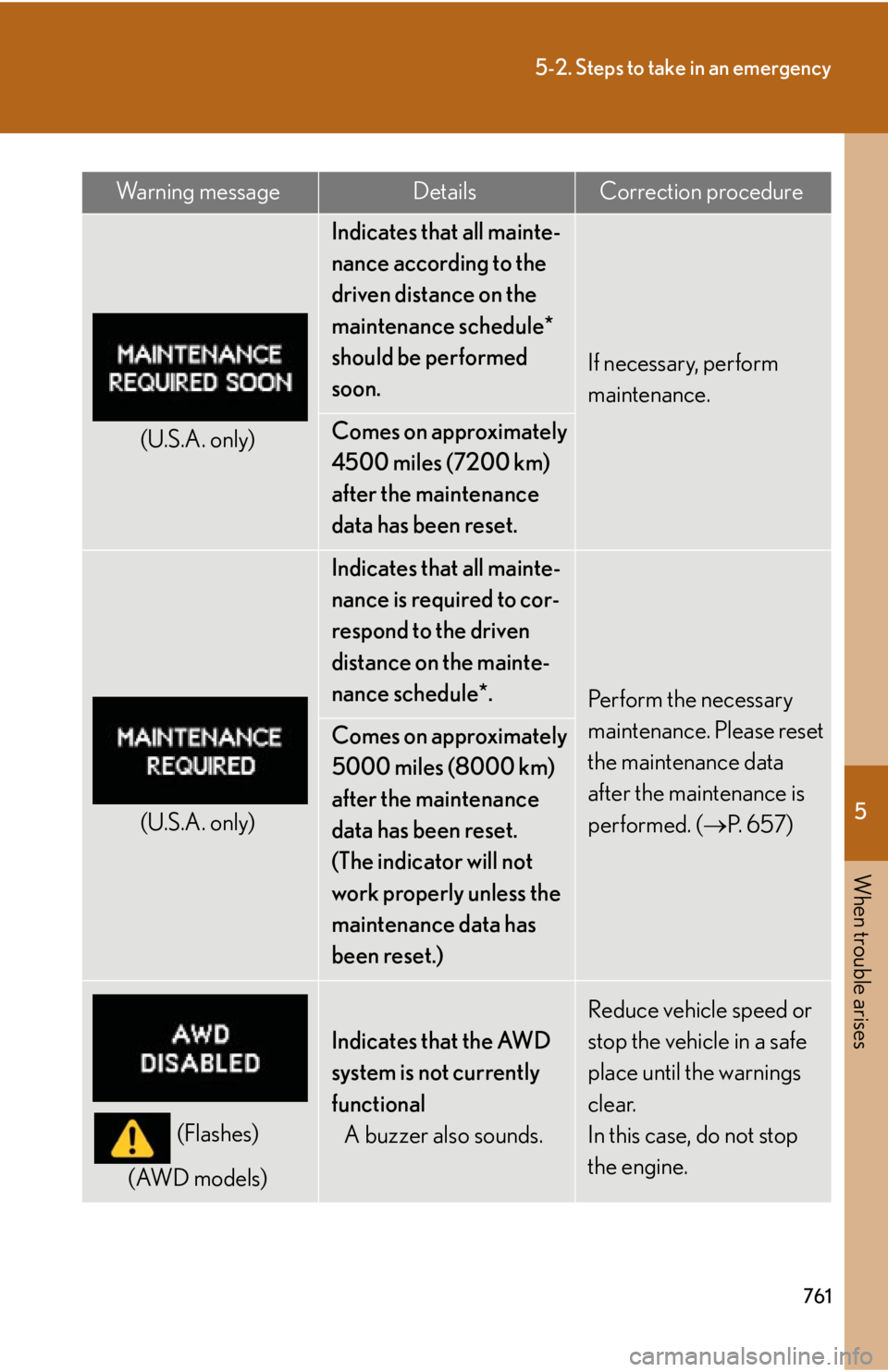

(U.S.A. only) Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule*
should be performed
soon. If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km)
after the maintenance
data has been reset.
(U.S.A. only) Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule*.
Perform the necessary
maintenance. Please reset
the maintenance data
after the maintenance is
performed. (  P. 6 5 7 )Comes on approximately
5000 miles (8000 km)
after the maintenance
data has been reset.
(The indicator will not
work properly unless the
maintenance data has
been reset.)
(Flashes)
(AWD models) Indicates that the AWD
system is not currently
functional
A buzzer also sounds. Reduce vehicle speed or
stop the vehicle in a safe
place until the warnings
clear.
In this case, do not stop
the engine.Wa r n i n g m e s s a g e Details Correction procedure

7625-2. Steps to take in an emergency
(If equipped) Indicates that the pre-
collision system is not
currently functional
because the grille or the
sensor is dirty.
This message also
appears when the pre-
collision system is not
functional due to over-
heating. • Check the grille and the
sensor and clean them if
they are dirty.
• In case of overheating,
the system will become
functional once the sys-
tem cools down.
(If equipped) Indicates that intuitive
parking assist is dirty or
covered with ice
A buzzer also sounds.
The site of the malfunc-
tion and the vehicle
image are flashing. Clean the sensor.
(If equipped) Indicates that the radar
cruise control sensor is
dirty or covered with ice
A buzzer also sounds. Clean the sensor.Wa r n i n g m e s s a g e Details Correction procedure

5
When trouble arises
7635-2. Steps to take in an emergency

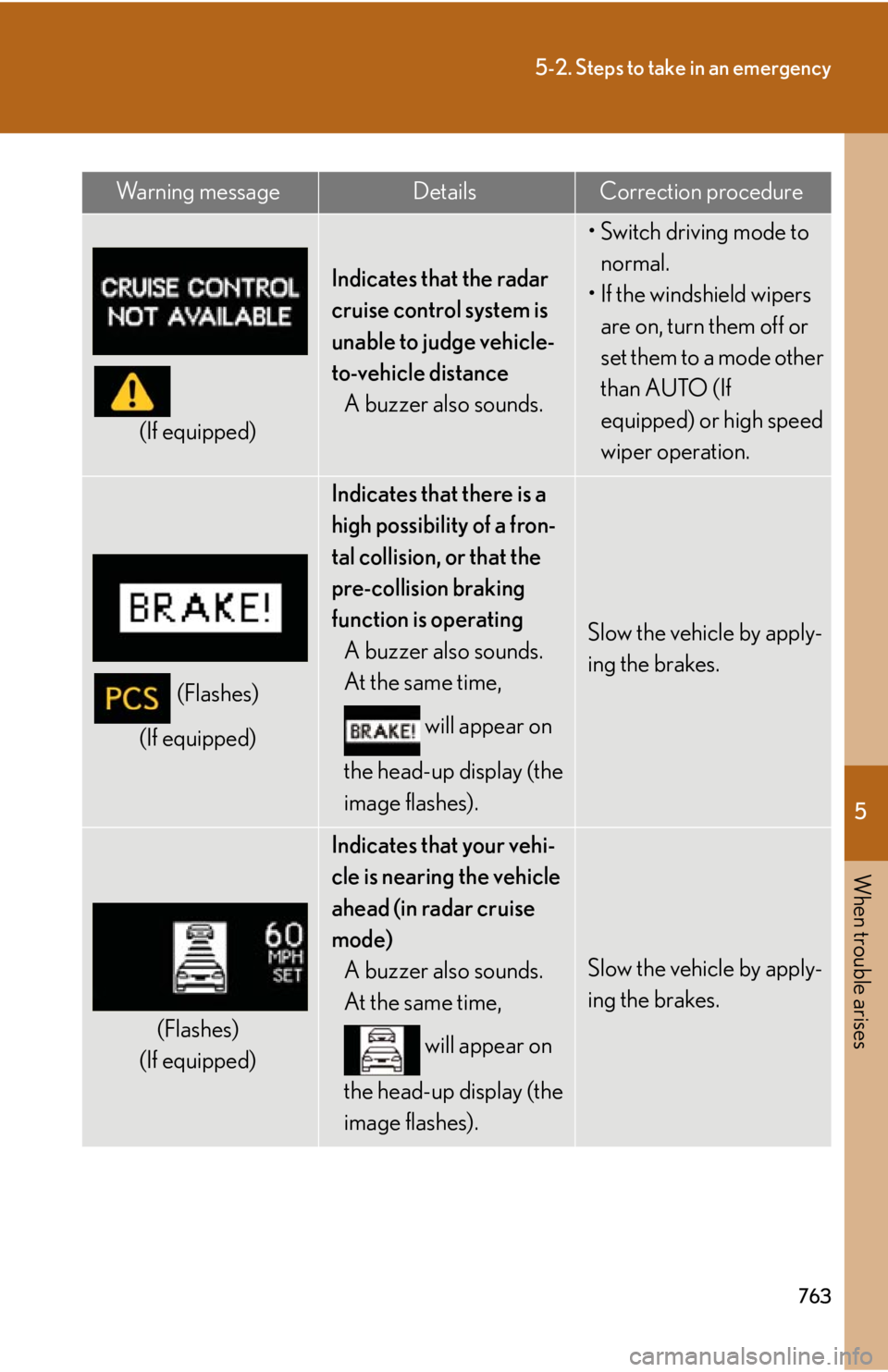

(If equipped) Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
A buzzer also sounds. • Switch driving mode to
normal.
• If the windshield wipers
are on, turn them off or
set them to a mode other
than AUTO (If
equipped) or high speed
wiper operation.
(Flashes)
(If equipped) Indicates that there is a
high possibility of a fron-
tal collision, or that the
pre-collision braking
function is operating
A buzzer also sounds.
At the same time,
will appear on
the head-up display (the
image flashes). Slow the vehicle by apply-
ing the brakes.
(Flashes)
(If equipped) Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode)
A buzzer also sounds.
At the same time,
will appear on
the head-up display (the
image flashes). Slow the vehicle by apply-
ing the brakes.Wa r n i n g m e s s a g e Details Correction procedure

7645-2. Steps to take in an emergency
Indicates that the engine
has overheated
A buzzer also sounds. Stop and check.
(  P. 7 9 9 )
Indicates that remaining
fuel is approximately 2.8
gal. (10.7 L, 2.3 Imp. gal.)
or less Refuel the vehicle.
(Flashes) Indicates that the
“ENGINE START STOP”
switch is turned off or
turned to ACCESSORY
mode and the driver's
door is opened while the
lights are turned on. Turn the lights off.
(If equipped) Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice. Clean the sensor and its
surrounding area on the
bumper.Wa r n i n g m e s s a g e Details Correction procedure

5
When trouble arises
7655-2. Steps to take in an emergency
*: Refer to the separate “Scheduled Maintenance” or “Owner's Manual Supple-

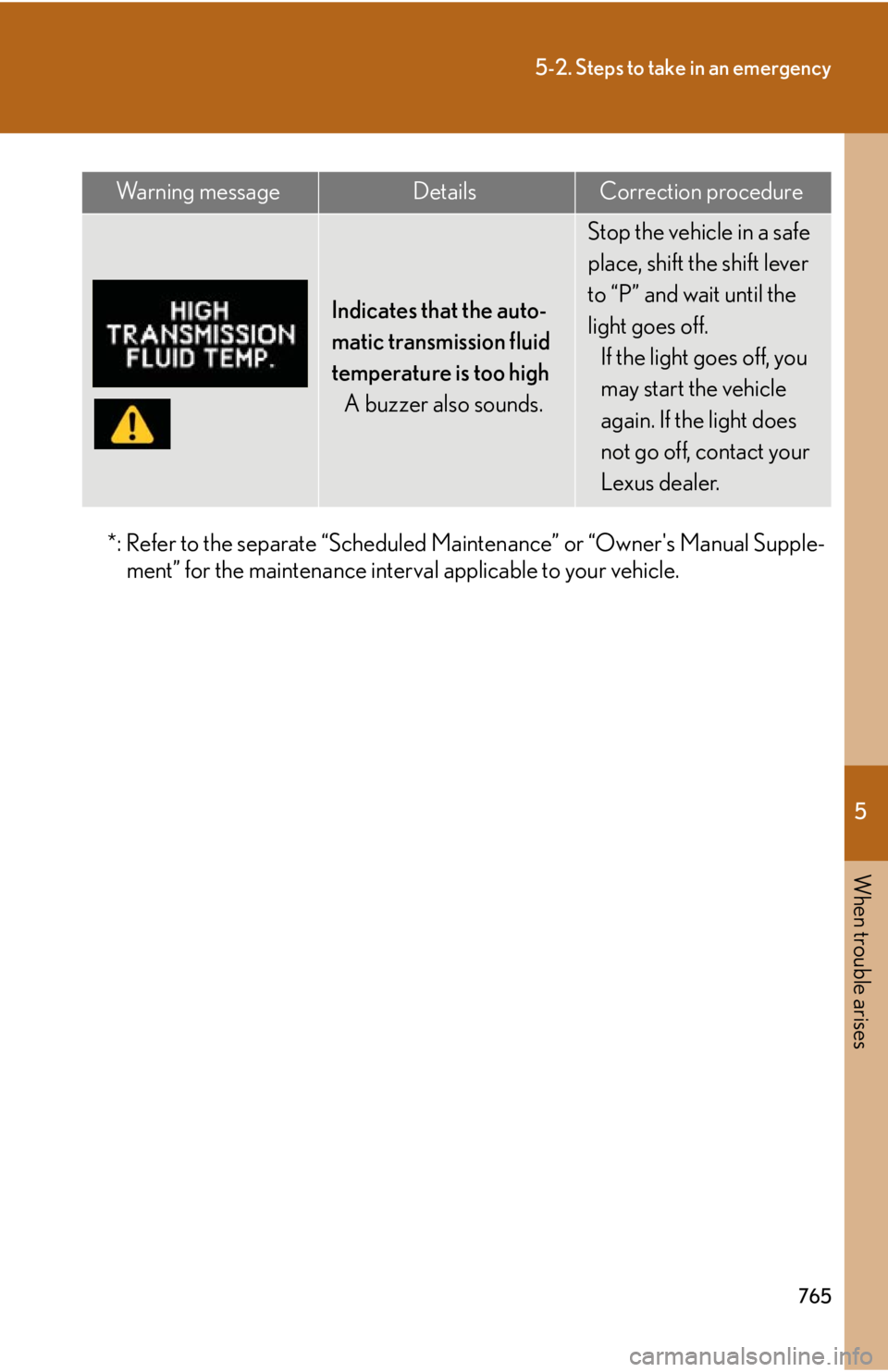

ment” for the maintenance interval applicable to your vehicle. Indicates that the auto-
matic transmission fluid
temperature is too high
A buzzer also sounds. Stop the vehicle in a safe
place, shift the shift lever
to “P” and wait until the
light goes off.
If the light goes off, you
may start the vehicle
again. If the light does
not go off, contact your
Lexus dealer.Wa r n i n g m e s s a g e Details Correction procedure

7665-2. Steps to take in an emergency
Have the malfunction repaired immediately
After taking the specified steps to co rrect the suspected problem, check
that the warning message and light go off. Interior
buzzer Exterior
buzzer Wa r n i n g m e s s a g e Details Correction
procedure
Sounds
once 
(Flashes) The electronic key
is not detected
when an attempt
is made to start
the engine. Confirm the loca-
tion of the elec-
tronic key.
Sounds
once Sounds
3 times
(Flashes) The electronic key
was carried out-
side the vehicle
and a door other
than the driver's
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off. Bring the elec-
tronic key back
into the vehicle.
The driver's door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in P and the
“ENGINE START
STOP” switch was
not turned off. Tu r n t h e
“ENGINE START
STOP” switch off
or bring the elec-
tronic key back
into the vehicle.

5
When trouble arises
7675-2. Steps to take in an emergency
Sounds
once Sounds
once
(Displayed alternately)
(Flashes) An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “ENGINE
START STOP”
switch off. Tu r n t h e
“ENGINE START
STOP” switch off
and lock the
doors again.
Sounds
once 
(Flashes) An attempt was
made to start the
engine without
the electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle. Confirm that the
electronic key is
inside the vehicle.Interior
buzzer Exterior
buzzer Wa r n i n g m e s s a g e Details Correction
procedure

7685-2. Steps to take in an emergency
Con-
tinuous 
(Flashes) The driver’s door
was opened when
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off. Shift the shift lever
to P.
Con-
tinuous Con-
tinuous
(Displayed alternately)
(Flashes) The driver's door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off. • Shift the shift
lever to P.
• Bring the elec-
tronic key back
into the vehicle.Interior
buzzer Exterior
buzzer Wa r n i n g m e s s a g e Details Correction
procedure
