2015 LEXUS RX350 Owners Manual

13711-7. Safety information
Before driving Child restraint systems
Points to remember
Studies have shown that installing a ch ild restraint on a rear seat is much
safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropri-
ate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions ar e provided in this manual. (  P. 141)
Types of child restraints
Child restraint systems are classified into the following 3 types according
to the age and size of the child.
Rear facing  Infant seat/convertible seatA child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.

1381-7. Safety information
Forward facing  Convertible seat
Booster seat
■
Selecting an appropriate child restraint system ●
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.●
If the child is too large for a child restraint system, sit the child on a rear seat and
use the vehicle's seat belt. (  P. 8 3 )

1391-7. Safety information
1
Before driving CAUTION■
Child restraint precautions ●
For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a chil d in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle's interior. This may cause death or serious
injury to the child in the event of a sudden stop or an accident.●
Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.●
Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illumi nated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if a rear-facing child restraint system is installed on the front
passenger seat.●
A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possi-
ble and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because th e front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.●
Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of a sudden stop, sudden swerve or accident.

1401-7. Safety information
CAUTION■
Child restraint precautions ●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.●
Make sure you have complied with all inst allation instructions provided by the
child restraint manufacturer and that the sy stem is properly secured. If it is not
secured properly, it may cause death or seri ous injury to the child in the event of a
sudden stop, sudden swerve or an accident.■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be un fastened, scissors shou ld be used to cut
the belt.■
When the child restraint system is not in use ●
Keep the child restraint system properly secu red on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.●
If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.

14111-7. Safety information

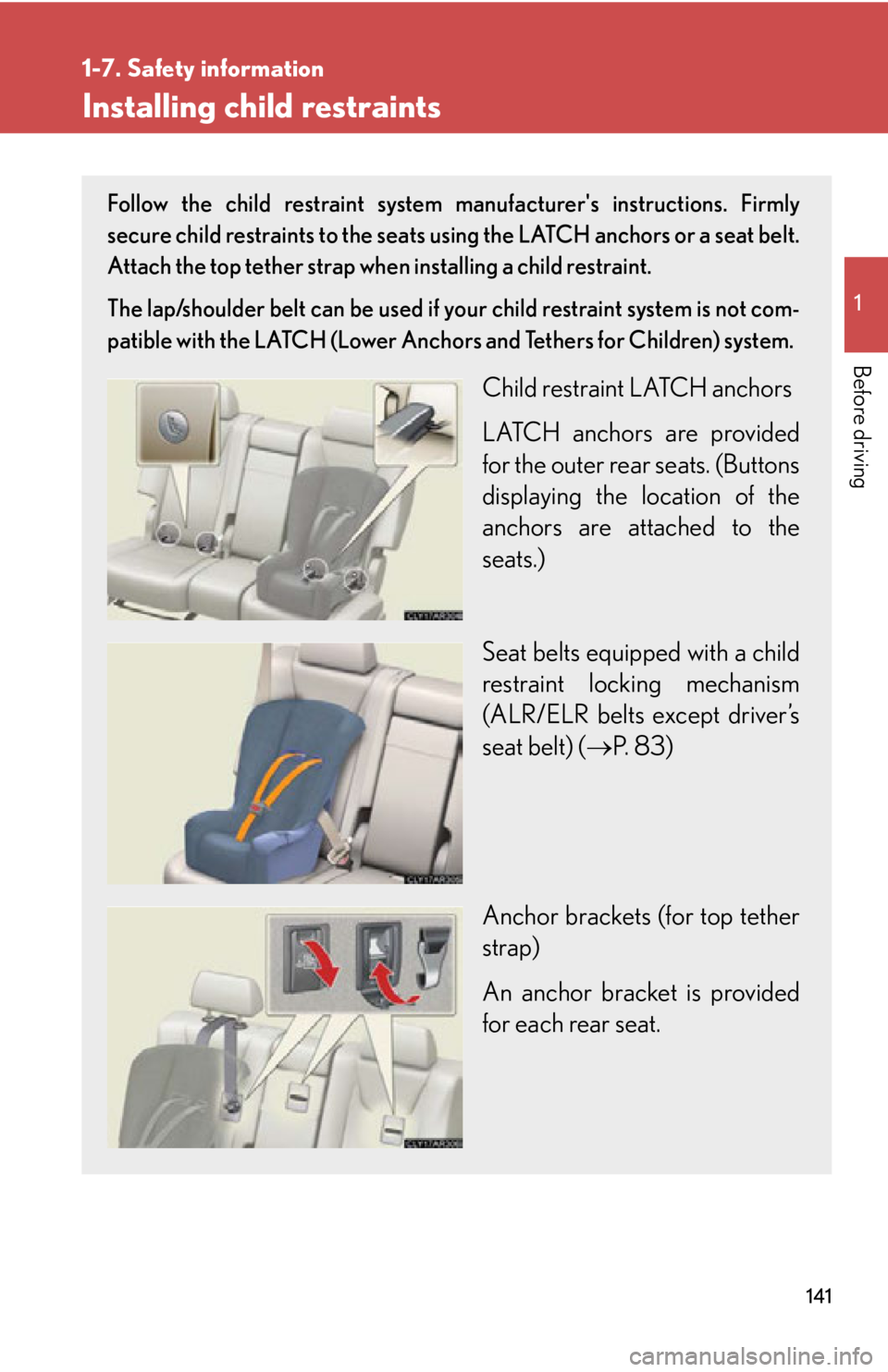

Before driving Installing child restraints Follow the child restraint system ma nufacturer's instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchor s and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outer rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (  P. 8 3 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided
for each rear seat.

1421-7. Safety information
Installation with LATCH system
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Widen the gap between the seat cushion and seatback slightly.
Type A
Latch the hooks of the lower straps
onto the LATCH anchors. If the
child restraint has a top tether
strap, the top tether strap should
be latched onto the top tether
strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.STEP 1
STEP 2
Canada onlySTEP 3

1431-7. Safety information
1
Before driving Type B
Latch the buckles onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
If the child restraint has a top tether strap, the top tether strap
should be latched onto th e top tether strap anchor. (  P. 1 4 8 )Canada onlySTEP 3
STEP 4

1441-7. Safety information
Installing child restraints using a seat belt (child restraint lock function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Place the child restraint system on
the rear seat facing the rear of the
vehicle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.STEP 1
STEP 2
STEP 3
