2015 LEXUS RX350 Owners Manual

1291-7. Safety information
1
Before driving CAUTION■
SRS airbag precautions ●
Do not sit on the edge of the seat or lean
against the dashboard.
●
Do not allow a child to stand in front of the
SRS front passenger ai rbag unit or sit on
the knees of a front passenger. ●
Do not allow the front seat occupants to
hold items on their knees.
●
Do not lean against the door, the roof side
rail or the front, side and rear pillars.
●
Do not allow anyone to kneel on the pas-
senger seats toward the door or put their
head or hands outside the vehicle.

1301-7. Safety information
CAUTION■
SRS airbag precautions
●
If a vinyl cover is put on the area where the SRS knee airbags will deploy, be sure
to remove it.●
Do not use seat accessories which cove r the parts where the SRS side airbags
inflate as they may interfere with inflat ion of the airbags. Such accessories may
prevent the side airbags from activating co rrectly, disable the system or cause the
side airbags to inflate accidentally, resulting in death or serious injury.●
Do not strike or apply significant levels of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to malfunction.
●
Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●
If breathing becomes diffic ult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●
If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes, are damaged or cracked, have them replaced by
your Lexus dealer. ●
Do not attach anything to or lean anything
against areas such as the dashboard, steer-
ing wheel pad or lower portion of the
instrument panel.
These items can become projectiles when
SRS driver, front passenger and knee air-
bags deploy. ●
Do not attach anything to areas such as the
door, windshield glass, side door glass,
front and rear pillars, roof side rail or assist
grip. ●
Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and may
cause death or serious injury, should the
SRS curtain shield airbags deploy.

1311-7. Safety information
1
Before driving CAUTION■
SRS airbag precautions ●
Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, wh ich prevents the sensor from detecting
the passenger's weight properly. As a re sult, the SRS front passenger airbag may
not deploy in the event of a collision.■
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or
serious injury. ●
Installation, removal, disassembly and repair of the SRS airbags●
Repairs, modifications, removal or replace ment of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails●
Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment●
Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches●
Modifications to the vehi cle's suspension system●
Installation of elec tronic devices such as mobile two-way radios or CD players●
Modifications to your vehicle for a person with a physical disability

1321-7. Safety information

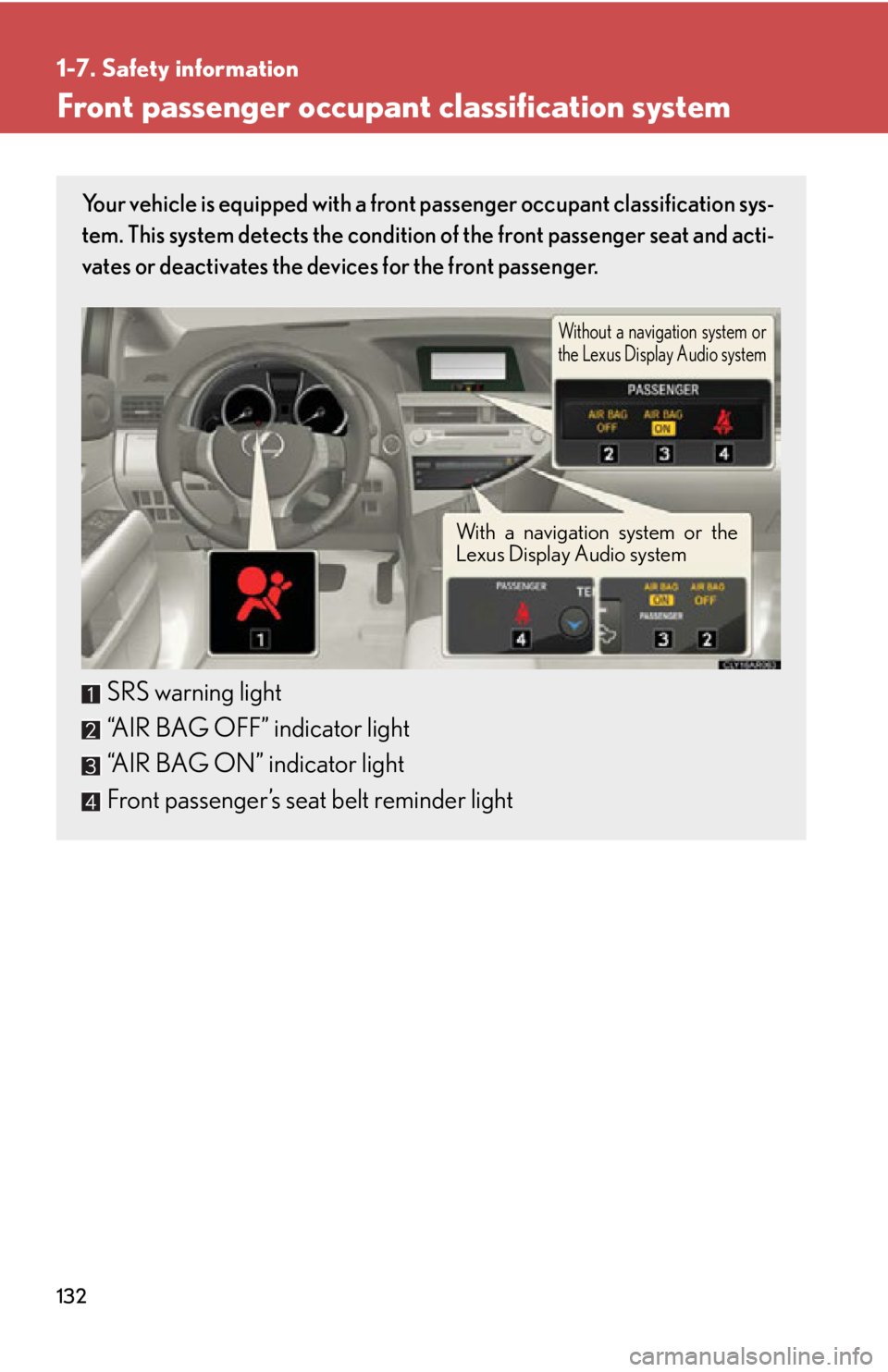

Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the condition of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light Without a navigation system or
the Lexus Display Audio system
With a navigation system or the
Lexus Display Audio system

1331-7. Safety information
1
Before driving Condition and operation in the front passenger occupant classification system
■ Adult *1
■ Child *3
or child restraint system *4Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag
ActivatedSide airbag on the front
passenger seats
Curtain shield airbag in the front passenger
side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF” *5
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

1341-7. Safety information
■ Unoccupied
■ There is a malfunction in the system
* 1
: The system judges a person of adul t size as an adult. When a smaller
adult sits in the front passenger se at, the system may recognize him/
her as a child depending on his/her physique and posture.
* 2
: In the event the front passenger does not wear a seat belt. Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Deactivated or
activated* 6
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Flashing
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

1351-7. Safety information
1
Before driving * 3
: When a larger child who has outgrow n a child restraint system sits in
the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique or posture.
* 4
: Never install a rear-facing child re straint system on the front passen-
ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
(  P. 137)
* 5
: If the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (  P. 141)
* 6
: Activated only in cases of side impact CAUTION■
Front passenger occupant classi fication system precautions
Observe the following precautions regarding the front passenger occupant classifi-
cation system.
Failure to do so may cause death or serious injury. ●
Wear the seat belt properly.●
Make sure the front passenge r’s seat belt tab has not b een left inserted into the
buckle before someone sits in the front passenger seat.●
Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passen ger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the
passenger may not activate correctly, which could cause death or serious injury
in the event of collision.
●
Do not apply a heavy load to the front passenger seat or equipment.
●
Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●
Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●
Do not put objects under the front passenger seat.

1361-7. Safety information
CAUTION■
Front passenger occupant classi fication system precautions●
Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIR BAG OFF” indicator ligh t to be illuminate d, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear se at, return the seatback to a position where it does
not touch the rear seat. Keep the front pa ssenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.●
If an adult sits in the front passenger se at, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still rema ins illuminated, either ask the pas-
senger to move to the rear seat, or if th at is not possible, move the front passenger
seat fully rearward.●
When it is unavoidable to install the forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. (  P. 141)●
Do not modify or remove the front seats.●
Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction of the detection sys-
tem. In this case, contact your Lexus dealer immediately.●
Child restraint systems installed on the rear seat should not contact the front seat-
backs.●
Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.●
Do not modify or replace the upholstery of the front seat.
