2015 LEXUS RX350 Owners Manual

2012-2. Instrument cluster
2

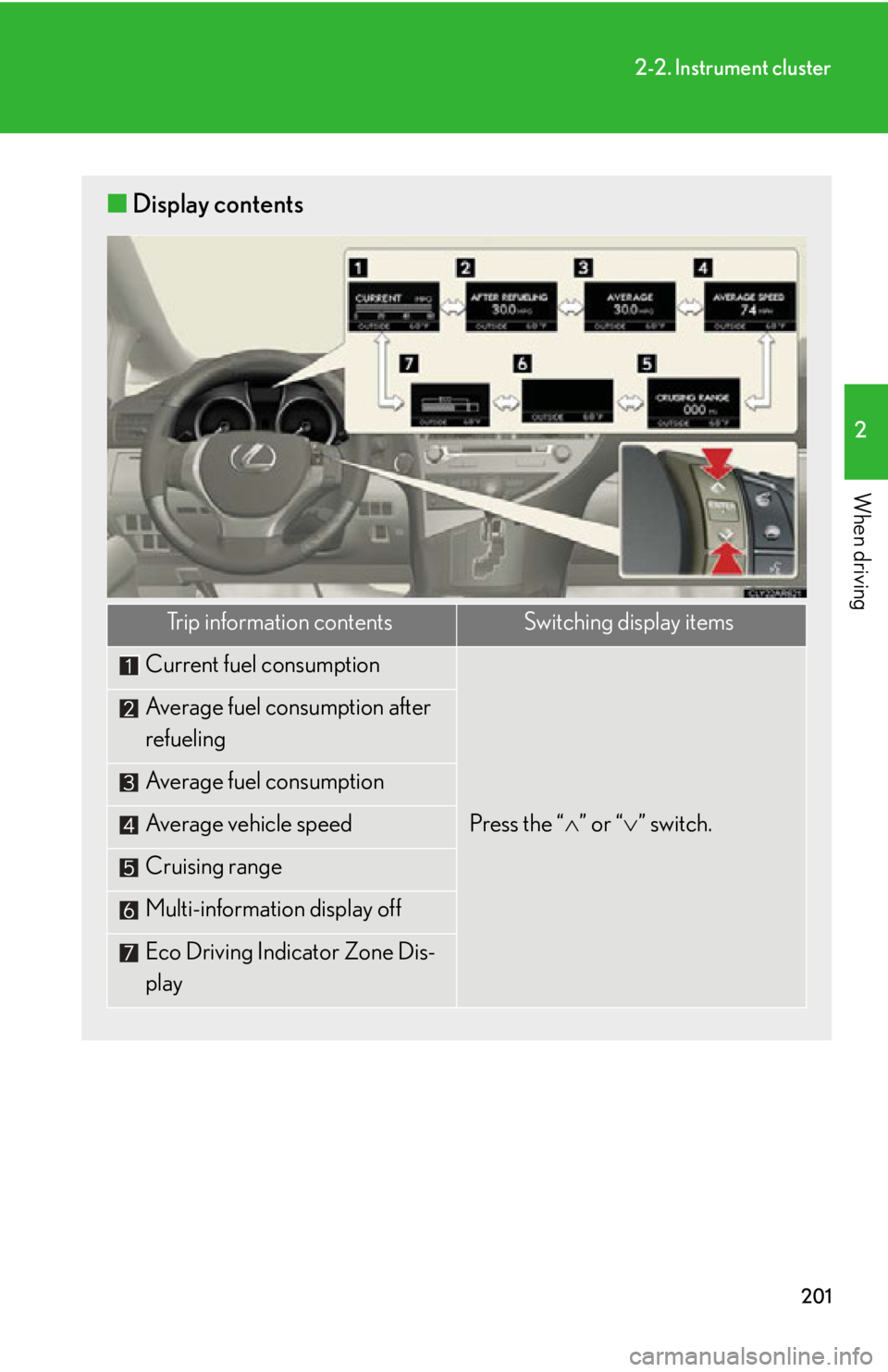

When driving ■ Display contents
Trip information contents Switching display items
Current fuel consumption
Press the “  ” or “  ” switch.Average fuel consumption after
refueling
Average fuel consumption
Average vehicle speed
Cruising range
Multi-information display off
Eco Driving Indicator Zone Dis-
play

2022-2. Instrument cluster

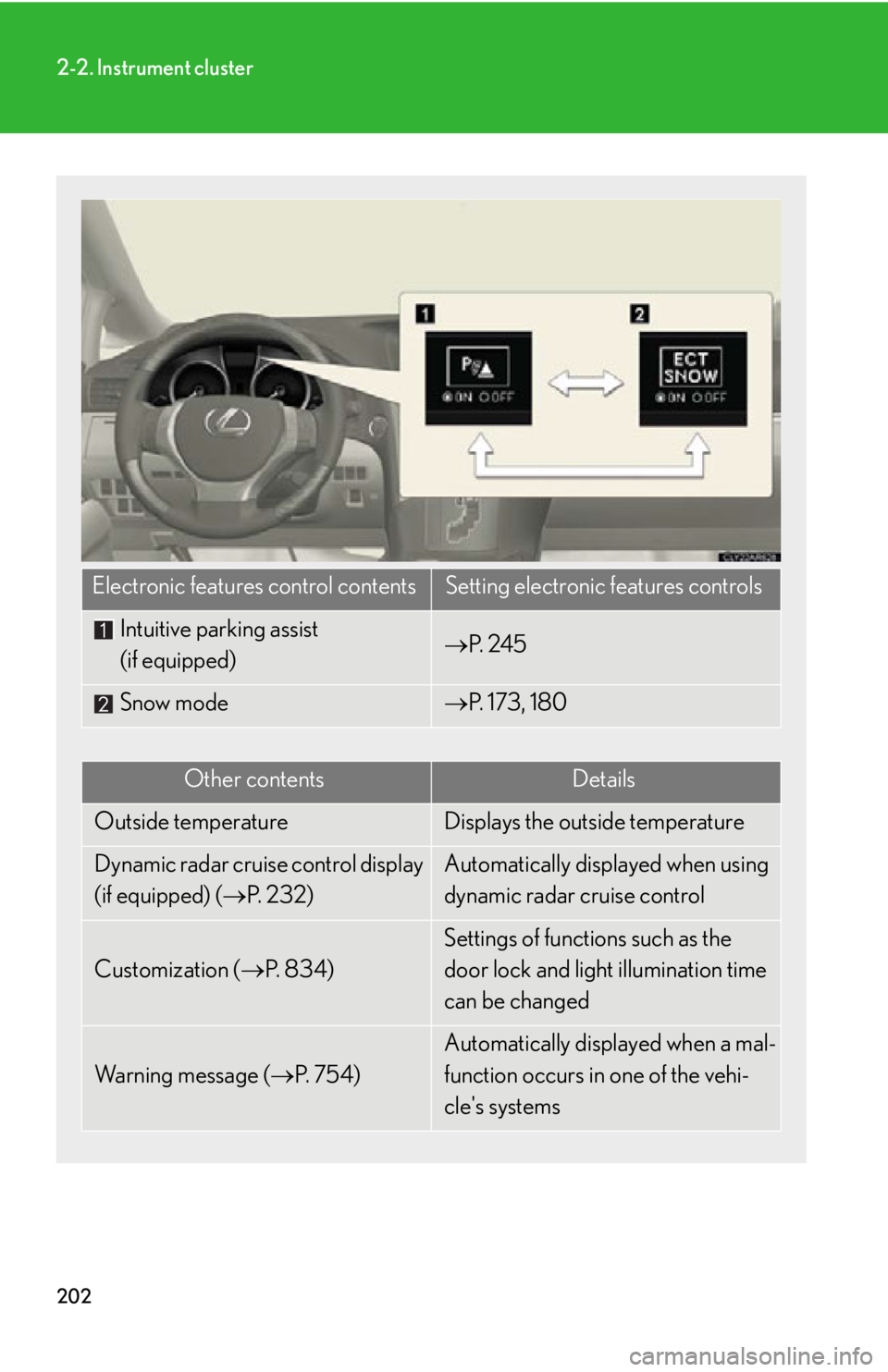

Electronic features control contents Setting electronic features controls
Intuitive parking assist
(if equipped)  P. 2 4 5
Snow mode  P. 173, 180
Other contents Details
Outside temperature Displays the outside temperature
Dynamic radar cruise control display
(if equipped) (  P. 232) Automatically displayed when using
dynamic radar cruise control
Customization (  P. 8 3 4 ) Settings of functions such as the
door lock and light illumination time
can be changed
Wa r n i n g m e s s a g e (  P. 7 5 4 ) Automatically displayed when a mal-
function occurs in one of the vehi-
cle's systems

2032-2. Instrument cluster
2
When driving Trip information
■ Current fuel consumption
Displays the current ra te of fuel consumption
■ Average fuel consumption after refueling
Displays the average fuel consumptio n since the vehicle was last refu-
eled Use the displayed average fuel consumption as a reference.
■ Average fuel consumption
Displays the average fuel consumpti on since the function was reset• The function can be reset by pushing the “ENTER” switch for longer
than one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■ Average vehicle speed
Displays the average vehicle speed since the function was reset The function can be reset by pushing the “ENTER” switch for longer than
one second when the average vehicle speed is displayed.
■ Cruising range
Displays the estimated maximum distan ce that can be driven with the
quantity of fuel remaining
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the “ENGINE START STOP” switch off. If the
vehicle is refueled without turning the “ENGINE START STOP” switch
off, the display may not be updated.
■ Eco Driving Indicator Zone Display
 P. 2 0 4

2042-2. Instrument cluster
■
Electronic features control can be turned on/off when
The “ENGINE START STOP” switch is in IGNITION ON mode.■
Conditions for ending electronic features control
In the following situations, the electronic features control will end: ●
The menu switch is pressed.●
The dynamic radar cruise control is operated (if equipped).●
Intuitive parking assist starts operating (if equipped).●
No action is performed for some time after the electronic features control
screen is displayed.●
A warning message appears after the electronic features control screen is dis-
played.■
Eco Driving Indicator
■
Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●
When stopped, or driving at low speeds (less than 16 mph [25 km/h])
●
When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.) Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on.
Eco Driving Indicator Zone Display
Suggests Eco driving range with current
Eco driving ratio based on acceleration.
Zone of Eco driving
Eco driving ratio based on acceleration
If Zone of Eco driving is exceeded, the
right of Eco Driving Indicator Zone Dis-
play will blink and Eco Driving Indicator
Light will turn off.

2052-2. Instrument cluster
2
When driving ■
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed. ■
Customization
Settings (e.g. available la nguages) can be changed.
(Customizable features  P. 8 3 4 )
CAUTION■
Caution while driving
When operating the electronic features control while driving, take extra notice of
the vehicle's surrounding area.

2062-2. Instrument cluster

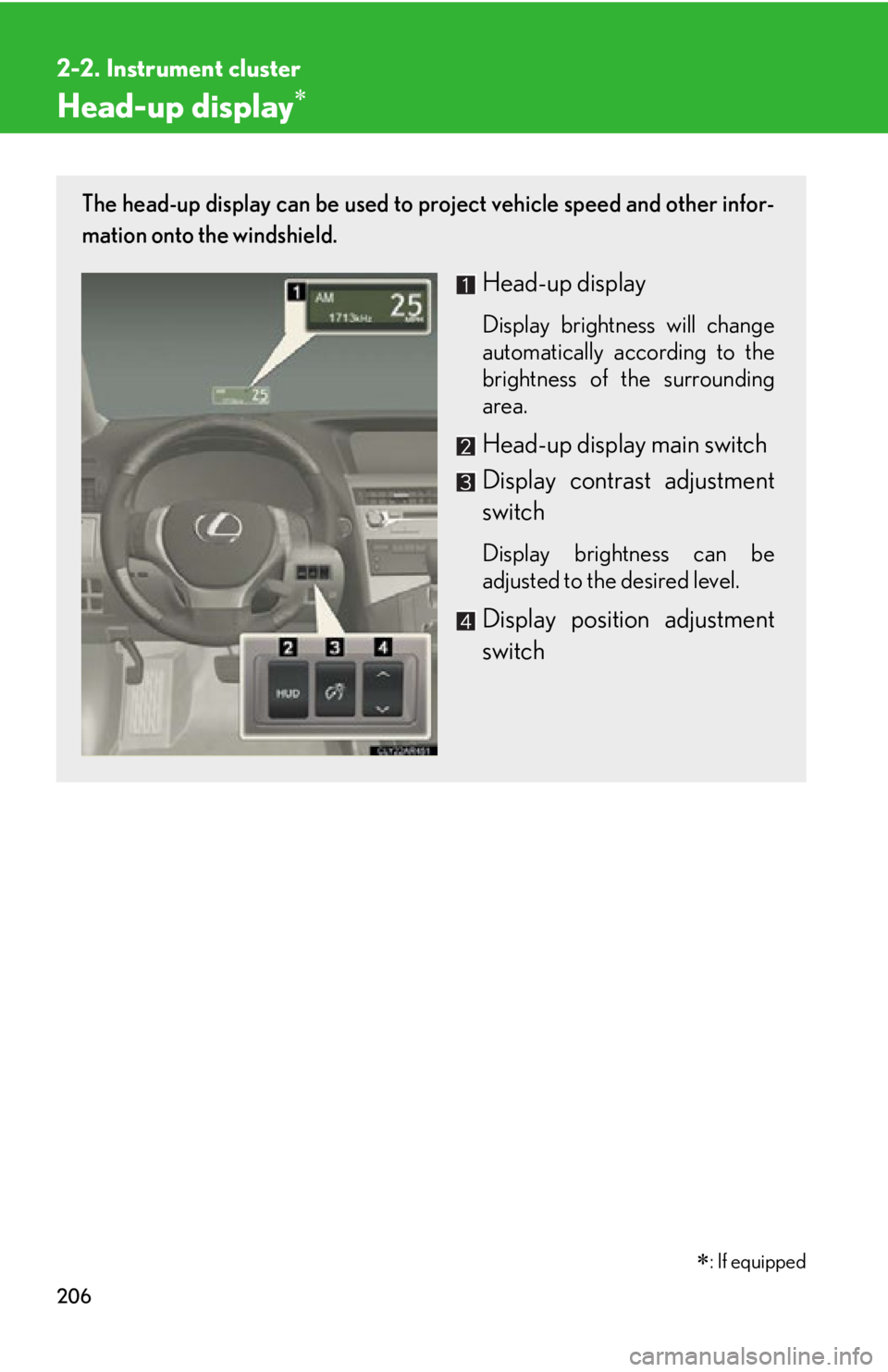

Head-up display The head-up display can be used to project vehicle speed and other infor-
mation onto the windshield.
Head-up display Display brightness will change
automatically according to the
brightness of the surrounding
area.
Head-up display main switch
Display contrast adjustment
switch Display brightness can be
adjusted to the desired level.
Display position adjustment
switch
 : If equipped

2072-2. Instrument cluster
2
When driving ■ Head-up display contents
In addition to vehicle sp eed, the following informa tion will be displayed:
Audio display Displays audio information for
approximately 3 seconds when
the audio system is operated
Shift position and shift range
display Displays the selected shift posi-
tion or selected shift range
(  P. 171, 178)
Dynamic radar cruise con-
trol display (if equipped) Displays the approach warning
message (  P. 7 5 9 )
Pre-collision system display
(if equipped) Displays the brake warning
(  P. 7 5 9 )
Turn-by-turn navigation
display*
Displays a notification of
upcoming intersections during
navigation system route guid-
ance
Vehicle speed display
*: Refer to the “Navigation System
Owner’s Manual”.

2082-2. Instrument cluster
Head-up display main switch
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed disp lay units as fol-
lows: Vehicles sold in the U.S.A.
OFF  ON (mph)  ON
(km/h)  OFF
Except vehicles sold in the
U.S.A.
OFF  ON (km/h)  ON
(mph)  OFF
Display adjustment
Adjusting display contrast
Brighter
Darker
Adjusting display position
Higher
Lower
