2015 LEXUS RX350 Owners Manual

2492-4. Using other driving systems
2
When driving ■ Front center sensors
■ Rear corner sensors Detection
level Multi-information
display Approximate dis-
tance to obstacle Buzzer
1 3.3 to 1.6 ft.
(100 to 50 cm) Slow
2 1.6 to 1.3 ft.
(50 to 40 cm) Medium
3 1.3 to 1.0 ft.
(40 to 30 cm) Fast
4 1.0 ft. (30 cm) or
less Continuous
Detection
level Multi-information
display Approximate dis-
tance to obstacle Buzzer
2 1.6 to 1.2 ft.
(50 to 37.5 cm) Medium
3 1.2 to 0.8 ft.
(37.5 to 25 cm) Fast
4 0.8 f t. (25 cm) or
less Continuous

2502-4. Using other driving systems
■ Rear center sensors Detection
level Multi-information
display Approximate dis-
tance to obstacle Buzzer
1 4.9 to 2.0 ft.
(150 to 60 cm) Slow
2 2.0 to 1.5 ft.
(60 to 45 cm) Medium
3 1.5 to 1.2 ft.
(45 to 35 cm) Fast
4 1.2 ft. (35 cm) or
less Continuous

2512-4. Using other driving systems
2
When driving Detection range of the sensors
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm) The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.

2522-4. Using other driving systems
Customization of the intuitive parkin g assist (vehicle with the Lexus
Display Audio system)
The buzzer volume, display and buzzer timing and display of the graphic
on the screen can be customized.
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “Menu” screen.
Select “Vehicle” on the “Setup” screen.
Select “LEXUS Park Assist” on the “Vehicle Settings” screen.
Alert volume setting
Display on/off
Alert distance setting
When you complete settings, select “Save”.STEP 1
STEP 2
STEP 3
STEP 4
■
The intuitive parking assist can be operated when ●
Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than about 6 mph (10 km/h).●
Front center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 6 mph (10 km/h).
●
Rear corner and center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in R. STEP 5

2532-4. Using other driving systems
2
When driving ■
Sensor detection information ●
Certain vehicle conditions and the su rrounding environment may affect the
ability of a sensor to correctly detect an obstacle. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on a sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensor s in the vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or radio antenna.
• Towing eyelets are installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or right-angled curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Lexus suspension (low ered suspension, etc.) is installed.
In addition to the examples above, there are instances in which, because of their
shapes, signs and other objects may be judg ed by a sensor to be closer than they
are. ●
The shape of the obstacle may prevent a sensor from detecting it. Pay particular
attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materi als that absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projec ting outwards in the direction of your
vehicle
■
If a message is displayed
 P. 7 5 4

2542-4. Using other driving systems
■
Certification (Canada only)
This ISM device complies with Canadian ICES-001.■
Customization
Settings (e.g. buzzer volume) can be changed.
(Customizable features  P. 8 3 4 )
CAUTION■
Caution when using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possi-
bly cause an accident. ●
Do not use the sensor at speeds in excess of 6 mph (10 km/h).●
Do not attach any accessories within the sensor range.
NOTICE■
Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.■
Conditions possibly indicating system malfunctions
If any of the following occurs, the system ma y be malfunctioning due to a sensor fail-
ure etc. Have the vehicle insp ected by your Lexus dealer.●
The buzzer does not sound when the in tuitive parking assist mode is set.●
The sensor operation display flashes and the buzzer sounds even when no obsta-
cle is detected.
●
An area of the sensors is hit or subjected to a strong impact.
●
Either bumper is hit.
●
The sensor operation display remains on even though no buzzer sounds.

2552-4. Using other driving systems
2

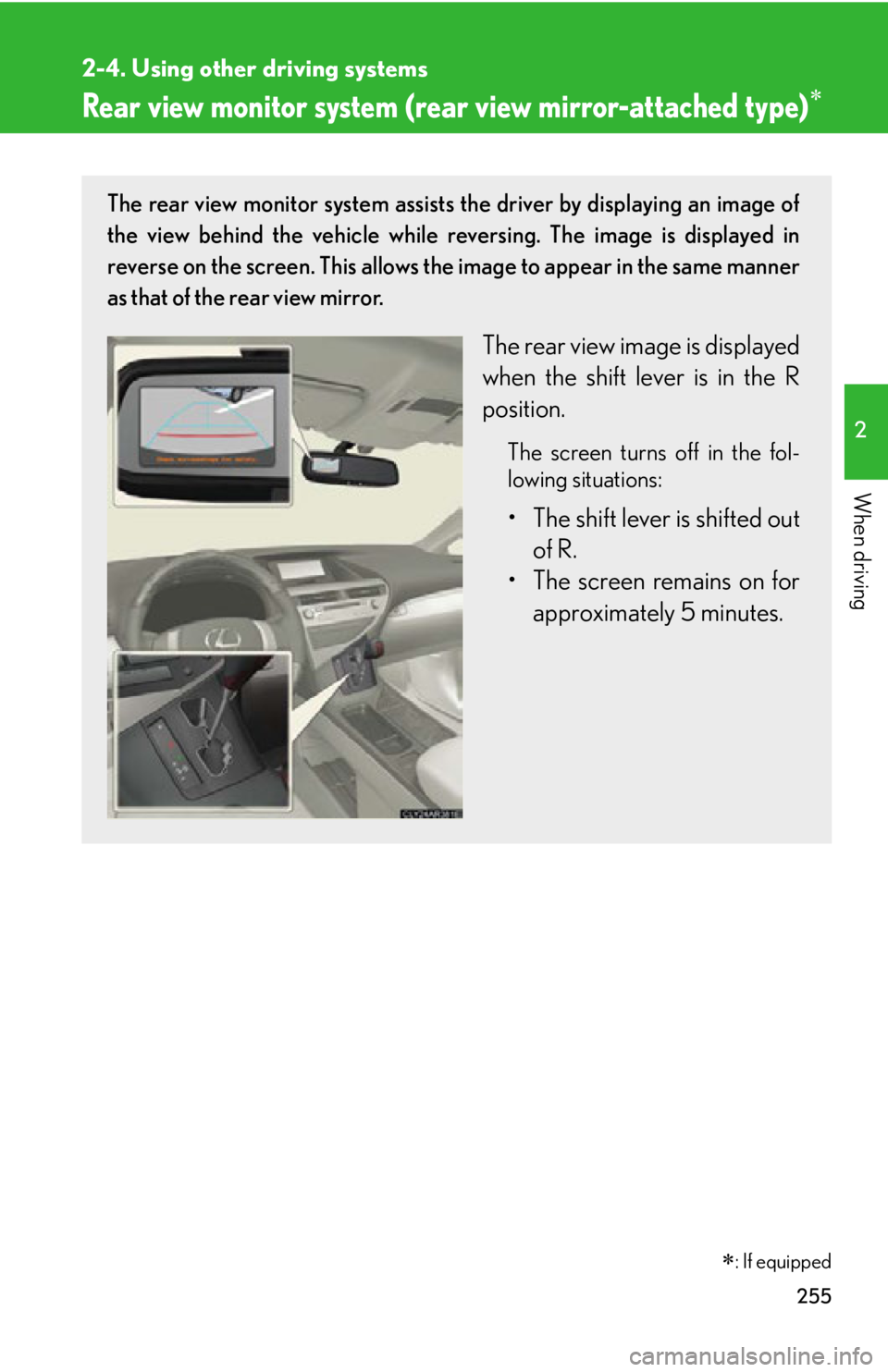

When driving Rear view monitor system (rea r view mirror-attached type) The rear view monitor system assists the driver by displaying an image of
the view behind the vehicle while re versing. The image is displayed in
reverse on the screen. This allows the image to appear in the same manner
as that of the rear view mirror.
The rear view image is displayed
when the shift lever is in the R
position. The screen turns off in the fol-
lowing situations:
• The shift lever is shifted out
of R.
• The screen remains on for
approximately 5 minutes.
 : If equipped

2562-4. Using other driving systems
■
The rear view monitor system can be operated when
The shift lever is in R, the “ENGINE START STOP” switch is in IGNITION ON
mode.■
Changing display modes
The rear view monitor display mode ca n be changed while the screen is on.●
To temporarily disable the rear view monitor system
●
To constantly disable the rear view monitor system
●
To re-enable the rear view monitor system
Press . The indicator will turn green. Press .
The indicator will turn amber.
The system will be re-enabled once the
“ENGINE START STOP” switch is turned
off and then turned to IGNITION ON
mode.
Press and hold for 12 to 15 seconds.
The screen will turn off and on after 6 sec-
onds. Keep pressing the button until the
screen turns back off. The indicator will
flash amber.
The system will not automatically turn on
again after the “ENGINE START STOP”
switch is off and then turned to IGNITION
ON mode.
