2015 LEXUS RX350 Owners Manual

1932-2. Instrument cluster
2
When driving NOTICE■
To prevent damage to the engine and its components ●
Do not let the indicator needle of the ta chometer enter the red zone, which indi-
cates the maximum engine speed.●
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. (  P. 7 9 9 )

1942-2. Instrument cluster
Indicators and warning lights The indicator and warning lights on th e instrument cluster, center panel
and outside rear view mirrors inform the driver of the status of the vehicle’s
various systems.
For the purpose of explanation, the following illustration displays all indica-
tors and warning lights illuminated.
■ Instrument cluster

1952-2. Instrument cluster
2

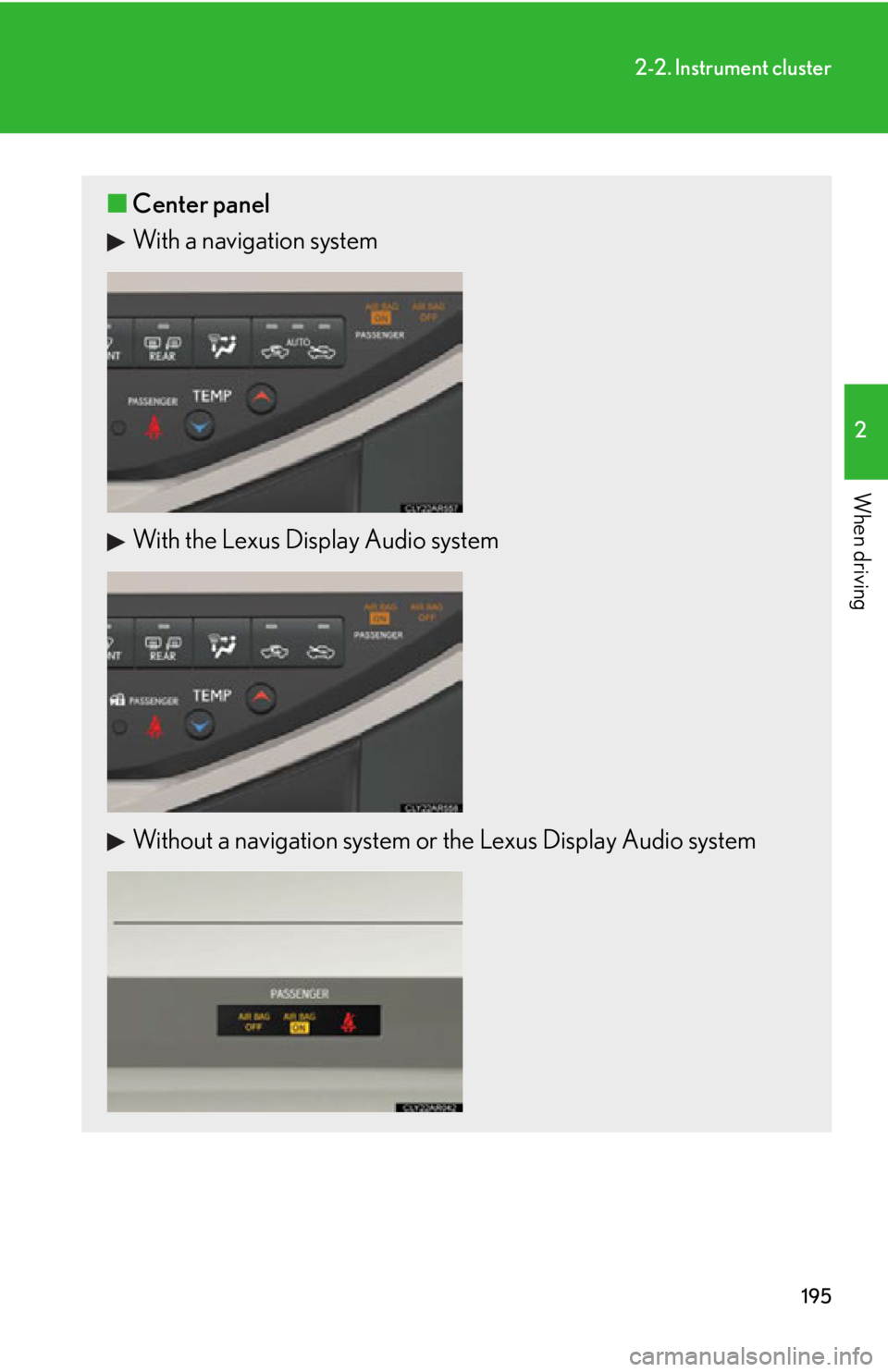

When driving ■ Center panel
With a navigation system
With the Lexus Display Audio system
Without a navigation system or the Lexus Display Audio system

1962-2. Instrument cluster

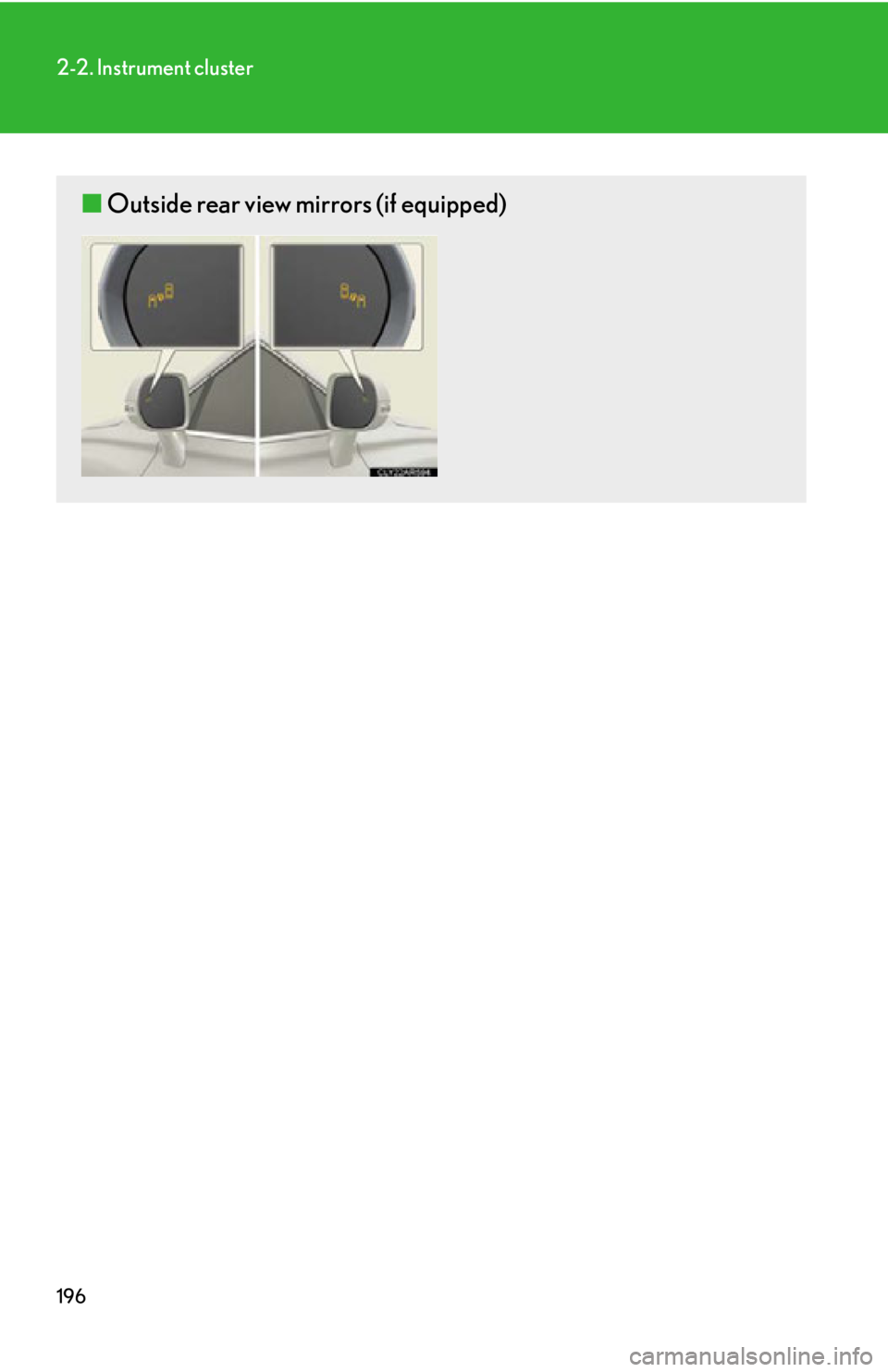

■ Outside rear view mirrors (if equipped)

1972-2. Instrument cluster
2
When driving ■ Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems. Turn signal indicator
(  P. 1 8 7 ) (if equipped)
Intuitive parking assist
indicator
(  P. 2 4 5 )
Headlight high beam indi-
cator (  P. 2 1 3 ) Slip indicator
(  P. 270, 276)(U.S.A.)
Headlight indicator
(  P. 2 1 1 ) VSC off indicator
(  P. 2 7 1 )(Canada)
Tail light indicator
(  P. 211) Eco Driving Indicator
Light (  P. 1 5 6 )
Front fog light indicator
(  P. 2 1 5 ) (if equipped)
SRS airbag on-off indica-
tor (  P. 1 3 2 )
Cruise control indicator
(  P. 227, 232) (if equipped)
SRS airbag on-off indica-
tor (  P. 1 3 2 ) (if equipped)
Radar cruise control indi-
cator (  P. 232) * 1, 2
* 1
* 1
* 1
* 1

1982-2. Instrument cluster
* 1
: These lights turn on when the “E NGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the en gine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer, for details.
* 2
: The light flashes to indicate that the system is operating.
* 3
: The light comes on when the system is turned off. The light flashes faster
than usual to indicate that the system is operating.
* 4
: In order to confirm operation, the BSM outside rear view mirror indica-
tors illuminate in the following situations:
• When the “ENGINE START STOP” switch is turned to IGNITION
ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the “ENGINE START
STOP” switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror
indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer. (AWD models
only)
All-wheel drive lock indi-
cator (  P. 2 7 5 ) “ECT SNOW” indicator
(  P. 173, 180) (if equipped)
BSM indicator
(  P. 2 8 6 ) (if equipped)
Pre-collision system
warning light (  P. 2 7 8 )(if equipped)
BSM outside rear view
mirror indicators
(  P. 2 8 6 )* 1
* 1
* 1, 3
* 4

1992-2. Instrument cluster
2
When driving
CAUTION■
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.■ Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. (  P. 74 4 )
* 1
: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunctio n in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Lexus dealer, for details.
* 2
: The light flashes to indicate a malfunction. (U.S.A.) (Canada) (U.S.A.) (Canada)
(U.S.A.) (Canada)
(if equipped) (for driver) (for front
passenger)
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1
* 1, 2
* 1
* 1

2002-2. Instrument cluster

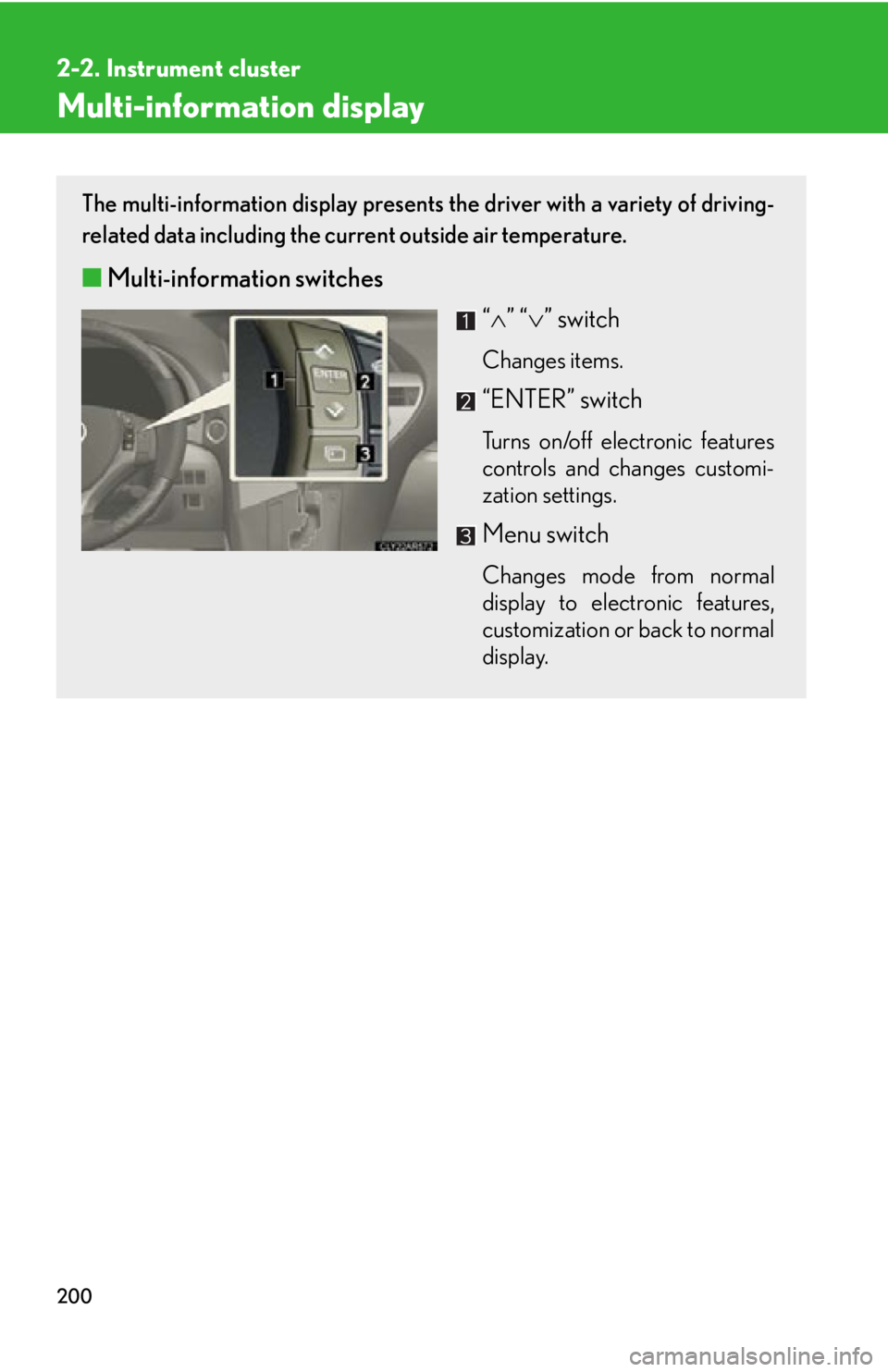

Multi-information display The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
■ Multi-information switches
“  ” “  ” switchChanges items.
“ENTER” switch Turns on/off electronic features
controls and changes customi-
zation settings.
Menu switch Changes mode from normal
display to electronic features,
customization or back to normal
display.
