2015 DODGE CHARGER SRT Uconnect 8.4A

SRT Performance Pages/SRT Performance Pages
Plus
Save And Share Your Best Performance Results With
The SRT Performance Pages App. (Available Only On
SRT Performance Vehicles.)
Description
The SRT Performance Pages App gives SRT vehicle
drivers the tools to become familiar with their vehicle’s
performance. The App provides access to real-time ve-
hicle performance information* including timers (such as
0 to 60 mph elapsed time), G-force, gauges, and engine
performance. This data can be downloaded to a USB stick
or SD card, allowing for easy sharing of your driving
performance. With SRT Performance Pages Plus, drivers
can also download the data to the web.
*Some information will only be available when vehicle is
not in motion.
How It Works
From the Radio touchscreen
1. Press the “SRT & Apps” button at the bottom of the
screen.
2. Select the “Information Apps” button on left side of
screen.
3. Select Performance Pages line item.
4. The Performance Pages App home page will display
with a vehicle graphic and menu item button on the
touchscreen on the left.
80 ALL ABOUT Uconnect® ACCESS

5. You can navigate between the Menu item performance
button tabs on the left side of screen.
2
ALL ABOUT Uconnect® ACCESS 81

1—Home2 — Timers3—G-Force
4—Gauges15—“ScrollDown”Button1—Gauges22—Engine3—Options4—“ScrollUp”Button
82 ALL ABOUT Uconnect® ACCESS

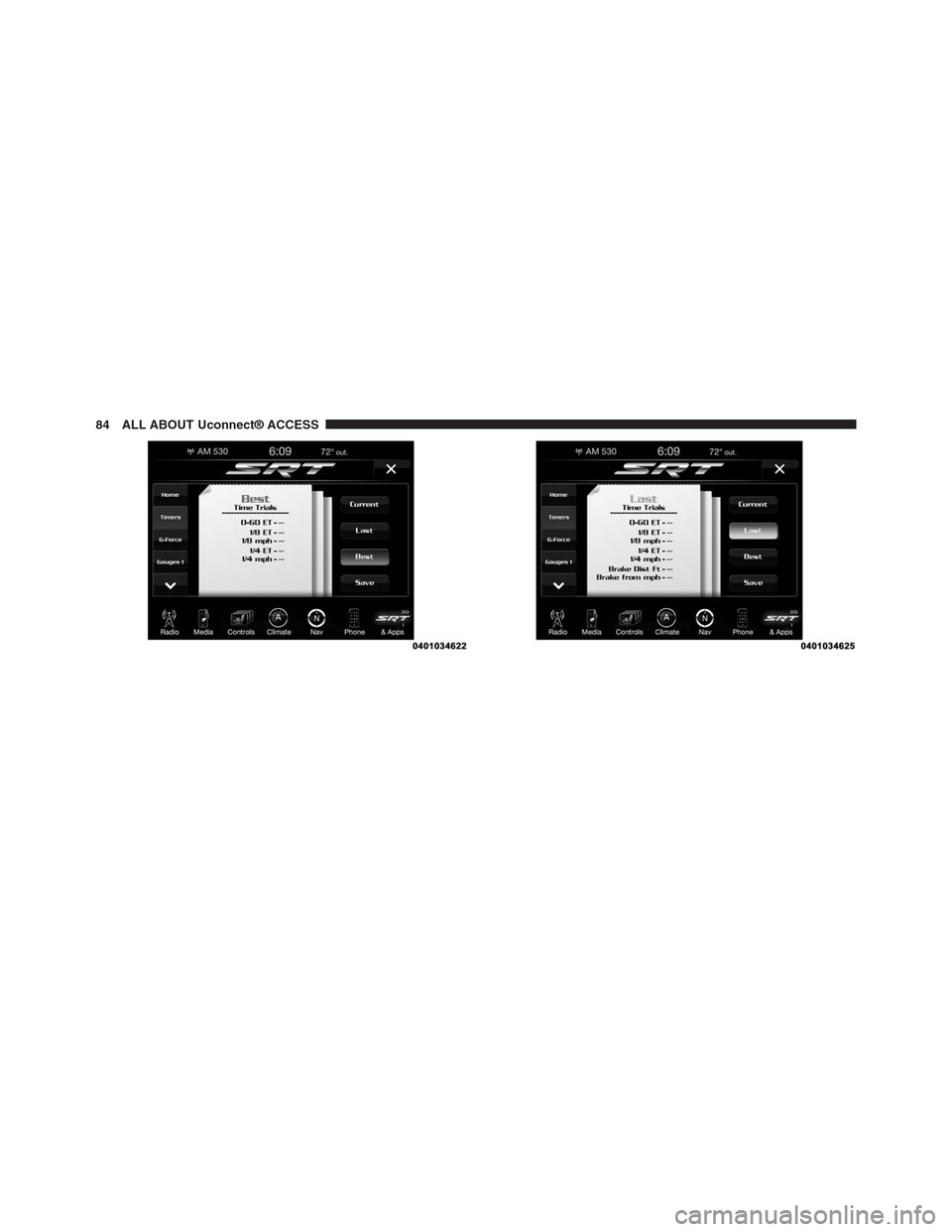

6. If you chose the Timers tab, you will get an overview
of vehicle run time stats. You can view and compare
driving performance by choosing between your
“Best,” “Last” and “Current” run times. This data can
be saved, downloaded and shared. Timers perfor-
mance will display data such as:
•Run title (you will have the option to select among
Current, Last or Best run)
•0-60 mph or 0-100 ET
•⅛mile ET or 200 meter ET
•⅛mile mph or 200 meter kph
•¼mile ET or 400 meter ET
•¼mile mph or 400 meter mph
•Braking distance ft or meters
•Braking speed mph or meters
2
ALL ABOUT Uconnect® ACCESS 83

84 ALL ABOUT Uconnect® ACCESS

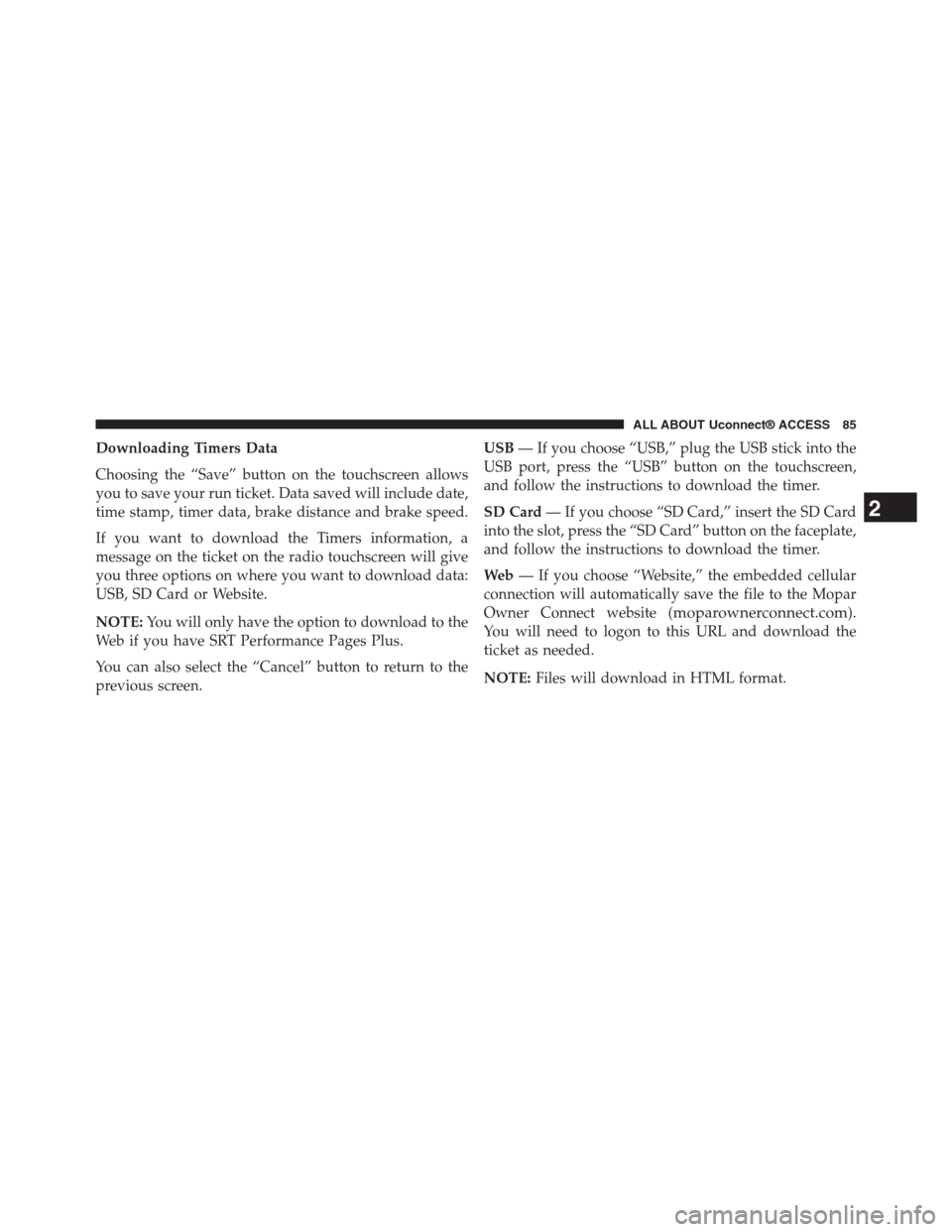

Downloading Timers Data
Choosing the “Save” button on the touchscreen allows
you to save your run ticket. Data saved will include date,
time stamp, timer data, brake distance and brake speed.
If you want to download the Timers information, a
message on the ticket on the radio touchscreen will give
you three options on where you want to download data:
USB, SD Card or Website.
NOTE:You will only have the option to download to the
Web if you have SRT Performance Pages Plus.
You can also select the “Cancel” button to return to the
previous screen.
USB— If you choose “USB,” plug the USB stick into the
USB port, press the “USB” button on the touchscreen,
and follow the instructions to download the timer.
SD Card— If you choose “SD Card,” insert the SD Card
into the slot, press the “SD Card” button on the faceplate,
and follow the instructions to download the timer.
Web— If you choose “Website,” the embedded cellular
connection will automatically save the file to the Mopar
Owner Connect website (moparownerconnect.com).
You will need to logon to this URL and download the
ticket as needed.
NOTE:Files will download in HTML format.
2
ALL ABOUT Uconnect® ACCESS 85

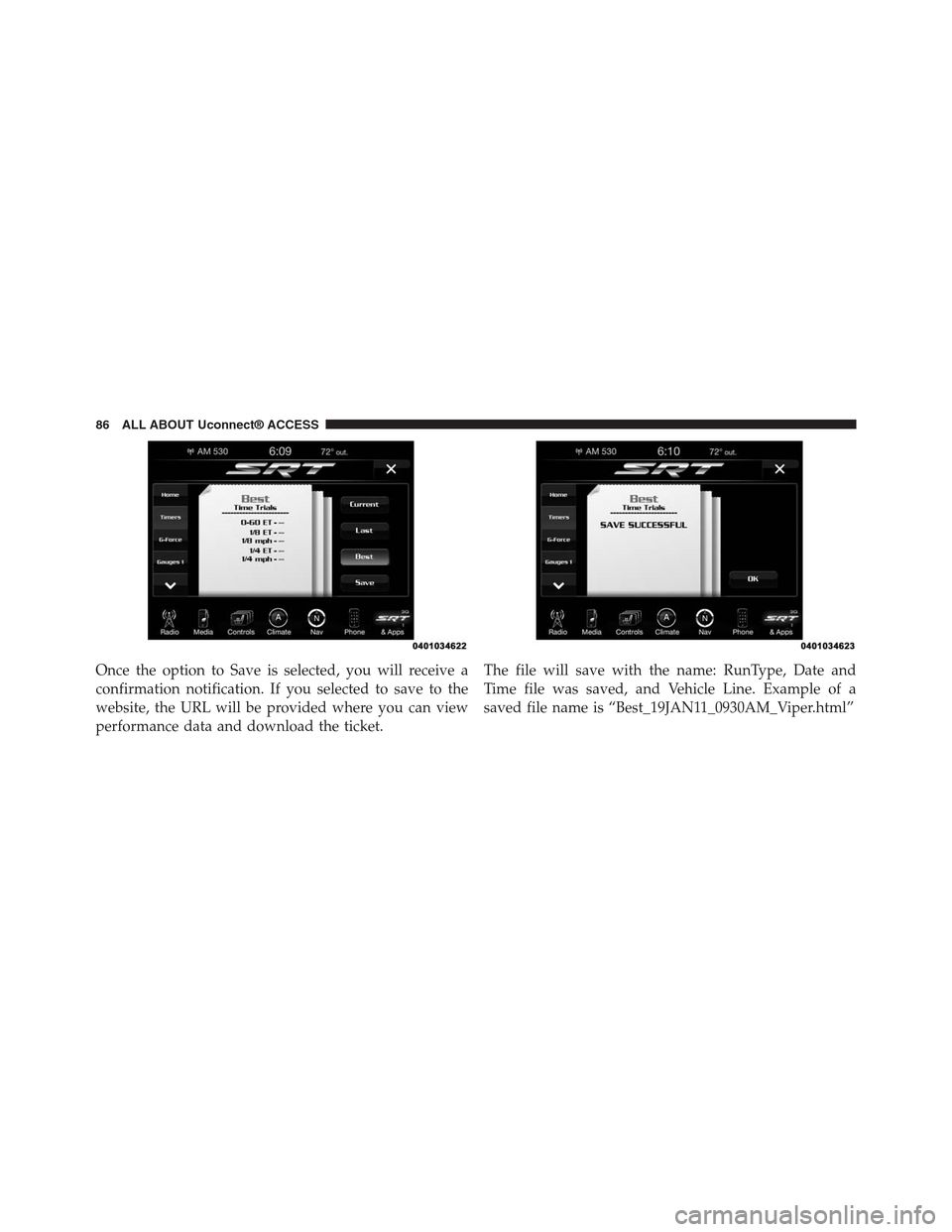

Once the option to Save is selected, you will receive a
confirmation notification. If you selected to save to the
website, the URL will be provided where you can view
performance data and download the ticket.
The file will save with the name: RunType, Date and
Time file was saved, and Vehicle Line. Example of a
saved file name is “Best_19JAN11_0930AM_Viper.html”
86 ALL ABOUT Uconnect® ACCESS

Only the 10 most recent saved runs will be stored and
available on the website, so the oldest run will be
overwritten for another if there are already 10. Each
saved run will be stored on the website until it is
overwritten.
The Timers page is only shown when the driver selects
the Timers button on the faceplate. It will not appear
when criteria for a timer has been met or when prior
performance exceeded. However, the timer results will be
calculated upon meeting the criteria of that timer.
7. If you chose the G-Force tab, you will see displays of
the vehicle dynamics from G-Force page including
information such as:
•Vehicle Drift Graphic — Vehicle graphic will adjust
based on vehicle’s movement.
•Current speed — Same as the instrument cluster.
•Steering Angle — Uses the steering angle sensor to
measure the degree of steering wheel.
•Lateral G-force — Measures the left and right turn-
ing force of the vehicle.
•Longitudinal G-force — The longitudinal g-force will
measure the acceleration and braking force of the
vehicle.
•G-force visual — Visual of the current amount of
g-force the vehicle is producing, either longitudinal
or lateral.
2
ALL ABOUT Uconnect® ACCESS 87
