2015 DODGE CHARGER SRT Uconnect 8.4A

Bluetooth® Communication Link
Mobile phones have been found to lose connection to the
Uconnect® Phone. When this happens, the connection
can generally be re-established by switching the mobile
phone OFF/ON. Your mobile phone is recommended to
remain in Bluetooth® ON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least 15 seconds prior to using the system.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NAVIGATION
Navigation Registration (Uconnect® 8.4A Only)
Uconnect® 8.4A is Navigation-capable for dealer activa-
tion. See dealer for details.
Getting Started
Once the Navigation system has been activated by your
authorized dealer, access the system by pressing the
“Nav” button on the bottom of the touchscreen.
224 Uconnect® 8.4A — If Equipped

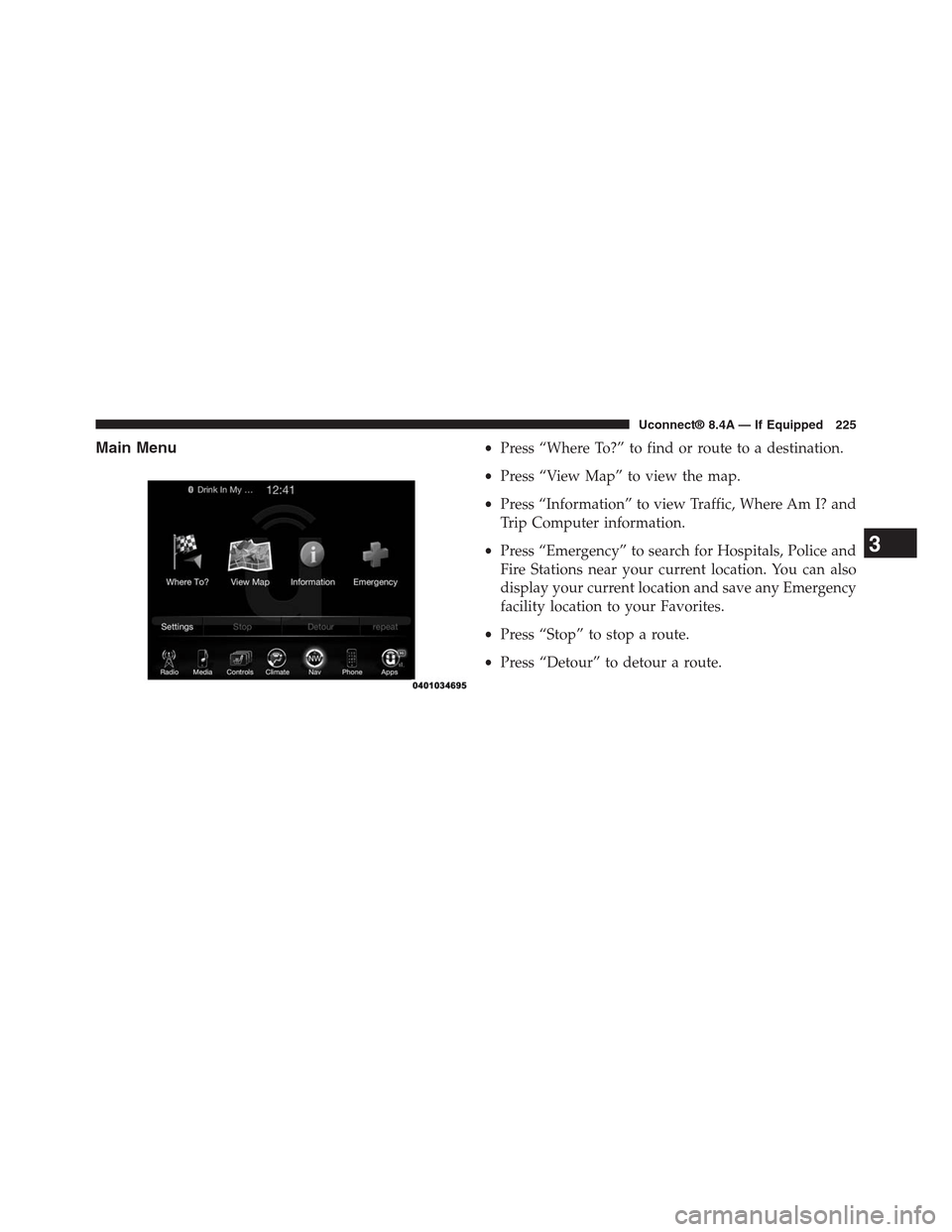

Main Menu•Press “Where To?” to find or route to a destination.
•Press “View Map” to view the map.
•Press “Information” to view Traffic, Where Am I? and
Trip Computer information.
•Press “Emergency” to search for Hospitals, Police and
Fire Stations near your current location. You can also
display your current location and save any Emergency
facility location to your Favorites.
•Press “Stop” to stop a route.
•Press “Detour” to detour a route.
3
Uconnect® 8.4A — If Equipped 225

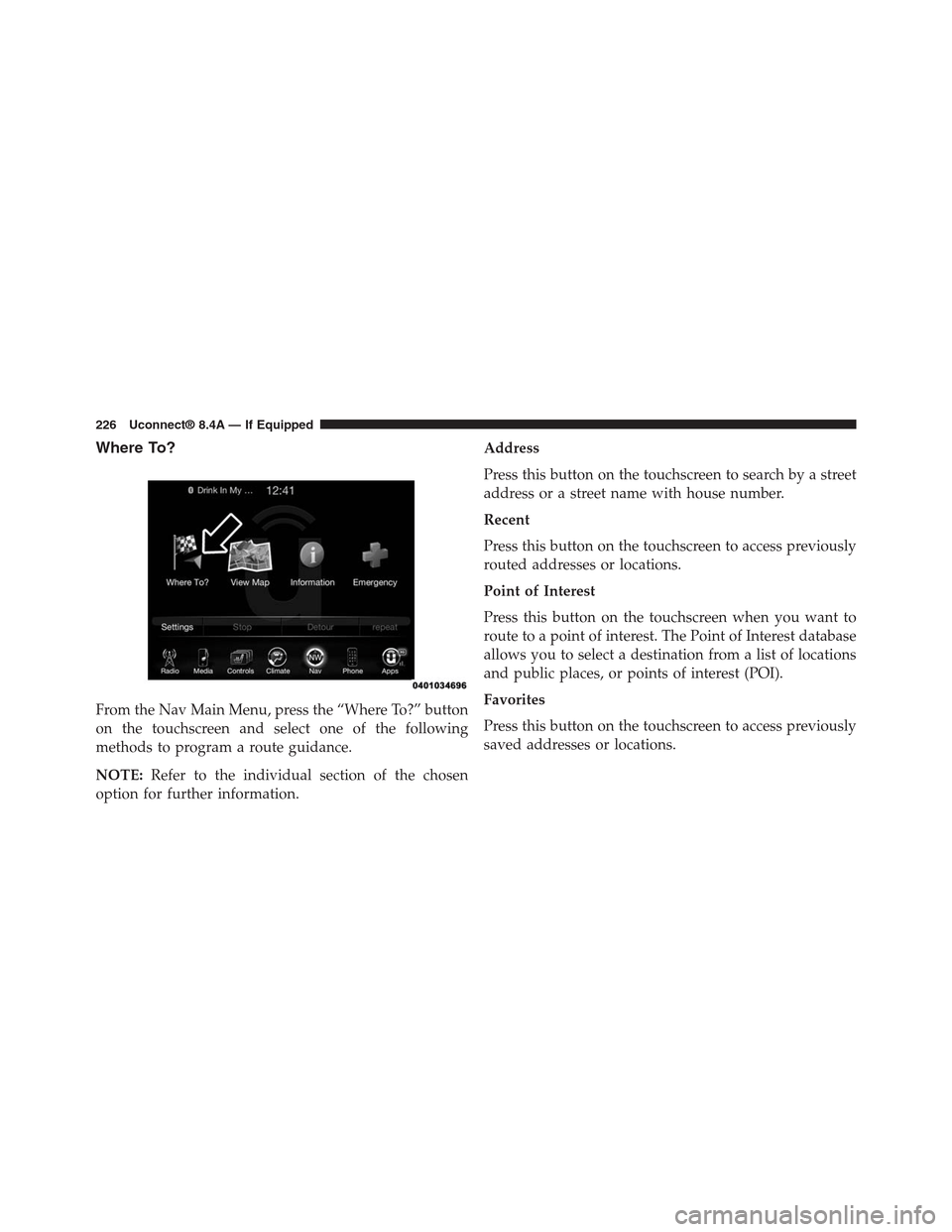

Where To?
From the Nav Main Menu, press the “Where To?” button
on the touchscreen and select one of the following
methods to program a route guidance.
NOTE:Refer to the individual section of the chosen
option for further information.
Address
Press this button on the touchscreen to search by a street
address or a street name with house number.
Recent
Press this button on the touchscreen to access previously
routed addresses or locations.
Point of Interest
Press this button on the touchscreen when you want to
route to a point of interest. The Point of Interest database
allows you to select a destination from a list of locations
and public places, or points of interest (POI).
Favorites
Press this button on the touchscreen to access previously
saved addresses or locations.
226 Uconnect® 8.4A — If Equipped

Intersection
Press this button on the touchscreen to enter in two street
names as a destination.
Go Home
Press this button on the touchscreen to program or
confirm a route to the saved home address.
Trips
Press this button on the touchscreen to program a new
trip or recall a saved trip.
GEO Coordinates
Press this button on the touchscreen to route to a GEO
Coordinate. A geo coordinate is a coordinate used in
geography. You can determine a geo coordinate with the
help of a handheld GPS receiver, a map, or the navigation
system.
Point on Map
Press this button on the touchscreen to select a destina-
tion directly from the Map screen. By selecting a street
segment or icon, you can quickly enter a destination
without the need to input the city name or street.
City Center
Press this button on the touchscreen to route to a particu-
lar city. The navigation system will calculate a route with
the destination at the center of the city.
Trails
Press the “Trails” button on the touchscreen and select
the option to start trail recording to track the route you
are driving. Select the option to#stop trail recording#to
end tracking. This gives you a point of reference to for a
particular route if needed.
3
Uconnect® 8.4A — If Equipped 227

Closest City
Press this button on the touchscreen to route to a nearby
city. The screen will display an alphabetical listing of
nearby cities. The navigation system will calculate a route
with the destination at the center of the nearby city.
Phone Number
Press this button on the touchscreen to route to a location
or point of interest by the phone number.
You can press the “back” arrow button on the touch-
screen to return to the previous screen or the “X” button
on the touchscreen to exit.
Where To? — Address
To enter a destination by Address, follow these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen, then press the “Address”
button on the touchscreen.
228 Uconnect® 8.4A — If Equipped

2. Press “Spell City” or “Spell Street” to begin entering
the address of your destination.
If you press “Spell City,” you will have to enter and
select/press the desired city name, followed by the
desired street name then the house number.
If you press “Spell Street,” you will have to enter and
select/press the desired street name in the correct city
and then you will have to enter the house number.
To change the state and/or country, press the “state,
country” button on the touchscreen and follow the
prompts to change the state and/or country.3
Uconnect® 8.4A — If Equipped 229

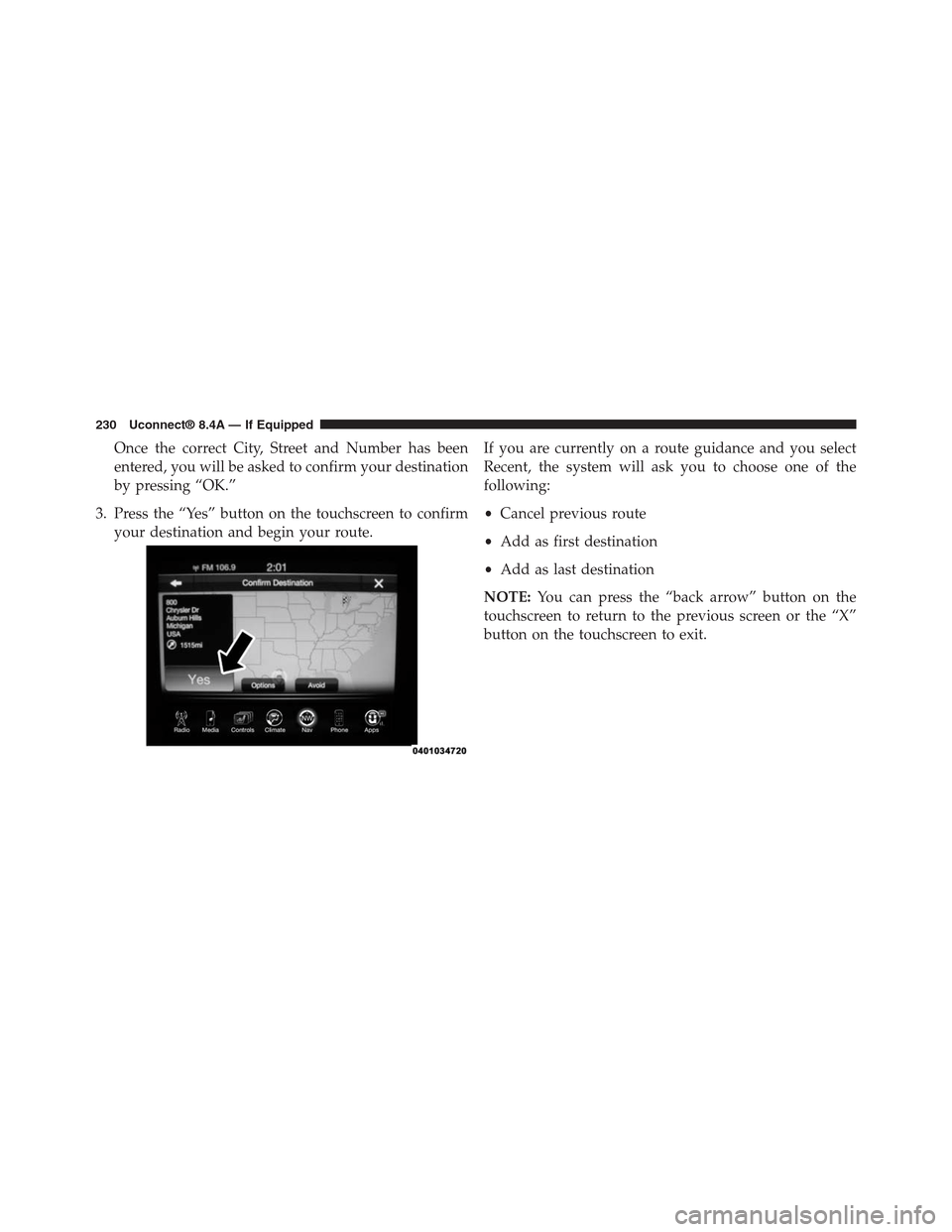

Once the correct City, Street and Number has been
entered, you will be asked to confirm your destination
by pressing “OK.”
3. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
If you are currently on a route guidance and you select
Recent, the system will ask you to choose one of the
following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.
230 Uconnect® 8.4A — If Equipped

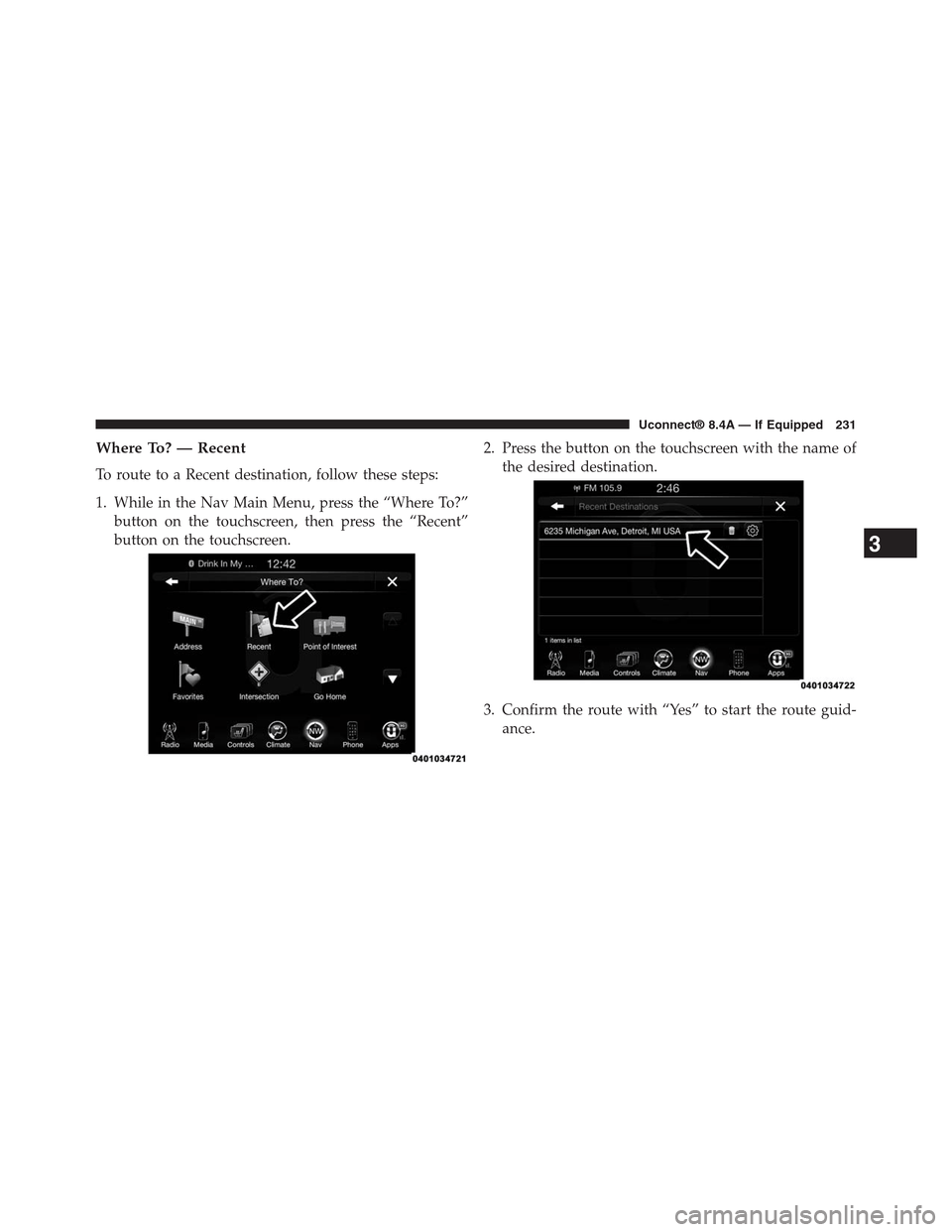

Where To? — Recent
To route to a Recent destination, follow these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen, then press the “Recent”
button on the touchscreen.
2. Press the button on the touchscreen with the name of
the desired destination.
3. Confirm the route with “Yes” to start the route guid-
ance.
3
Uconnect® 8.4A — If Equipped 231
