2015 DODGE CHARGER SRT Uconnect 8.4A

The following Options are available for each trip:
•Edit Name
•Move Up in the list
•Move Down in the list
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.

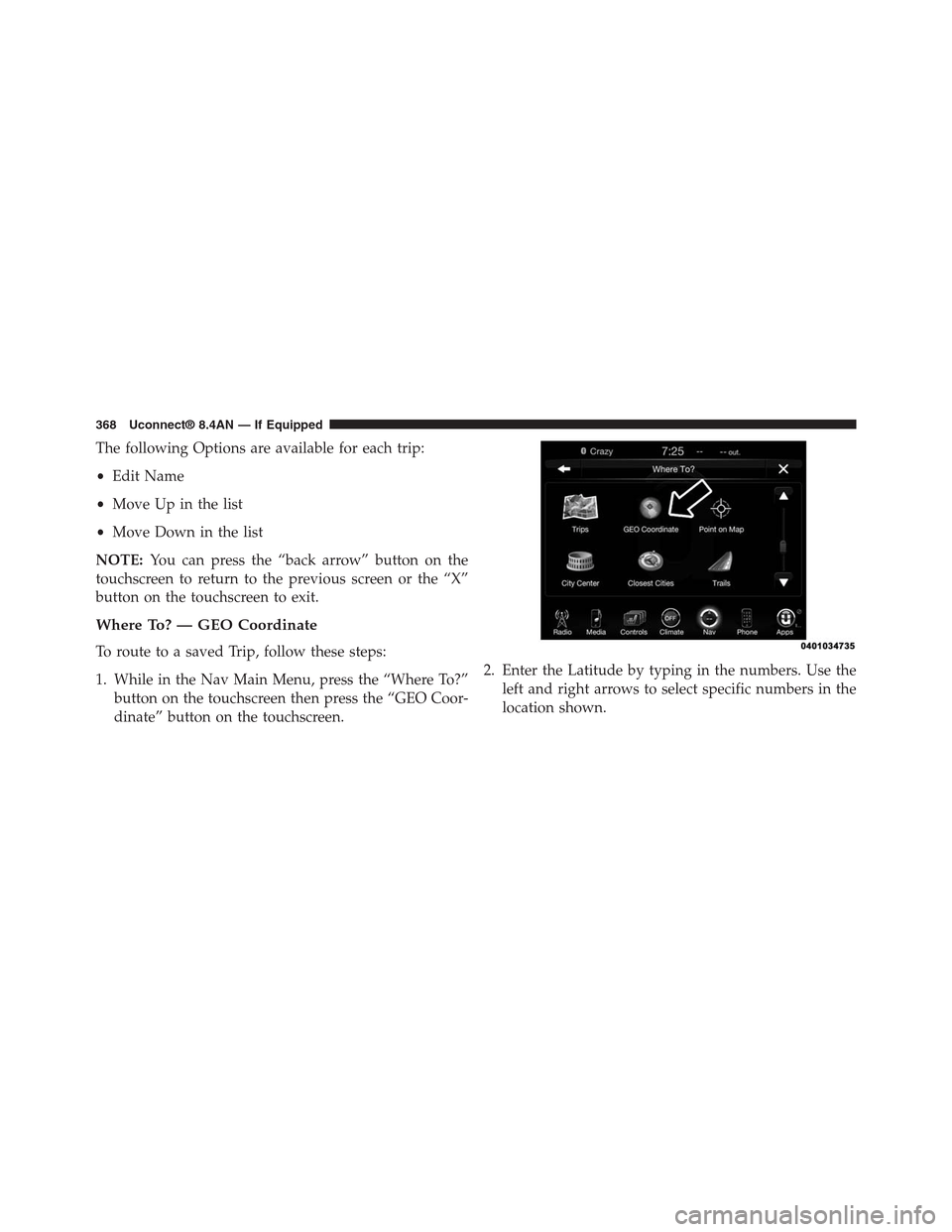

Where To? — GEO Coordinate
To route to a saved Trip, follow these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “GEO Coor-
dinate” button on the touchscreen.
2. Enter the Latitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
368 Uconnect® 8.4AN — If Equipped

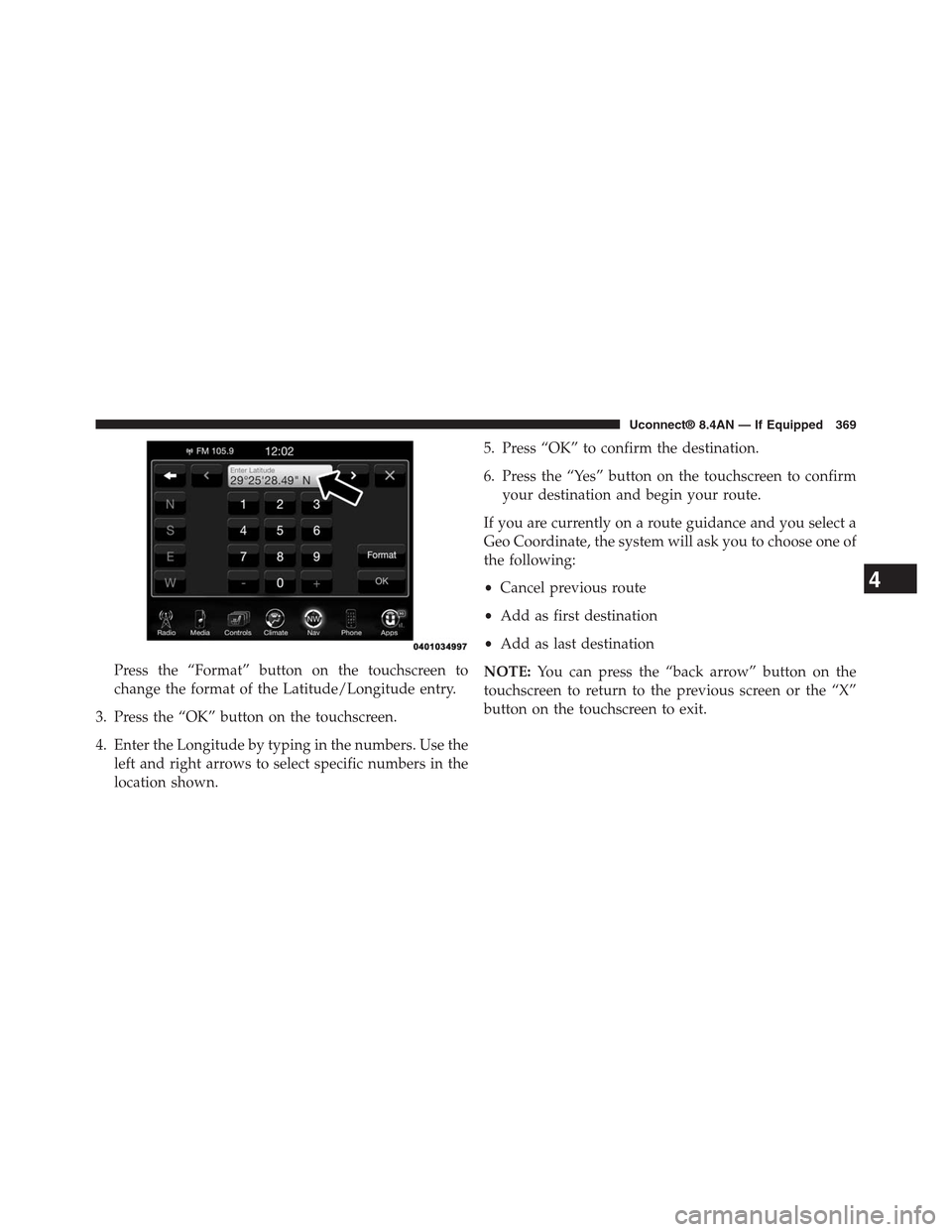

Press the “Format” button on the touchscreen to
change the format of the Latitude/Longitude entry.
3. Press the “OK” button on the touchscreen.
4. Enter the Longitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
5. Press “OK” to confirm the destination.
6. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
If you are currently on a route guidance and you select a
Geo Coordinate, the system will ask you to choose one of
the following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.
4
Uconnect® 8.4AN — If Equipped 369

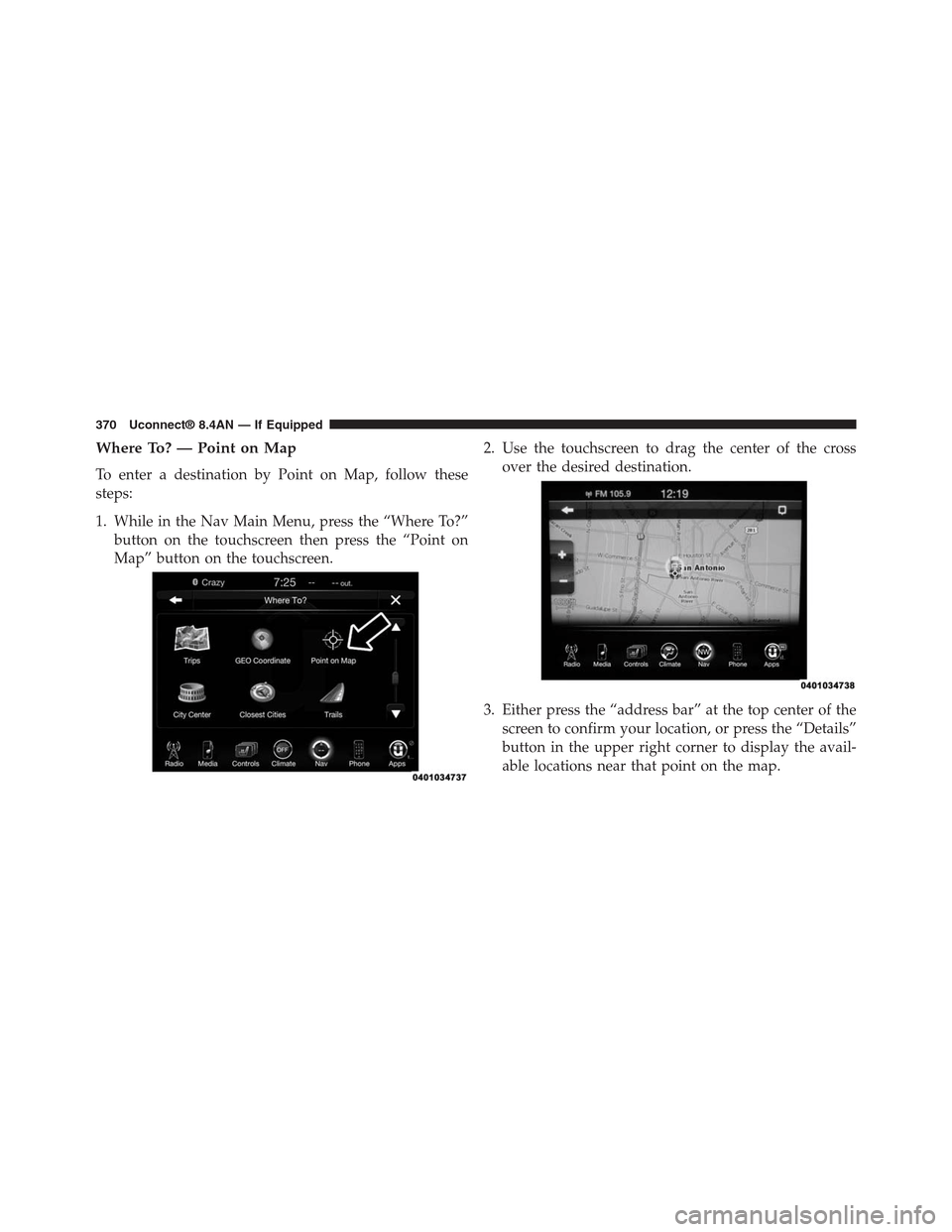

Where To? — Point on Map
To enter a destination by Point on Map, follow these
steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “Point on
Map” button on the touchscreen.
2. Use the touchscreen to drag the center of the cross
over the desired destination.
3. Either press the “address bar” at the top center of the
screen to confirm your location, or press the “Details”
button in the upper right corner to display the avail-
able locations near that point on the map.
370 Uconnect® 8.4AN — If Equipped

4. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
If you are currently on a route guidance and you select a
Point on Map, the system will ask you to choose one of
the following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.

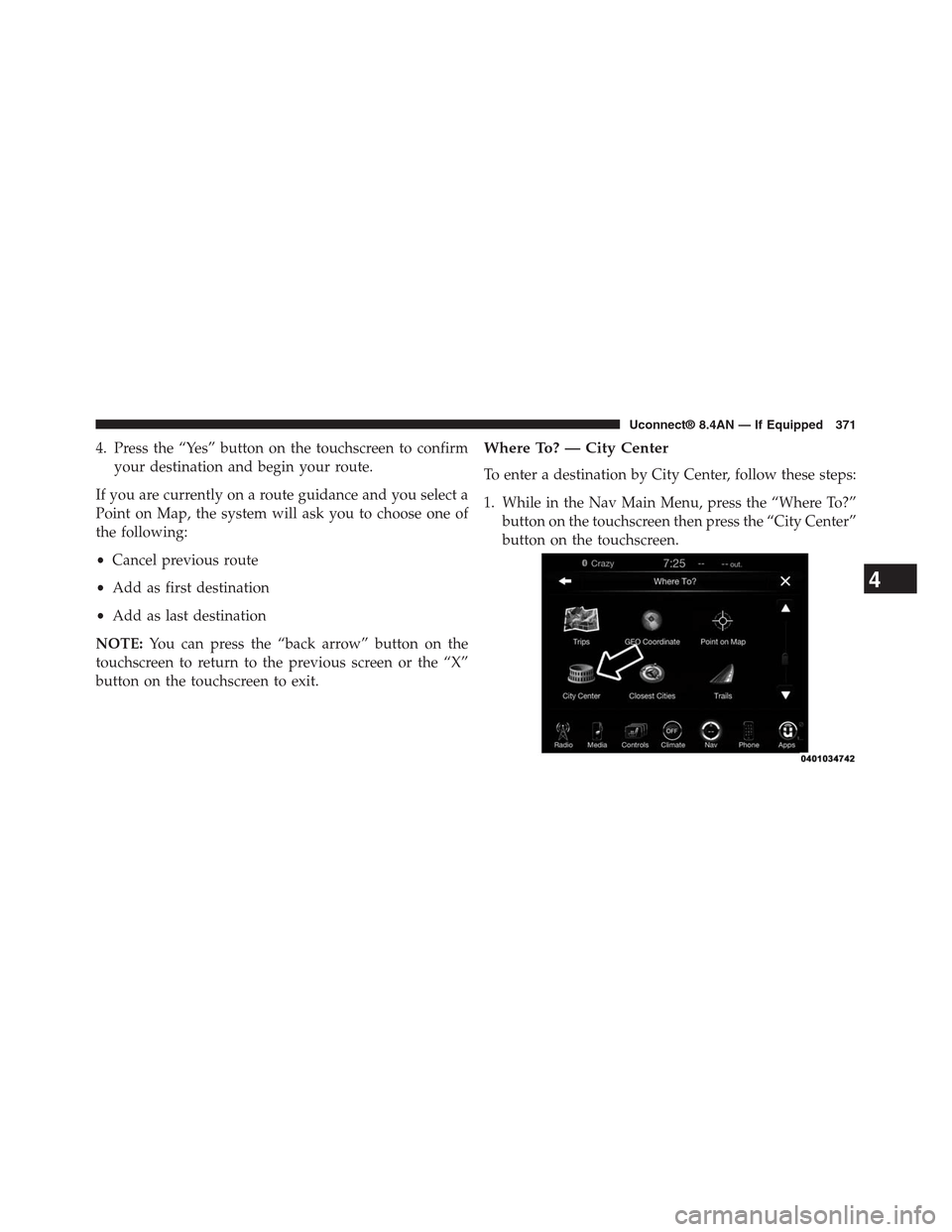

Where To? — City Center
To enter a destination by City Center, follow these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “City Center”
button on the touchscreen.
4
Uconnect® 8.4AN — If Equipped 371

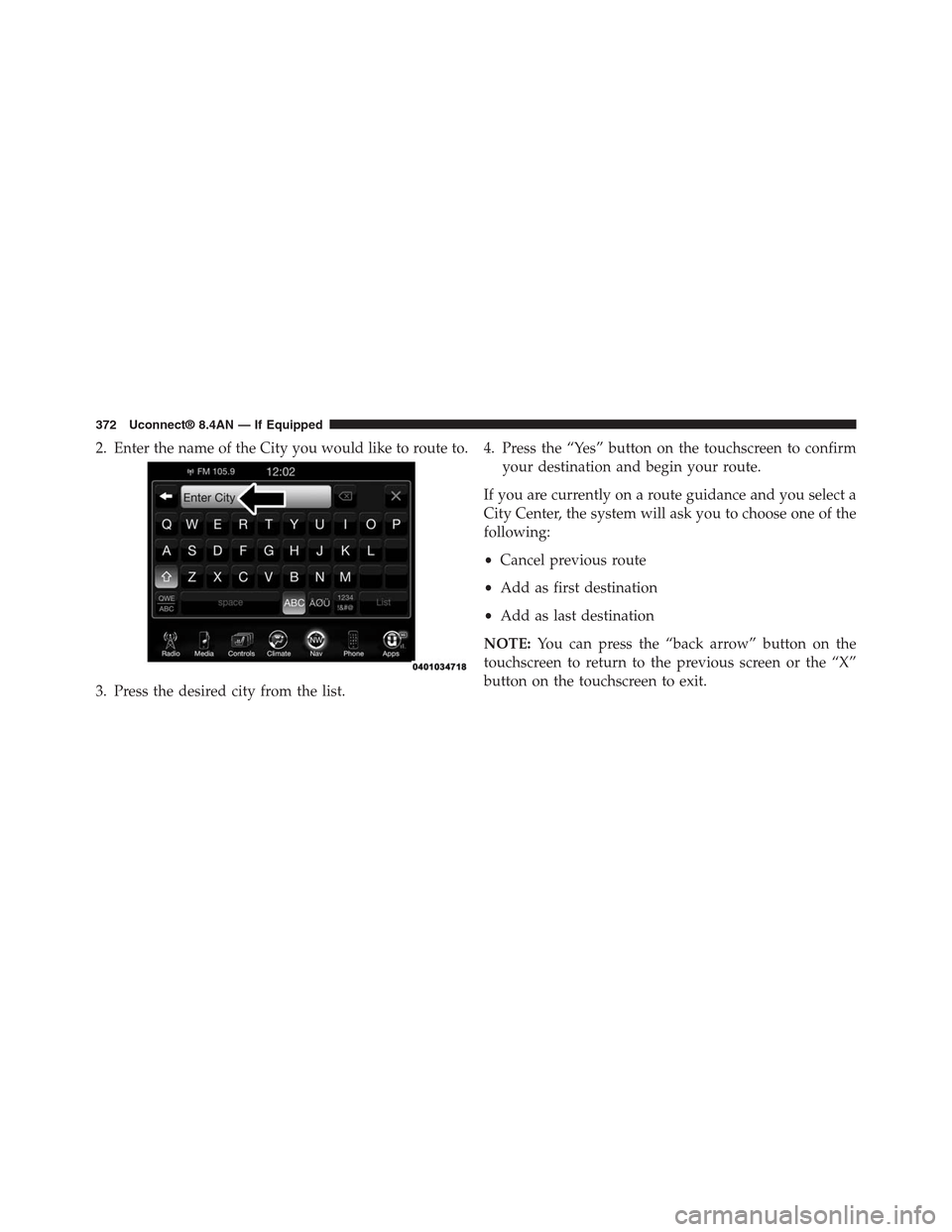

2. Enter the name of the City you would like to route to.
3. Press the desired city from the list.
4. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
If you are currently on a route guidance and you select a
City Center, the system will ask you to choose one of the
following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.
372 Uconnect® 8.4AN — If Equipped

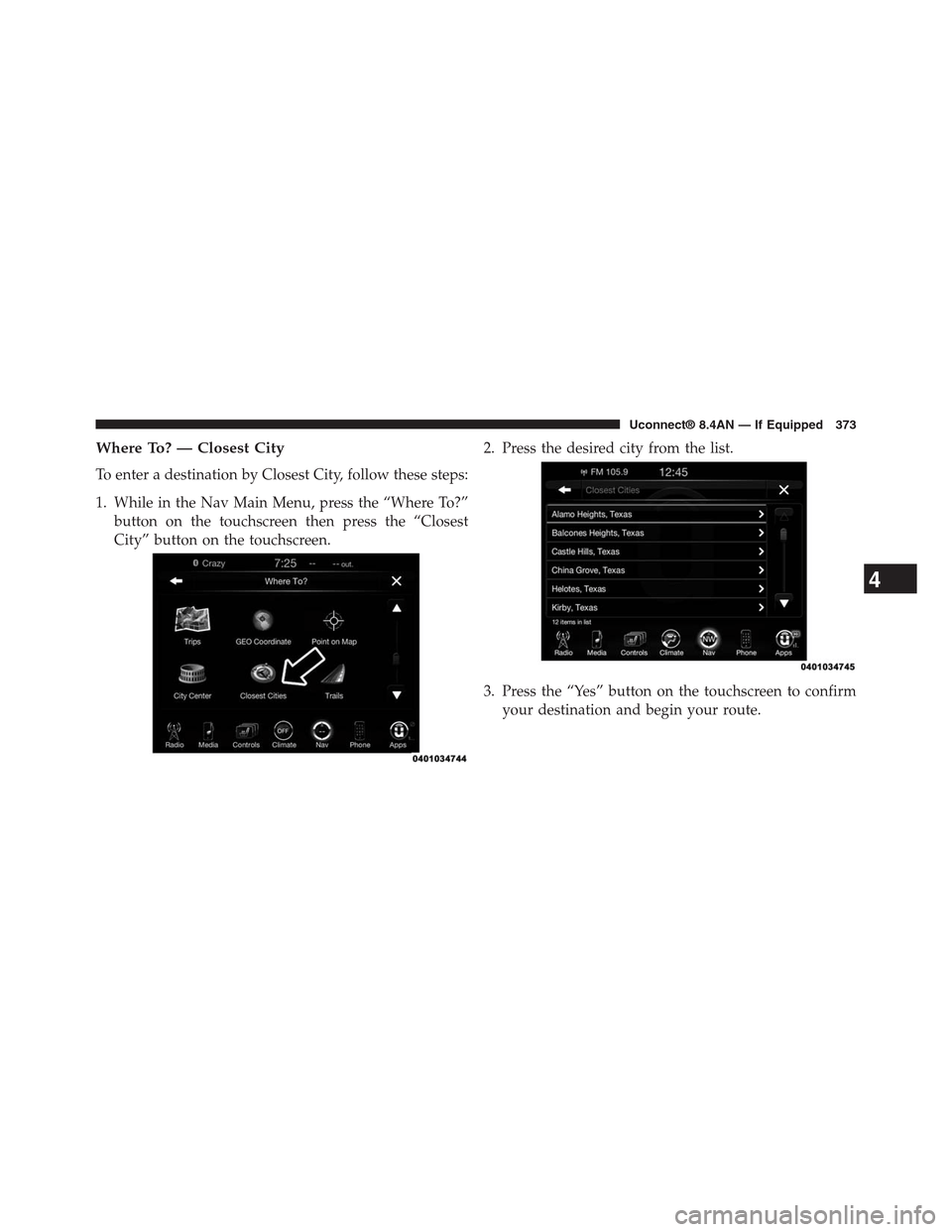

Where To? — Closest City
To enter a destination by Closest City, follow these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “Closest
City” button on the touchscreen.
2. Press the desired city from the list.
3. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
4
Uconnect® 8.4AN — If Equipped 373

If you are currently on a route guidance and you select a
Closest City, the system will ask you to choose one of the
following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.
Where To? — Trails
When starting to drive a trail you want to record, follow
these steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “Trails”
button on the touchscreen.
2. Press “Start Trail Recording.”
3. When you want to end the recording of a route, press
“Stop Trail Recording.”
The trip you recorded will be added to the Recent Trails
list.
374 Uconnect® 8.4AN — If Equipped

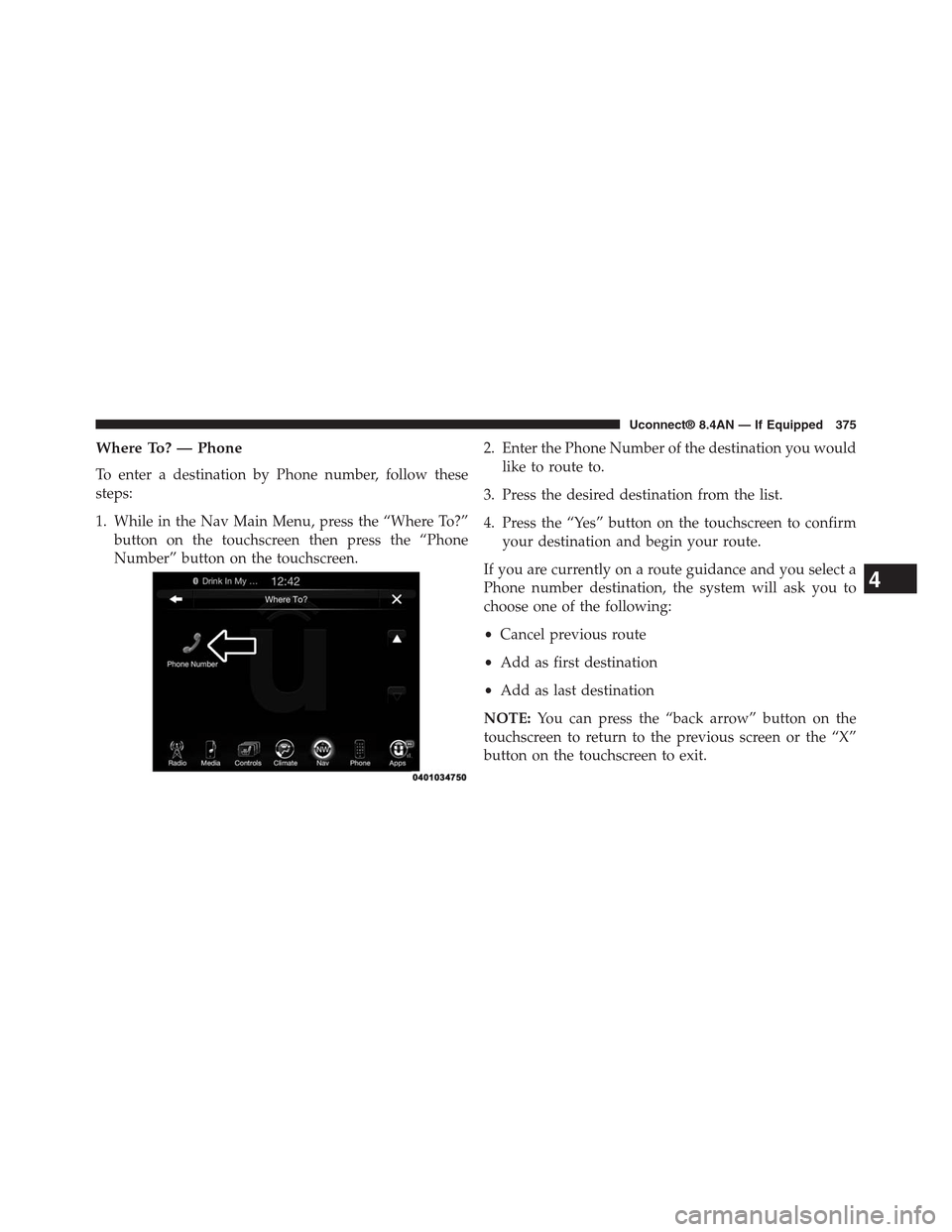

Where To? — Phone
To enter a destination by Phone number, follow these
steps:
1. While in the Nav Main Menu, press the “Where To?”
button on the touchscreen then press the “Phone
Number” button on the touchscreen.
2. Enter the Phone Number of the destination you would
like to route to.
3. Press the desired destination from the list.
4. Press the “Yes” button on the touchscreen to confirm
your destination and begin your route.
If you are currently on a route guidance and you select a
Phone number destination, the system will ask you to
choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
NOTE:You can press the “back arrow” button on the
touchscreen to return to the previous screen or the “X”
button on the touchscreen to exit.
4
Uconnect® 8.4AN — If Equipped 375
