2014 TOYOTA LAND CRUISER Owners Manual

5
When trouble arises
665
5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
CAUTION
■
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steering wheel heavier to turn. Decelerate
as much as possible before turning off the engine.

666 5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)

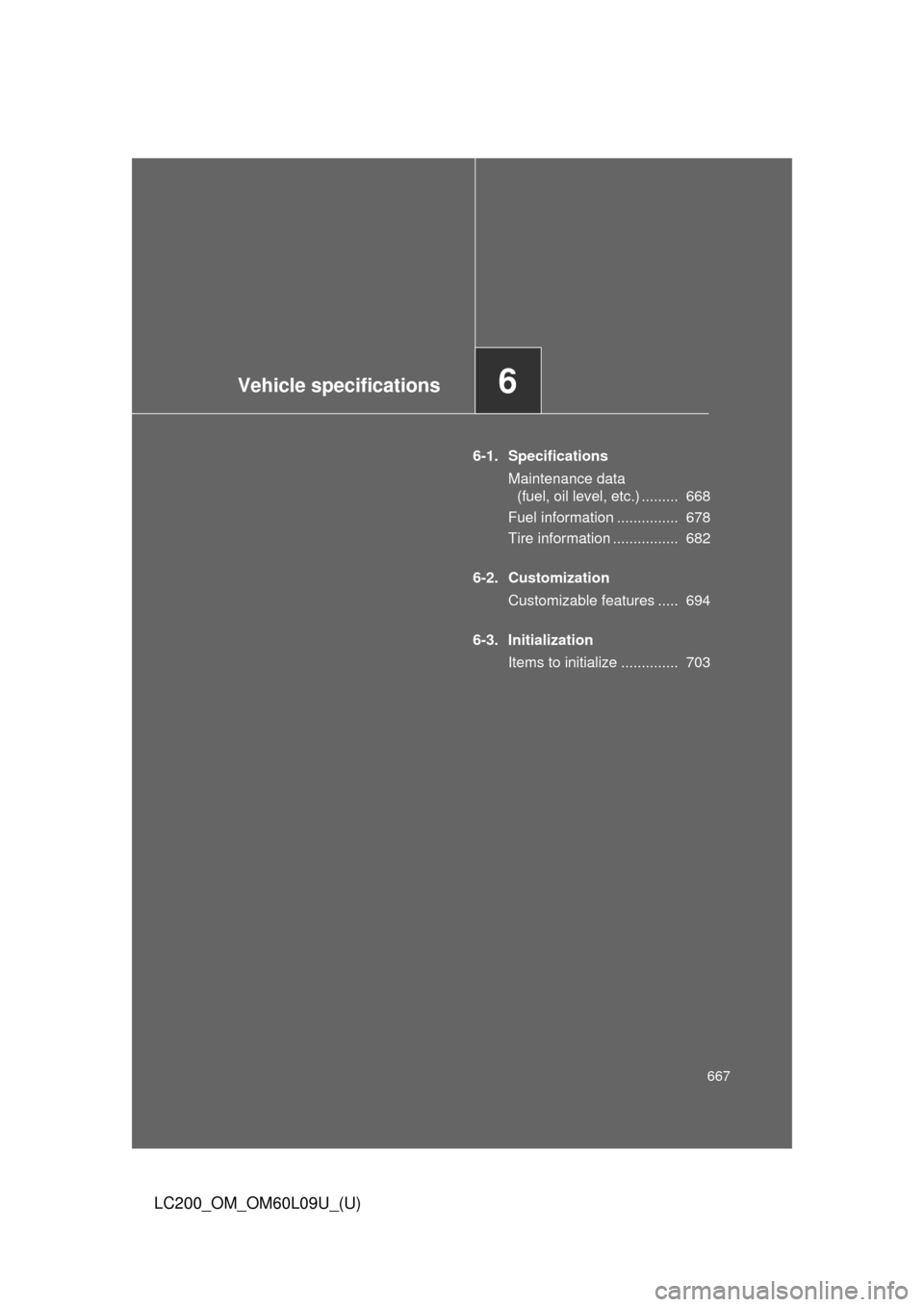

Vehicle specifications6
667
LC200_OM_OM60L09U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 668
Fuel information ............... 678
Tire information ................ 682
6-2. Customization Customizable features ..... 694
6-3. Initialization Items to initialize .............. 703

668
LC200_OM_OM60L09U_(U)

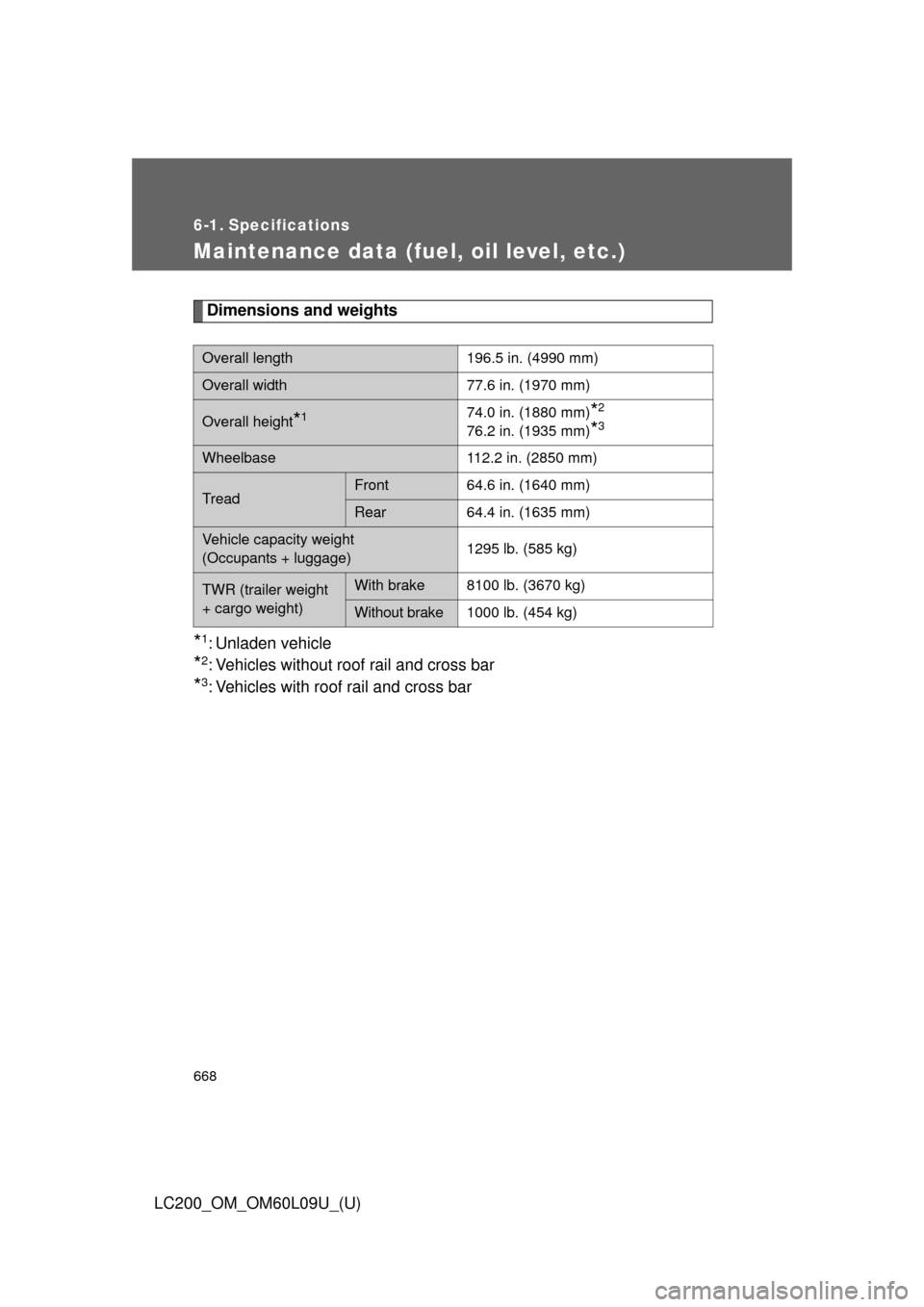

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: Vehicles without roof rail and cross bar
*3: Vehicles with roof rail and cross bar
Overall length196.5 in. (4990 mm)
Overall width77.6 in. (1970 mm)
Overall height*174.0 in. (1880 mm)*2
76.2 in. (1935 mm)*3
Wheelbase112.2 in. (2850 mm)
TreadFront64.6 in. (1640 mm)
Rear64.4 in. (1635 mm)
Vehicle capacity weight
(Occupants + luggage)1295 lb. (585 kg)
TWR (trailer weight
+ cargo weight)With brake8100 lb. (3670 kg)
Without brake1000 lb. (454 kg)

669
6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60L09U_(U)
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■ Engine number
The engine number is stamped
on the engine block as shown.
ITY61C002

670 6-1. Specifications
LC200_OM_OM60L09U_(U)

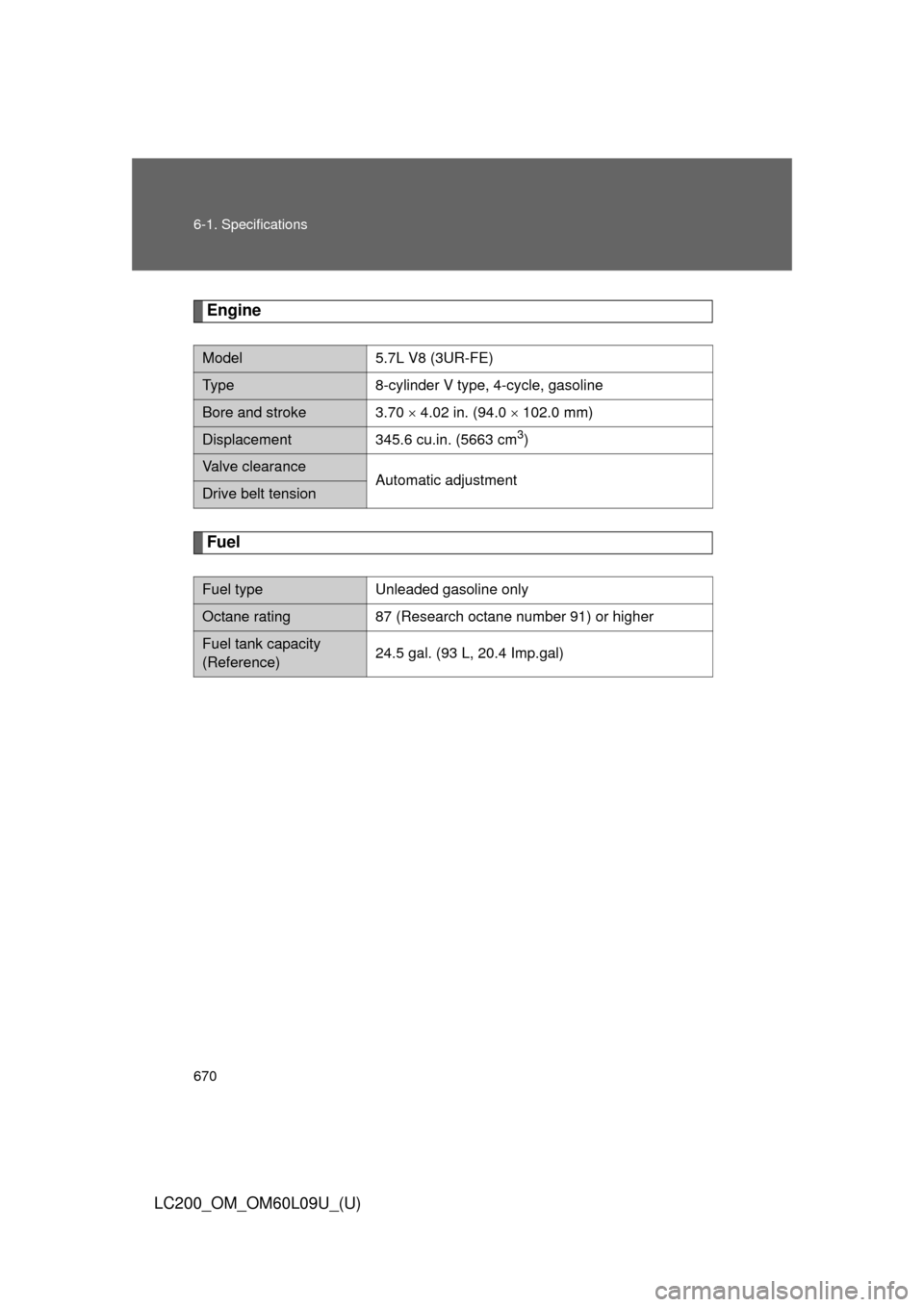

Engine
Fuel
Model5.7L V8 (3UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  4.02 in. (94.0  102.0 mm)
Displacement345.6 cu.in. (5663 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)24.5 gal. (93 L, 20.4 Imp.gal)

671
6-1. Specifications
6
Vehicle specifications
LC200_OM_OM60L09U_(U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

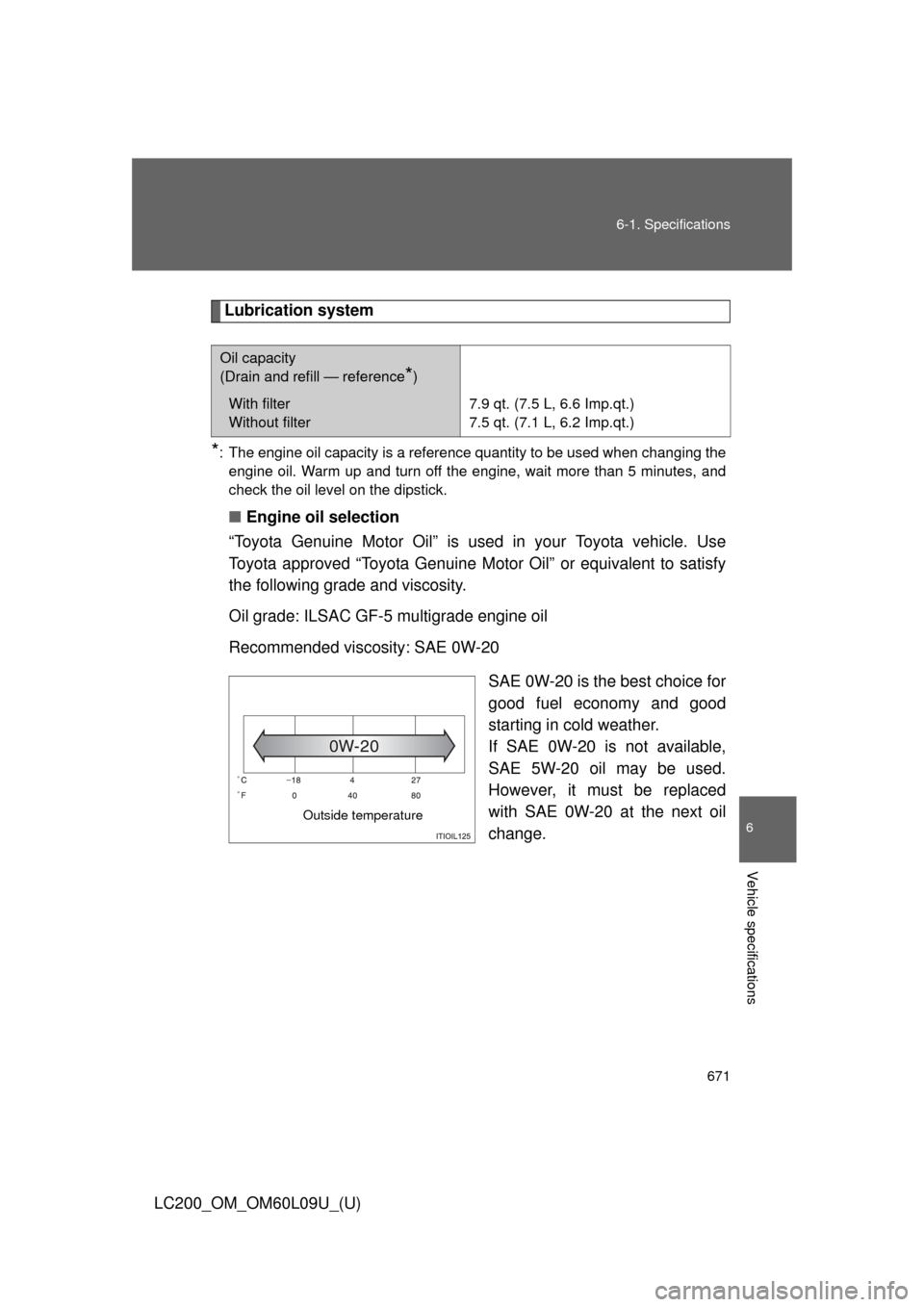

Oil capacity
(Drain and refill — reference
*)
With filter
Without filter7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)
Outside temperature

672 6-1. Specifications
LC200_OM_OM60L09U_(U)Oil viscosity (0W-20 is ex
plained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be be tter suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant Spec ification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.
