Page 481 of 724
481
3-7. Other interior features
3
Interior features
LC200_OM_OM60L09U_(U)
■
Operating conditions
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When --- is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
Page 482 of 724
482
3-7. Other interior features
LC200_OM_OM60L09U_(U)

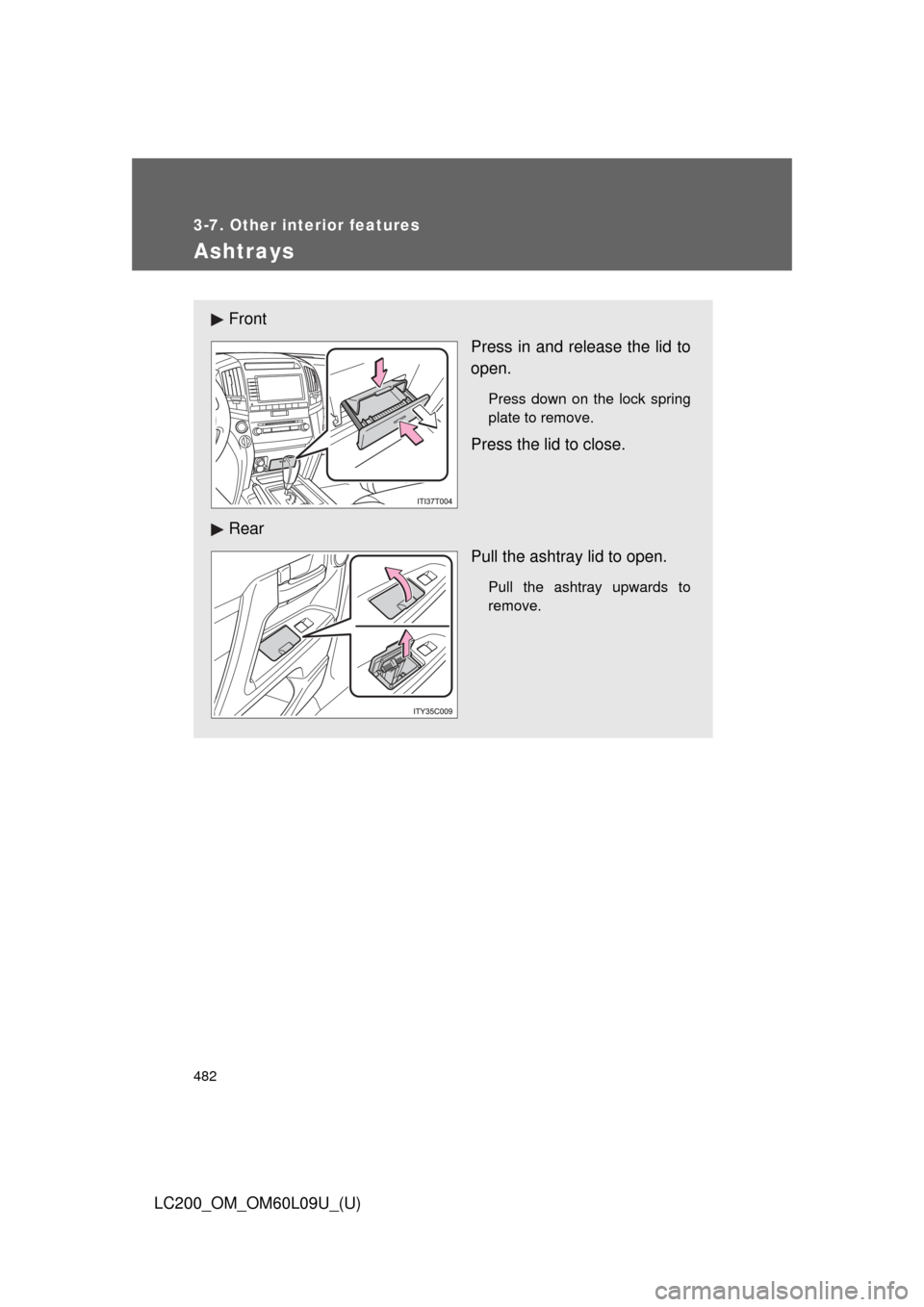

Ashtrays
FrontPress in and release the lid to
open.
Press down on the lock spring
plate to remove.
Press the lid to close.
Rear Pull the ashtray lid to open.
Pull the ashtray upwards to
remove.
Page 483 of 724
483
3-7. Other interior features
3
Interior features
LC200_OM_OM60L09U_(U)
CAUTION
■
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
Page 484 of 724
484
3-7. Other interior features
LC200_OM_OM60L09U_(U)
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.\
Push the cigarette lighter in.
The cigarette lighter will pop up
when ready for use.
Page 485 of 724
485
3-7. Other interior features
3
Interior features
LC200_OM_OM60L09U_(U)

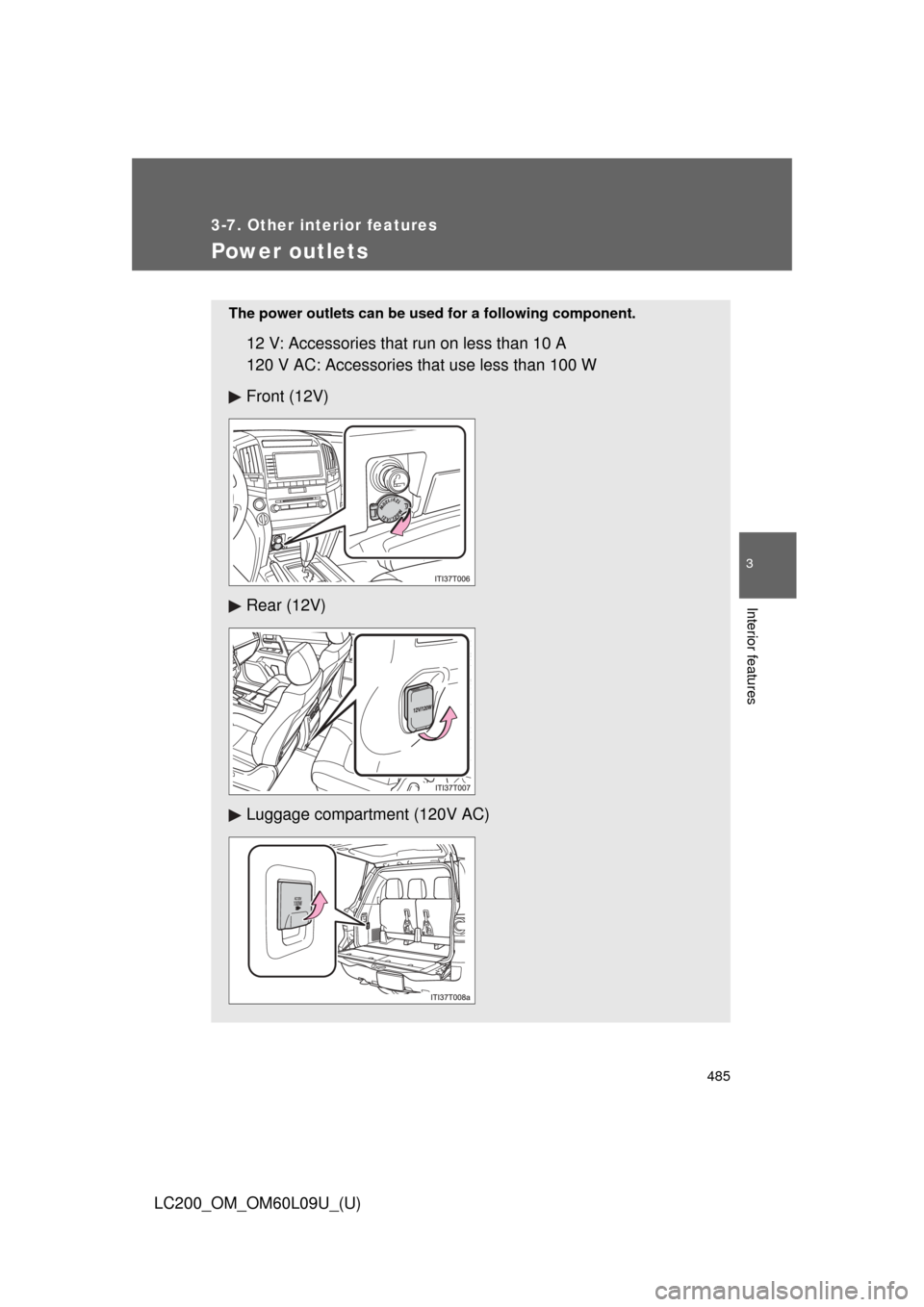

Power outlets
The power outlets can be used for a following component.
12 V: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W
Front (12V)
Rear (12V)
Luggage compartment (120V AC)
Page 486 of 724

486 3-7. Other interior features
LC200_OM_OM60L09U_(U)
■The power outlets can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
120V: The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When using the instrument panel power outlet
You may be unable to use the USB port if a device is connected to the instru-
ment panel power outlet at the same time.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
120V: Do not use a 120V AC appliance that requires more than 100W.
If a 120V AC appliance that consumes more than 100W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not ope rate properly (120V AC)
The following 120V AC appliances may not operate even if their power con-
sumption is under 100W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
Page 487 of 724
487
3-7. Other interior features
3
Interior features
LC200_OM_OM60L09U_(U)
Heated steering wheel
: If equipped
■The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Timer
The heated steering wheel will automatically turn off after about 30 minutes.
■ If the indicator light flashes
Press the switch to turn the heated steering wheel off and then press the
switch again. If the indicator light still flashes, a malfunction may be occur-
ring. Turn the heated steering wheel off and have the vehicle inspected by
your Toyota dealer.
The heated steering wheel can be u sed to heat the leather portion of
the steering wheel.
On/Off
The indicator light comes on
when the heater is operating.
Page 488 of 724
488 3-7. Other interior features
LC200_OM_OM60L09U_(U)
CAUTION
■Burns
●Only appropriately qualified and capable non-impaired persons should
operate the vehicle. However, care should be taken to prevent injury if
anyone in the following categories comes into contact with the steering
wheel when the heated steering wheel is on:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not use the heated steering wheel more than necessary. Doing so may
cause minor burns or overheating.
NOTICE
■To prevent battery discharge
Turn the switch off when the engine is not running.
