2014 TOYOTA LAND CRUISER Owners Manual

249
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
■Function limitations
Crawl Control
● In the following situations, brake control can be used to drive downhill at
a constant speed. However, engine control is not available when driving
uphill at a constant speed.
• When switched to second start mode.
● In the following situation, engine control and brake control will stop tem-
porarily. In this event, the Crawl Control indicator will flash.
• When the vehicle speed exceeds approximately 15 mph (25 km/h).
Turn Assist function
In the following situations, the Turn Assist function will stop temporarily. In
this event, the Turn Assist indicator will flash.
● When the vehicle speed exceeds approximately 6 mph (10km/h).
● When the shift lever is moved to “R”.
■ When the Crawl Control system is operated continuously
● If Crawl Control is used continuously for a long time, the buzzer will
sound, a malfunction notification will be displayed on the multi-informa-
tion display, the Crawl Control indicator will go off, and Crawl Control will
be temporarily inoperable as a result of the brake system overheating. In
this event, stop the vehicle immediately in a safe place, and allow the
brake system to cool down sufficiently until the “TRAC OFF” on the multi-
information display goes off. (In the meantime, normal driving is possi-
ble.)
● If Crawl Control is used continuously for a long time, the buzzer will
sound, the system will be temporarily canceled, and a malfunction notifi-
cation will be displayed on the multi-information display as a result of the
automatic transmission system overheating. Stop the vehicle in a safe
place until the display goes off.

250 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)
■Sounds and vibrations caused by the Crawl Control system
● A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi-
cate that a malfunction has occurred in Crawl Control system.
● Either of the following conditions may occur when the Crawl Control sys-
tem is operating. None of these are indicators that a malfunction has
occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■ When there is a malfunction in the system
Warning lights and/or warning messages will turn on. ( P. 608, 619)
CAUTION
■When using Crawl Control and Turn Assist function
Do not rely solely on the Crawl Control and Turn Assist function. This func-
tion does not extend the vehicle’s performance limitations. Always thor-
oughly check the road conditions, and drive safely.
■ These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to main-
tain a fixed low speed, which may result in an accident:
●Extremely steep inclines.
● Extremely uneven surfaces.
● Snow-covered roads, or other slippery surfaces.
NOTICE
■When using Turn Assist function
The Turn Assist function is a function to assist turning performance when
driving off road. The function may be less effective on paved road surfaces.

251
2-4. Using other driving systems
2
When driving
LC200_OM_OM60L09U_(U)

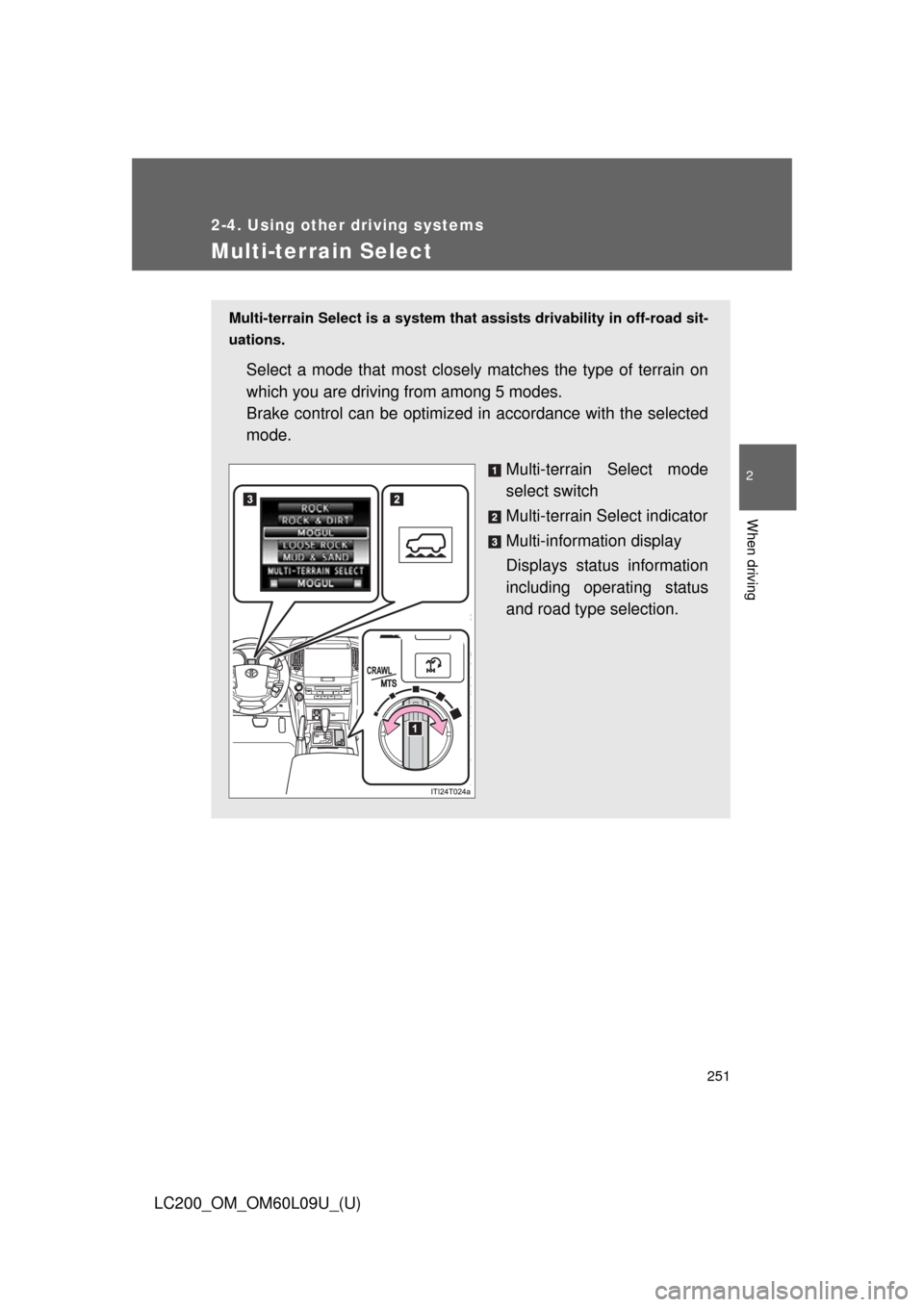

Multi-terrain Select
Multi-terrain Select is a system that assists drivability in off-road sit-
uations.
Select a mode that most closely matches the type of terrain on
which you are driving from among 5 modes.
Brake control can be optimized in accordance with the selected
mode.
Multi-terrain Select mode
select switch
Multi-terrain Select indicator
Multi-information display
Displays status information
including operating status
and road type selection.

252 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)

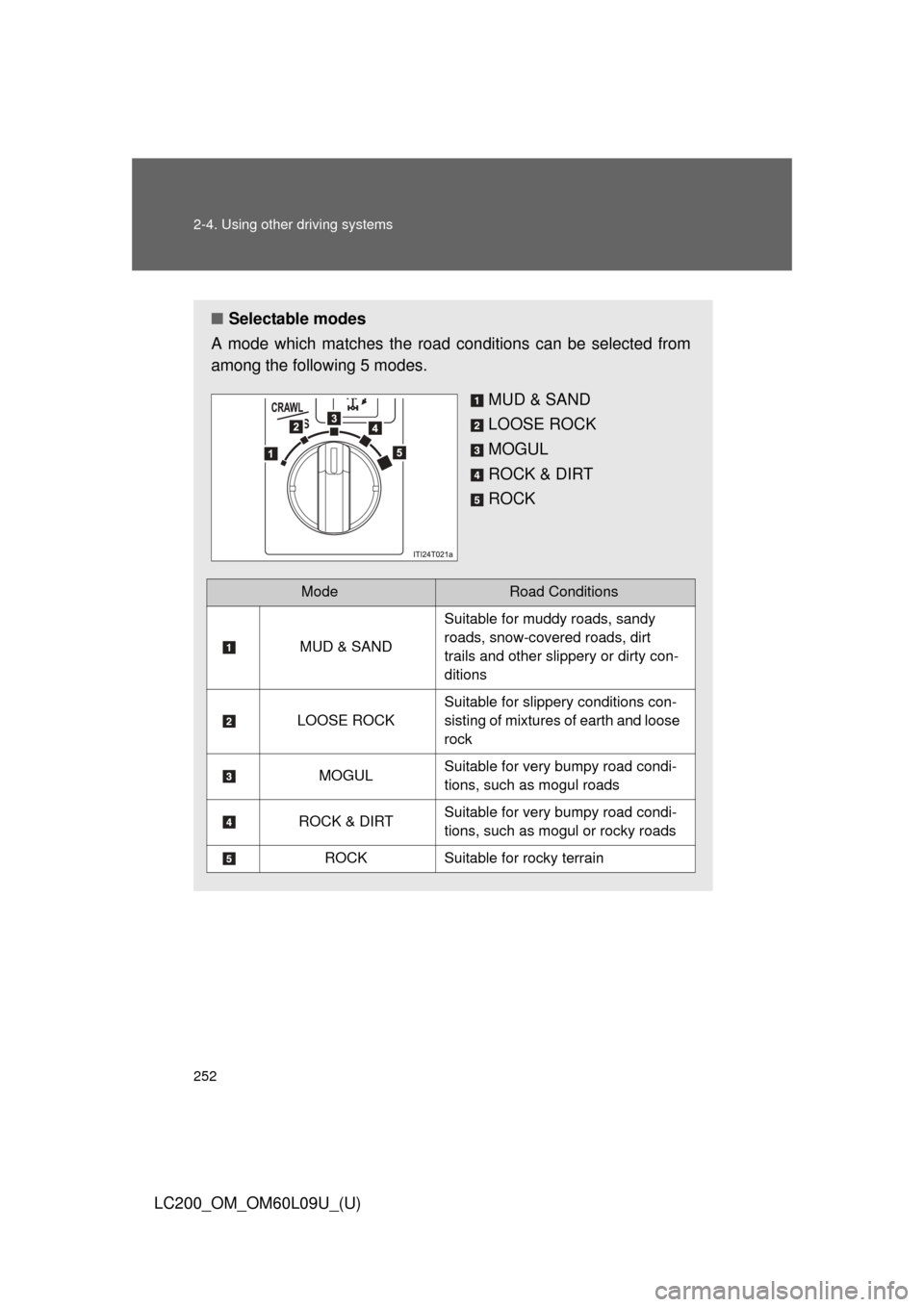

■Selectable modes
A mode which matches the road conditions can be selected from
among the following 5 modes.
MUD & SAND
LOOSE ROCK
MOGUL
ROCK & DIRT
ROCK
ModeRoad Conditions
MUD & SAND
Suitable for muddy roads, sandy
roads, snow-covered roads, dirt
trails and other slippery or dirty con-
ditions
LOOSE ROCK
Suitable for slippery conditions con-
sisting of mixtures of earth and loose
rock
MOGULSuitable for very bumpy road condi-
tions, such as mogul roads
ROCK & DIRTSuitable for very bumpy road condi-
tions, such as mogul or rocky roads
ROCKSuitable for rocky terrain

253
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
■Multi-terrain Select c ontrol starting conditions
When all of the following conditi ons are satisfied, the Multi-ter-
rain Select indicator will come on, the mode select screen will be
displayed on the multi-information display, and Multi-terrain
Select control will begin.
● The four-wheel drive control switch is in “L4”.
● Both Active TRAC and VSC are not off.
● Crawl Control is off.
■ Switching modes
Operate the Multi-terrain
Select mode select switch dur-
ing Multi-terrain Select control
to select a mode.
Once the mode is confirmed,
the mode name will be dis-
played and the control will
switch.

254 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)
Statement on the multi-information displayMode selection
Display the Multi-terrain Select
mode.
The display switches in accor-
dance with the pressing of the
DISP switch (P. 190) or the
conditions of each system.
Mode status
Display the name of the
selected mode.

255
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
■Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go \
off, and
Multi-terrain Select will be canceled automatically.
●When the four-wheel drive control switch is in “H4”.
● When Active TRAC and VSC are off.
● When Crawl Control is on.
■ When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed
by LOOSE ROCK, MOGUL, ROCK & DIRT and ROCK mode.
Drivability can be improved by selecting a mode which provides a smaller
amount of tire slippage than the current mode when the amount of tire slip-
page is large, or conversely selecting a mode which provides a larger
amount of tire slippage than the current mode when the amount of tire slip-
page is small.
■ When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the following pages.
●Four-wheel drive system ( P. 240)
● Center differential lock ( P. 240)
■ When the brake system operates continuously
The brake system may overheat. In this case, a buzzer will sound, either the
“TRAC OFF” will be displayed on the multi-information display, and Multi-ter-
rain Select will be temporarily inoper able. In this event, stop the vehicle
immediately in a safe place, and allow the brake system to cool down suffi-
ciently. (There is no problem with continuing normal driving.)
After a short time, the message on the multi-information display will go off,
and you will be able to use Multi-terrain Select.
■ When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle inspected by your
Toyota dealer immediately.

256 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)
CAUTION
■When using the Multi-terrain Select
Observe the following precautions to avoid an accident that could result in
death or serious injuries:
●There is a chance that the selected mode may not be the most appropriate
in terms of road conditions such as pitch, slipperiness, undulation, etc.
( P. 252)
● Multi-terrain Select is not intended to expand the limits of the vehicle.
Check the road conditions thoroughly beforehand, and drive safely and
carefully.
NOTICE
■Precaution for use
The Multi-terrain Select is intended for use during off-road driving. Do not
use the system at any other time.
