Page 617 of 724

5
When trouble arises
617
5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pre ssure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire ma intenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low ti re pressure telltale (tire
pressure warning light).
Page 618 of 724

618 5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indicate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
A tire of a different specification or maker may cause the tire pressure
warning system to not operate properly.
Page 619 of 724
5
When trouble arises
619
5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)

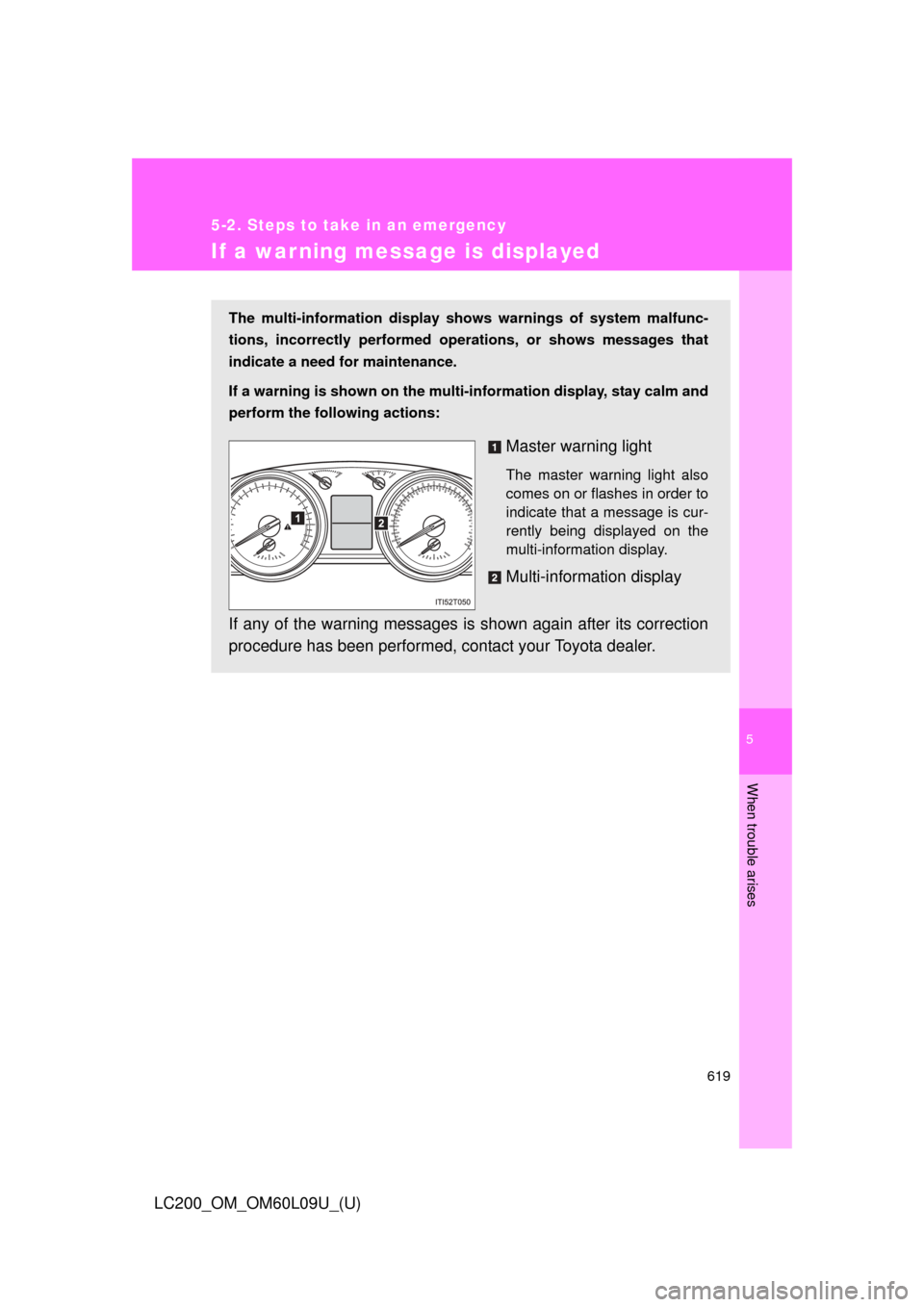

If a warning message is displayed
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed operations, or shows messages that
indicate a need for maintenance.
If a warning is shown on the multi- information display, stay calm and
perform the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.
Page 620 of 724
620 5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails
Indicates a malfunction in the automatic
transmission system A buzzer also sounds.
Indicates a malfunction in the steering lock
system A buzzer also sounds.
(If equipped) Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.
Page 621 of 724
5
When trouble arises
621
5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
Indicates a malfunction in the intuitive parking
assist
The site of malfunction is shown flashing on the
display.
Indicates a malfunction in the cruise control
system Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
Indicates a malfunction in the dynamic radar
cruise control system (if equipped) Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
(If equipped) Indicates a malfunction in the VGRS
A buzzer also sounds.
Warning messageDetails
Page 622 of 724
622 5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet fully
closed. Make sure that all the
doors are closed.
Page 623 of 724
5
When trouble arises
623
5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
(Flashes)
Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch off, and
the driver’s door
open)
Close the moon roof.
(Flashes) Indicates, if the vehi-
cle reaches a speed of
3 mph (5 km/h), that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the
automatic transmis-
sion fluid temperature
is too high A buzzer also sounds. Stop the vehicle in a
safe place, shift the shift
lever to “P” and wait
until the light goes off.
If the light goes off,
you may start the vehi-
cle again. If the light
does not go off, con-
tact your Toyota
dealer.
Warning messageDetailsCorrection procedure
Page 624 of 724
624 5-2. Steps to take in an emergency
LC200_OM_OM60L09U_(U)
Indicates that engine
oil level is lowA buzzer also sounds. Check the level of
engine oil, and add if
necessary.
This message may
appear if the vehicle is
stopped on a slope.
Move the vehicle to a
level surface and
check to see if the
message disappears.
Indicates that the
washer fluid level is
low Add washer fluid
Low tire inflation pres-
sure Check the tire inflation
pressure, and adjust to
the appropriate level.
Warning messageDetailsCorrection procedure
