Page 225 of 724

225
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
CAUTION
■Before using dynamic radar cruise control
Do not overly rely on vehicle-to-vehicle distance control.
Be aware of the set speed. If automatic deceleration/acceleration is not
appropriate, adjust the vehicle speed, as well as the distance between your
vehicle and vehicles ahead by applying the brakes, etc.
■ Cautions regarding the driving assist systems
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Assisting the driver to measure following distance
The dynamic radar cruise control is only intended to help the driver in
determining the following distance between the driver’s own vehicle and a
designated vehicle traveling ahead. It is not a mechanism that allows care-
less or inattentive driving, and it is not a system that can assist the driver in
low-visibility conditions. It is still necessary for driver to pay close attention
to the vehicle’s surroundings.
● Assisting the driver to judge proper following distance
The dynamic radar cruise control determines whether the following dis-
tance between the driver’s own vehicle and a designated vehicle traveling
ahead is appropriate or not. It is not capable of making any other type of
judgement. Therefore, it is absolutely necessary for the driver to remain
vigilant and to determine whether or not there is a possibility of danger in
any given situation.
● Assisting the driver to operate the vehicle
The dynamic radar cruise control has no capability to prevent or avoid a
collision with a vehicle traveling ahead. Therefore, if there is ever any dan-
ger, the driver must take immediate and direct control of the vehicle and
act appropriately in order to ensure the safety of all involved.
■ To avoid inadvertent cruise control activation
Switch the cruise control off using the “ON-OFF” button when not in use.
Page 226 of 724
226 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)
CAUTION
■Situations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise control in any of the following situations.
Doing so may result in inappropriate speed control and could cause an acci-
dent resulting in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep downhills, or where there are sudden changes between sharp up
and down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
● At entrances to expressways
● When weather conditions are bad enough that they may prevent the sen-
sors from functioning correctly (fog, snow, sandstorm, heavy rain etc.)
● When an approach warning buzzer is heard often
● When your vehicle is towing a trailer or during emergency towing
Page 227 of 724

227
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
CAUTION
■When the radar sensor may not be correctly detecting the vehicle
ahead
Apply the brakes as necessary when any of the following types of vehicles
are in front of you.
As the sensor may not be able to correctly detect these types of vehicles,
the approach warning ( P. 220) will not be activated, and a fatal or serious
accident may result:
● Vehicles that cut in suddenly
● Vehicles traveling at low speeds
● Vehicles that are not moving
● Vehicles with small rear ends (trailers with no load on board etc.)
● Motorcycles traveling in the same lane
■ Conditions under which the vehicle -to-vehicle distance control may
not function correctly
Apply the brakes as necessary in the following conditions as the radar sen-
sor may not be able to correctly detect vehicles ahead, and a fatal or serious
accident may result:
● When water or snow thrown up by the surrounding vehicles hinders the
functioning of the sensor
● When your vehicle is pointing upwards (caused by a heavy load in the lug-
gage compartment, etc.)
● When the road curves or when the lanes are narrow
● When steering wheel operation or your position in the lane is unstable
● When the vehicle ahead of you decelerates suddenly
Page 228 of 724
228 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)
CAUTION
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effec-
tively.
Otherwise, the system may not function correctly and could result in an acci-
dent.
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or
damage them.
● Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction.
If the sensor or surrounding area is subject to a strong impact, always
have the area inspected and adjusted by your Toyota dealer.
● Do not disassemble the sensor.
● Do not attach accessories or stickers to the sensor, grille cover or sur-
rounding area.
● Do not modify or paint the sensor and grille cover.
● Do not replace them with non-genuine parts.
Page 229 of 724
229
2-4. Using other driving systems
2
When driving
LC200_OM_OM60L09U_(U)

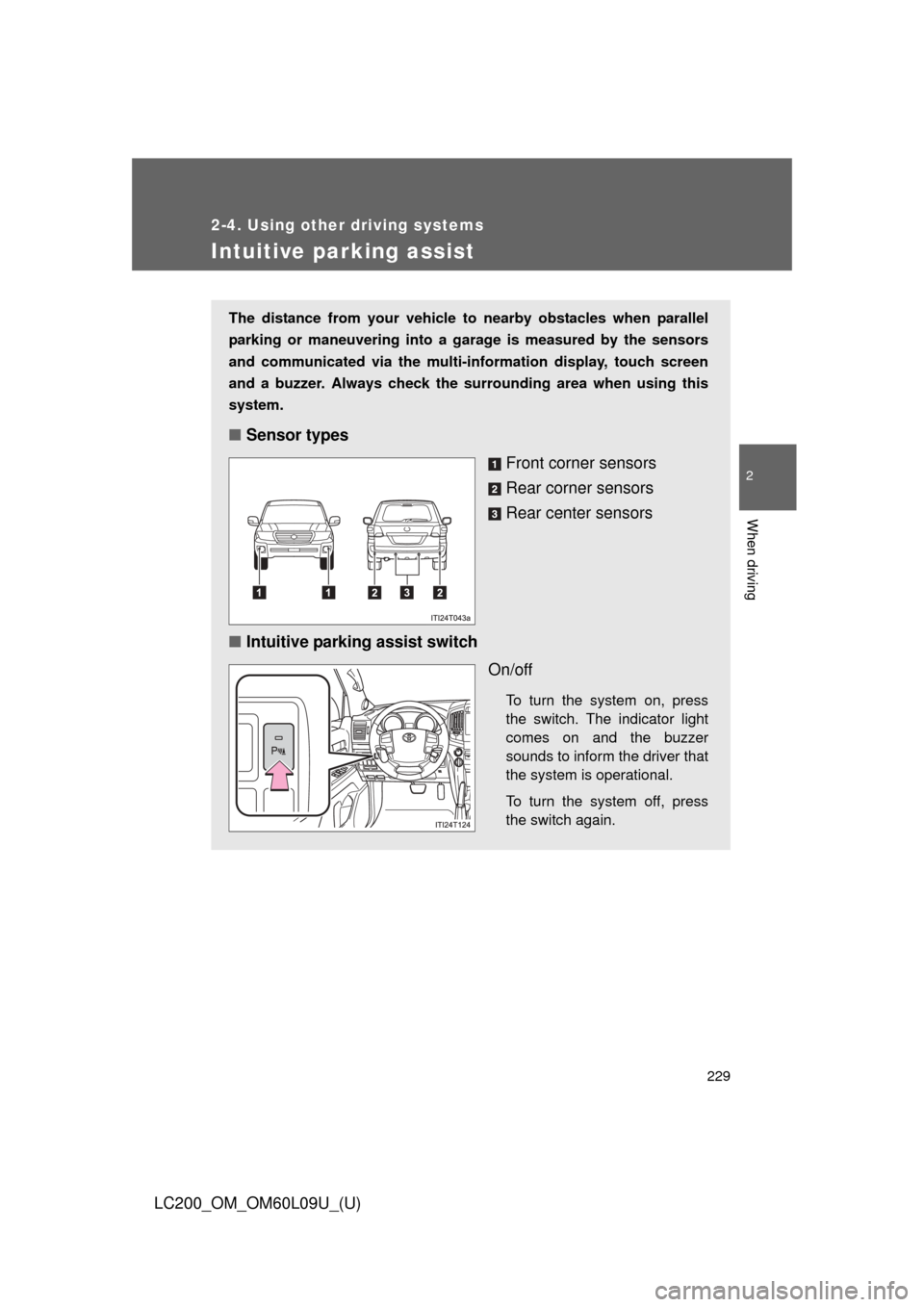

Intuitive parking assist
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the sensors
and communicated via the multi-in formation display, touch screen
and a buzzer. Always check the surrounding area when using this
system.
■ Sensor types
Front corner sensors
Rear corner sensors
Rear center sensors
■ Intuitive parking assist switch
On/off
To turn the system on, press
the switch. The indicator light
comes on and the buzzer
sounds to inform the driver that
the system is operational.
To turn the system off, press
the switch again.
Page 230 of 724
230 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)

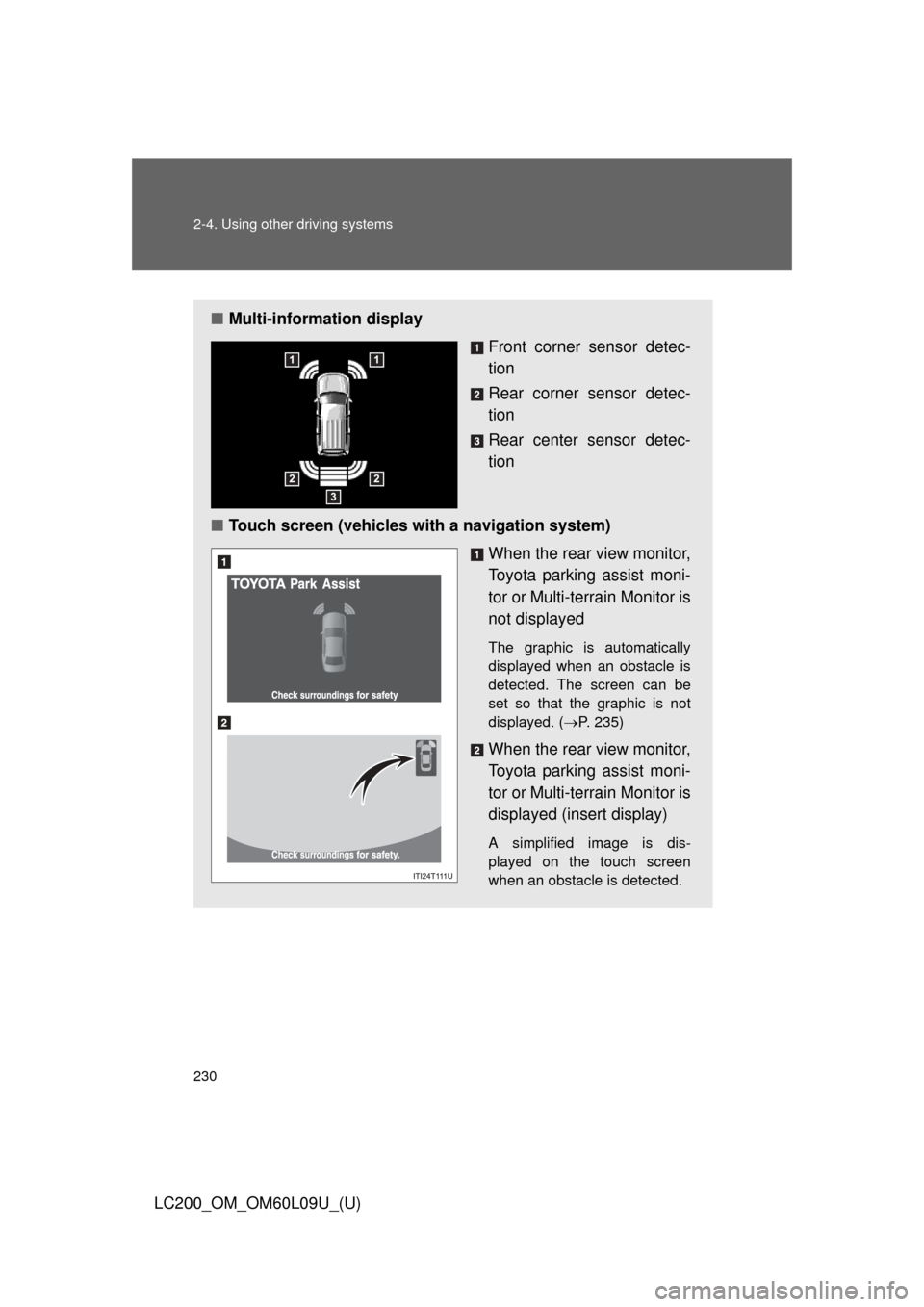

■Multi-information display
Front corner sensor detec-
tion
Rear corner sensor detec-
tion
Rear center sensor detec-
tion
■ Touch screen (vehicles with a navigation system)
When the rear view monitor,
Toyota parking assist moni-
tor or Multi-terrain Monitor is
not displayed
The graphic is automatically
displayed when an obstacle is
detected. The screen can be
set so that the graphic is not
displayed. ( P. 235)
When the rear view monitor,
Toyota parking assist moni-
tor or Multi-terrain Monitor is
displayed (insert display)
A simplified image is dis-
played on the touch screen
when an obstacle is detected.
Page 231 of 724
231
2-4. Using other
driving systems
2
When driving
LC200_OM_OM60L09U_(U)
Sensor detection display, obstacle distance
■ Corner sensors
Approximate
distance to obstacleMulti-
information displayTouch screen
Insert display
Front:
1.6 ft. (50 cm) to
1.2 ft. (37.5 cm)
Rear:
2.0 ft. (60 cm) to
1.5 ft. (45 cm) (continuous)(continuous) (blinking)
Front:
1.2 ft. (37.5 cm) to
0.8 ft. (25 cm)
Rear:
1.5 ft. (45 cm) to
1.0 ft. (30 cm) (continuous)(continuous) (blinking
rapidly)
Front:
Less than 0.8 ft.
(25 cm)
Rear:
Less than 1.0 ft.
(30 cm) (blinking)(continuous) (continuous)
Page 232 of 724
232 2-4. Using other driving systems
LC200_OM_OM60L09U_(U)■
Rear center sensors
Approximate distance
to obstacleMulti-information displayTouch screen
(insert display)
4.9 ft. (150 cm) to
2.6 ft. (80 cm) (continuous)(blinking slowly)
2.6 ft. (80 cm) to
2.1 ft. (65 cm) (continuous)(blinking)
2.1 ft. (65 cm) to
1.6 ft. (50 cm) (continuous)(blinking rapidly)
Less than 1.6 ft. (50
cm) (blinking)(continuous)
