4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)

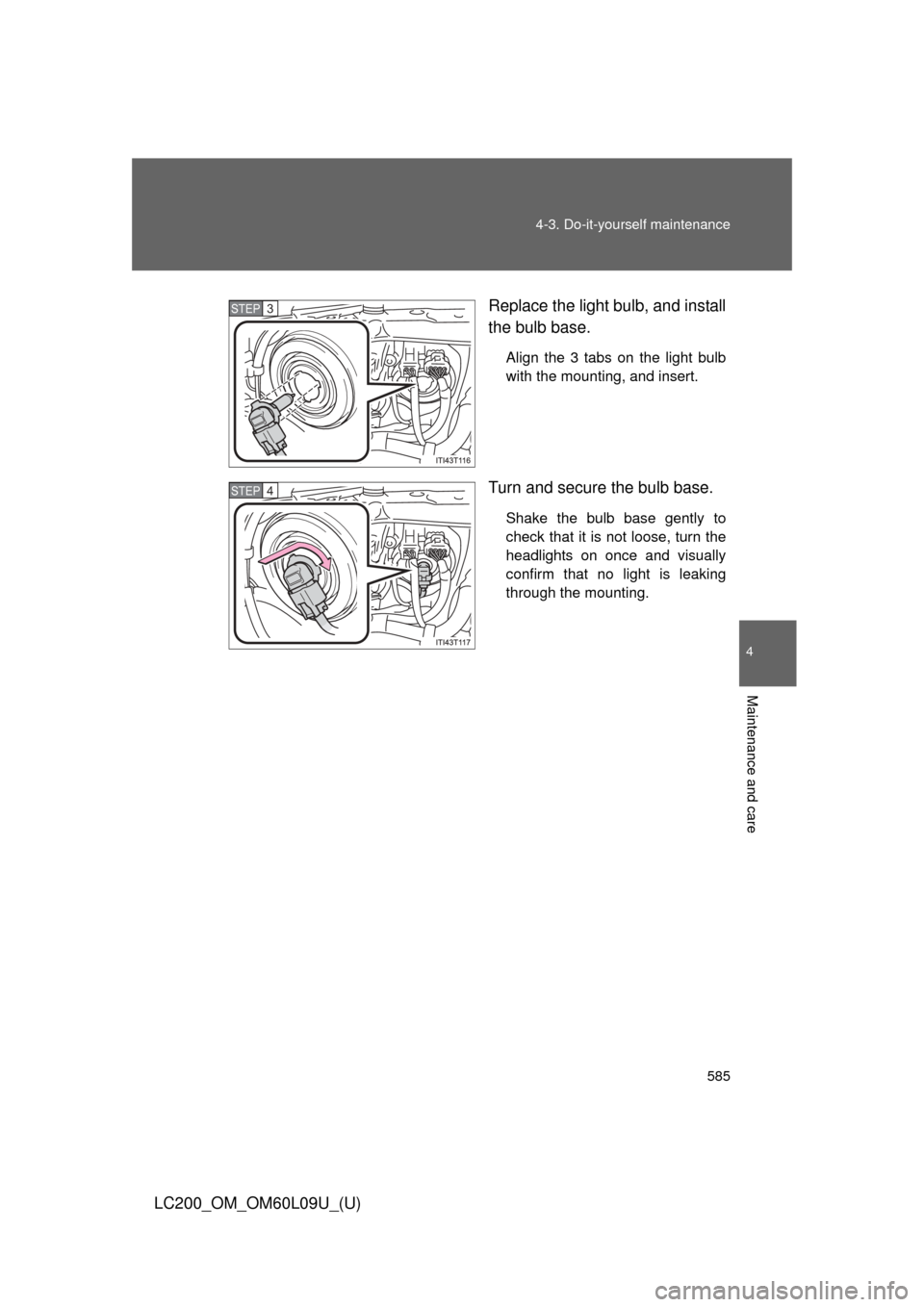

Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP3
STEP4
Page 586 of 724
586 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■

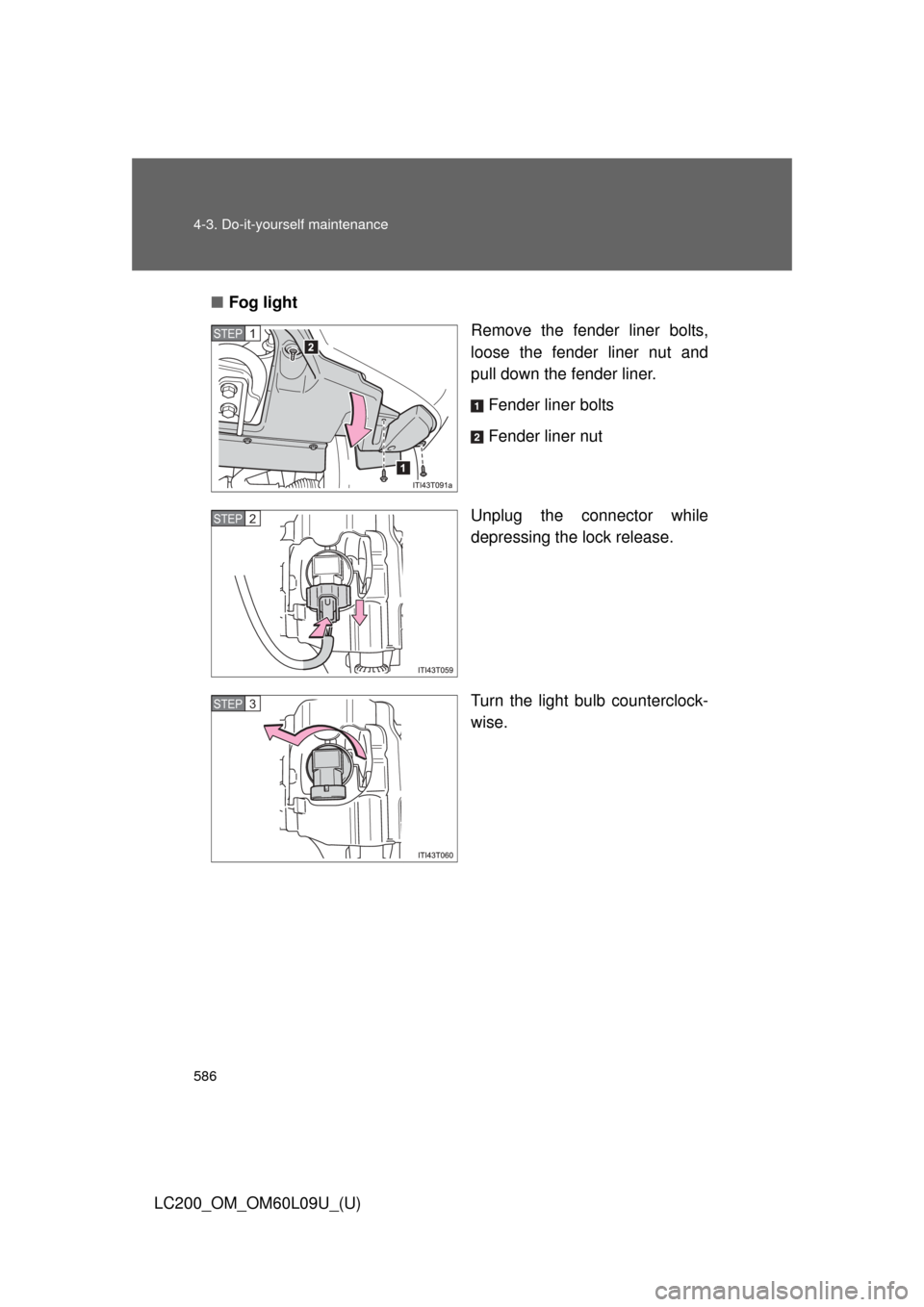

Fog light
Remove the fender liner bolts,
loose the fender liner nut and
pull down the fender liner.
Fender liner bolts
Fender liner nut
Unplug the connector while
depressing the lock release.
Turn the light bulb counterclock-
wise.
STEP1
STEP2
STEP3
Page 587 of 724
587
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)

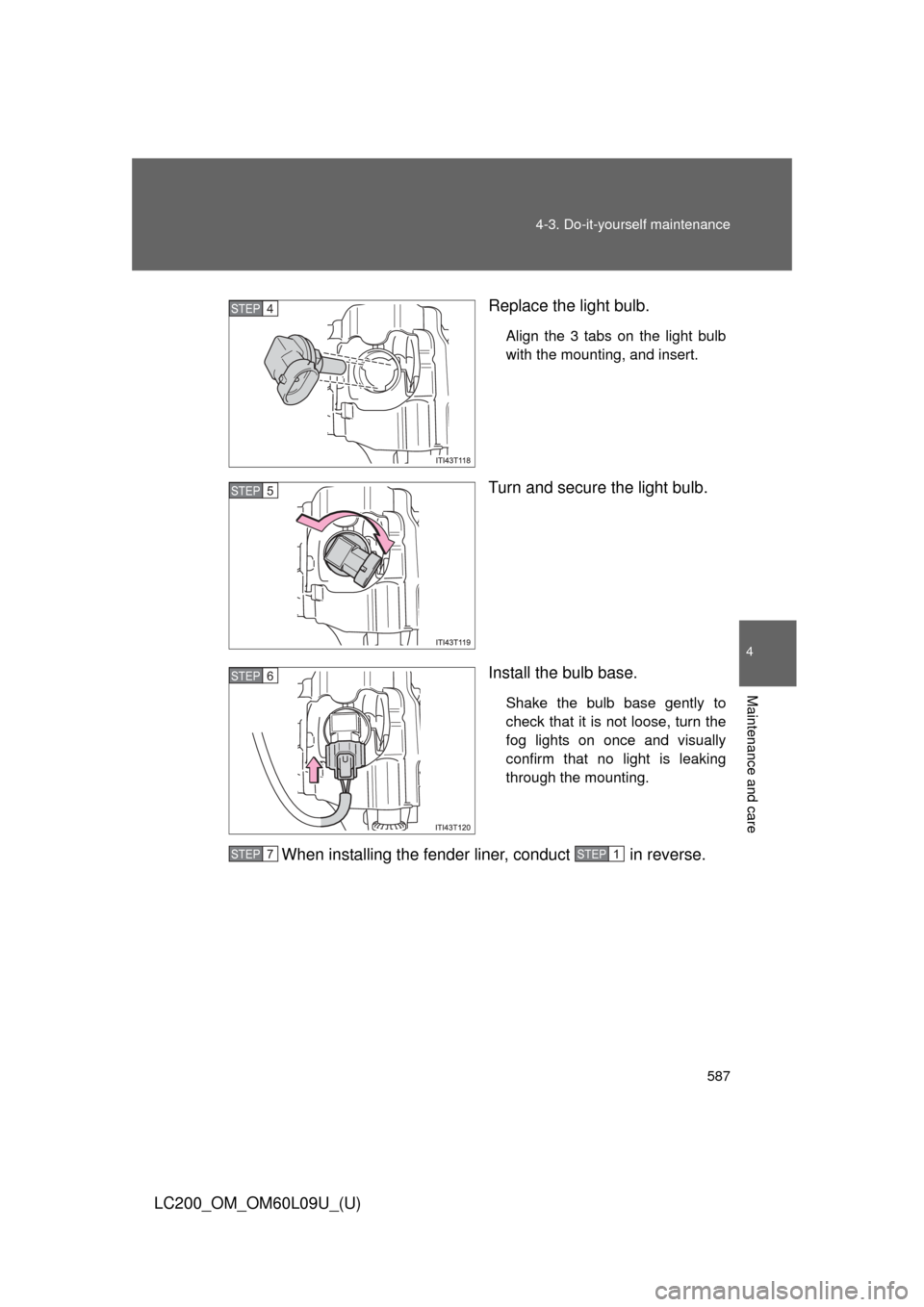

Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the light bulb.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the fender liner, conduct in reverse.
STEP4
STEP5
STEP6
STEP7STEP1
Page 588 of 724
588 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■

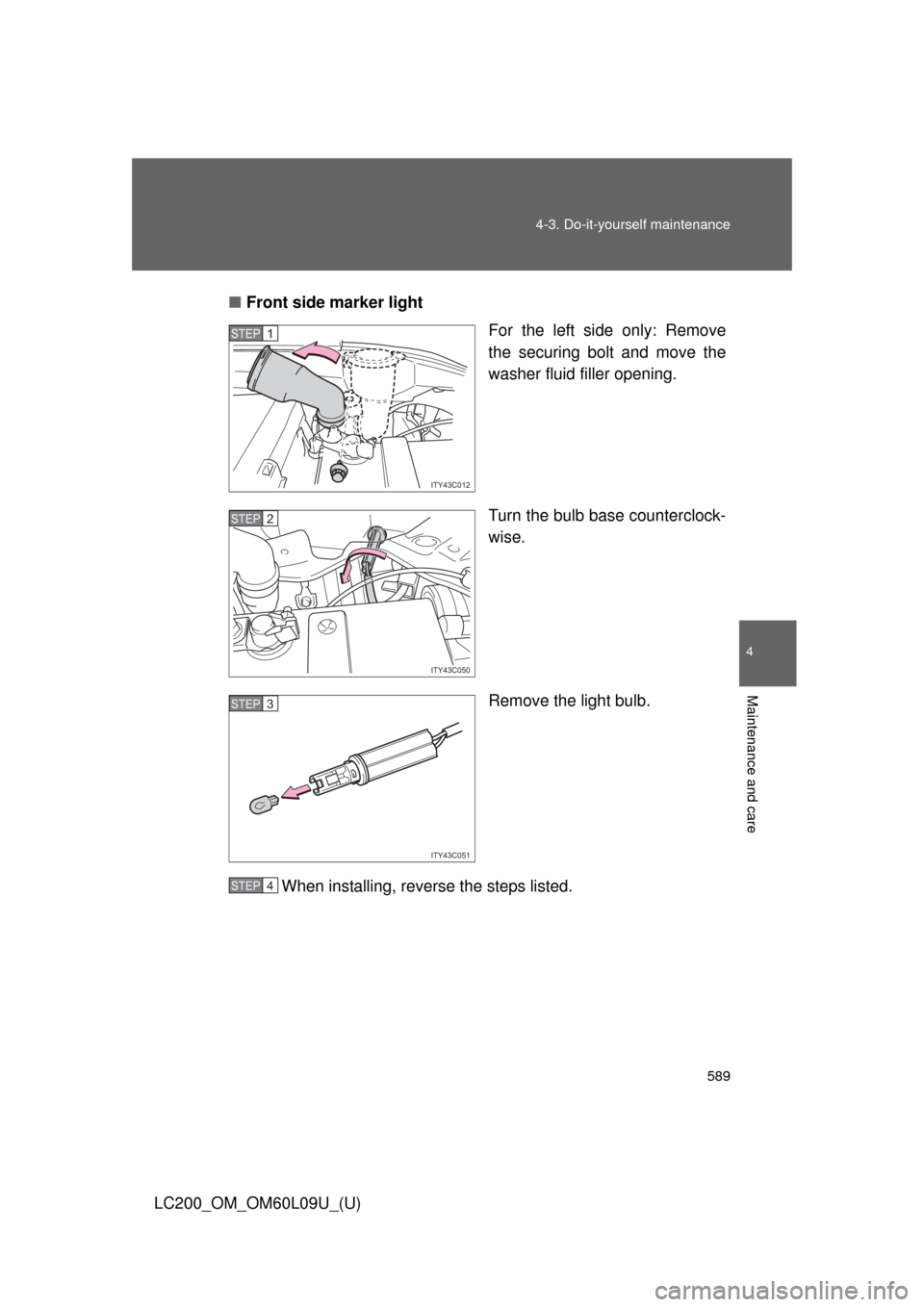

Front turn signal light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.

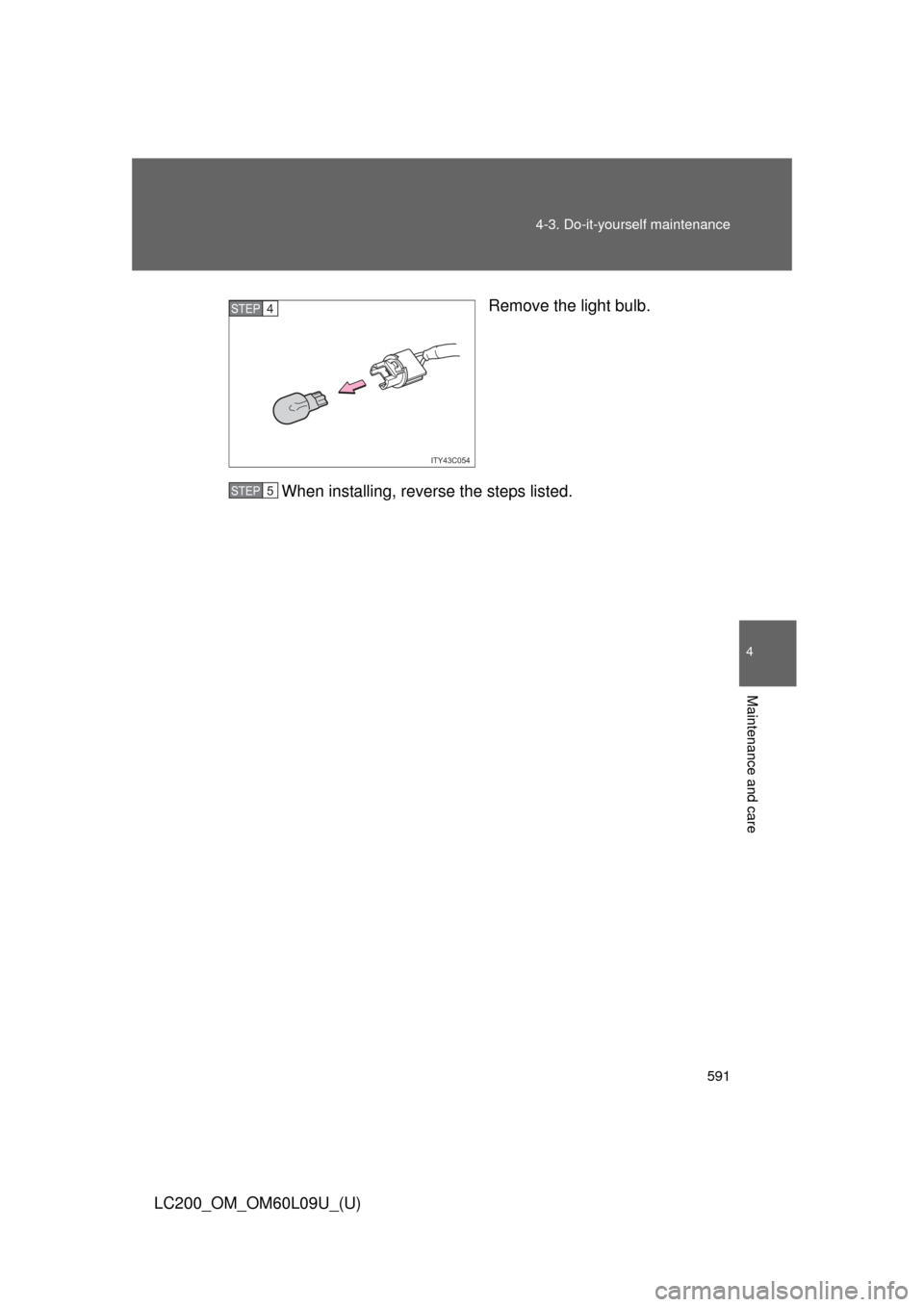

Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
STEP2
STEP3
STEP4
Page 589 of 724
589
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
■

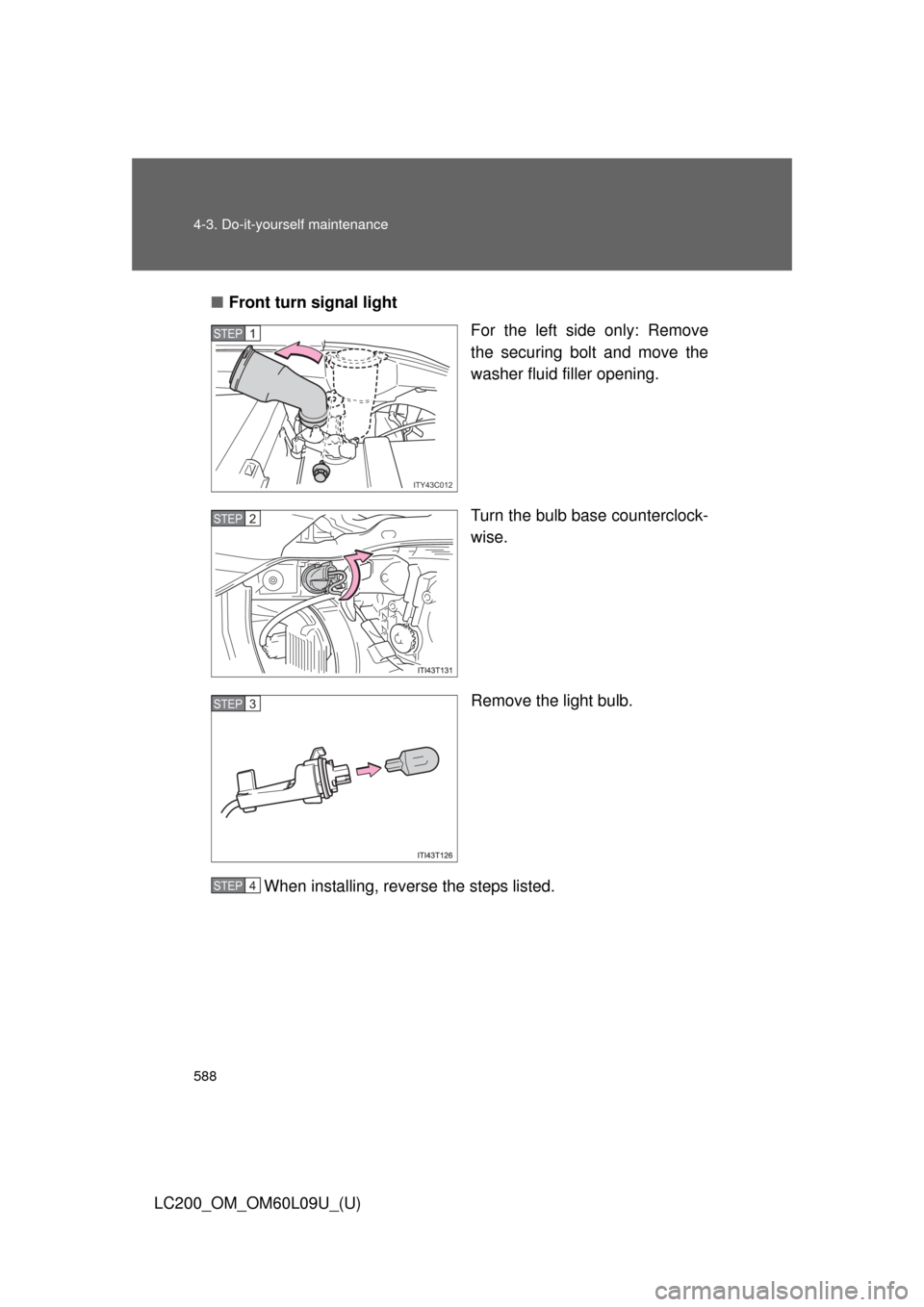

Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3
STEP4
Page 590 of 724
590 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■

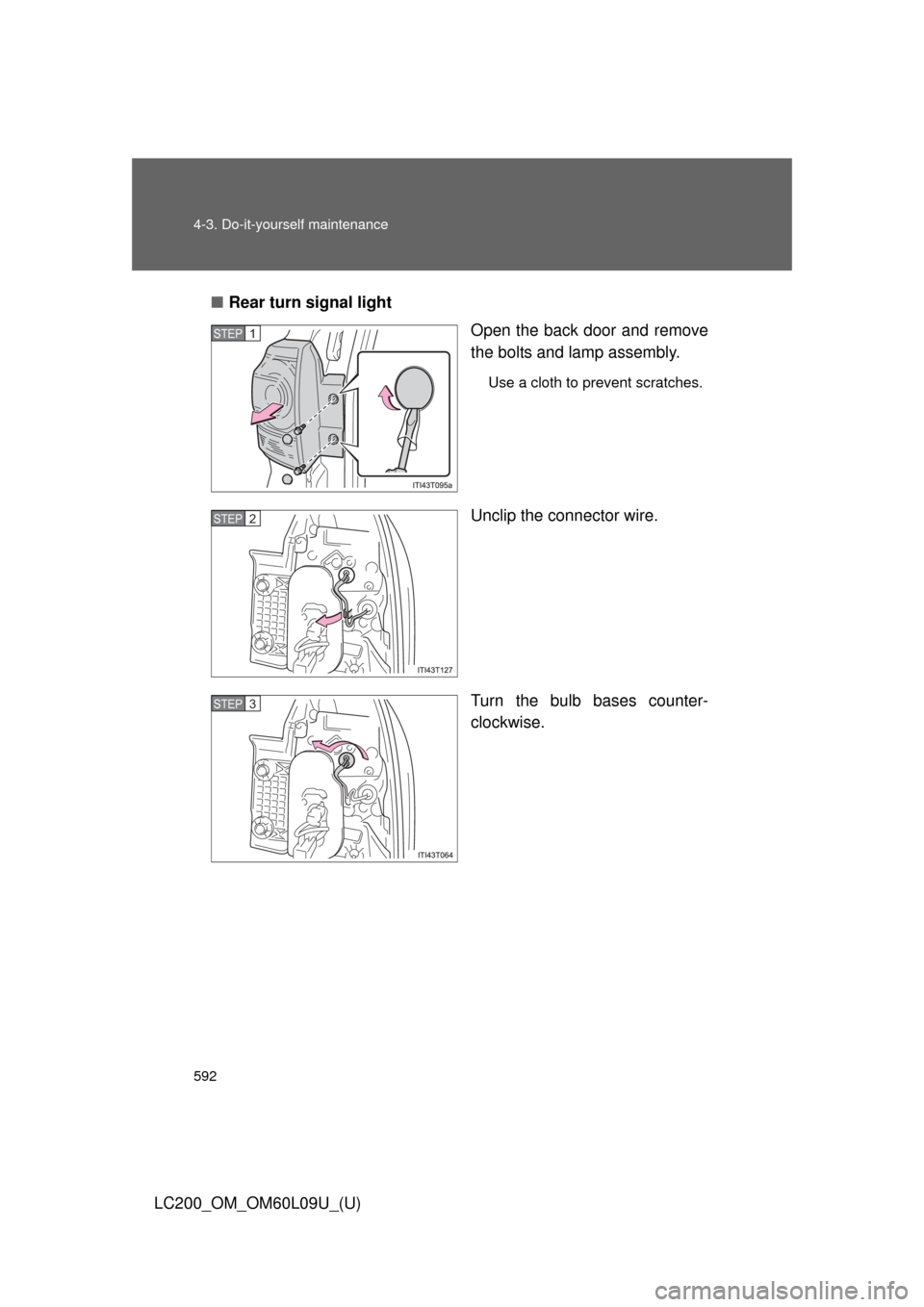

Back-up light
Open the back door and remove
the nuts and lamp assembly.
Remove the cover.
Unclip the connector wire and
turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3
Page 591 of 724
591
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C054
STEP4
STEP5
Page 592 of 724
592 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■
Rear turn signal light
Open the back door and remove
the bolts and lamp assembly.
Use a cloth to prevent scratches.
Unclip the connector wire.
Turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3
