Page 577 of 724
577
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)

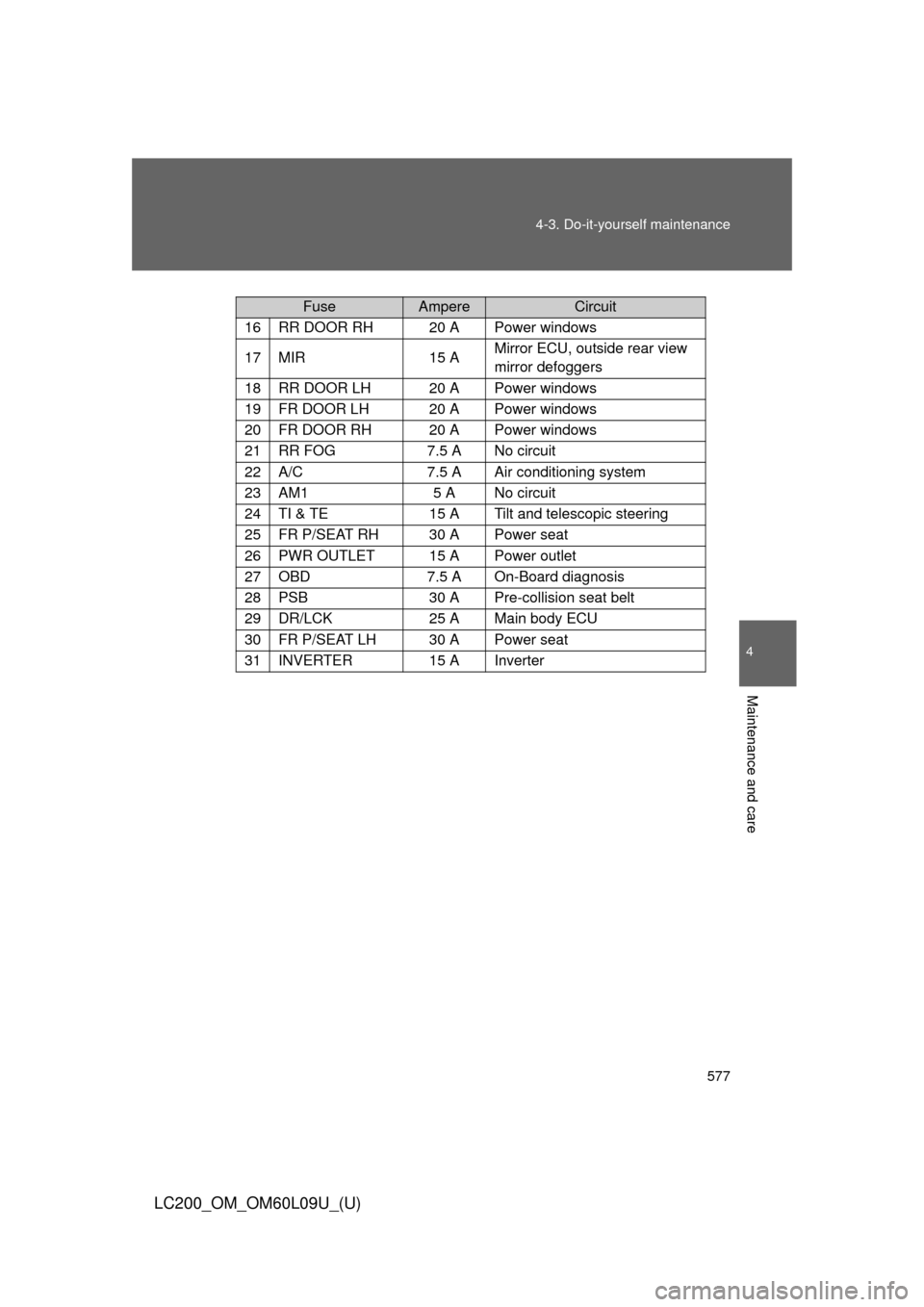

16RR DOOR RH20 A Power windows
17MIR15 A
Mirror ECU, outside rear view
mirror defoggers
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Power seat
26PWR OUTLET15 A Power outlet
27OBD7.5 A On-Board diagnosis
28PSB30 A Pre-collision seat belt
29DR/LCK25 A Main body ECU
30FR P/SEAT LH30 A Power seat
31INVERTER15 A Inverter
FuseAmpereCircuit
Page 578 of 724
578 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■

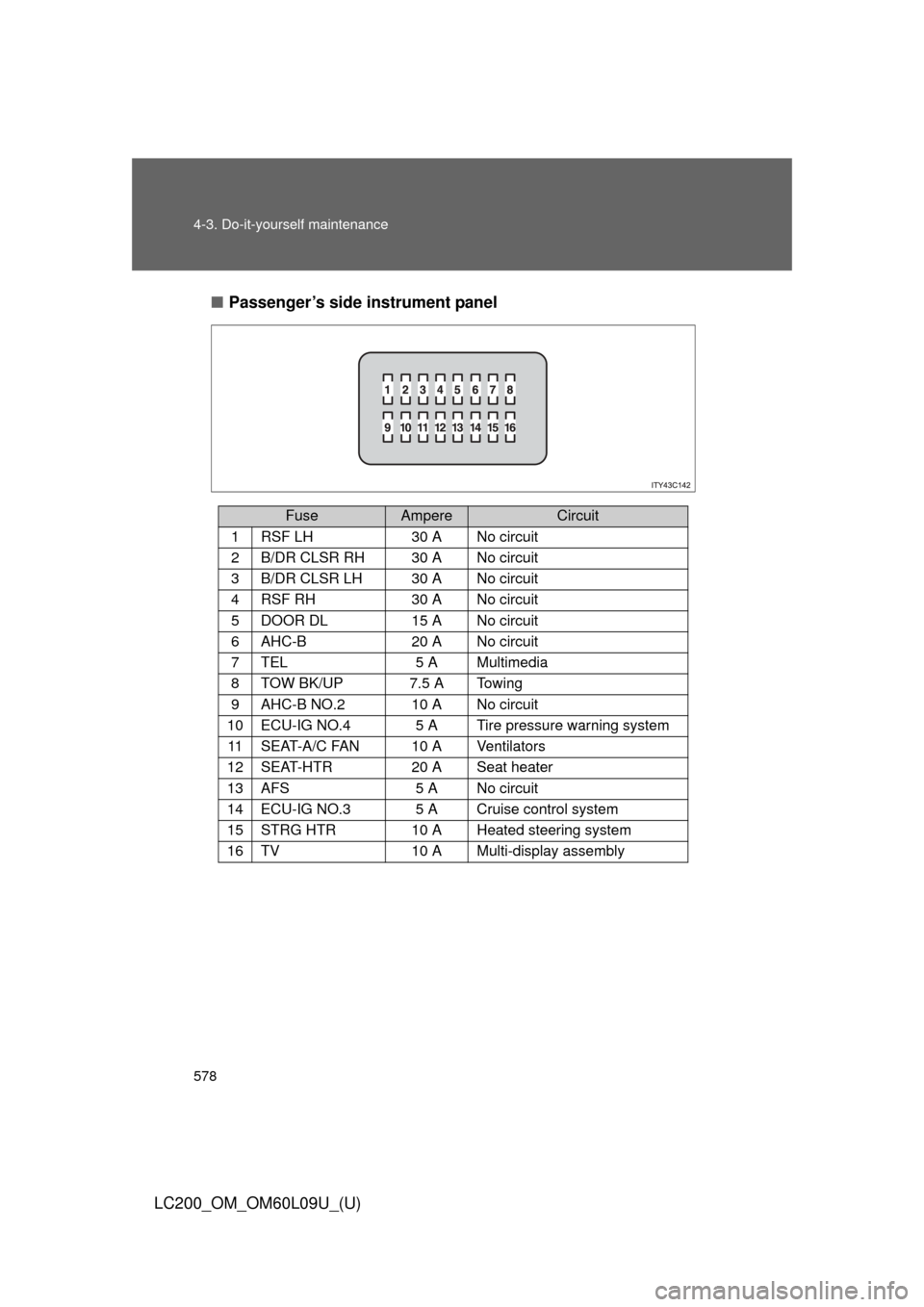

Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A Ventilators
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A Cruise control system
15STRG HTR10 A Heated steering system
16TV10 A Multi-display assembly
Page 579 of 724
579
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 582)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.
Page 580 of 724
580
4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)

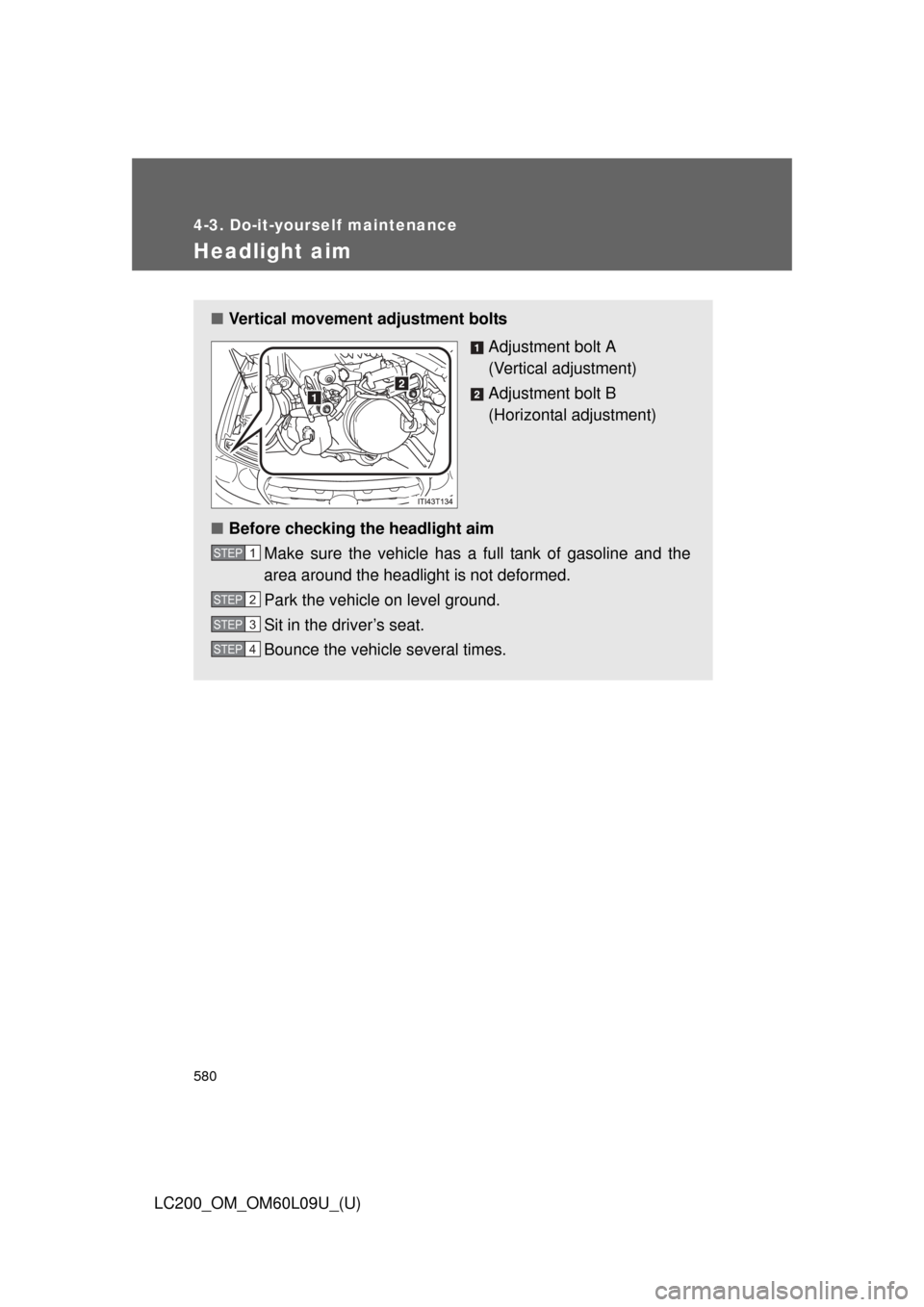

Headlight aim
■Vertical movement adjustment bolts
Adjustment bolt A
(Vertical adjustment)
Adjustment bolt B
(Horizontal adjustment)
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gasoline and the
area around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4
Page 581 of 724
581
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
■
Adjusting the headlight aim
Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.
Turn bolt B the same number
of turns and in the same direc-
tion as .
If the headlight cannot be
adjusted using this procedure,
take the vehicle to your Toyota
dealer to adjust the headlight
aim.
STEP1
STEP2
STEP1
Page 582 of 724
582
4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)

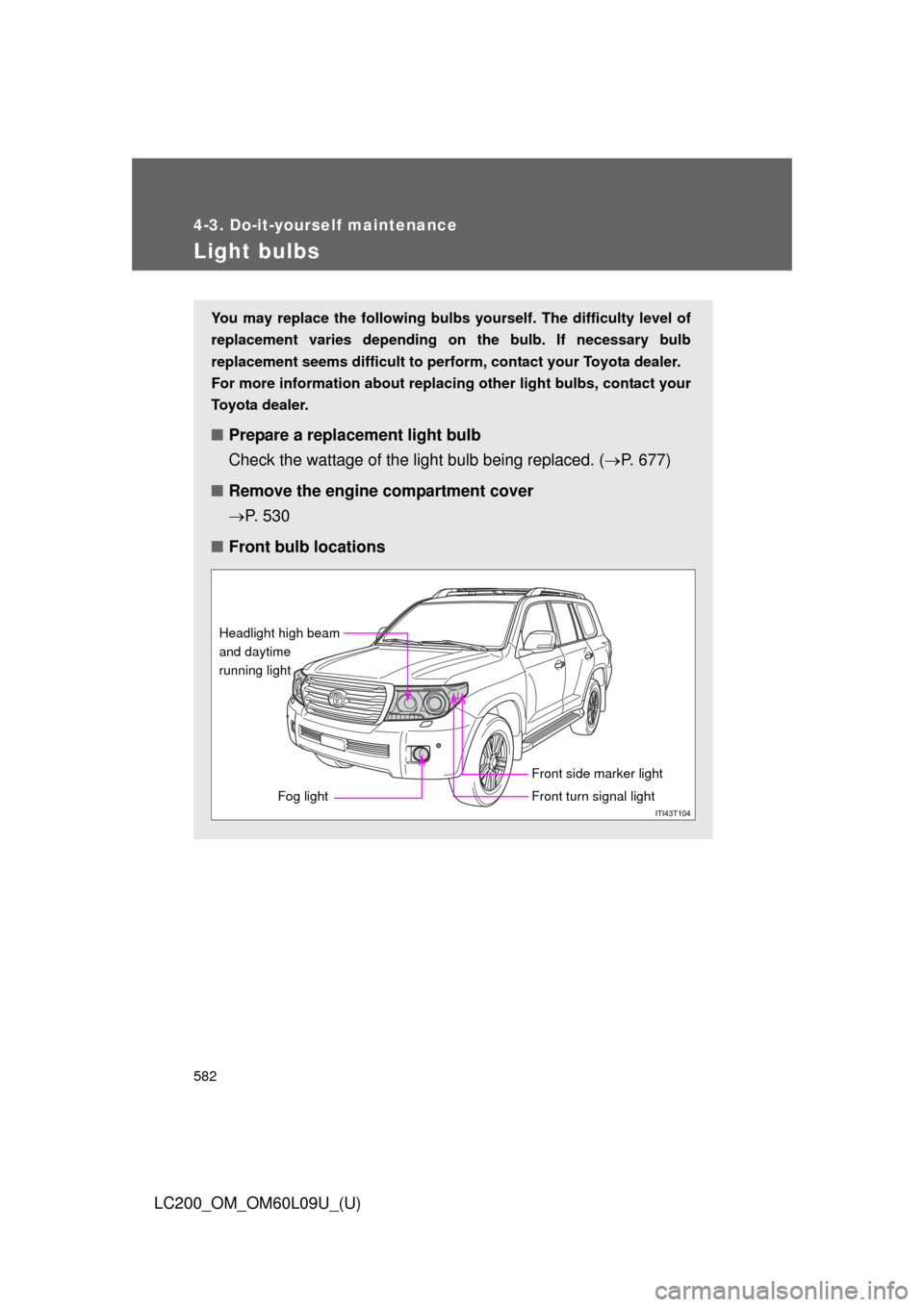

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( P. 677)
■ Remove the engine compartment cover
P. 530
■ Front bulb locations
Front side marker light
Fog light
Headlight high beam
and daytime
running light
Front turn signal light
Page 583 of 724
583
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
■
Rear bulb locations
License plate lights
Rear turn signal
light
Back-up light
Page 584 of 724
584 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)

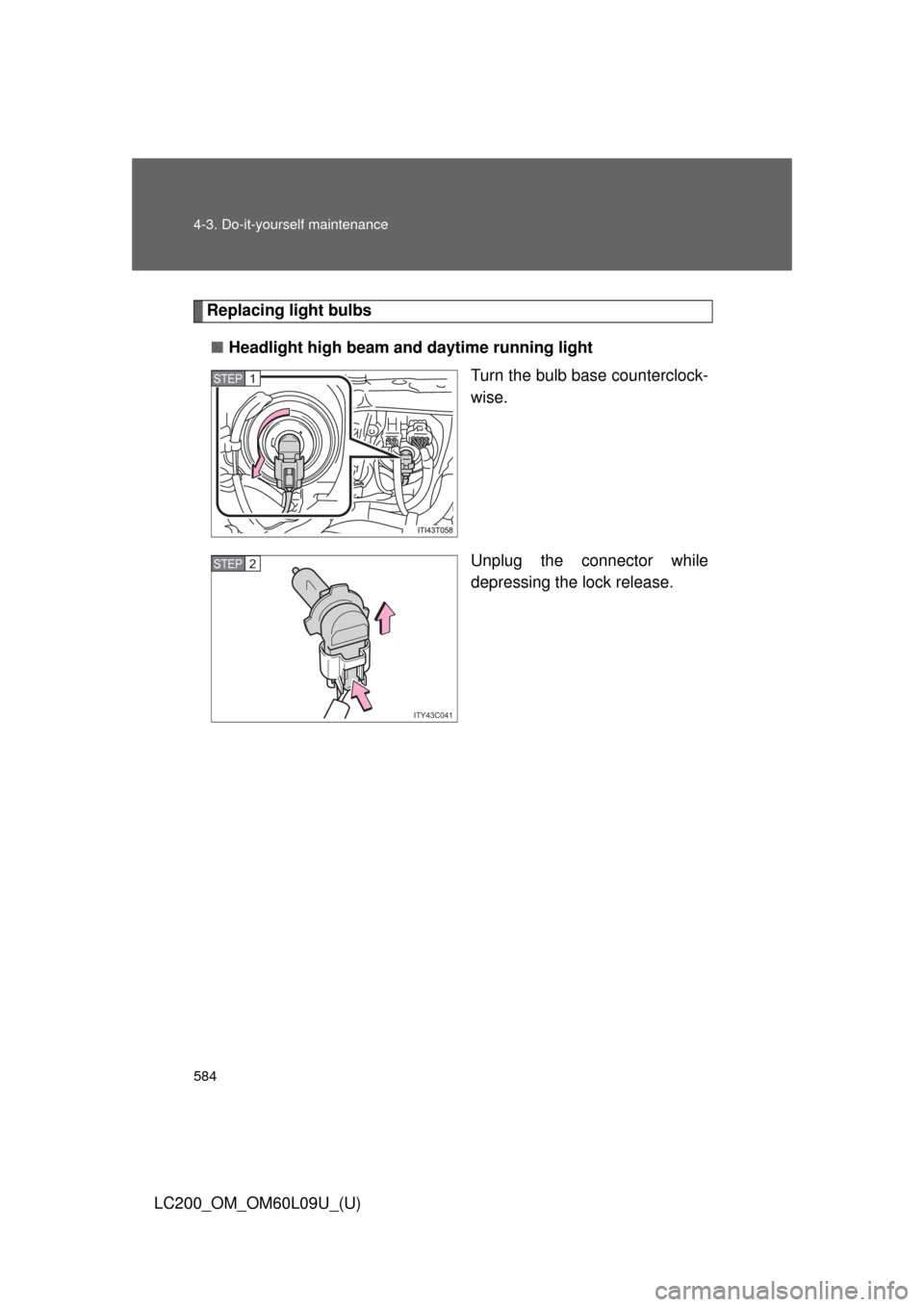

Replacing light bulbs■ Headlight high beam and daytime running light
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
ITY43C041
STEP2
