Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:

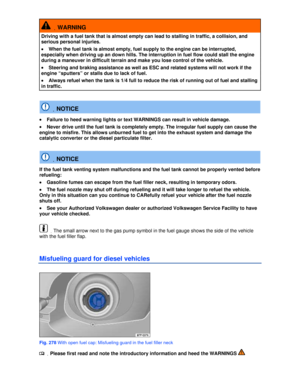

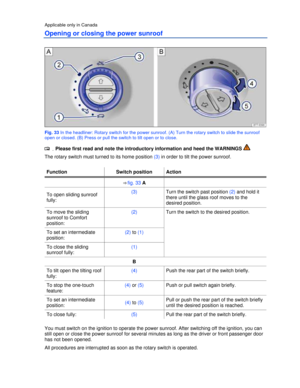

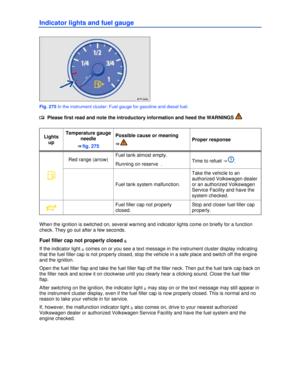

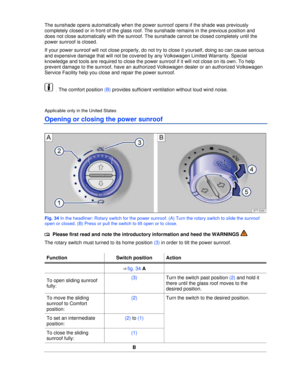

(1) Fuel filler flap
(2) Side window with window diversity antenna for:
– Radio
– Central locking
(3) Roof antenna for:
– Cell phone
– Navigation
(4) Roof rack
(5) Outside door handle
(6) Outside mirror
– Additional turn signal light
(7) Lift points for the jack

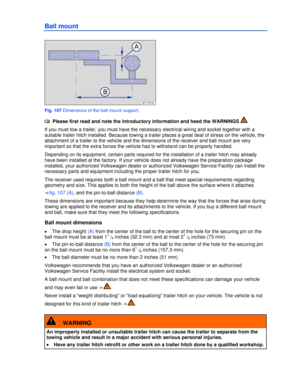

(8) Receiver for the trailer hitch

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Sensor on mirror base for:
– Rain sensor
– Low-light sensor
– Dynamic high beam control
(2) Front windshield
(3) Windshield wipers
(4) Engine Hood
(5) Engine hood release
(6) Headlights
(7) Headlight washers
(8) Front license plate bracket

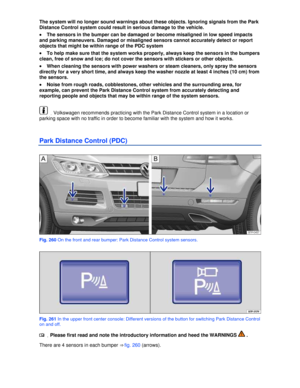

(9) Sensors for front Park Distance Control
(10) Front towing eye mount behind a cover
(11) Fog lights/static cornering lights

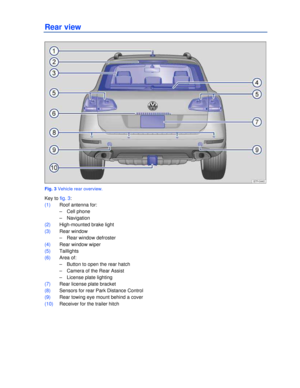

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Roof antenna for:
– Cell phone
– Navigation
(2) High-mounted brake light
(3) Rear window
– Rear window defroster
(4) Rear window wiper
(5) Taillights
(6) Area of:
– Button to open the rear hatch

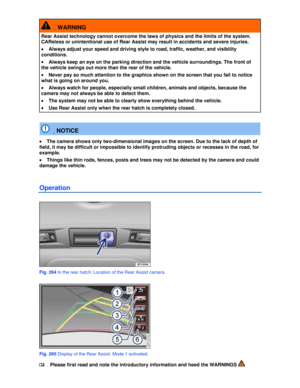

– Camera of the Rear Assist
– License plate lighting
(7) Rear license plate bracket
(8) Sensors for rear Park Distance Control
(9) Rear towing eye mount behind a cover
(10) Receiver for the trailer hitch

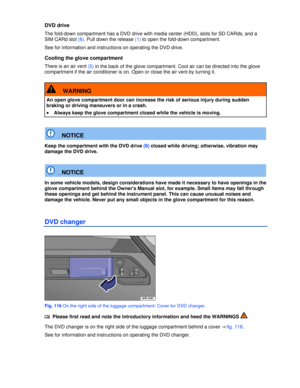

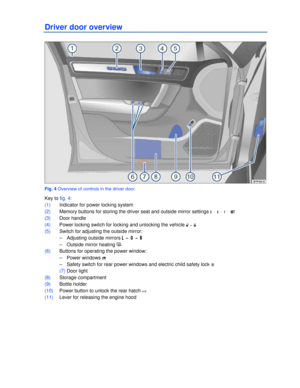

Driver door overview

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Indicator for power locking system

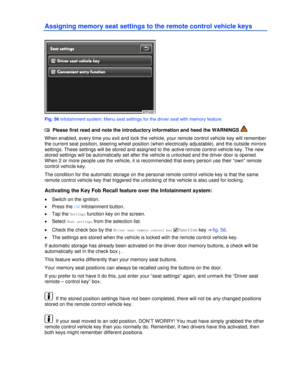

(2) Memory buttons for storing the driver seat and outside mirror settings  –  –  – 3%4
(3) Door handle
(4) Power locking switch for locking and unlocking the vehicle 0

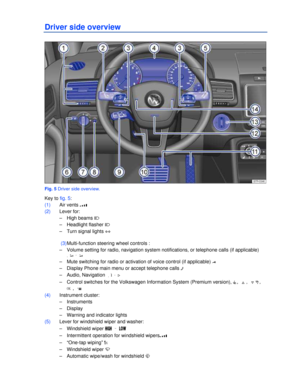

Driver side overview

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Air vents z

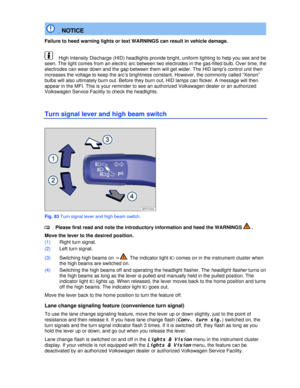

(2) Lever for:
– High beams
– Headlight flasher
– Turn signal lights

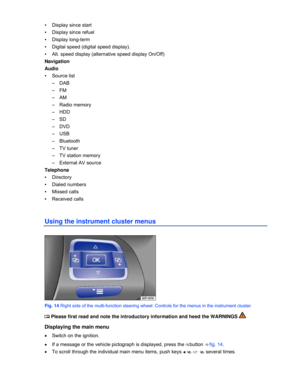

(3) Multi-function steering wheel controls :
– Volume setting for radio, navigation system notifications, or telephone calls (if applicable)
.& – '
– Mute switching for radio or activation of voice control (if applicable) 

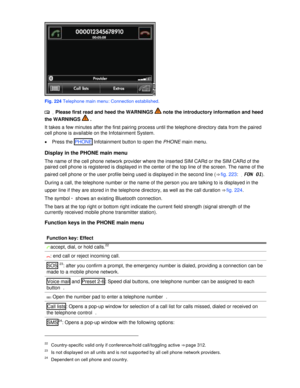

– Display Phone main menu or accept telephone calls -
– Audio, Navigation .Ì –

– Rear window wiper Z
– Automatic wipe/wash for rear window \
– Lever with buttons for the Volkswagen Information System (Basic version) 42)0- , /+/2%3%4
(6) Fog light button
(7) Headlight switch

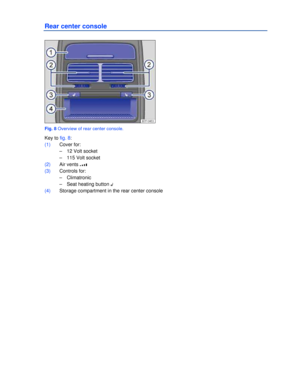

Upper front center console

Fig. 6 Overview of upper front center console.
Key to fig. 6:
(1) Air vent for indirect ventilation
(2) Storage compartment
(3) Air vents z

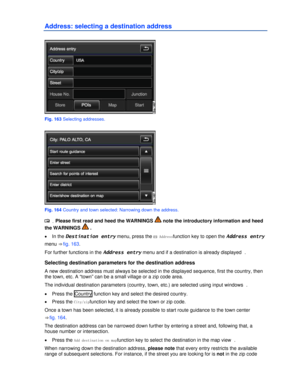

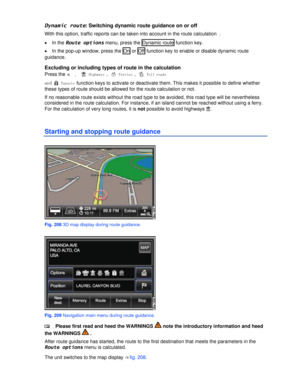

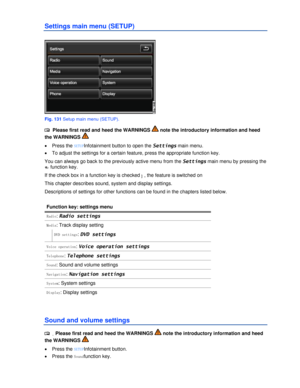

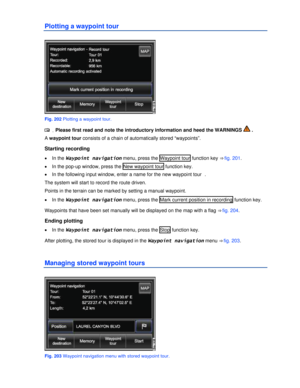

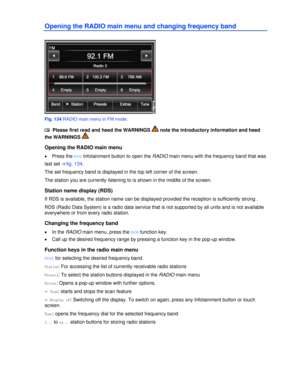

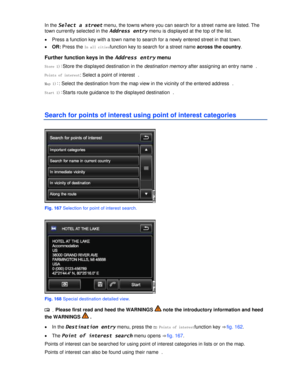

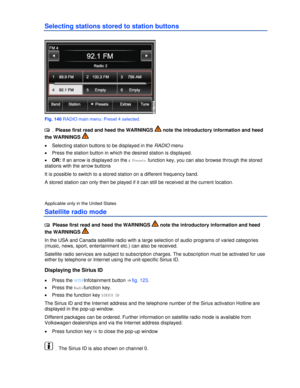

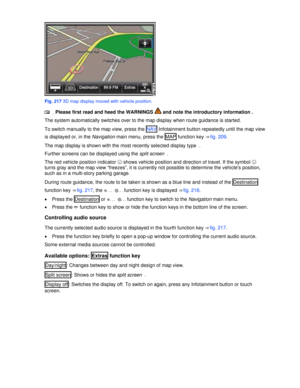

(4) Radio or Radio & Navigation system (factory installed)
(5) Controls for:
– Climatronic
– Seat heating switch button A
(6) Located here:
– Switch for emergency flashers
– PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
– Park Distance Control system button ∗ or ∗

Lower front center console

Fig. 7 Overview of lower front center console (4MOTION).
Key to fig. 7:

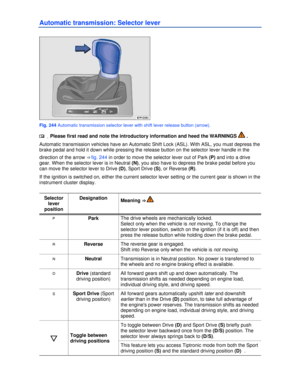

(1) Automatic transmission selector lever

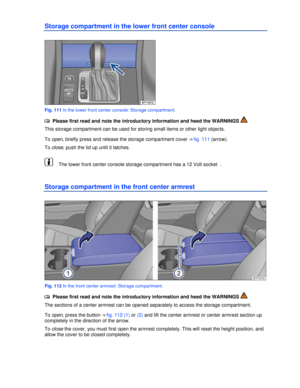

(2) Storage compartment
– with 12 Volt socket

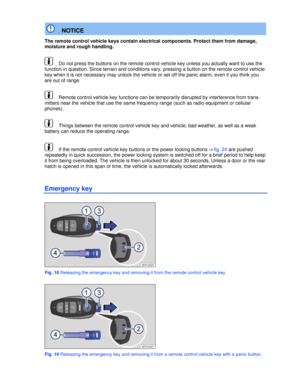

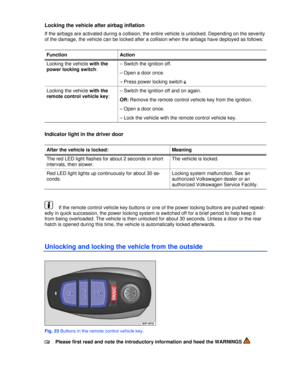

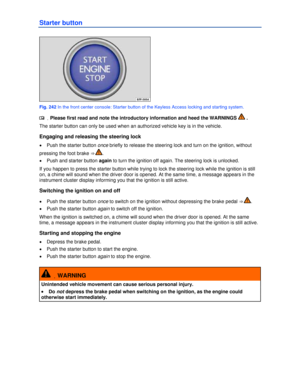

(3) Starter button for Keyless Access locking and starting system 34!24 – 34/0
()
(4) Button for:
– Electronic parking brake G
(5) Button for:
– Driving with electric motor %--/$%
– Anti-slip regulation (ASR) m

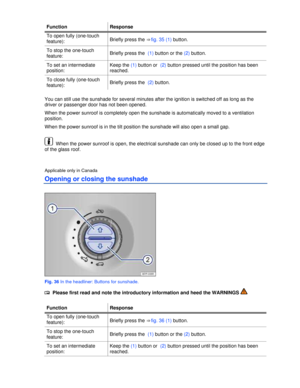

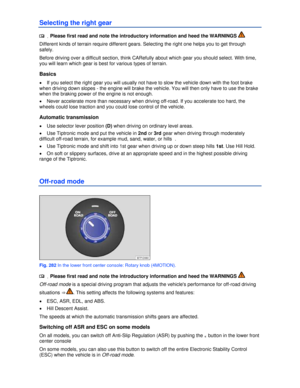

(6) Rotary knob for setting drive mode (On-road / Off-road)
(7) Cup holders

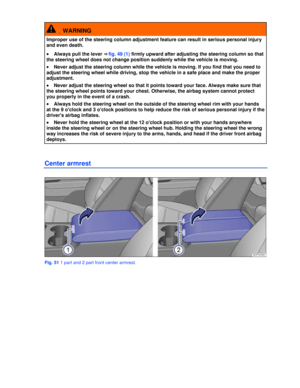

(8) Storage compartment in the center armrest
