Page 65 of 146

JauneNoirNoir texte
2.7
ENG_UD5485_1Conseils antipollution, économies de carburant, conduite (U90 - Daci\
a)ENG_NU_817-2_NU_Dacia_2
– Study the road ahead so that you are able to brake as little as possible, it can be sufficient just to lift off the ac- celerator.
– Avoid sudden acceleration.
– Do not overrev the engine in the in
- termediate gears. Always use the highest gear possible without labour- ing the engine.
– Do not try to maintain the same
speed up a hill, accelerate no more than you would on the level. Keep your foot in the same position on the accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary in modern vehicles.
– Bad weather, flooded roads.
Do not drive through floods if the water is above the lower edge of the wheel
rims.
Exhaust gas monitoring
system
The exhaust gas monitoring system will detect any operating faults in the vehicle’s antipollution system.
If this system malfunctions, toxic sub- stances may be released into the at- mosphere or damage may occur.
ÄThis warning light on the in- strument panel will indicate if there are any faults in the system:
T h i s c o m e s o n w h e n t h e i g n i- tion is switched on and goes out after three seconds.
– if it lights up continuously, consult
your approved dealer as soon as possible;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact your approved dealer as soon as possible.
Driving
– Drive carefully for the first few miles until the engine reaches its normal operating temperature, rather than let it warm up while the vehicle is sta- tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
ADVICE ON ANTIPOLLUTION, FUEL ECONOMY AND DRIVING (continued)
Page 66 of 146

2.8
ENG_UD5485_1Conseils antipollution, économies de carburant, conduite (U90 - Daci\
a)ENG_NU_817-2_NU_Dacia_2
ADVICE ON ANTIPOLLUTION, FUEL ECONOMY AND DRIVING (continued)
– In vehicles fitted with air condi- tioning, it is normal to observe an increase in fuel consumption (es- pecially in city conditions) when it is used. For vehicles fitted with manual air conditioning, switch off the system when it is not required.
Some advice for reducing fuel consumption and therefore help- ing to protect the environment:
– It is advisable to drive with the air
vents open and the windows closed.
– If the vehicle has been parked in the
sun, open the doors for a few mo- ments to let the hot air escape before starting the engine.
– Never fill the fuel tank to the brim to
avoid overflow.
– Do not leave an empty roof rack
fitted to the vehicle.
– It is better to fit a trailer for bulky ob
- jects.
– When towing a caravan, fit a wind
deflector and adjust it carefully.
Advice on use
– Electricity is fuel; switch off all the electrical components which are not really needed.
However (safety first), keep your lights on when the visibility is bad (“see and be seen”).
– Use the air vents. Driving with the
windows open will increase fuel consumption by 4% at a speed of 60 mph (100 km/h). –
Avoid using the vehicle for door-to
- door journeys (short journeys, with long stops in-between) because in these conditions, the engine never reaches its ideal temperature.
Tyres
Increased fuel consumption could be the result of:
– insufficient pressure,
– using non-recommended tyres.
Page 67 of 146

driving ...................................................(up to the end of the DU)environment ..........................................(up to the end of the DU)
2.9
ENG_UD5486_1Environnement (U90 - Dacia)ENG_NU_817-2_NU_Dacia_2
Environnement
ENVIRONMENT
Your vehicle has been designed with the aim of caring for the environment.
– Most versions are equipped with a
particle filter system including a cat- alytic converter, an oxygen sensor and an active carbon filter (the latter prevents vapour from the fuel tank being released into the open air.)
–
These vehicles operate with un- leaded fuel only.
– 87% of the parts in your vehicle
can
be recycled and it already contains parts made using recycled materi- als.
– 95% of the plastic components
in your vehicle are marked with a symbol which allows the principal component material to be identified. These markings mean that parts re- moved can be sorted more easily, making it easier to recycle them.
In addition to this, your vehicle meets the requirements laid down in European legislation relating to environmental protection.
Make your contribution towards pro- tection of the environment too.
Do not dispose of parts replaced in the course of routine vehicle maintenance (battery, oil filter, air filter, etc.) and oil containers (empty or full of used oil) with household waste.
Dispose of them through specialist or- ganisations. In all cases, comply with local legislation.
Page 68 of 146
gear lever..............................................(up to the end of the DU)reverse gearselecting ..........................................(up to the end of the DU)
2.10
ENG_UD6870_1Levier de vitesses (B90 - Dacia)ENG_NU_817-2_NU_Dacia_2
Levier de vitesses

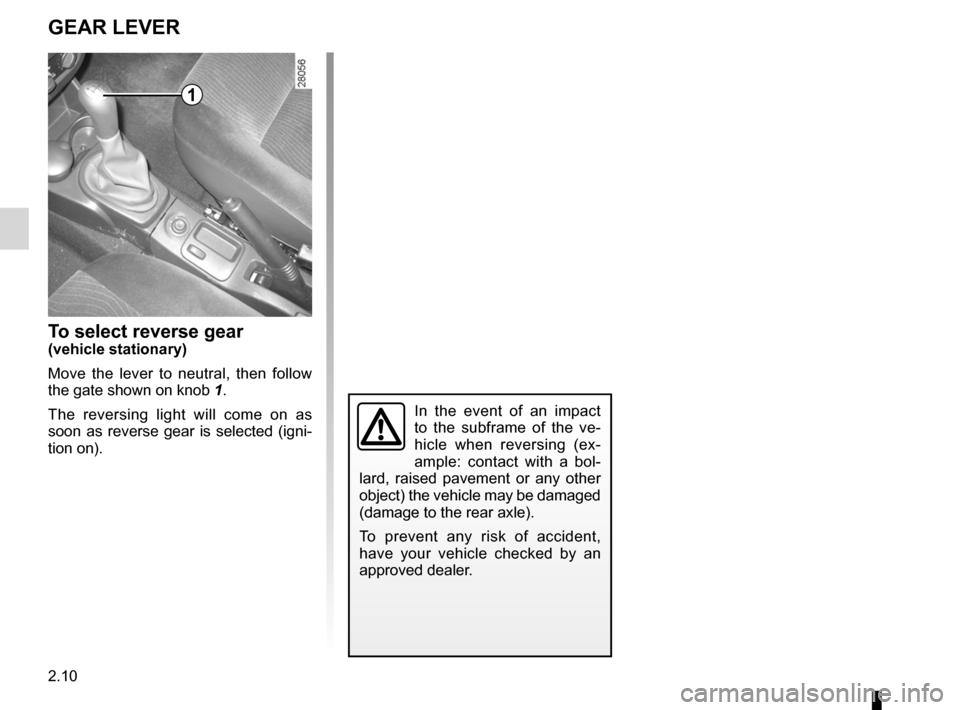

GEAR LEVER
To select reverse gear(vehicle stationary)
Move the lever to neutral, then follow
the gate shown on knob 1.
The reversing light will come on as soon as reverse gear is selected (igni- tion on).
In the event of an impact to the subframe of the ve- hicle when reversing (ex- ample: contact with a bol- lard, raised pavement or any other
object) the vehicle may be damaged (damage to the rear axle).
To prevent any risk of accident, have your vehicle checked by an approved dealer.
1
Page 69 of 146

power-assisted steering.........................................(current page)driving ....................................................................(current page)power-assisted steering.........................................(current page)handbrake..............................................................(current page)
2.11
ENG_UD6871_1Frein à main / Direction assistée (B90 - Dacia)ENG_NU_817-2_NU_Dacia_2
Handbrake
To release
Gently pull the lever upwards, press
button 1 and move the lever to the floor.
The red warning light on the instrument panel will light up if you are driving with an incorrectly released handbrake.
Levier de vitesses - Frein à mainDirection assistée
HANDBRAKE/POWER-ASSISTED STEERING
1
To apply
Pull upwards, check that the vehicle is properly immobilised.
Depending on the gradient and/or vehicle load, it may be necessary to apply the brake by at least a further two notches and engage a gear (1st or reverse gear).
Never switch off the igni- tion when travelling down- hill, and avoid doing so in normal driving (assistance is not provided).
When driving, ensure that the handbrake has been completely released (red warning light off), risk of overheathing.
Power-assisted steering
If you have power-assisted steer- ing fitted, do not leave the steering wheel at full lock while stationary as this may damage the pump.
Page 70 of 146

driving ...................................................(up to the end of the DU)ABS ......................................................(up to the end of the DU)anti-lock braking system: ABS ..............(up to the end of the DU)
2.12
ENG_UD5488_1Système antiblocage des routes : ABS (U90 - Dacia)ENG_NU_817-2_NU_Dacia_2
Operating faults
Two possible situations may occur:
1 – Warning light x is lit on the instrument panel.Braking is still performed, but with- out the ABS system. Contact an approved dealer as soon as pos- sible.
Although this system allows you to make maximum use of stopping dis- tances, even with the ABS you still have to take account of the actual condition of the road surface.
It is still essential to follow the rules of good driving practice (such as driv- ing at a safe distance from the vehicle in front). The fact that the vehicle’s safety has been increased should not encourage you to take risks.
You will feel a pulsation through the brake pedal each time the system is ac- tivated. These tangible signs will warn you that the adhesion between the tyres and the ground has reached its limit and enable you to adapt your driv- ing style to suit the road conditions.
2 – The x and D warning lights on the in- strument panel come on.
This indicates that both the brak- ing system and the ABS system are faulty. Your braking systems are only partially operational. However, it is dangerous to brake suddenly and it is essential to stop immedi- ately, as soon as traffic conditions allow. Contact an approved dealer as soon as possible.
Système antiblocage des roues (ABS)

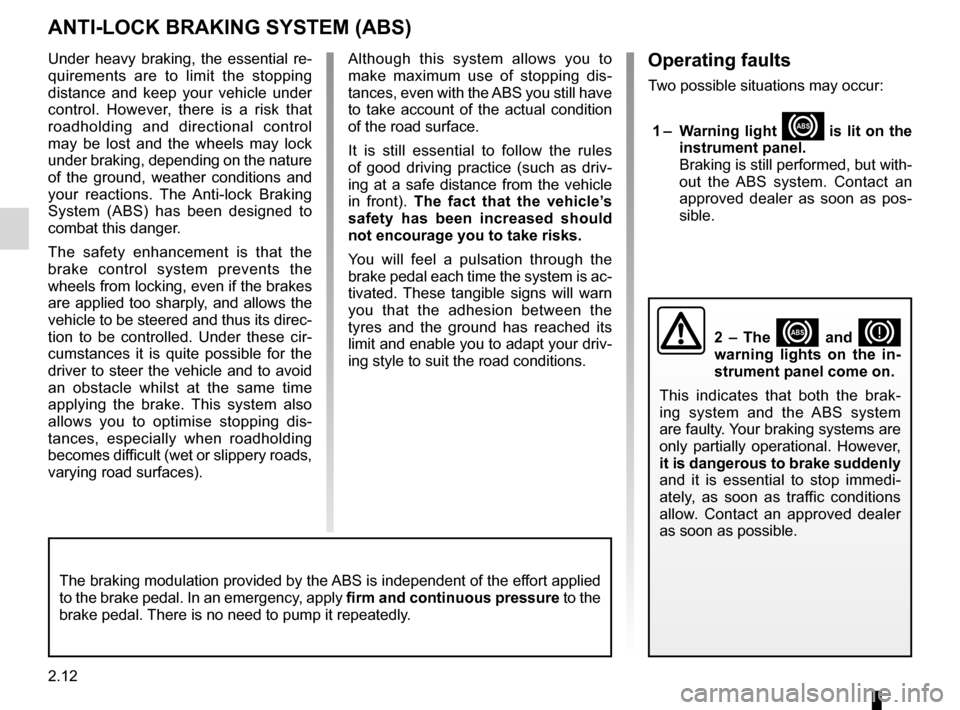

ANTI-LOCK BRAKING SYSTEM (ABS)
Under heavy braking, the essential re- quirements are to limit the stopping distance and keep your vehicle under control. However, there is a risk that roadholding and directional control may be lost and the wheels may lock under braking, depending on the nature of the ground, weather conditions and your reactions. The Anti-lock Braking System (ABS) has been designed to combat this danger.
The safety enhancement is that the brake control system prevents the wheels from locking, even if the brakes are applied too sharply, and allows the vehicle to be steered and thus its direc- tion to be controlled. Under these cir- cumstances it is quite possible for the driver to steer the vehicle and to avoid an obstacle whilst at the same time applying the brake. This system also allows you to optimise stopping dis- tances, especially when roadholding becomes difficult (wet or slippery roads, varying road surfaces).
The braking modulation provided by the ABS is independent of the effort applied to the brake pedal. In an emergency, apply firm and continuous pressure to the brake pedal. There is no need to pump it repeatedly.
Page 71 of 146

3.1
ENG_UD8703_2Sommaire 3 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

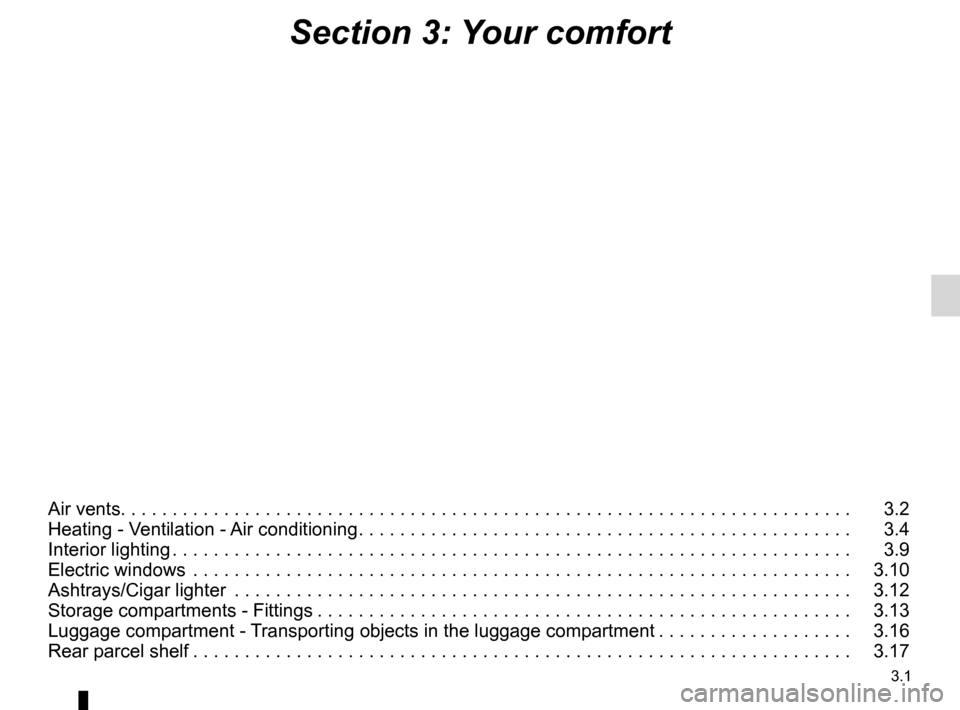

Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating - Ventilation - Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 3.4
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
Ashtrays/Cigar lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 3.12
Storage compartments - Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 3.13
Luggage compartment - Transporting objects in the luggage compartment . . . . . . . . . . . . . . . . . . . 3.16
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
Page 72 of 146
air vents ................................................(up to the end of the DU)heating system .....................................(up to the end of the DU)heating and air conditioning system .....(up to the end of the DU)
3.2
ENG_UD5579_1Aérateurs (sorties air) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
Aérateurs

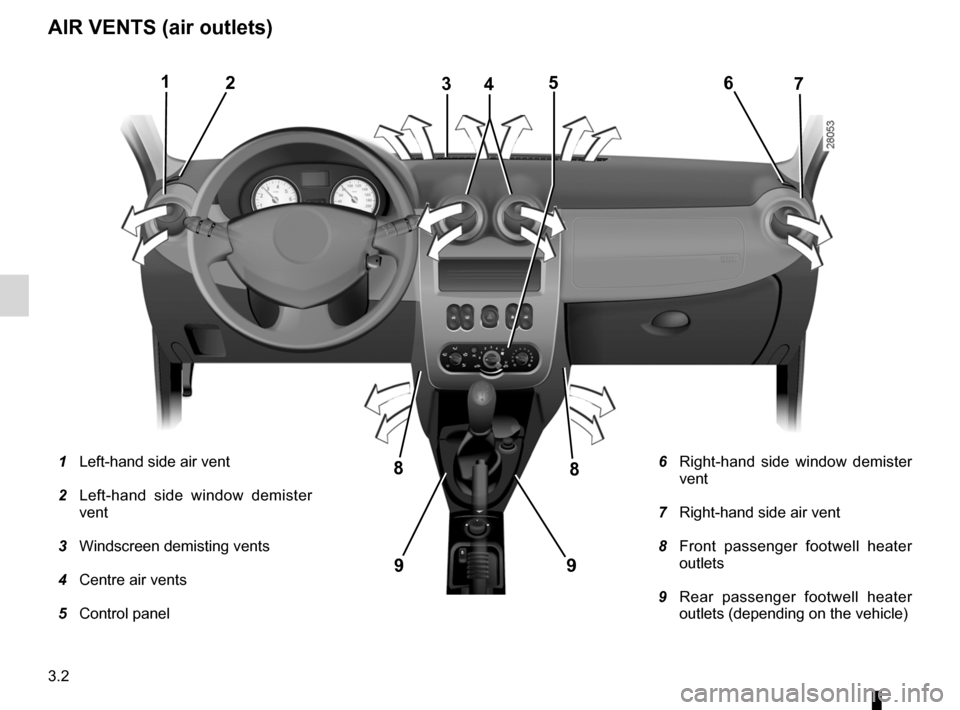

AIR VENTS (air outlets)
12367
1 Left-hand side air vent
2 Left-hand side window demister vent
3 Windscreen demisting vents
4 Centre air vents
5 Control panel
6 Right-hand side window demister vent
7 Right-hand side air vent
8 Front passenger footwell heater outlets
9 Rear passenger footwell heater outlets (depending on the vehicle)
54
88
99
