2013 DACIA SANDERO Owners Manual

JauneNoirNoir texte

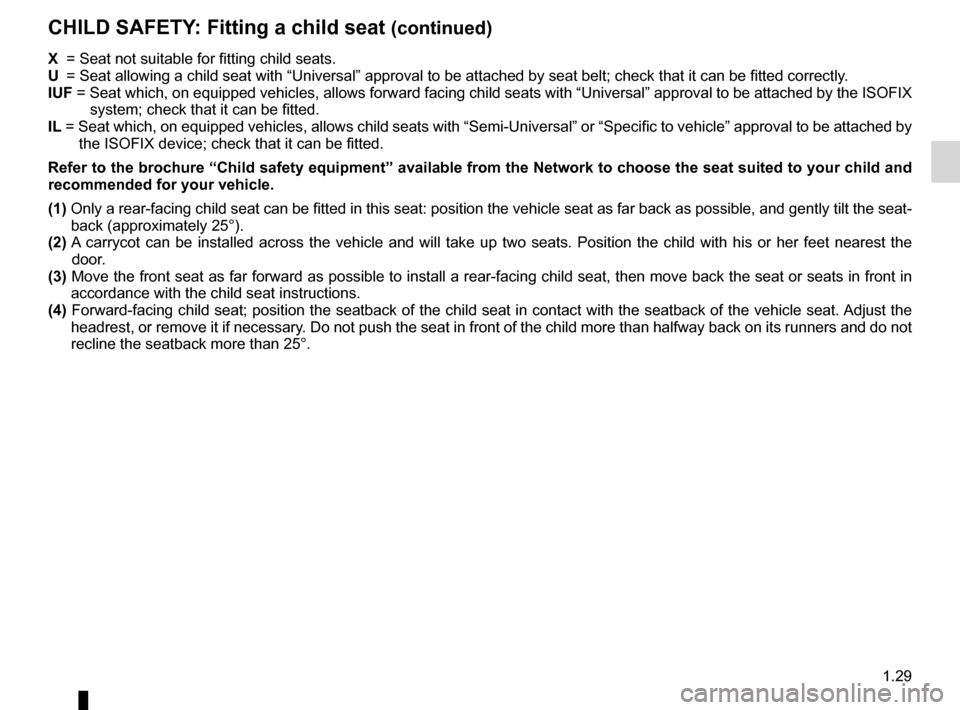

1.29
ENG_UD8389_2Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-2_NU_Dacia_1

CHILD SAFETY: Fitting a child seat (continued)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted correctly.
IUF =
Seat which, on equipped vehicles, allows forward facing child seats with “Universal” approval to be attached by the ISOFIX system; check that it can be fitted.IL =
Seat which, on equipped vehicles, allows child seats with “Semi-Universal” or “Specific to vehicle” approval to be attached by the ISOFIX device; check that it can be fitted.
Refer to the brochure “Child safety equipment” available from the Network to choose the seat suited to your child and recommended for your vehicle.
(1)
Only a rear-facing child seat can be fitted in this seat: position the vehicle seat as far back as possible, and gently tilt the seat- back (approximately 25°).(2)
A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(3)
Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat or seats in front in accordance with the child seat instructions.(4)
Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback more than 25°.

air bagdeactivating the front passenger air bags ........(current page)front passenger air bag deactivation .....................(current page)

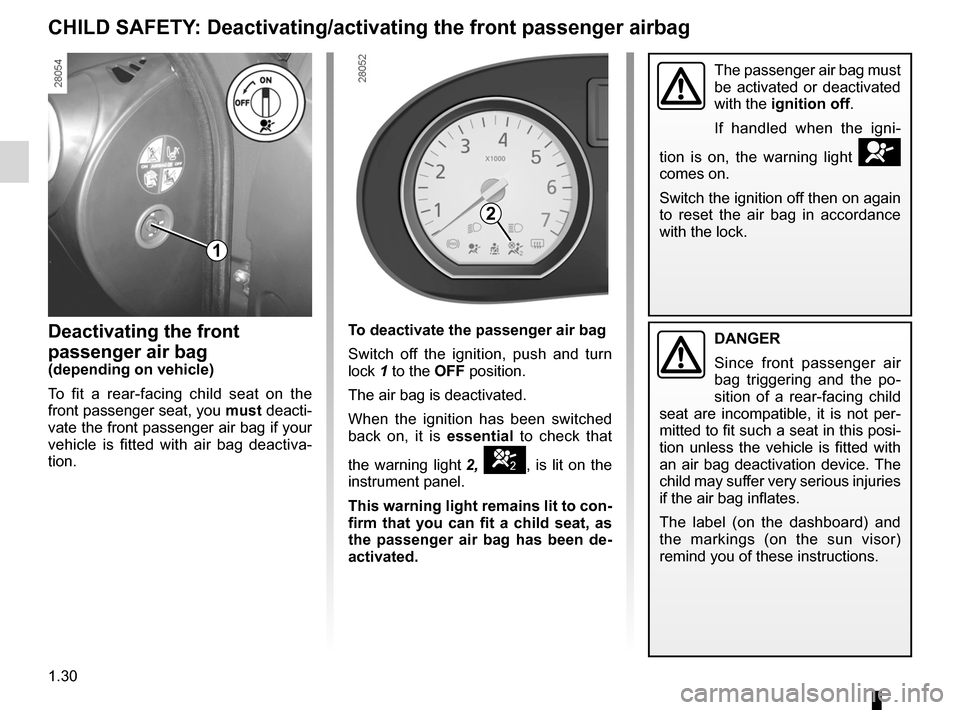

1.30
ENG_UD6854_1Sécurité enfants : désactivation/activation airbag passager ava\
nt (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
désactivation / activation de l’airbag passager avant
CHILD SAFETY : Deactivating/activating the front passenger airbag
The passenger air bag must be activated or deactivated with the ignition off.
If handled when the igni-
tion is on, the warning light å comes on.
Switch the ignition off then on again to reset the air bag in accordance with the lock.
To deactivate the passenger air bag
Switch off the ignition, push and turn
lock 1 to the OFF position.
The air bag is deactivated.
When the ignition has been switched back on, it is essential to check that
the warning light
2, ], is lit on the instrument panel.
This warning light remains lit to con- firm that you can fit a child seat, as the passenger air bag has been de- activated.
Deactivating the front
passenger air bag(depending on vehicle)
To fit a rear-facing child seat on the front passenger seat, you must deacti- vate the front passenger air bag if your vehicle is fitted with air bag deactiva- tion.
DANGER
Since front passenger air bag triggering and the po- sition of a rear-facing child seat are incompatible, it is not per- mitted to fit such a seat in this posi- tion unless the vehicle is fitted with an air bag deactivation device. The child may suffer very serious injuries if the air bag inflates.
The label (on the dashboard) and the markings (on the sun visor) remind you of these instructions.
1
2

air bagactivating the front passenger air bags ............(current page)
JauneNoirNoir texte

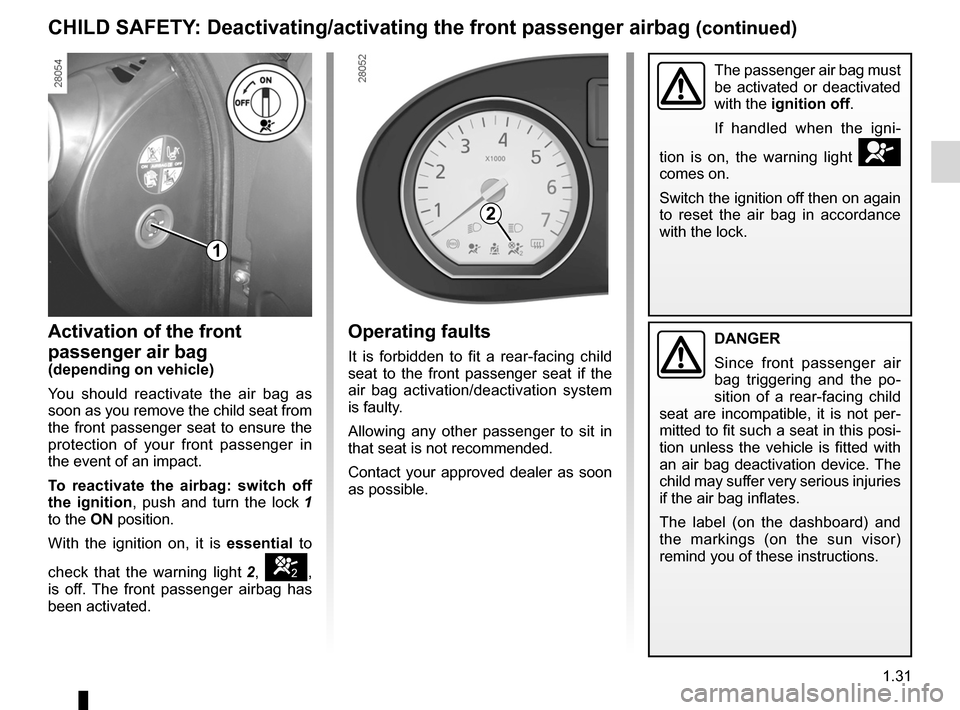

1.31
ENG_UD6854_1Sécurité enfants : désactivation/activation airbag passager ava\
nt (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
CHILD SAFETY : Deactivating/activating the front passenger airbag (continued)
Operating faults
It is forbidden to fit a rear-facing child seat to the front passenger seat if the air bag activation/deactivation system is faulty.
Allowing any other passenger to sit in that seat is not recommended.
Contact your approved dealer as soon as possible.
The passenger air bag must be activated or deactivated with the ignition off.
If handled when the igni-
tion is on, the warning light å comes on.
Switch the ignition off then on again to reset the air bag in accordance with the lock.
DANGER
Since front passenger air bag triggering and the po- sition of a rear-facing child seat are incompatible, it is not per- mitted to fit such a seat in this posi- tion unless the vehicle is fitted with an air bag deactivation device. The child may suffer very serious injuries if the air bag inflates.
The label (on the dashboard) and the markings (on the sun visor) remind you of these instructions.
Activation of the front
passenger air bag(depending on vehicle)
You should reactivate the air bag as soon as you remove the child seat from the front passenger seat to ensure the protection of your front passenger in the event of an impact.
To reactivate the airbag: switch off
the ignition, push and turn the lock 1 to the ON position.
With the ignition on, it is essential to
check that the warning light
2, ], is off. The front passenger airbag has
been activated.
1
2

rear view mirrors ...................................(up to the end of the DU)

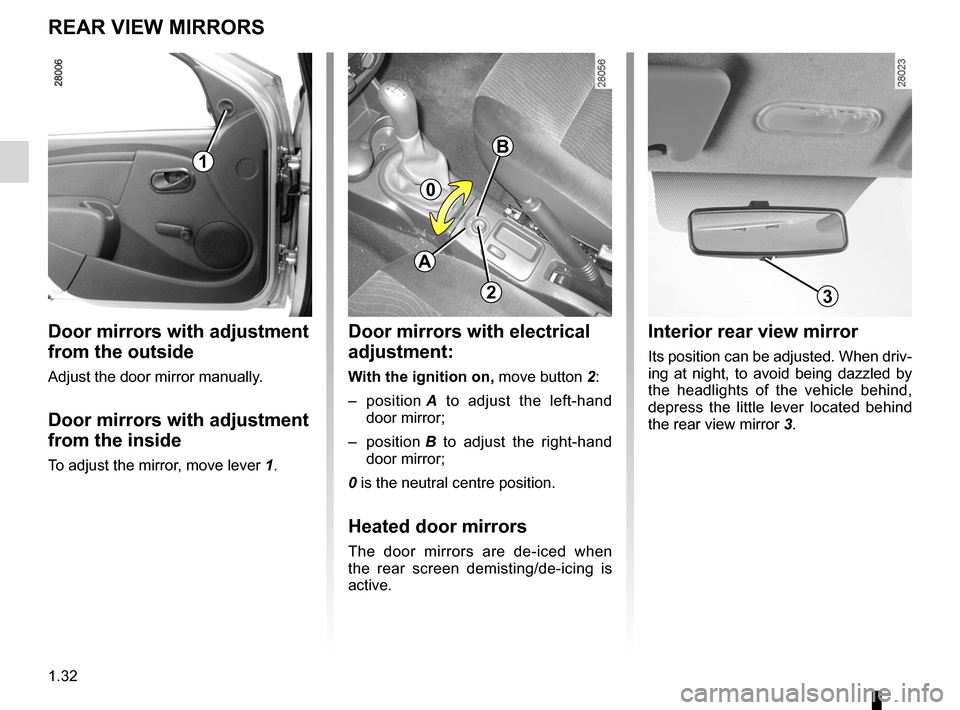

1.32
ENG_UD5556_1Rétroviseurs (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Rétroviseurs
REAR vIEw MIRRORS
Door mirrors with adjustment
from the outside
Adjust the door mirror manually.
Door mirrors with adjustment
from the inside
To adjust the mirror, move lever 1.
Door mirrors with electrical
adjustment:
w ith the ignition on, move button 2:
– position
A to adjust the left-hand door mirror;
– position
B to adjust the right-hand door mirror;
0 is the neutral centre position.
Heated door mirrors
The door mirrors are de-iced when the rear screen demisting/de-icing is active.
Interior rear view mirror
Its position can be adjusted. When driv- ing at night, to avoid being dazzled by the headlights of the vehicle behind, depress the little lever located behind
the rear view mirror 3.
1
2
B
A
0
3

steering wheeladjustment ......................................(up to the end of the DU)

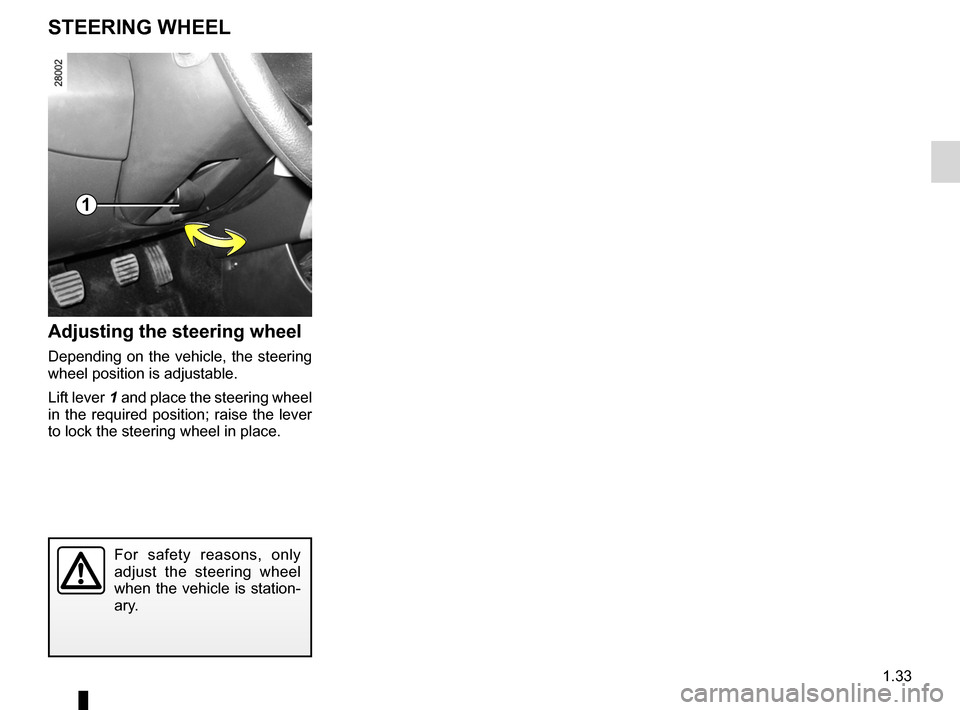

1.33
ENG_UD6856_1Volant de direction (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Volant de direction
STEERING wHEEL
Adjusting the steering wheel
Depending on the vehicle, the steering wheel position is adjustable.
Lift lever
1 and place the steering wheel in the required position; raise the lever to lock the steering wheel in place.
1
For safety reasons, only adjust the steering wheel when the vehicle is station- ary.

controls .................................................(up to the end of the DU)driver’s position ....................................(up to the end of the DU)dashboard.............................................(up to the end of the DU)

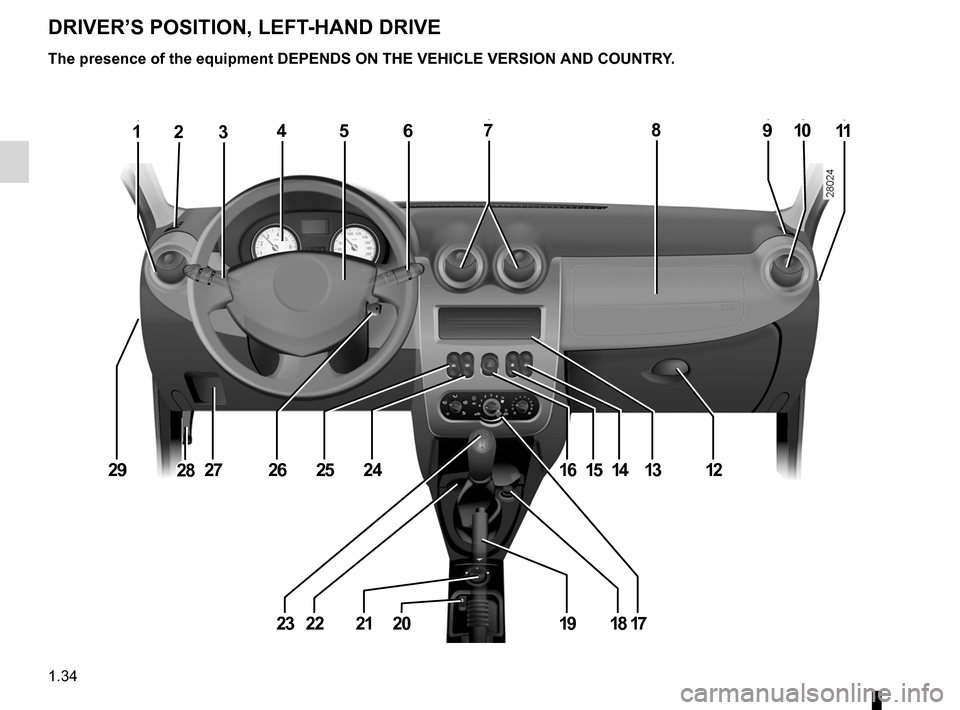

1.34
ENG_UD5557_1Poste de conduite direction à gauche (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Poste de conduite
DRIvER’S POSITION, LEFT-HAND DRIvE
The presence of the equipment DEPENDS ON THE vEHICLE vERSION AND COUNTRY.
2651783410119
1213141516
17181921202223
242526272928

rear screendemisting .........................................................(current page)
JauneNoirNoir texte
1.35
ENG_UD5557_1Poste de conduite direction à gauche (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
DRIvER’S POSITION, LEFT-HAND DRIvE (continued)
The presence of the equipment DEPENDS ON THE vEHICLE vERSION AND COUNTRY.
1 Side air vent.
2 Demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s air bag.
6 Steering column stalk for wind- screen and rear screen wash/ wipe.On-board computer information readout control.
7 Centre air vents.
8 Location for passenger air bag or storage compartment.
9 Demister outlet.
10 Side air vent.
11 Passenger air bag activation/deac- tivation switch.
12 Glove box.
13 Location for radio or storage com- partment.
14 Electric window control.
15 Central door locking switch.
16 Hazard warning lights switch.
17 Heating and ventilation controls.
18 Cigar lighter.
19 Handbrake.
20 Rear window electric locking con- trol.
21 Electric door mirror control.
22 Location for ashtray or cup holder.
23 Gear lever.
24 Heated rear screen control.
25 Electric window control.
26 Ignition switch.
27 Headlight beam height adjustment control.
28 Bonnet release.
29 Fuse flap.

control instruments ...............................(up to the end of the DU)instrument panel ...................................(up to the end of the DU)warning lights........................................(up to the end of the DU)
1.36
ENG_UD5559_1tableau de bord : Témoins lumineux (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Appareils de contrôle
fRear fog light tell-tale
gFront fog light tell-tale
^w ater in the diesel filter warning light
If it remains lit or comes on while driv- ing, it indicates that water is present in the diesel filter. Contact an approved Dealer as soon as possible.
2
Door(s) open warning
light
LLow fuel level warning light
It comes on when the engine is started then goes out after three seconds. If it stays on, fill up with fuel as soon as possible.
dDirection indicator tell-tale light
INSTRUMENT PANEL: warning lights
These warning lights, if lit up on in-
strument panel A, require you to stop immediately, as soon as traffic conditions allow.
ÚÀÔ
D+x
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
If no lights or sounds are ap- parent, this indicates a fault in the instrument panel. This indicates that it is essential to stop immediately (as soon as traf- fic conditions allow). Ensure that the vehicle is correctly immobilised and contact an approved Dealer.
