VEHICLE IDENTIFICATION PLATES (continued)
The information shown on the ve- hicle identification plate should be quoted on all correspondence or orders.

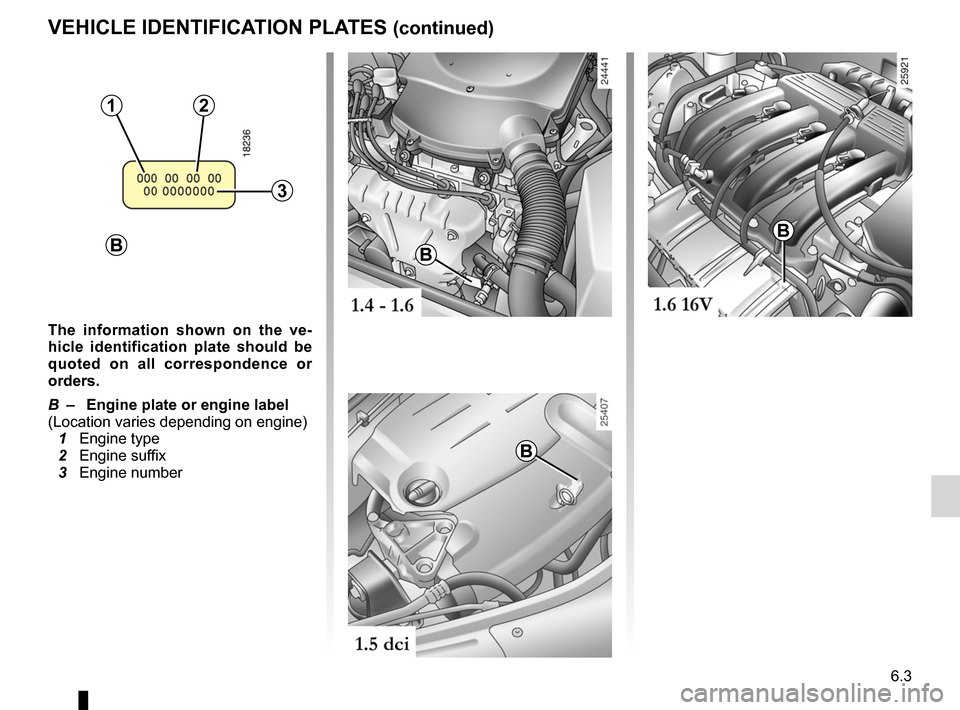

B – Engine plate or engine label(Location varies depending on engine) 1 Engine type 2 Engine suffix 3 Engine number
B
3
21
B
B
B
Page 138 of 146
engine specifications ............................(up to the end of the DU)technical specifications .........................(up to the end of the DU)fuelgrade ...............................................(up to the end of the DU)enginetechnical specifications ...................(up to the end of the DU)
6.4
ENG_UD5619_1Caractéristiques moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Caractéristiques moteurs

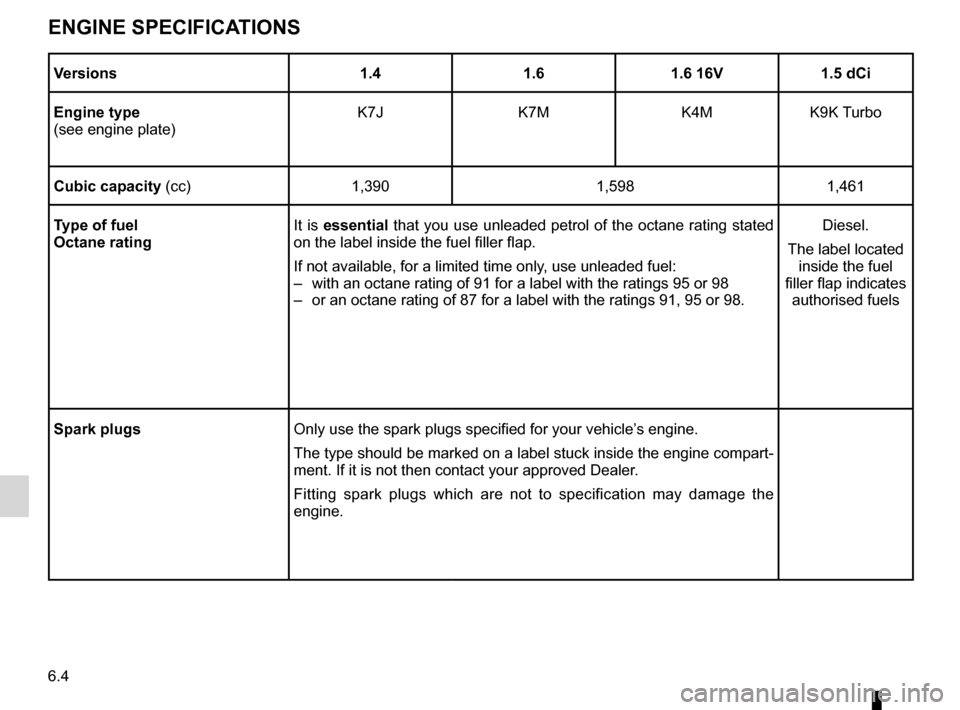

ENGINE SPECIFICATIONS
Versions1.41.61.6 16V1.5 dCi
Engine type(see engine plate)K7JK7MK4MK9K Turbo
Cubic capacity (cc)1,3901,5981,461
Type of fuelOctane ratingIt is essential that you use unleaded petrol of the octane rating stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98
– or an octane rating of 87 for a label with the ratings 91, 95 or 98.
Diesel.
The label located inside the fuel filler flap indicates authorised fuels
Spark plugsOnly use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine compart- ment. If it is not then contact your approved Dealer.
Fitting spark plugs which are not to specification may damage the engine.
Page 139 of 146
technical specifications .........................(up to the end of the DU)dimensions ...........................................(up to the end of the DU)
6.5
ENG_UD5620_1Dimensions (en mètres) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Dimensions
1.470
1.480
1.746
1.534*
0.7812.5890.650
4.020
* unladen
DIMENSIONS (in metres)
Turning circle
– between walls: 11 m
– between kerbs: 10.5 m
Page 140 of 146
technical specifications .........................(up to the end of the DU)weight ...................................................(up to the end of the DU)towing ...................................................(up to the end of the DU)towing a caravan ...................................................(current page)towing weights .......................................................(current page)weights ..................................................................(current page)
6.6
ENG_UD5621_1Masses (en kg) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Masses/Charges remorquables

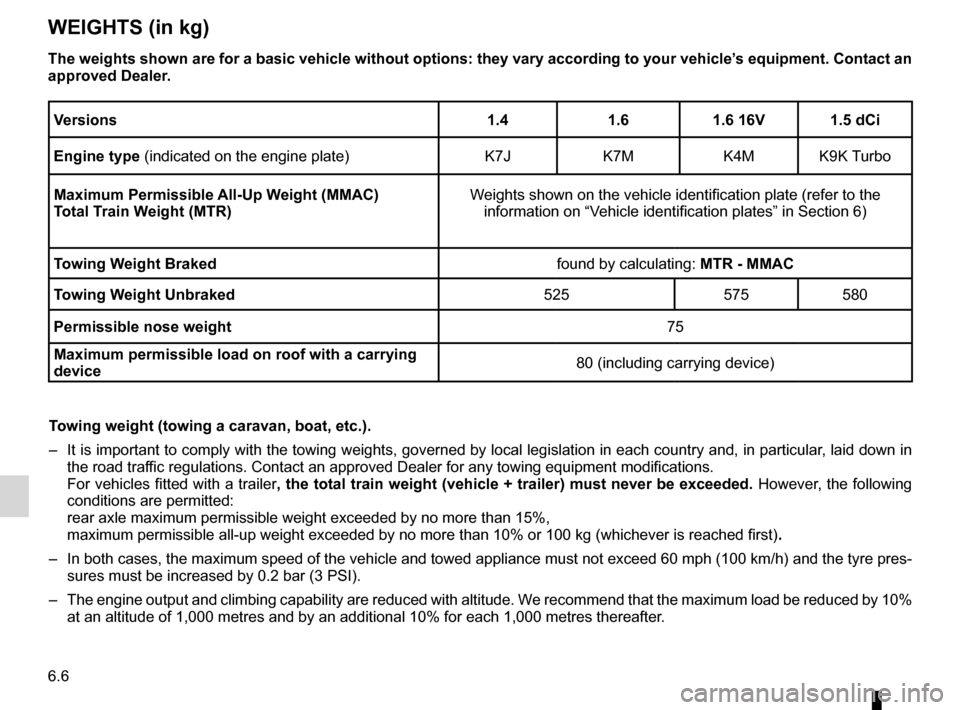

WEIGHTS (in kg)
Versions1.41.61.6 16V1.5 dCi
Engine type (indicated on the engine plate)K7JK7MK4MK9K Turbo
Maximum Permissible All-Up Weight (MMAC)Total Train Weight (MTR)Weights shown on the vehicle identification plate (refer to the information on “Vehicle identification plates” in Section 6)
Towing Weight Brakedfound by calculating: MTR - MMAC
Towing Weight Unbraked525575580
Permissible nose weight75
Maximum permissible load on roof with a carrying device80 (including carrying device)
Towing weight (towing a caravan, boat, etc.).
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the road traffic regulations. Contact an approved Dealer for any towing equipment mod\
ifications. For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, the following conditions are permitted:rear axle maximum permissible weight exceeded by no more than 15%,maximum permissible all-up weight exceeded by no more than 10% or 100 kg\
(whichever is reached first).
– In both cases, the maximum speed of the vehicle and towed appliance must not exceed 60 mph (100 km/h) and the tyre pres
- sures must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
The weights shown are for a basic vehicle without options: they vary according to your vehicle’s equipment. Contact an approved Dealer.
Page 141 of 146
technical specifications .........................(up to the end of the DU)replacement parts .................................(up to the end of the DU)
6.7
ENG_UD5534_1Pièces de rechange et réparations (U90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Pièces de rechange

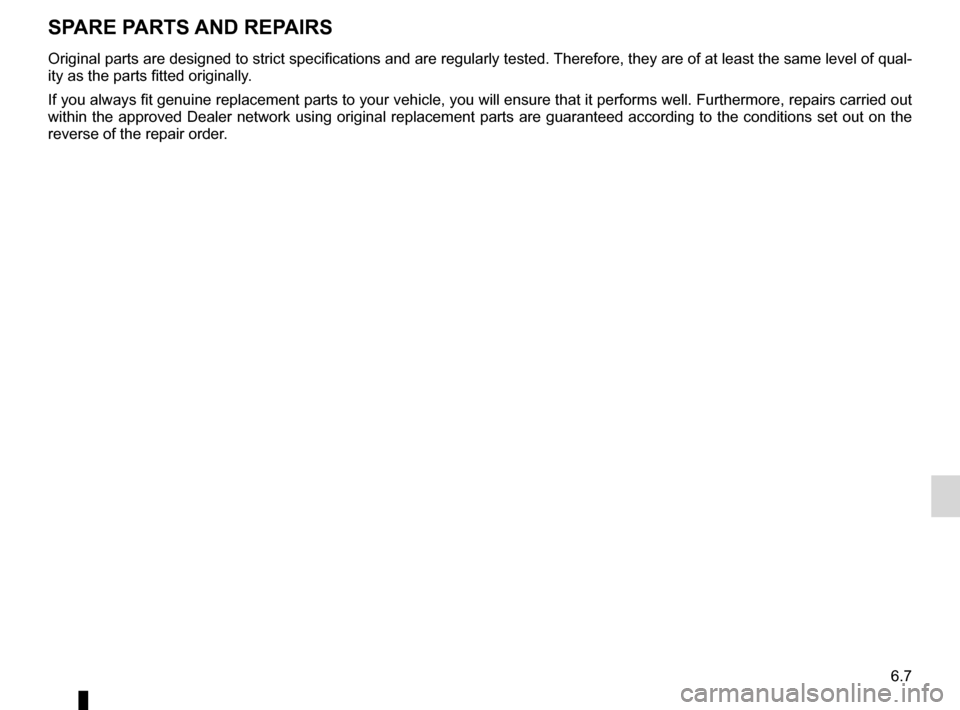

SPARE PARTS AND REPAIRS
Original parts are designed to strict specifications and are regularly tested. Therefore, they are of at least the same level of qual- ity as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out within the approved Dealer network using original replacement parts are guaranteed according to the conditions set out on the reverse of the repair order.
Page 142 of 146
6.8
ENG_UD5577_1Filler NU (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Page 143 of 146
7.1
FRA_UD8707_2Index (B90 - Dacia)ENG_NU_817-2_NU_Dacia_7
children .............................................................. 1.4 – 1.5, 1.14cigar lighter ........................................................................\
3.12clock ........................................................................\
..........1.45control instruments ................................................1.36 → 1.47controls ................................................................... 1.34 – 1.35courtesy light .......................................................................3.9
Ddashboard............................................................... 1.34 – 1.35demistingwindscreen .....................................................................3.6dimensions ........................................................................\
..6.5dipstick.......................................................................4.3 → 4.5doors........................................................................\
... 1.4 – 1.5driver’s position ...................................................... 1.34 – 1.35driving .................................................... 2.2 → 2.9, 2.11 – 2.12
Eelectric door locking .............................................................1.5electric windows ..................................................... 3.10 – 3.11emergency spare wheel ..................................... 5.2, 5.7 → 5.9enginetechnical specifications ..................................................6.4engine coolant .....................................................................4.7engine immobiliser...............................................................1.7engine immobiliser (switch) .................................................2.2
engine oil ...................................................................4.3 → 4.5engine oil grade .......................................................... 4.4 – 4.5engine specifications ...........................................................6.4environment ........................................................................\
.2.9
Ffaultsoperating faults ................................................5.30 → 5.33filterair filter ........................................................................\
...4.8
