Page 89 of 146
![DACIA SANDERO 2013 2.G Owners Manual
4.1
ENG_UD8706_2Sommaire 4 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .](/manual-img/8/1771/w960_1771-88.png "DACIA SANDERO 2013 2.G Owners Manual
4.1
ENG_UD8706_2Sommaire 4 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .")
4.1
ENG_UD8706_2Sommaire 4 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3
Engine oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 4.7
power-assisted steering pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 4.8
windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.8
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4.8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.10
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.12
Page 90 of 146
bonnet...................................................(up to the end of the DU)
4.2
ENG_UD5590_1Capot moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Capot moteur
BONNET
Opening the bonnet
To open the bonnet, pull the handle 1.
Unlocking the bonnet catch
To unlock, raise the bonnet slightly and
release hook 2 by pushing tab 3 to the left.
Release stay
4 from its holder. For your own safety, it is very important to fix
the stay into retainer 5 in the bonnet.
Closing the bonnet
To close the bonnet, replace stay 4 back into its holder, hold the bonnet in the middle and lower it to 20 cm above the closed position, then release it. It will latch automatically under its own weight.
Before closing the bonnet, check to make sure that nothing has been left in
the engine compartment.
The engine may be hot during operations in close proximity. In addition, the engine cooling fan may come on at any moment.
Risk of injury.
In the event of any impact, n o m a t t e r h o w s l i g h t , against the radiator grille or bonnet, have the bonnet catch checked by an approved Dealer as soon as possible.Check that it is correctly locked.
1
2
3
4
5
Page 91 of 146
capacity of mechanical components......................(current page)engine oil ..............................................(up to the end of the DU)dipstick..................................................(up to the end of the DU)levels ....................................................(up to the end of the DU)maintenance:mechanical ......................................(up to the end of the DU)
4.3
ENG_UD5591_1Niveau huile moteur/Vidange moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
It is normal for an engine to use oil for lubrication and cooling of moving parts and it is sometimes necessary to top up the level between oil changes.
However, contact your approved dealer if more than 0.5 litres is being con- sumed every 600 miles (1,000 km) after the running in period.
Oil change frequency: check the oil level from time to time and certainly before any long journey to avoid the risk of damaging your engine.
Niveau huile moteur
ENGINE OIL LEVEL
Reading the oil level
The vehicle must be parked on level ground and the engine should have been switched off for some time before- hand to obtain an accurate reading.
– take out the dipstick
1;
– wipe the dipstick using a clean, lint
- free cloth;
– push in the dipstick as far as it will
go;
– take out the dipstick again;
– read the level: it should never fall
below minimum mark B or exceed
maximum mark A.
A
B
1
Exceeding the maximum engine oil level
The oil level should only be read with the dipstick as explained above.
If the oil level exceeds the maximum level, do not start your vehicle and contact an approved dealer.
Under no circumstances must maximum fill level A be exceeded: risk of damage to the engine and catalytic converter.
Consult your approved dealer at once if you notice an abnormal or repeated drop in any of the fluid levels.
Page 92 of 146
engine oil grade ....................................(up to the end of the DU)
4.4
ENG_UD5591_1Niveau huile moteur/Vidange moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
JauneNoirNoir texte
ENGINE OIL LEVEL (continued)
Topping up/filling
The vehicle must be parked on level ground and the engine should be cold (for instance, before the engine is started up for the first time in the day).
Engine oil grade
Refer to the Maintenance Service Booklet for your vehicle for information regarding which grade of oil to use. –
Unscrew cap
2;
– top up the level (as a guide, the ca- pacity between the minimum and
maximum reading on dipstick 1 is between 1.5 and 2 litres, depending on the engine);
– wait approximately 10 minutes to allow the oil to flow into the engine;
– check the level using dipstick 1 (as described above).
Do not exceed the maximum level and
do not forget to refit cap 2.When working in the engine compartment, ensure that the windscreen wiper stalk is in the park position.
Risk of injury.
2
1
12
1
2
1.4 – 1.6 1.6 16 V 1.5 dCi
Consult your approved dealer at once if you notice an abnormal or repeated drop in any of the fluid levels.
Page 93 of 146
filteroil filter .............................................................(current page)oil change ..............................................................(current page)
JauneNoirNoir texte
4.5
ENG_UD5591_1Niveau huile moteur/Vidange moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Vidange moteur
ENGINE OIL LEVEL (continued)/OIL CHANGE
Oil change
S e r v i c e i n t e r v a l : r e f e r t o t h e Maintenance Service Booklet for your vehicle.
Average capacities for oil change oil filter included.(for information)
1.4 engine : 3.30 litres1.6 engine : 3.30 litres1.6 16V engine: 4.80 litres
1.5 dCi engine : 4.10 litres
Engine oil grade
Refer to the Maintenance Service Booklet for your vehicle for information regarding which grade of oil to use.
Filling: take care when topping up the oil that no oil drips onto engine components - risk of fire. Remember to refit the cap securely as there is a risk of fire if oil splashes onto hot engine components.
Engine oil change: if you are changing the oil when the engine is hot, be careful not to scald yourself if the oil overflows.
Never run the engine in an enclosed space as exhaust gases are poisonous.
The engine may be hot during operations in close proximity. In addition, the engine cooling fan may come on at any moment.
Risk of injury.
Consult your approved dealer at once if you notice an abnormal or repeated drop in any of the fluid levels.
Page 94 of 146
maintenance:mechanical ......................................(up to the end of the DU)brake fluid ..............................................................(current page)levels ....................................................(up to the end of the DU)tanks and reservoirsbrake fluid ........................................................(current page)
4.6
ENG_UD5592_1Niveaux / Filtres (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
JauneNoirNoir texte
Niveaux : Liquide de freins

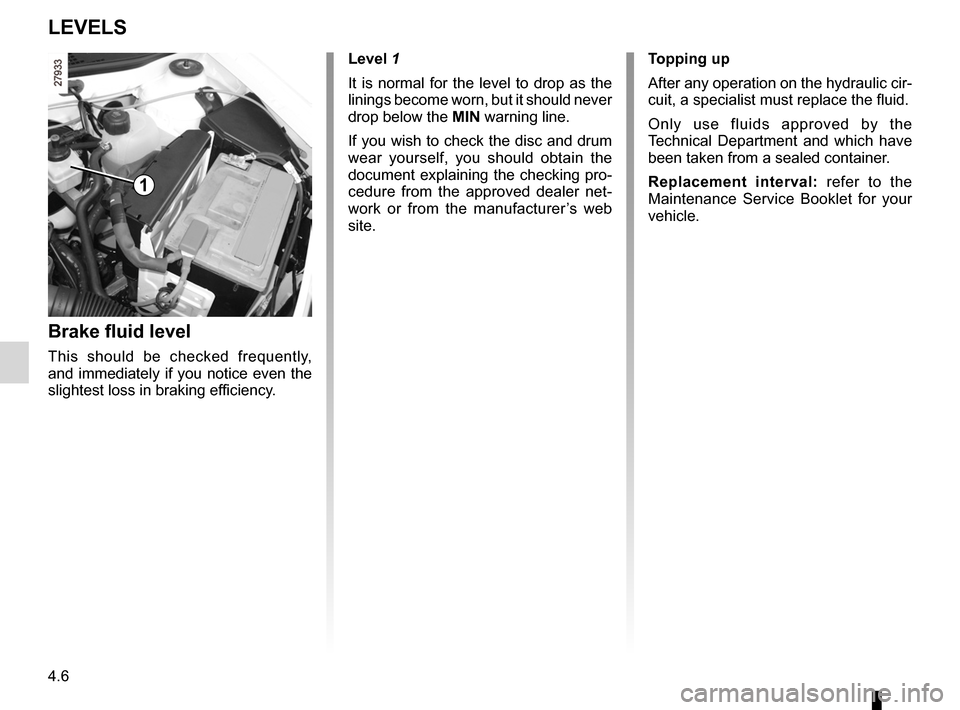

LEVELS
Brake fluid level
This should be checked frequently, and immediately if you notice even the slightest loss in braking efficiency. Level
1
It is normal for the level to drop as the linings become worn, but it should never drop below the MIN warning line.
If you wish to check the disc and drum wear yourself, you should obtain the document explaining the checking pro- cedure from the approved dealer net-work or from the manufacturer’s web site.
Topping up
After any operation on the hydraulic cir- cuit, a specialist must replace the fluid.
Only use fluids approved by the Technical Department and which have been taken from a sealed container.
Replacement interval: refer to the Maintenance Service Booklet for your vehicle.
1
Page 95 of 146
engine coolant .......................................................(current page)tanks and reservoirscoolant .............................................................(current page)
JauneNoirNoir texte
4.7
ENG_UD5592_1Niveaux / Filtres (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
Liquide de refroidissement moteur
Coolant
The level when cold must be between the MINIMUM and MAXIMUM marks
indicated on the tank 2.
Top this level up when cold before it reaches the MIN mark.
The engine may be hot during operations in close proximity. In addition, the engine cooling fan may come on at any moment.
Risk of burns.
Checking intervals
Check the coolant level regularly (very severe damage is likely to be caused to the engine if it runs out of coolant).
If the level needs to be topped up, only use products approved by our Technical Department which ensure:
– protection against freezing;
– anti-corrosion protection of the cool
- ing system.
Replacement intervals
Refer to the Maintenance Service Booklet for your vehicle.
Consult your approved Dealer at
once if you notice an abnormal or repeated drop in any of the fluid levels.
LEVELS (continued)
2
Page 96 of 146
power-assisted steering.........................................(current page)power-assisted steering.........................................(current page)filterair filter .............................................................(current page)windscreen washer ................................................(current page)power-assisted steering pump...............................(current page)tanks and reservoirs:windscreen washer ..........................................(current page)
4.8
ENG_UD5592_1Niveaux / Filtres (B90 - Dacia)ENG_NU_817-2_NU_Dacia_4
The filter elements (air filter, diesel filter, etc.) should be replaced during the maintenance operations carried out on your vehicle.
Replacement intervals for filter el- ements: refer to the Maintenance Service Booklet for your vehicle.
Pompe d’assistance de directionRéservoir lave-vitresFiltres
LEVELS (continued)
Power-assisted steering
pump
Service interval: refer to the Mainte- nance Service Booklet for your vehicle.Level: the correct level when cold should be visible between the Minimum and Maximum levels on the tank 3.For topping up or refilling with oil, use products approved by the Technical Department.
Consult your approved Dealer at once if you notice an abnormal or repeated drop in any of the fluid levels.
Windscreen washer reservoir
Refilling: through the cap 4.
This reservoir also supplies the head- light washers and the rear screen washer (if the vehicle is equipped with them).
Liquid: water + special windscreen washer fluid (antifreeze product in winter).
Jets: to adjust the angle of the jets pivot the little ball using a pin.
FILTERS
