5.13
ENG_UD5605_1Feux arrière : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Feux arrière
Remove screw

1 and detach the rear light cluster from the outside. Detach the foam 2.
Carefully unclip the bulb holder by
pressing on the tabs 3. 4
Side light and brake lightPear-shaped, bayonet type bulb with two P 21/5 W filaments.
5
Direction indicator lightPear-shaped, bayonet type bulb,
P 21 W or PY 21 W (depending on the vehicle).
6
Reversing lightPear-shaped, bayonet type bulb,
P 21 W. orRear fog lightPear-shaped, bayonet type P 21 W bulb
REAR LIGHTS: changing bulbs
1
2
3
4
5
6
The bulbs are under pres- sure and can break when replaced.
Risk of injury.

lights:reversing lights .................................................(current page)lights:brake lights ......................................................(current page)
5.14
ENG_UD5605_1Feux arrière : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Turn the bulb holder 9 a quarter of a turn, release it and take out the bulb.
Bulb type: P 21 W.

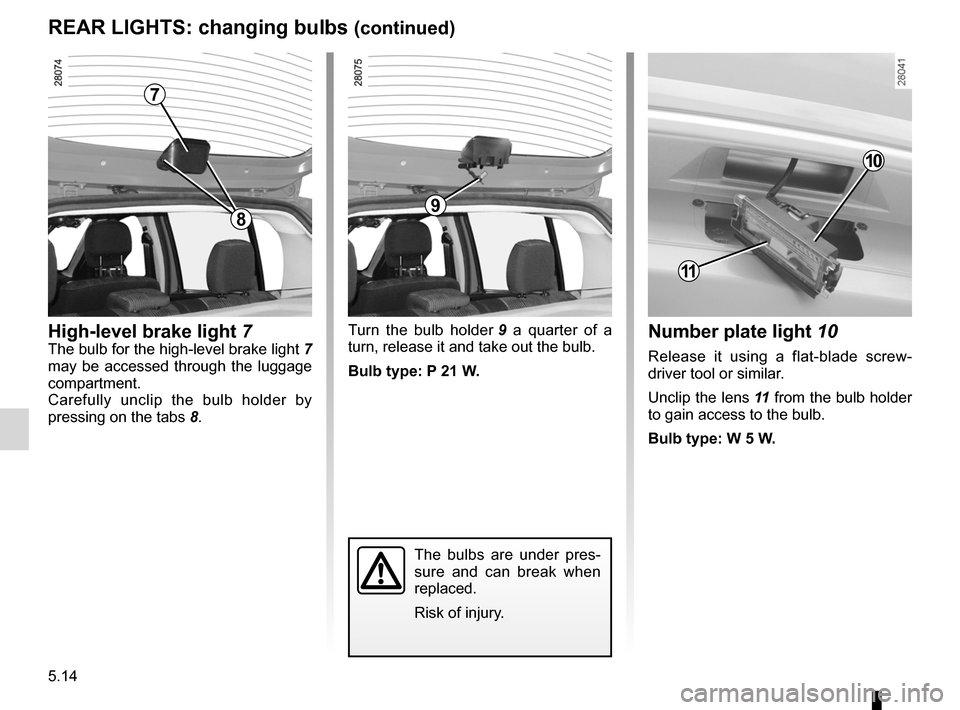

REAR LIGHTS: changing bulbs (continued)
The bulbs are under pres- sure and can break when replaced.
Risk of injury.
High-level brake light 7The bulb for the high-level brake light 7 may be accessed through the luggage compartment.Carefully unclip the bulb holder by
pressing on the tabs 8.
Number plate light 10
Release it using a flat-blade screw- driver tool or similar.
Unclip the lens
11 from the bulb holder to gain access to the bulb.
Bulb type: W 5 W.
7
89
11
10

bulbschanging .........................................(up to the end of the DU)changing a bulb ....................................(up to the end of the DU)practical advice .....................................(up to the end of the DU)lighting:exterior ............................................(up to the end of the DU)bulbschanging .........................................(up to the end of the DU)indicator lights.......................................(up to the end of the DU)
5.15
ENG_UD5606_1Répétiteurs latéraux : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Répétiteurs latéraux

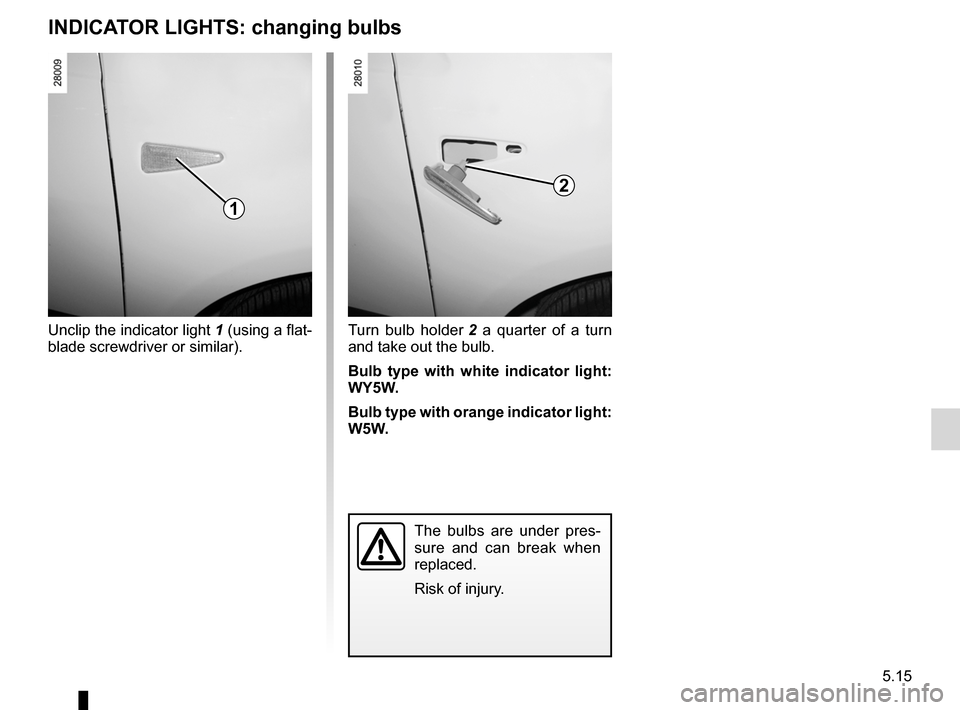

INDICATOR LIGHTS: changing bulbs
Unclip the indicator light 1 (using a flat- blade screwdriver or similar). Turn bulb holder
2 a quarter of a turn and take out the bulb.
Bulb type with white indicator light: WY5W.
Bulb type with orange indicator light: W5W.
The bulbs are under pres- sure and can break when replaced.
Risk of injury.
1
2

bulbschanging .........................................(up to the end of the DU)changing a bulb ....................................(up to the end of the DU)practical advice .....................................(up to the end of the DU)lighting:interior .............................................(up to the end of the DU)bulbschanging .........................................(up to the end of the DU)
5.16
ENG_UD5607_1Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
JauneNoirNoir texte
Éclaireurs intérieurs

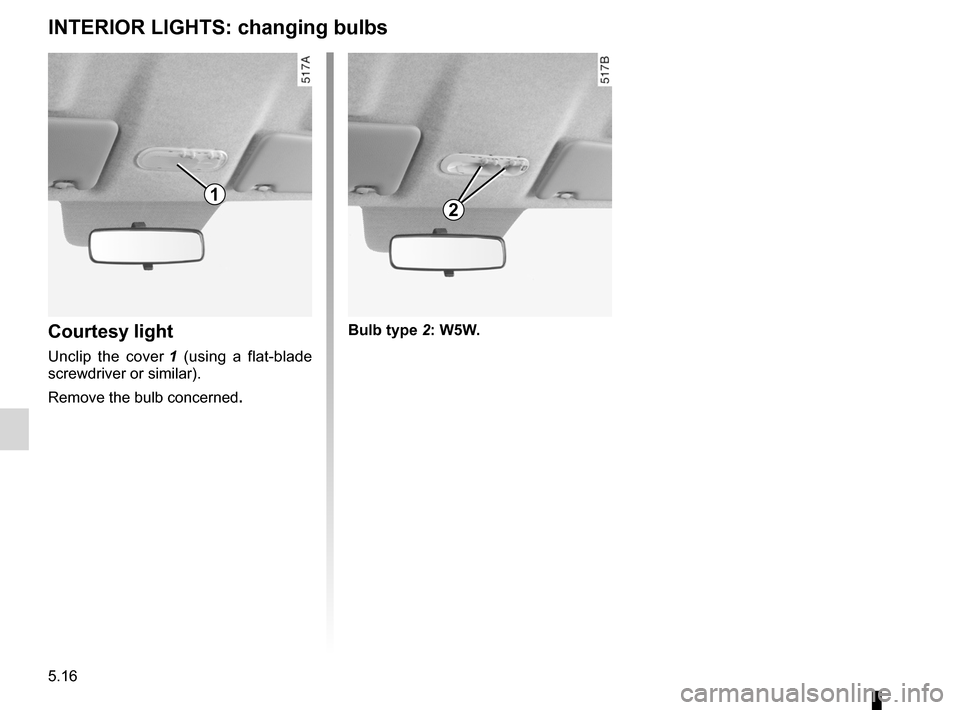

INTERIOR LIGHTS: changing bulbs
Courtesy light
Unclip the cover 1 (using a flat-blade screwdriver or similar).
Remove the bulb concerned.
Bulb type 2: W5W.
12

JauneNoirNoir texte

5.17
ENG_UD5607_1Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5

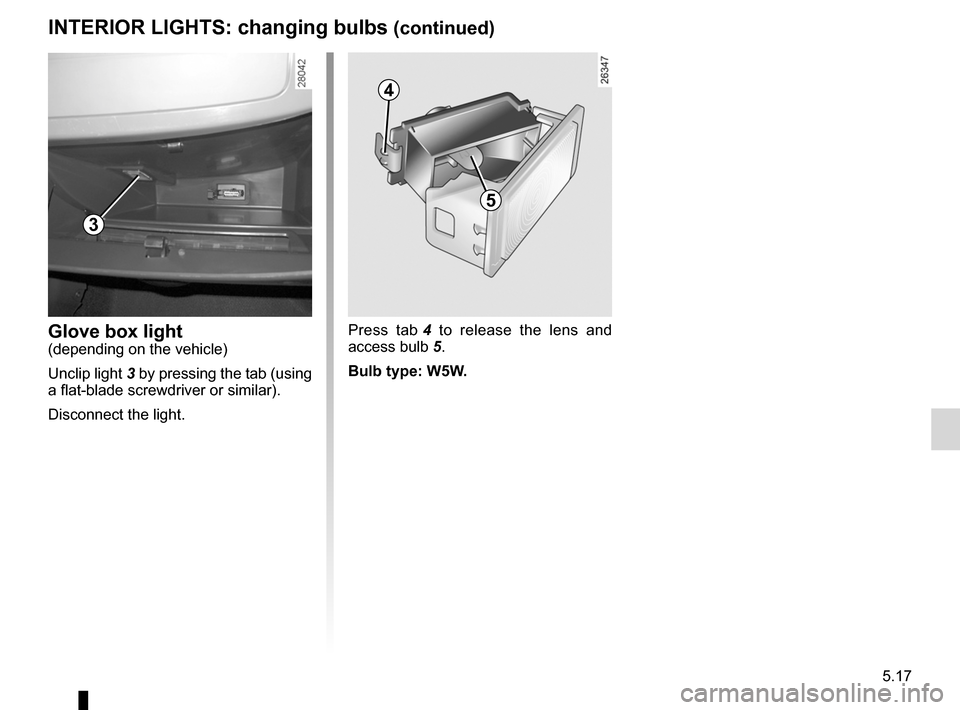

INTERIOR LIGHTS: changing bulbs (continued)
Press tab 4 to release the lens and
access bulb 5.
Bulb type: W5W.
Glove box light(depending on the vehicle)
Unclip light
3 by pressing the tab (using a flat-blade screwdriver or similar).
Disconnect the light.
4
5
3

5.18
ENG_UD5607_1Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5

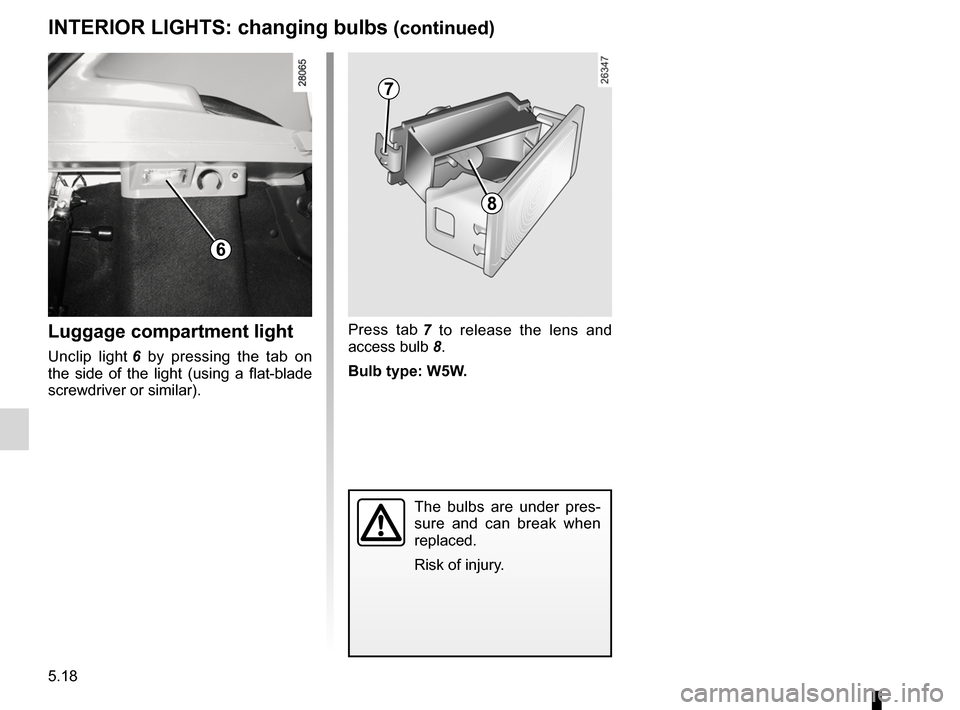

INTERIOR LIGHTS: changing bulbs (continued)
Luggage compartment light
Unclip light 6 by pressing the tab on the side of the light (using a flat-blade screwdriver or similar). Press tab

7 to release the lens and
access bulb 8.
Bulb type: W5W.
The bulbs are under pres- sure and can break when replaced.
Risk of injury.
7
8
6

keysreplacing the battery .......................(up to the end of the DU)practical advice .....................................(up to the end of the DU)battery (remote control) ........................(up to the end of the DU)
5.19
ENG_UD5520_1Télécommande à radiofréquence : piles (U90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Télécommande à radiofréquence : pile

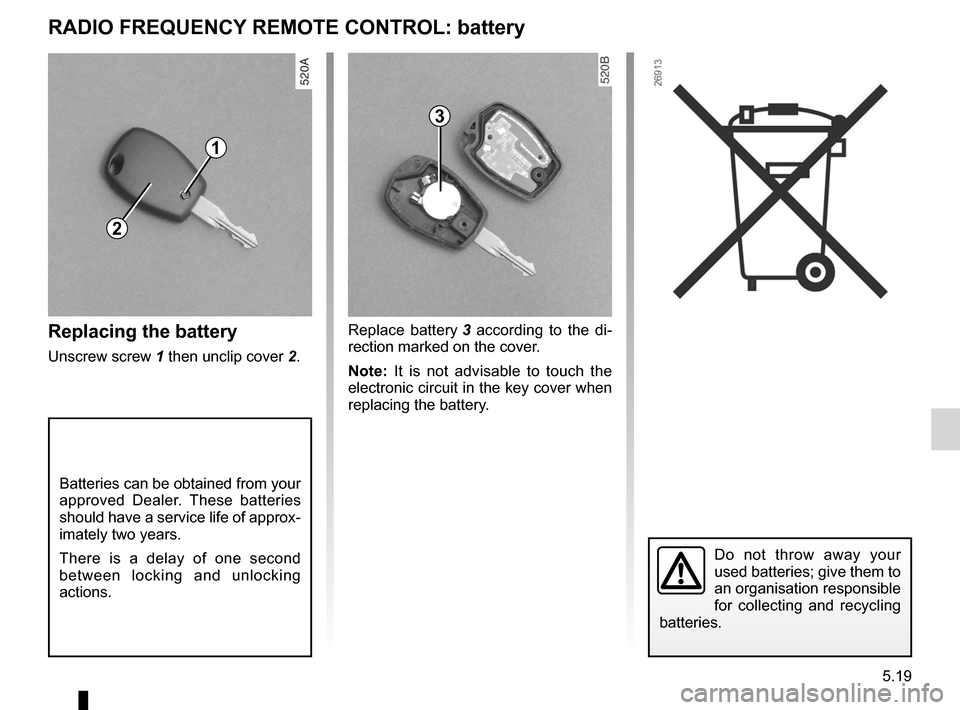

RADIO FREQUENCY REMOTE CONTROL: battery
Replacing the battery
Unscrew screw 1 then unclip cover 2. Replace battery

3 according to the di- rection marked on the cover.
Note: It is not advisable to touch the electronic circuit in the key cover when replacing the battery.
Batteries can be obtained from your approved Dealer. These batteries should have a service life of approx- imately two years.
There is a delay of one second between locking and unlocking actions.
Do not throw away your used batteries; give them to an organisation responsible for collecting and recycling batteries.
2
1
3

batterytroubleshooting ...............................(up to the end of the DU)practical advice .....................................(up to the end of the DU)
5.20
ENG_UD5609_1Batterie : dépannage (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
JauneNoirNoir texte
Batterie

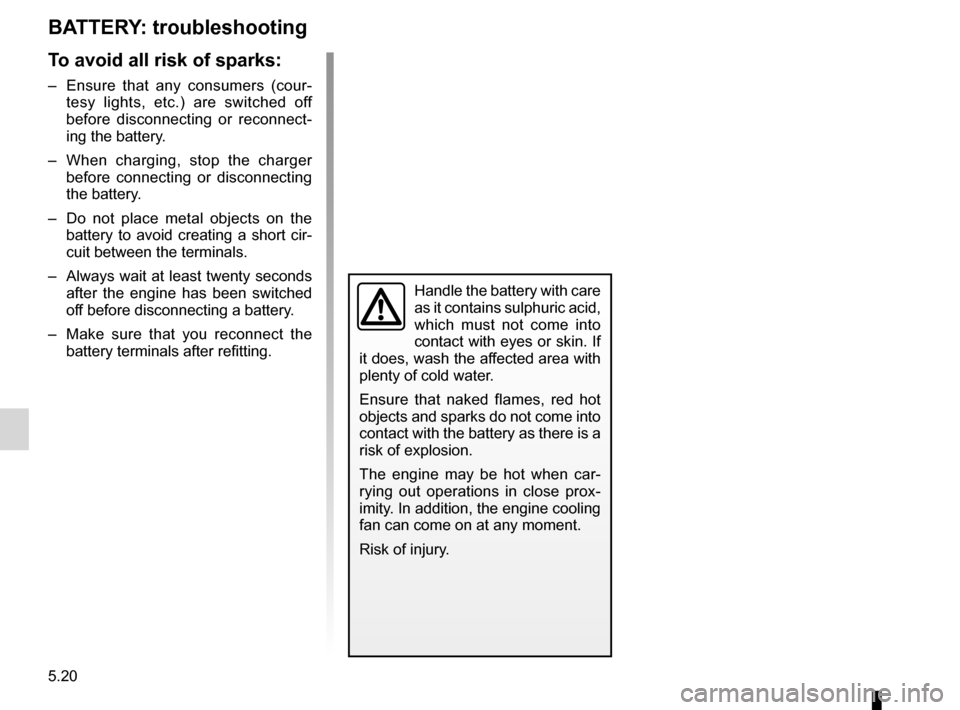

BATTERY: troubleshooting
To avoid all risk of sparks:
– Ensure that any consumers (cour- tesy lights, etc.) are switched off before disconnecting or reconnect- ing the battery.
– When charging, stop the charger
before connecting or disconnecting the battery.
– Do not place metal objects on the
battery to avoid creating a short cir- cuit between the terminals.
– Always wait at least twenty seconds
after the engine has been switched off before disconnecting a battery.
– Make sure that you reconnect the
battery terminals after refitting.
Handle the battery with care as it contains sulphuric acid, which must not come into contact with eyes or skin. If it does, wash the affected area with plenty of cold water.
Ensure that naked flames, red hot objects and sparks do not come into contact with the battery as there is a risk of explosion.
The engine may be hot when car-
rying out operations in close prox- imity. In addition, the engine cooling fan can come on at any moment.
Risk of injury.
