WARNING LIGHTS (4/4)
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when you are driving ac-
companied by the
® warning light
and a beep, it is essential to stop and
switch off the ignition.
Check the oil level. If the level is normal,
the indicator light is being lit by some-
thing else. Contact an approved Dealer.
ÒElectronic fault warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
a fault in the injection computer or the
automatic transmission.
Contact your approved Dealer as soon
as possible.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
2
Door status warning light
A
ÉPreheating warning light
(diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation.
It goes out when preheating is com -
plete. The engine can be started.
ÆWarning light for serious in-
jection fault
This lights up when the ignition is
switched on and goes out after a few
seconds.
If this light comes on when you are driv-
ing, it indicates a fault in the injection
system. Stop immediately, switch off
the ignition and contact an approved
Dealer.
UVa r i a b l e p o w e r - a s s i s t e d
steering warning light
This comes on when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, this
indicates a fault in the system. Consult
an approved Dealer as soon as possi-
ble.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
fuel level ................................................................ (current page)
1.60
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

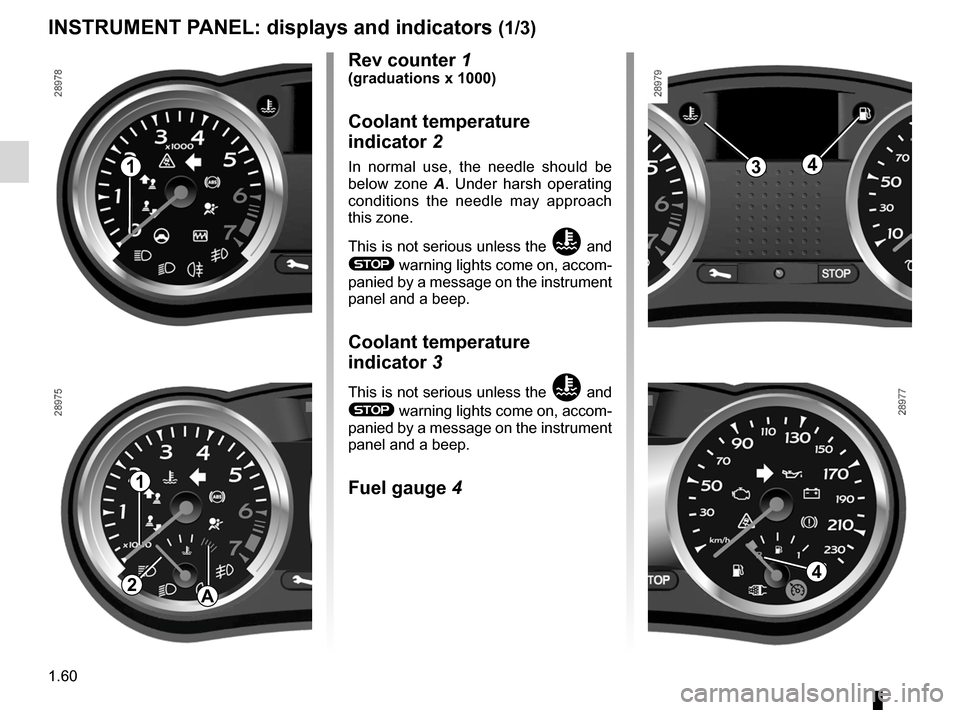

INSTRUMENT PANEL: displays and indicators (1/3)
Rev counter 1(graduations x 1000)
Coolant temperature
indicator 2
In normal use, the needle should be
below zone A. Under harsh operating
conditions the needle may approach
this zone.
This is not serious unless the
Ö and
® warning lights come on, accom-
panied by a message on the instrument
panel and a beep.
Coolant temperature
indicator 3
This is not serious unless the Ö and
® warning lights come on, accom-
panied by a message on the instrument
panel and a beep.
Fuel gauge 4
1
1
A
34
24

warning buzzer ...................................................... (current page)
JauneNoirNoir texte
1.61
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
INSTRUMENT PANEL: displays and indicators (2/3)
Speedometer 5(km or miles per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 40 seconds, as long as the ve-
hicle is travelling in excess of 72 mph
(120 km/h).
Engine oil level low warning 6
The display informs the driver that the
engine oil level is low when the engine
is started. This warning lasts for 30 sec-
onds. Refer to the information on the
Engine oil level in Section 4.
Trip computer and warning
system
After 30 seconds, the display will
switch to the trip computer and warn -
ing system: refer to the information on
the Trip computer and warning system
in the following pages.
5
5
6
6

1.62
ENG_UD10345_1
Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

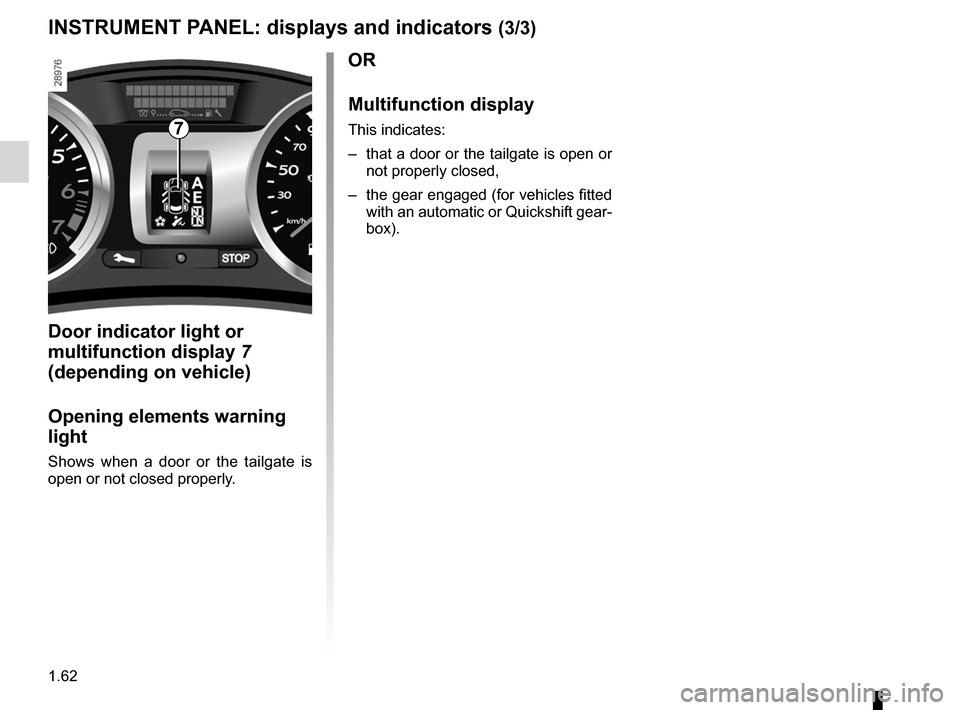

INSTRUMENT PANEL: displays and indicators (3/3)
Door indicator light or
multifunction display 7
(depending on vehicle)
Opening elements warning
light
Shows when a door or the tailgate is
open or not closed properly.
OR
Multifunction display
This indicates:
– that a door or the tailgate is open or
not properly closed,
– the gear engaged (for vehicles fitted
with an automatic or Quickshift gear-
box).7

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
1.63
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
On-board computer
ON-BOARD COMPUTER: general information (1/3)
Trip computer and warning
system
This displays the following information
on instrument panel display A or B (po-
sition varies according to vehicle):
– information messages (distance
travelled, journey parameters etc.);
– Operating fault messages (gener -
ally connected to the
© warning
light);
– Warning messages (linked to the
® warning light).
A
B

1.64
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
ON-BOARD COMPUTER: general information (2/3)
Display selection keys 1
and 2
Scroll through the following informa-
tion in this order or reverse the order by
briefly pressing the key repeatedly.
a) total mileage recorder; trip mileage
recorder,
b) journey parameters:
– fuel used,
– average fuel consumption,
– current fuel consumption (de -
pending on vehicle),
– estimated range,
– distance travelled. c)
mileage before service,
d) programmed speed (speed limiter/
cruise control),
e) on-board log: operating fault and in-
formation message readout.
1
2

JauneNoirNoir texte
1.65
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
ON-BOARD COMPUTER: general information (3/3)
Resetting the trip mileage
With the display set to “trip mileage re-
corder”, press and hold button 1 or 2, or
press and hold buttons 1 and 2 simul -
taneously.
Resetting the journey
parameters (reset button)
With the display set to one of the
journey parameters, press and hold
button 1 or 2, or the two buttons simul-
taneously.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.1
2

1.66
ENG_UD26845_2
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
ON-BOARD COMPUTER: trip settings (1/4)
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
3382.3 103288 KM
a) Total mileage recorder
(visible on the first line of the display B)KM 185.5 KM
332.3 103288 KM
Trip mileage recorder
(visible on the second line of the display B)KM 185.5 KM
13.3 FUEL USED
b) Journey parameters
Fuel consumed since the last reset.L13.3 L
5.9 AVERAGEAverage fuel consumption since the last reset.
This value is displayed after driving 400 metres and takes into
account the distance travelled and the fuel used since the last
time the reset button was pressed.L/1005.8 L/100
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
