2012 RENAULT CLIO SPORT TOURER Owners Manual

engine start/stop button ........................ (up to the end of the DU)
ignition switch ....................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
switching on the vehicle ignition ........... (up to the end of the DU)
2.3
ENG_UD26548_3
Contacteur de démarrage : véhicule avec clé / télécommand\
e à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Ignition switch
Special note on vehicles with an au-
tomatic gearbox
Before starting, move the lever to posi-
tion N or P.
Note:
If a gear other than neutral is displayed,
it flashes; starting is not possible unless
you depress the brake pedal, while
holding the key in the starting position.Ignition position M.
The ignition is switched on:
Start position D
If the engine fails to start at the first
attempt, the key must be turned back
before the starter can be activated
again. Release the key as soon as the
engine starts.
Note: on diesel versions, several sec -
onds may pass between turning the
key and the engine starting to allow for
engine preheating.
Off position S (steering lock
applied)
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
“Accessories” position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
IGNITION SWITCH: vehicle with key

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.4
ENG_UD10550_1
Démarrage / arrêt moteur : véhicule avec clé / télécom\
mande à radiofréquence (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Starting/stopping the engine using the key
Stopping the engine
With the engine idling, turn the key
back to the Stop position.ÉDiesel injection
Cold or warm engine
– Turn the key to the “Start” posi -
tion D without depressing the
accelerator pedal .
– Release the key as soon as the
engine starts.
Note: several seconds may pass be -
tween turning the key and the engine
starting to allow for engine preheating.Starting the engine
Petrol injection
Engine warm or cold
– Run the starter without depress-
ing the accelerator.
– Release the key as soon as the
engine starts.
STARTING/STOPPING THE ENGINE: vehicle with key
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc., and the passive safety de-
vices such as the airbags and pre -
tensioners will no longer operate.

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
driving ................................................... (up to the end of the DU)
child safety ............................................................. (current page)
2.5
ENG_UD26550_2
Démarrage moteur : véhicule avec carte Renault (X85 - B85 - C85 -\
S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Starting/stopping the engine using the RENAULT card
Starting conditions.
Follow the starting instructions on the
instrument panel 2 describing the fol -
lowing conditions:
to start, depress the brake pedal or
clutch (the pedal must be depressed
throughout starting) and press button 3.
If a gear is engaged, the vehicle may
only be started by depressing the clutch
pedal.
RENAULT card
The card must be in detection zone 1
(passenger compartment and luggage
compartment, except for some high
areas such as the sun visor, spectacle
holder, dashboard upper section, etc.)
or in card reader 4.
STARTING THE ENGINE: vehicle with RENAULT CARD (1/3)
1
2
34
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others
by starting the vehicle, activating
equipment such as the windows, or
locking the doors.
Risk of serious injury.

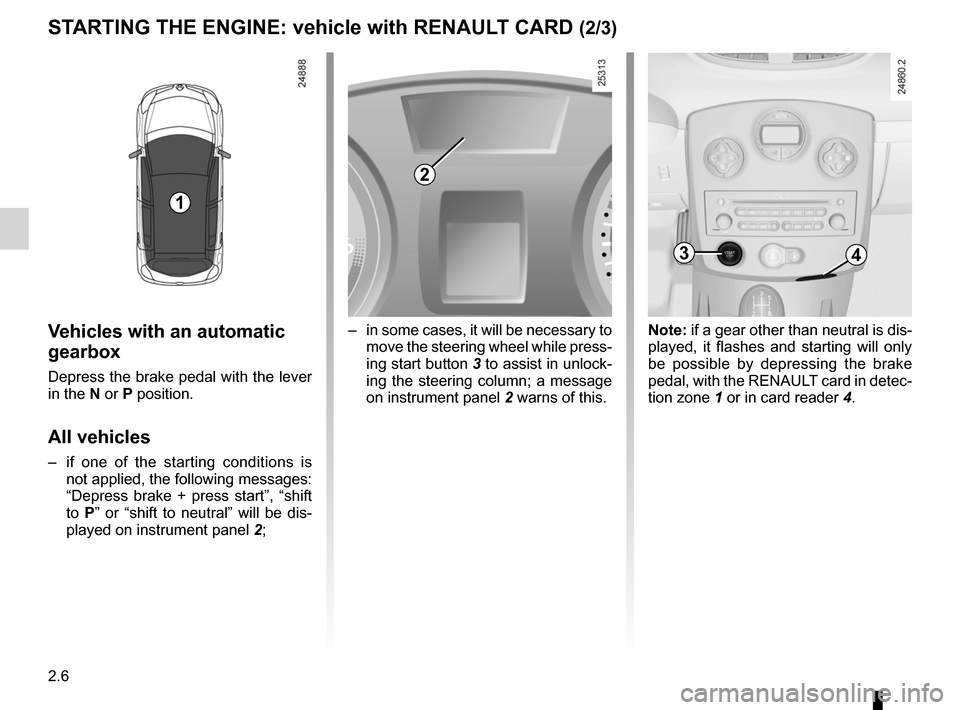

2.6
ENG_UD26550_2
Démarrage moteur : véhicule avec carte Renault (X85 - B85 - C85 -\
S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
Jaune NoirNoir texte
Note: if a gear other than neutral is dis-
played, it flashes and starting will only
be possible by depressing the brake
pedal, with the RENAULT card in detec-
tion zone 1 or in card reader 4.
–
in some cases, it will be necessary to
move the steering wheel while press-
ing start button 3 to assist in unlock-
ing the steering column; a message
on instrument panel 2 warns of this.Vehicles with an automatic
gearbox
Depress the brake pedal with the lever
in the N or P position.
All vehicles
– if one of the starting conditions is
not applied, the following messages:
“Depress brake + press start”, “shift
to P” or “shift to neutral” will be dis-
played on instrument panel 2;
STARTING THE ENGINE: vehicle with RENAULT CARD (2/3)
2
34
34
1

switching on the vehicle ignition ............................ (current page)
JauneNoirNoir texte
2.7
ENG_UD26550_2
Démarrage moteur : véhicule avec carte Renault (X85 - B85 - C85 -\
S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
STARTING THE ENGINE: vehicle with RENAULT CARD (3/3)
– when the RENAULT card battery is
drained, flat battery, etc.
The messages “card not detected”
then “insert card” appear on instrument
panel 2.
Move the RENAULT card or insert it
fully into card reader 4.
Starting with the tailgate
open
Insert the card into card reader 4 if you
wish to start the engine with the tailgate
open.
Operating faultsIn certain cases, the RENAULT card
may not work:
– if the vehicle is located in a zone of
high electromagnetic radiation;
– using appliances operating on the
same frequency as the card (mobile
phone, video game, etc.);
Accessories function
To use certain functions with the engine
switched off (radio, navigation, etc.),
press button 3 without depressing the
pedals and with the RENAULT card in
detection zone 1 or in card reader 4.
2
34
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others
by starting the vehicle, activating
equipment such as the windows, or
locking the doors.
Risk of serious injury.

stopping the engine .............................. (up to the end of the DU)
engine start/stop button ........................ (up to the end of the DU)
RENAULT card use .................................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.8
ENG_UD12574_2
Arrêt moteur : véhicule avec carte Renault (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2
When you leave your vehi -
cle, especially if you have
your RENAULT card with
you, check that the engine
is completely switched off.
To ensure that the engine is completely
stopped, press button 3 twice.
The steering locks. Check that it is cor-
rectly locked in position.
With the engine switched off, any ac -
cessories being used (radio, heating
and air conditioning, etc.) will continue
to function for a few minutes.
When the driver’s door is opened, the
accessories stop working.Conditions for stopping the
engine
Before stopping the engine, make
sure you have your card.
When the vehicle is stationary, press
button 3.
If the card is not in the detection zone
after pressing once, the messages
‘Confirm engine stop’ and ‘Press STOP
twice’ appear on instrument panel 2.
STOPPING THE ENGINE: vehicle with RENAULT CARD
3
2
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows etc.)
and trap part of their body (neck,
arms, hands, etc.).
Risk of serious injury.
Never switch off the ignition before
the vehicle has stopped completely.
Once the engine has stopped, the
brake servo, power-assisted steer -
ing, etc. and the passive safety de-
vices such as air bags and preten -
sioners will no longer operate.

special features of petrol vehicles ........ (up to the end of the DU)
catalytic converter ................................. (up to the end of the DU)
driving ................................................... (up to the end of the DU)
catalytic converter ................................. (up to the end of the DU)
2.9
ENG_UD10553_1
Particularités des versions essence (X85 - B85 - C85 - S85 - K85 - R\
enault)
ENG_NU_853-8_BCSK85_Renault_2
Special features of petrol versions
SPECIAL FEATURES OF PETROL VERSIONS
The following operating conditions:
– driving for long periods when the low
fuel level warning light is lit;
– using leaded petrol;
– using fuel or lubrication additives
which are not approved.
Or operating faults such as:
– faulty ignition system, running out of
fuel or disconnected spark plugs re-
sulting in the engine misfiring or cut-
ting out when driving;
– loss of power,
as they may cause the catalytic con -
verter to overheat and thus reduce its
efficiency, or damage it irreparably
and cause heat damage to the vehi-
cle. If you notice any of the above operating
faults, have the necessary repairs car-
ried out as soon as possible by an ap-
proved Dealer.
These faults may be avoided by regu
-
larly taking your vehicle to an approved
Dealer at the intervals specified in the
Maintenance Service Booklet.
Starting problems
To avoid damaging the catalytic con -
verter, do not keep trying to start the
engine (using the start button, or by
pushing or towing the vehicle) without
having identified and corrected the
starting fault.
If the fault cannot be identified, do not
keep trying to start the engine, but con-
tact an approved Dealer.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.

special features of diesel versions........(up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.10
ENG_UD10554_1
Particularités versions diesel (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_2
Special features of diesel versions
SPECIAL FEATURES OF DIESEL VERSIONS
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
Running out of fuel
You may start the engine normally after
refilling the fuel tank even if you have
completely run out of fuel , provided
that the battery is fully charged.
However, if the engine fails to start after
a few seconds and several attempts,
contact an approved Dealer. Precautions to be taken in winter
To avoid faults in icy weather:
–
ensure that the battery is always fully
charged;
– always keep the diesel tank rela -
tively full to avoid water vapour con-
densing in it and accumulating at the
bottom of the tank.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
