Page 129 of 264

JauneNoirNoir texte
2.35
ENG_UD10569_1
Aide au parking (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

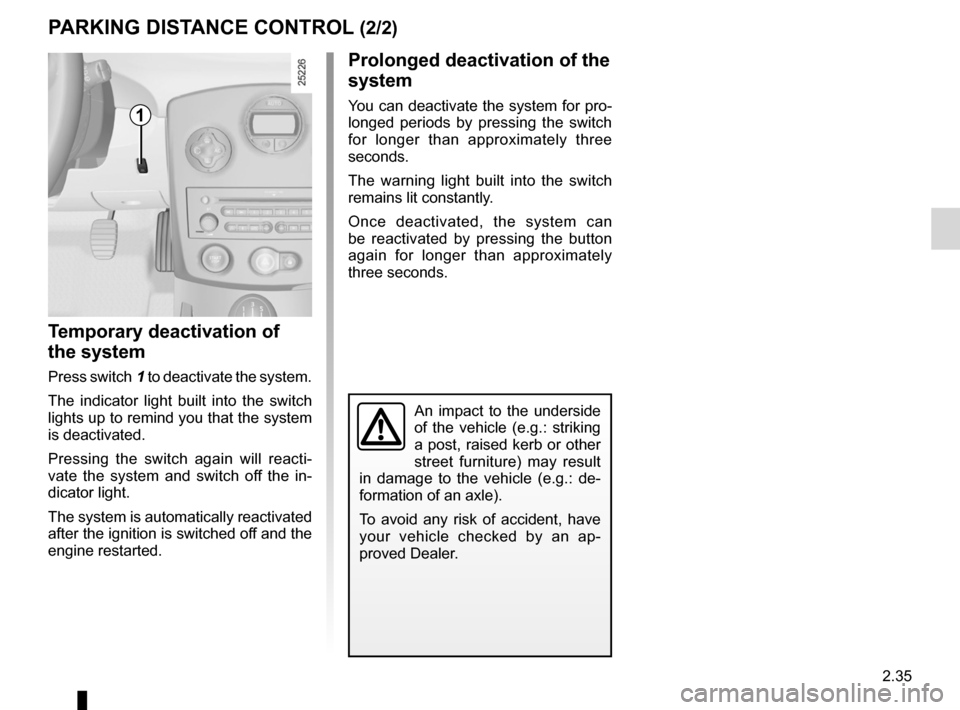

Prolonged deactivation of the
system
You can deactivate the system for pro-
longed periods by pressing the switch
for longer than approximately three
seconds.
The warning light built into the switch
remains lit constantly.
Once deactivated, the system can
be reactivated by pressing the button
again for longer than approximately
three seconds.
Temporary deactivation of
the system
Press switch 1 to deactivate the system.
The indicator light built into the switch
lights up to remind you that the system
is deactivated.
Pressing the switch again will reacti -
vate the system and switch off the in -
dicator light.
The system is automatically reactivated
after the ignition is switched off and the
engine restarted.
PARkING DISTANCE CONTROL (2/2)
1
An impact to the underside
of the vehicle (e.g.: striking
a post, raised kerb or other
street furniture) may result
in damage to the vehicle (e.g.: de -
formation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap -
proved Dealer.
Page 130 of 264
2.36
ENG_UD20783_6
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_853-8_BCSK85_Renault_2
Page 131 of 264

3.1
ENG_UD27581_9
Sommaire 3 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

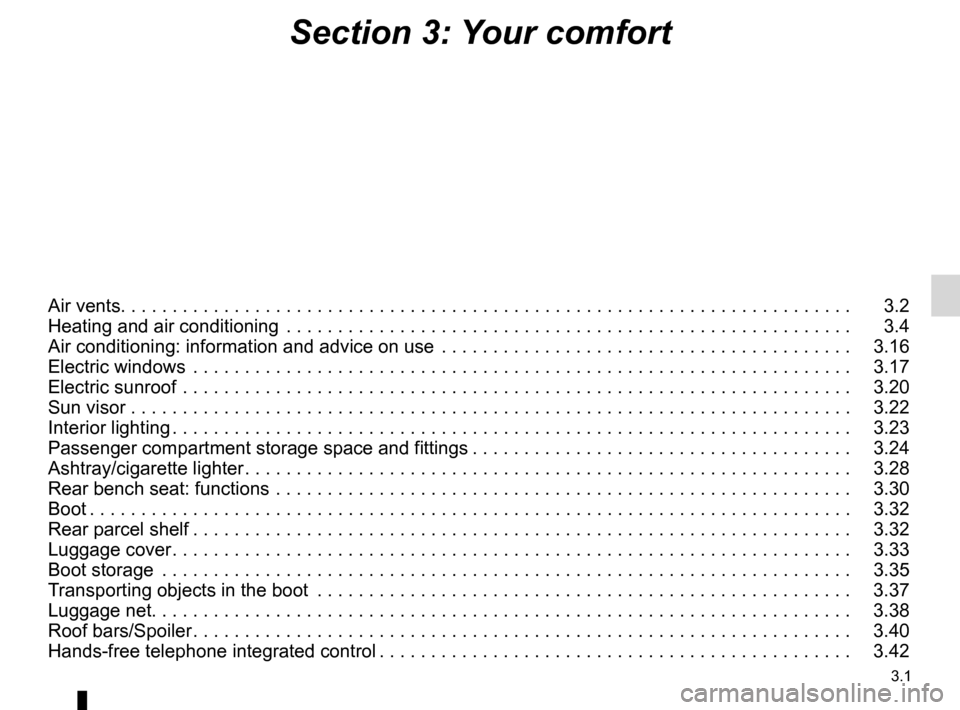

Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating and air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.16
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
Ashtray/cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Rear bench seat: functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32
Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33
Boot storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35
Transporting objects in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.37
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.38
Roof bars/Spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.40
Hands-free telephone integrated control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.42
Page 132 of 264
air vents ................................................ (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
3.2
ENG_UD19791_2
Aérateurs (sorties air) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte

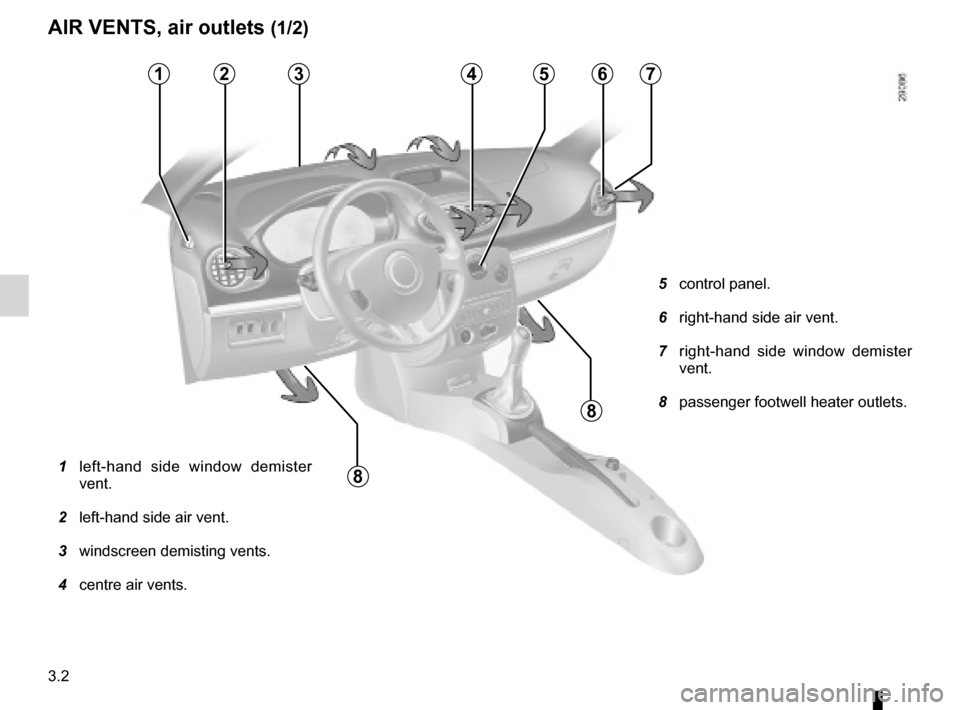

Air vents
air vents, air outlets (1/2)
3456712
8
1 left-hand side window demister
vent.
2 left-hand side air vent.
3 windscreen demisting vents.
4 centre air vents.
5 control panel.
6 right-hand side air vent.
7 right-hand side window demister
vent.
8 passenger footwell heater outlets.8
Page 133 of 264
JauneNoirNoir texte
3.3
ENG_UD19791_2
Aérateurs (sorties air) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

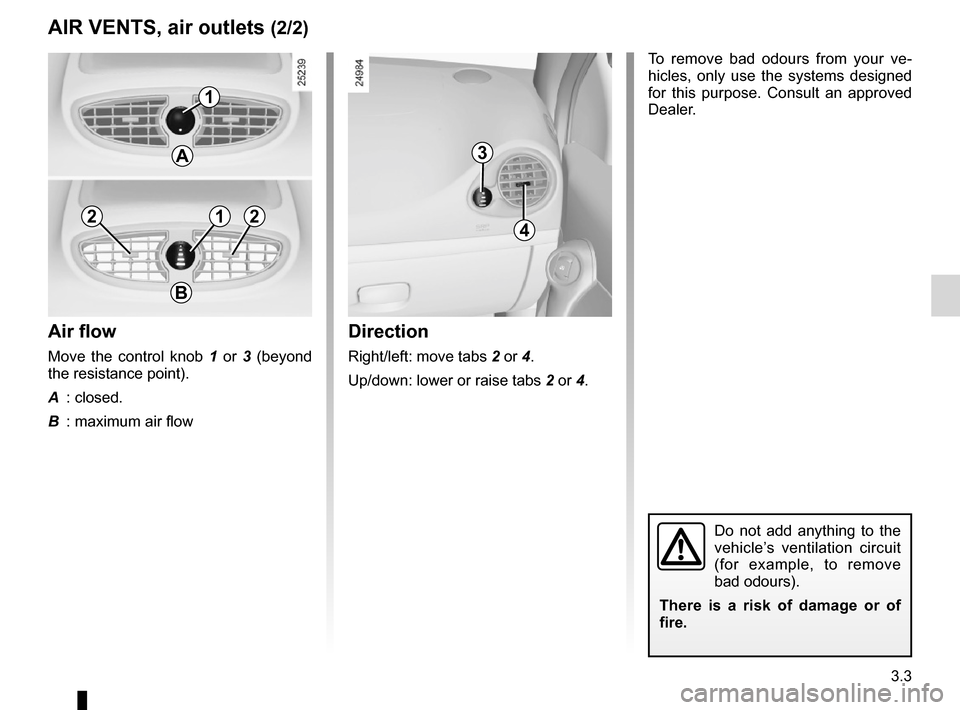

Direction
Right/left: move tabs 2 or 4.
Up/down: lower or raise tabs 2 or 4.
air flow
Move the control knob 1 or 3 (beyond
the resistance point).
A : closed.
B : maximum air flow
air vents, air outlets (2/2)
a
B
1
212
3
4
To remove bad odours from your ve -
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
t here is a risk of damage or of
fire.
Page 134 of 264

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
demisting rear screen ....................................................... (current page)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
3.4
ENG_UD19786_3
Chauffage / air conditionné (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
Heating and air conditioning
E Heated rear screen and heated
door mirror control and indicator
light (depending on vehicle).
F Air conditioning operation control
and indicator light (depending on
vehicle).
information and advice on use: refer
to the information on “Air conditioning:
information and advice on use”.the controls
A Adjusting the passenger compart -
ment air distribution.
B Air temperature adjustment.
C Ventilation speed adjustment.
D Air recirculation control.
HeatinG, air COnDitiOninG (1/4)
a
B
C
D
eF
Page 135 of 264

demistingwindscreen ....................................................... (current page)
JauneNoirNoir texte
3.5
ENG_UD19786_3
Chauffage / air conditionné (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
iThe air flow is shared between
the side window and wind -
screen demisting vents and the pas -
senger footwells.
This is the recommended position for
the best temperature in cold weather.
FThe air flow is directed mainly
towards the footwells.
GThe air flow is directed mainly
towards all the air vents and
the passenger footwells.
This is the recommended position for
the best temperature in hot weather.
ôThe air flow is directed mainly
towards all the air vents.
n
ote: for rapid demisting, use the air
conditioning (depending on the ve -
hicle), position controls A , B and D
on
W and adjust the ventilation
speed C to
y.

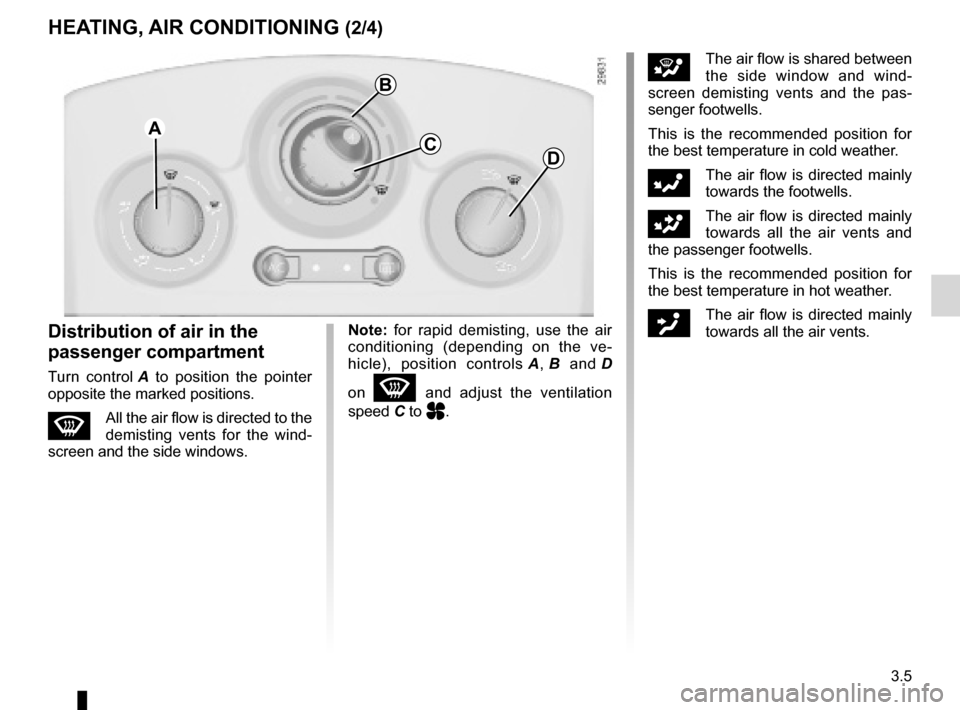

Distribution of air in the
passenger compartment
Turn control A to position the pointer
opposite the marked positions.
WAll the air flow is directed to the
demisting vents for the wind -
screen and the side windows.
HeatinG, air COnDitiOninG (2/4)
a
B
CD
Page 136 of 264

3.6
ENG_UD19786_3
Chauffage / air conditionné (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
HeatinG, air COnDitiOninG (3/4)
Position x
In this position:
– the air conditioning stops automati -
cally even if button F is activated (the
indicator light remains lit);
– the ventilation speed of air in the
passenger compartment is zero;
– there is, however, a slight flow of air
when the vehicle is moving.
This position should not normally be
used.
adjusting the ventilation
speed
normal use
Turn control C to one of the four posi -
tions to start the ventilation system and
adjust the power.
Select position
for minimum ventila -
tion and position
y for maximum ven-
tilation.
adjusting the air temperature
Turn control B to obtain the desired
temperature. The further the pointer is
in the red, the more the temperature will
be increased.
switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light illuminated) or off (indicator
light extinguished) using button F.
the air conditioning system is used
for:
– lowering the temperature inside the
passenger compartment;
– e l i m i n a t i n g c o n d e n s a t i o n m o r e
quickly.
The air conditioning does not operate
when the exterior temperature is low.
B
C
F
