To raise or lower the seat
base
Move lever 2 as many times as neces-
sary upwards or downwards.
Heated seats(depending on vehicle)
With the ignition switched on, press
switch 3 on the required seat. The indi -
cator light in the switch lights up.
The system, which has a thermostat,
regulates the heating and deactivates it
if necessary.
To move forwards or
backwards
Lift handle 1 underneath the seat to
release. Release the handle once
the seat is in the correct position and
ensure that the seat is fully locked into
position.

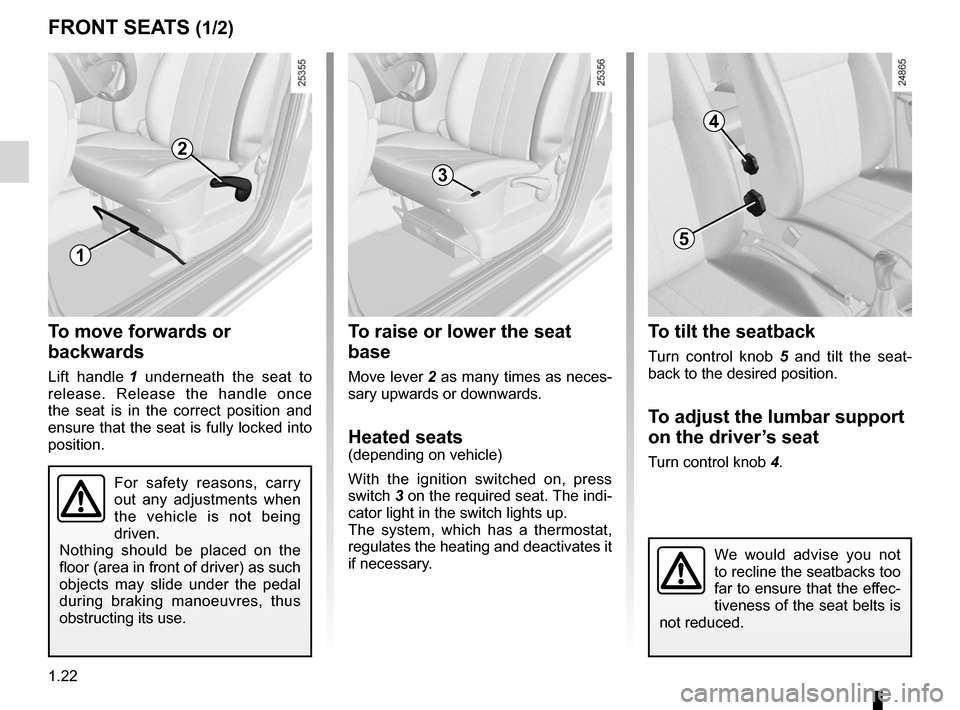

FRONT SEATS (1/2)
2
1
3
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
To tilt the seatback
Turn control knob 5 and tilt the seat -
back to the desired position.
To adjust the lumbar support
on the driver’s seat
Turn control knob 4.
4
5
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.
