Poste de conduite direction à gauche (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_1
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
1 Side air vent.
2 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
3 Instrument panel.
4 Driver ’s Airbag location, horn,
cruise control/speed limiter con -
trols.
5 – Radio remote control.
– Hands-free telephone inte -
grated control.
6 Stalk for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
7 Ignition switch (vehicle with key).
8 Centre air vents. 9 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
10 Display (depending on the vehicle)
of time, temperature, radio infor -
mation, navigation system infor -
mation, etc.
11 Heating or air conditioning con -
trols.
12 Passenger Airbag location.
13 Side air vent.
14 Glove box.
15 Location for radio, navigation
system, etc.
16 Central door locking switch.
17 RENAULT card reader (vehicle
with RENAULT card).
18 Hazard warning lights switch.
19 Gear lever.
20 Cruise control and speed limiter
control.
21 Cigar lighter.
22 Handbrake.
23 Location for a cup holder, ashtray,
etc.
24 Engine start or stop control (vehi -
cle with RENAULT card).
25 Parking distance control switch.
26 Fuse box.
27 Steering column height adjustment
control.
28 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo -
stat.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

JauneNoirNoir texte
1.55
ENG_UD19782_2
Poste de conduite direction à droite (X85 - B85 - C85 - S85 - K85 - \
Renault)
ENG_NU_853-8_BCSK85_Renault_1
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
1 Side air vent.
2 Passenger Airbag location.
3 Centre air vents.
4 Warning lights for:
– driver’s seat belt warning light;
– deactivating the front passenger
airbag.
5 Display (depending on the vehicle)
of time, temperature, radio infor -
mation, navigation system infor -
mation, etc.
6 Heating or air conditioning con -
trols.
7 Parking distance control switch.
8 Stalk for:
– direction indicator lights;
– exterior lights;
– front and rear fog lights.
9 Instrument panel.
10 Driver ’s Airbag location, horn,
cruise control/speed limiter con -
trols. 11 – Radio remote control.
– Hands-free telephone inte -
grated control.
12 Stalk for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
13 Side air vent.
14 Controls for:
– traction control and ESP;
– headlight beam height remote
adjustment;
– instrument panel lighting rheo -
stat.
15 Ignition switch (vehicle with key).
16 Steering column height adjustment
control.
17 Fuse box.
18 Central door locking switch.
19 RENAULT card reader (vehicle
with RENAULT card).
20 Gear lever.
21 Cigar lighter.
22 Handbrake.
23 Cruise control and speed limiter
control.
24 Location for a cup holder, ashtray,
etc.
25 Hazard warning lights switch.
26 Engine start or stop control (vehi -
cle with RENAULT card).
27 Location for radio, navigation
system, etc.
28 Glove box.
29 Bonnet release.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

external temperature ............................................. (current page)
1.74
ENG_UD24926_3
Heure et température extérieure (X85 - B85 - C85 - S85 - K85 - Re\
nault)
ENG_NU_853-8_BCSK85_Renault_1
Vehicles fitted with navigation aid
systems, telephones, etc.
Refer to the separate instructions for
the function to understand the special
features of this equipment.External temperature
indicator
Special note:
When the exterior temperature is - 3°C
to + 3°C, the °C characters flash (sig -
nalling a risk of ice on the road).
External temperature in -
dicator
As ice formation is related
to climatic exposure, local
air humidity and temperature, the
external temperature alone is not
sufficient to detect ice.
Display B
The display B shows:
– the radio;
– the time;
– the exterior temperature.
The time and/or external tempera -
ture are displayed when the ignition is
switched on.
Resetting the clock
Press button:
H for the hours,
M for the minutes.
CLOCK AND EXTERIOR TEMPERATURE (2/2)
B
H
M
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.
We recommend that you do not
adjust these settings while driving.

switching on the vehicle ignition ............................ (current page)
JauneNoirNoir texte
2.7
ENG_UD26550_2
Démarrage moteur : véhicule avec carte Renault (X85 - B85 - C85 -\
S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

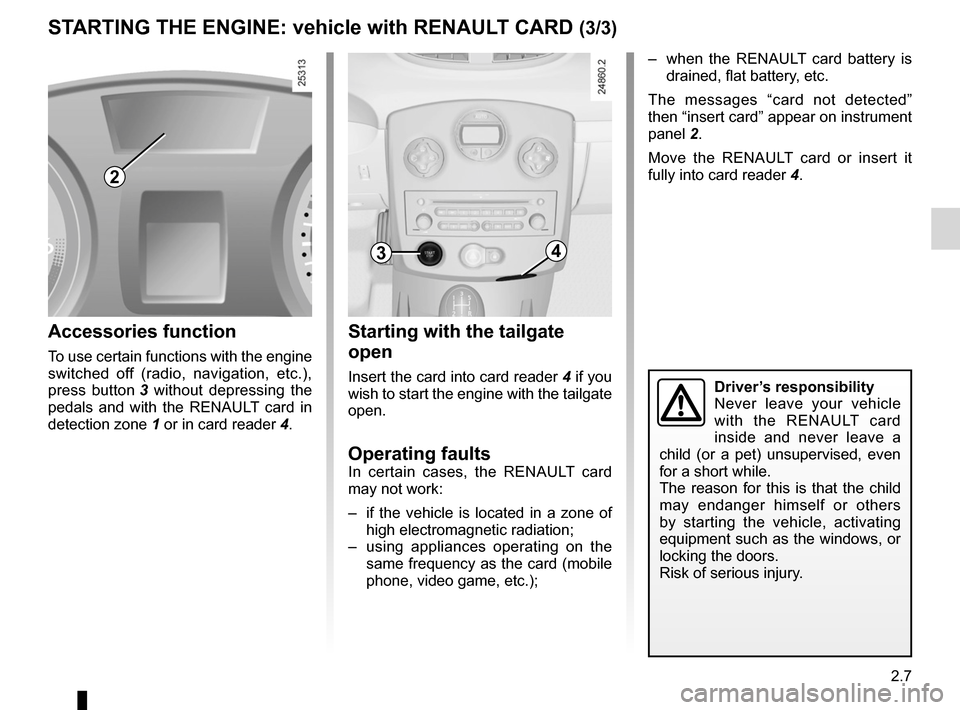

STARTING THE ENGINE: vehicle with RENAULT CARD (3/3)
– when the RENAULT card battery is
drained, flat battery, etc.
The messages “card not detected”
then “insert card” appear on instrument
panel 2.
Move the RENAULT card or insert it
fully into card reader 4.
Starting with the tailgate
open
Insert the card into card reader 4 if you
wish to start the engine with the tailgate
open.
Operating faultsIn certain cases, the RENAULT card
may not work:
– if the vehicle is located in a zone of
high electromagnetic radiation;
– using appliances operating on the
same frequency as the card (mobile
phone, video game, etc.);
Accessories function
To use certain functions with the engine
switched off (radio, navigation, etc.),
press button 3 without depressing the
pedals and with the RENAULT card in
detection zone 1 or in card reader 4.
2
34
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others
by starting the vehicle, activating
equipment such as the windows, or
locking the doors.
Risk of serious injury.
