2012 RENAULT CLIO SPORT TOURER Owners Manual

engine immobiliser................................(up to the end of the DU)
engine immobiliser................................ (up to the end of the DU)
1.19
ENG_UD10518_1
Système antidémarrage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Engine immobiliser
Operating fault warning light
If the warning light continues to flash or
stays lit up permanently following an at-
tempt to start the engine, this indicates
a fault in the system.
In this case, use the second key or card
(supplied with the vehicle). If the fault
is still present, contact an approved
Dealer, as they are the only personnel
qualified to repair the engine immobi -
liser system.
If there is interference and/or the hands -
free RENAULT card is not recognised,
move the card or insert it fully into the
card reader.
Vehicle protection tell-tale
light
After the ignition has been switched off,
warning light 1 flashes and the vehicle
is protected.
This prevents anyone not in posses-
sion of the vehicle’s coded ignition
key or card from starting the engine.
Operating principle
When the engine is started, warning
light
1 remains lit for a few seconds
then goes out (refer to the information
on “Starting the engine” in Section 2).
The vehicle is automatically protected
a few seconds after the engine is
switched off.
ENGINE IMMOBILISER
1
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be dan -
gerous. Work must be carried out
by qualified personnel.

headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
1.20
ENG_UD22282_4
Appuis-tête avant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
Headrests - Seats

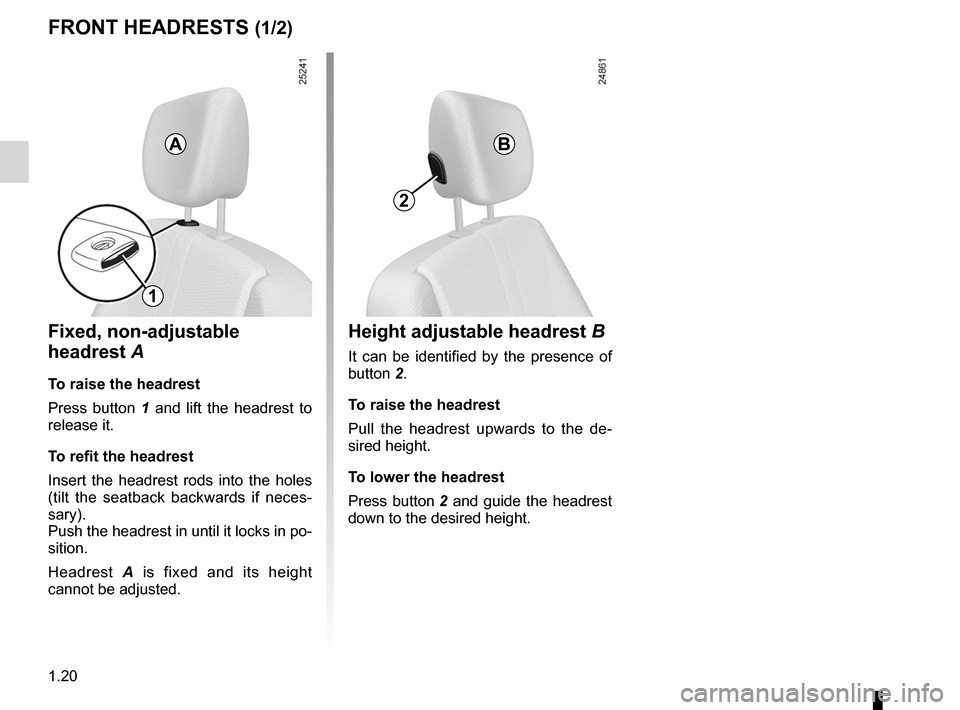

FRONT HEADRESTS (1/2)
2
Height adjustable headrest B
It can be identified by the presence of
button 2.
To raise the headrest
Pull the headrest upwards to the de -
sired height.
To lower the headrest
Press button 2 and guide the headrest
down to the desired height.
B
Fixed, non-adjustable
headrest A
To raise the headrest
Press button 1 and lift the headrest to
release it.
To refit the headrest
Insert the headrest rods into the holes
(tilt the seatback backwards if neces -
sary).
Push the headrest in until it locks in po-
sition.
Headrest A is fixed and its height
cannot be adjusted.
A
1

JauneNoirNoir texte
1.21
ENG_UD22282_4
Appuis-tête avant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

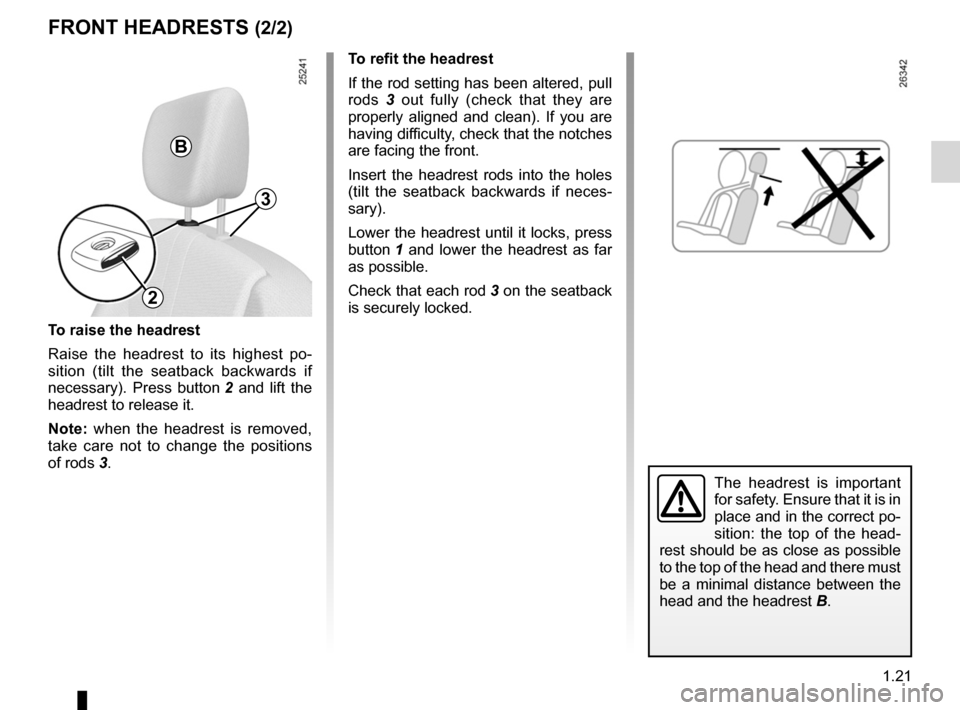

FRONT HEADRESTS (2/2)
The headrest is important
for safety. Ensure that it is in
place and in the correct po-
sition: the top of the head -
rest should be as close as possible
to the top of the head and there must
be a minimal distance between the
head and the headrest B.
To refit the headrest
If the rod setting has been altered, pull
rods 3 out fully (check that they are
properly aligned and clean). If you are
having difficulty, check that the notches
are facing the front.
Insert the headrest rods into the holes
(tilt the seatback backwards if neces -
sary).
Lower the headrest until it locks, press
button 1 and lower the headrest as far
as possible.
Check that each rod 3 on the seatback
is securely locked.
To raise the headrest
Raise the headrest to its highest po -
sition (tilt the seatback backwards if
necessary). Press button 2 and lift the
headrest to release it.
Note: when the headrest is removed,
take care not to change the positions
of rods 3.
B
3
2

adjusting your driving position .............. (up to the end of the DU)
front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
heated seats .......................................................... (current page)
1.22
ENG_UD14659_2
Sièges avant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
To raise or lower the seat
base
Move lever 2 as many times as neces-
sary upwards or downwards.
Heated seats(depending on vehicle)
With the ignition switched on, press
switch 3 on the required seat. The indi -
cator light in the switch lights up.
The system, which has a thermostat,
regulates the heating and deactivates it
if necessary.
To move forwards or
backwards
Lift handle 1 underneath the seat to
release. Release the handle once
the seat is in the correct position and
ensure that the seat is fully locked into
position.
FRONT SEATS (1/2)
2
1
3
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
To tilt the seatback
Turn control knob 5 and tilt the seat -
back to the desired position.
To adjust the lumbar support
on the driver’s seat
Turn control knob 4.
4
5
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.

JauneNoirNoir texte
1.23
ENG_UD14659_2
Sièges avant (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Access to the rear seatsthree door version
Lift handle 6, tilt the seatback and slide
the seat forwards.
To return the seat to its original position
(memorised position depending on ve-
hicle):
– slide the seat backwards until it
locks;
– lift the seatback until it locks.
Make sure the seat is correctly locked
in position.

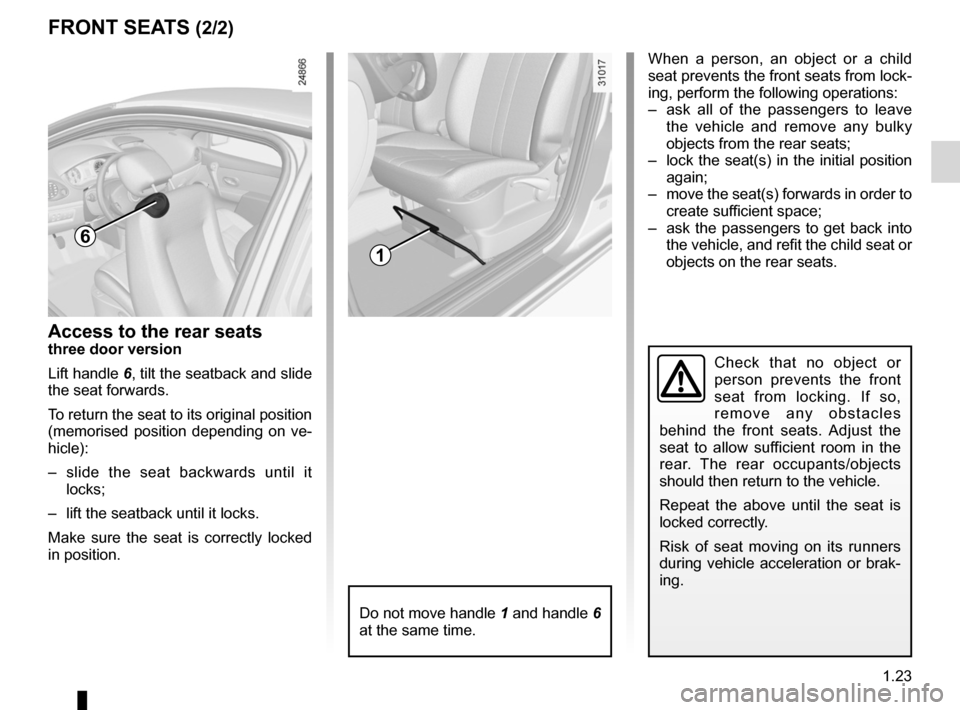

FRONT SEATS (2/2)
6
When a person, an object or a child
seat prevents the front seats from lock-
ing, perform the following operations:
– ask all of the passengers to leave
the vehicle and remove any bulky
objects from the rear seats;
– lock the seat(s) in the initial position
again;
– move the seat(s) forwards in order to
create sufficient space;
– ask the passengers to get back into
the vehicle, and refit the child seat or
objects on the rear seats.
1
Do not move handle 1 and handle 6
at the same time.
Check that no object or
person prevents the front
seat from locking. If so,
r e m o v e a n y o b s t a c l e s
behind the front seats. Adjust the
seat to allow sufficient room in the
rear. The rear occupants/objects
should then return to the vehicle.
Repeat the above until the seat is
locked correctly.
Risk of seat moving on its runners
during vehicle acceleration or brak-
ing.

steering wheeladjustment ...................................... (up to the end of the DU)
power-assisted steering ......................................... (current page)
variable power-assisted steering ........................... (current page)
1.24
ENG_UD10536_1
Volant de direction (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Power Assisted Steering
Never drive with an inadequately
charged battery.
Variable power assisted
steering
The variable power assisted steering
system is equipped with an electronic
control system which alters the level of
assistance to suit the vehicle speed.
Steering is made easier during parking
manoeuvres (for added comfort) whilst
the force needed to steer increases
progressively as the speed rises (for
enhanced safety at high speeds).
Adjusting the steering wheel
height and depth
(depending on vehicle)
Pull lever 1 and place the steering
wheel in the required position; push the
lever beyond the point of resistance to
lock the steering wheel in place.
Make sure that the steering wheel is
correctly locked.
Steering wheel/Power-assisted steering
Never leave the steering wheel on
full lock when the vehicle is station-
ary.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.

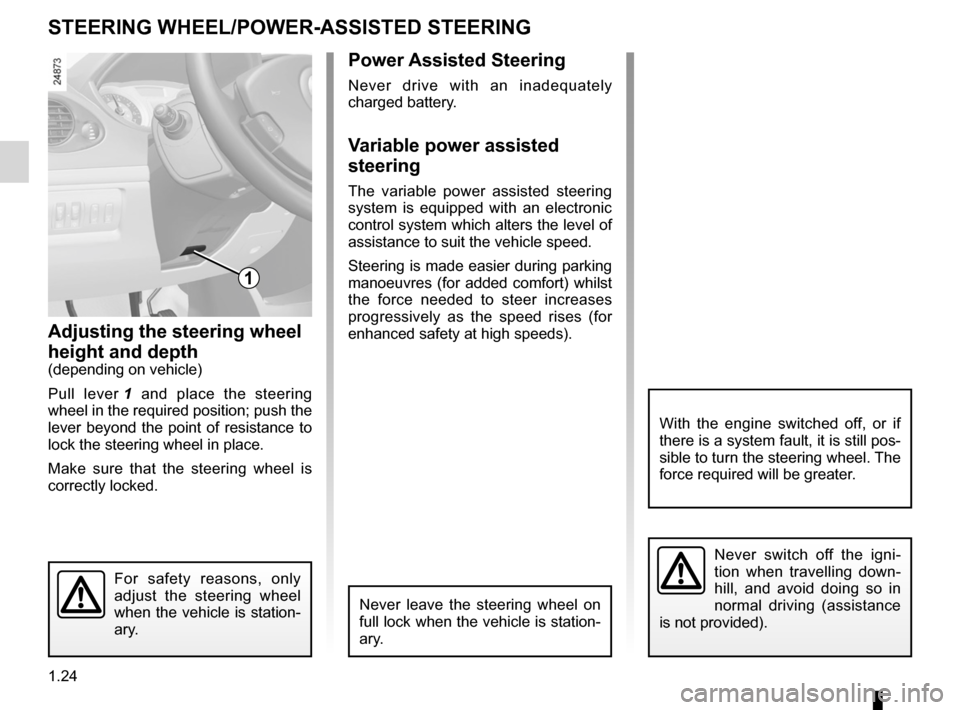

STEERING WHEEL/POWER-ASSISTED STEERING
1
Never switch off the igni -
tion when travelling down -
hill, and avoid doing so in
normal driving (assistance
is not provided).
With the engine switched off, or if
there is a system fault, it is still pos-
sible to turn the steering wheel. The
force required will be greater.

seat belts .............................................. (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
front seats adjustment ....................................................... (current page)
driving position settings ........................................... (up to the end of the DU)
1.25
ENG_UD25366_6
Ceintures de sécurité (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Seat belts

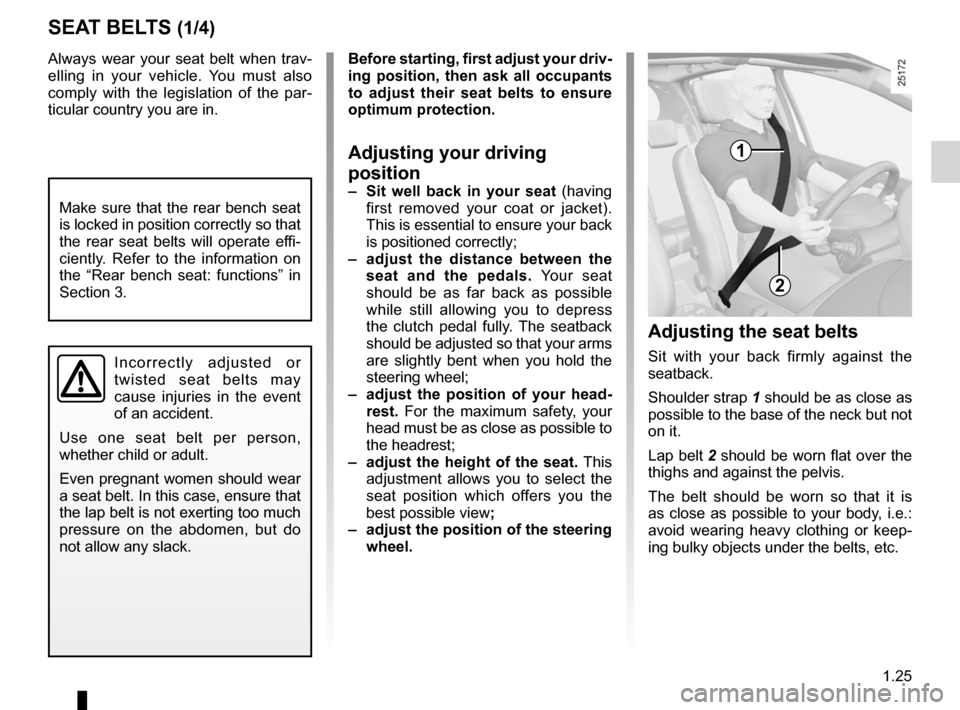

SEAT BELTS (1/4)
1
2
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving
position
– Sit well back in your seat (having
first removed your coat or jacket).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view ;
– adjust the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt 2 should be worn flat over the
thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep -
ing bulky objects under the belts, etc.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi -
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.

1.26
ENG_UD25366_6
Ceintures de sécurité (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

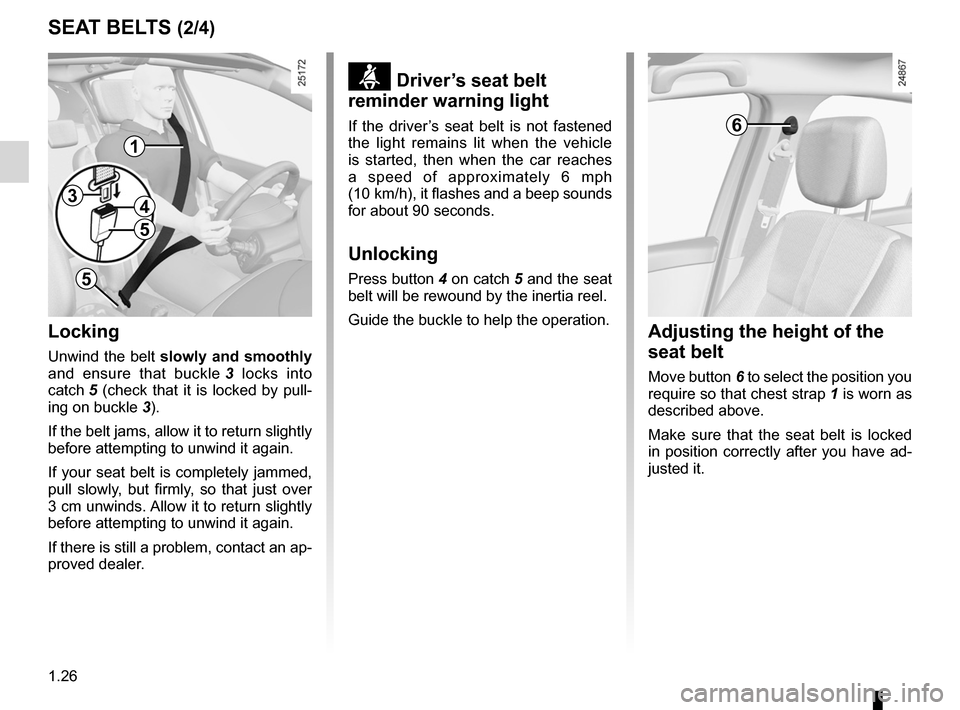

SEAT BELTS (2/4)

ß Driver’s seat belt
reminder warning light
If the driver’s seat belt is not fastened
the light remains lit when the vehicle
is started, then when the car reaches
a speed of approximately 6 mph
(10 km/h), it flashes and a beep sounds
for about 90 seconds.
Unlocking
Press button 4 on catch 5 and the seat
belt will be rewound by the inertia reel.
Guide the buckle to help the operation.
Adjusting the height of the
seat belt
Move button 6 to select the position you
require so that chest strap 1 is worn as
described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
6
1
34
5
5
Locking
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull -
ing on buckle 3).
If the belt jams, allow it to return slightly
before attempting to unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
