Page 169 of 264

JauneNoirNoir texte
3.39
ENG_UD12583_2
Filet de séparation (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
LUGGaGe net (2/2)
56
Marking
A marking on the luggage retaining trim
indicates the location of the ISOFIX
seat rings 5 and luggage net 6.
A marking on the mobile floor indi -
cates the location of the access flaps of
ISOFIX seat strap 5 and luggage net 6.
Fitting the luggage net A
behind the rear bench seat
Inside the vehicle on each side:
– lift the cover 2 to access the upper
mounting ring of the net;
– fix the net strap hook onto the ring; –
in the luggage compartment, it is
essential to fit the lower mounting
strap hook on the net to the anchor -
ing hook 4 identified by the mark -
ing 6 (depending on vehicle, located
under mobile floor B);
– adjust the net strap so that it is taut.
To remove, loosen the straps, press
hook C , keeping it vertical in the ring
shaft to facilitate removal.
The luggage net is de -
signed to retain a maximum
weight of 10 kg.
Risk of injury.
a
4
B4
C
Page 170 of 264

roof bars ............................................... (up to the end of the DU)
roof rack roof bars .......................................... (up to the end of the DU)
3.40
ENG_UD16851_2
Barres de toit / Becquet (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
When fitting roof bars, replace the
blanking bolts with the mounting bolts
supplied with the roof bars.
access to mounting points
for five-door versions

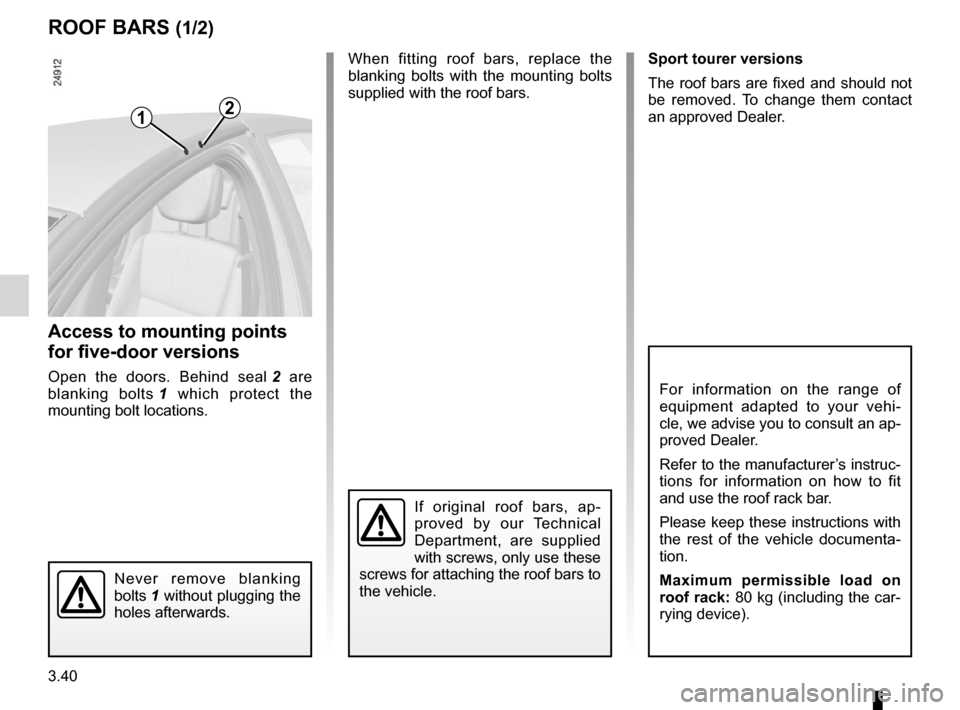

Open the doors. Behind seal 2 are
blanking bolts 1 which protect the
mounting bolt locations.
Roof bars/Spoiler
For information on the range of
equipment adapted to your vehi -
cle, we advise you to consult an ap-
proved Dealer.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and use the roof rack bar.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: 80 kg (including the car-
rying device).
Never remove blanking
bolts 1 without plugging the
holes afterwards.
rOOF Bars (1/2)
12
sport tourer versions
The roof bars are fixed and should not
be removed. To change them contact
an approved Dealer.
If original roof bars, ap -
proved by our Technical
Department, are supplied
with screws, only use these
screws for attaching the roof bars to
the vehicle.
Page 171 of 264

JauneNoirNoir texte
3.41
ENG_UD16851_2
Barres de toit / Becquet (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
For information on the range of
equipment adapted to your vehi -
cle, we advise you to consult an ap-
proved Dealer.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and use the roof rack bar.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: 80 kg (including the car-
rying device).
v ehicles fitted with a spoiler
It is forbidden to attach objects and/
or accessories (bike rack, etc.) to
spoiler A.
Precautions during use
Handling the tailgate
Before handling the tailgate, check the
objects and/or accessories (bike rack,
roof box, etc.) fitted to the roof bars:
these must be correctly positioned and
secured, so as not to hinder the opera -
tion of the tailgate.
access to rear mounting
points for three-door
versions

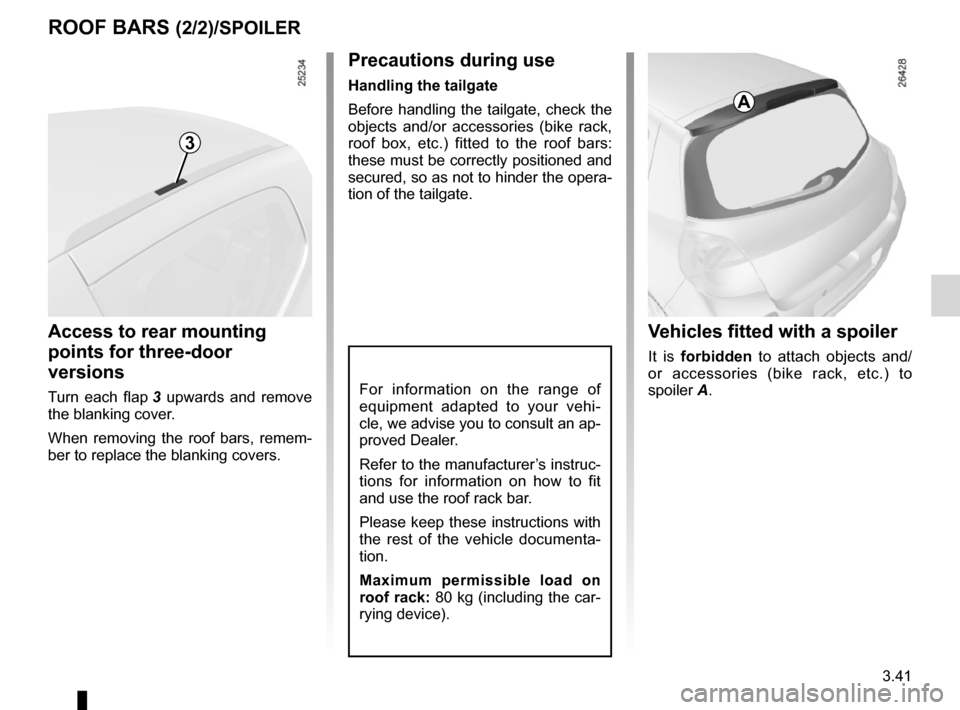

Turn each flap 3 upwards and remove
the blanking cover.
When removing the roof bars, remem-
ber to replace the blanking covers.
rOOF Bars (2/2)/sPOiLer
a
3
Page 172 of 264
hands-free telephone integrated control
(up to the end of the DU)
3.42
ENG_UD10587_1
Commande intégrée de téléphone mains libres (X85 - B85 - C8\
5 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3

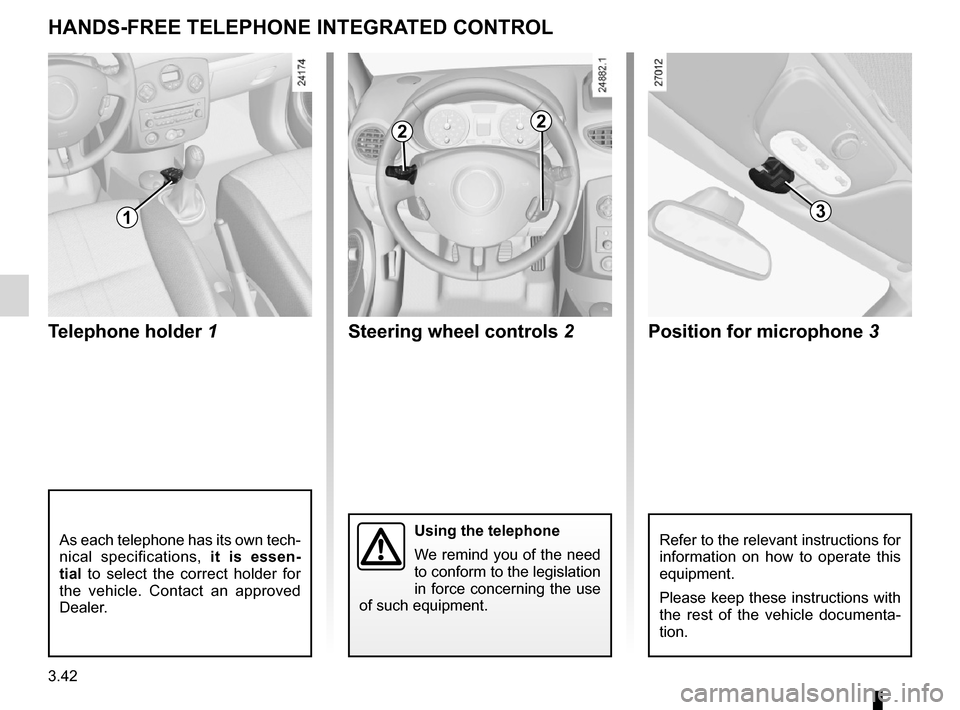

t elephone holder 1 Position for microphone 3
steering wheel controls 2
Hands-free telephone integrated control
Refer to the relevant instructions for
information on how to operate this
equipment.
Please keep these instructions with
the rest of the vehicle documenta -
tion.Using the telephone
We remind you of the need
to conform to the legislation
in force concerning the use
of such equipment.As each telephone has its own tech-
nical specifications, it is essen-
tial to select the correct holder for
the vehicle. Contact an approved
Dealer.
HanDs-Free teLePHOne inteGrateD COntrOL
1
22
3
Page 173 of 264

4.1
ENG_UD27582_9
Sommaire 4 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
windscreen washer/headlight washer reservoirs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.13
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.15
Page 174 of 264
bonnet................................................... (up to the end of the DU)
4.2
ENG_UD22329_5
Capot moteur (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_4
Jaune NoirNoir texte
Bonnet

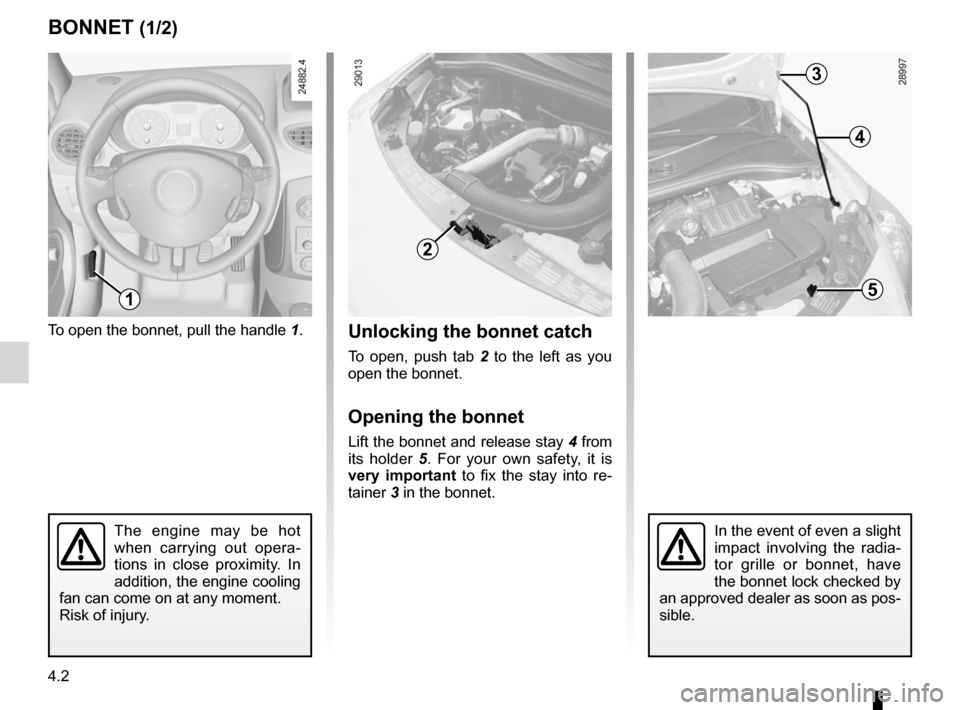

To open the bonnet, pull the handle 1.
BONNET (1/2)
1
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Unlocking the bonnet catch
To open, push tab 2 to the left as you
open the bonnet.
Opening the bonnet
Lift the bonnet and release stay 4 from
its holder 5. For your own safety, it is
very important to fix the stay into re -
tainer 3 in the bonnet.
In the event of even a slight
impact involving the radia -
tor grille or bonnet, have
the bonnet lock checked by
an approved dealer as soon as pos-
sible.
2
3
4
5
Page 175 of 264
JauneNoirNoir texte
4.3
ENG_UD22329_5
Capot moteur (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_4
BONNET (2/2)

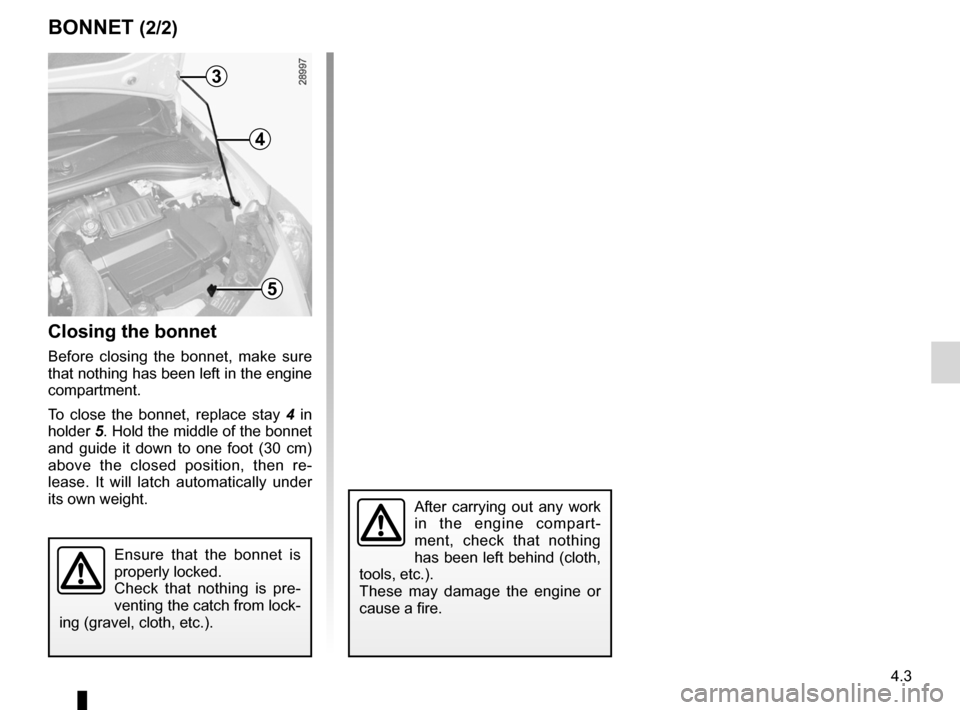

Closing the bonnet
Before closing the bonnet, make sure
that nothing has been left in the engine
compartment.
To close the bonnet, replace stay 4 in
holder 5. Hold the middle of the bonnet
and guide it down to one foot (30 cm)
above the closed position, then re -
lease. It will latch automatically under
its own weight.
Ensure that the bonnet is
properly locked.
Check that nothing is pre -
venting the catch from lock-
ing (gravel, cloth, etc.).
3
4
5
After carrying out any work
in the engine compart -
ment, check that nothing
has been left behind (cloth,
tools, etc.).
These may damage the engine or
cause a fire.
Page 176 of 264

maintenance:mechanical ...................................... (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
engine oil .............................................. (up to the end of the DU)
4.4
ENG_UD22490_3
Niveau huile moteur : généralités (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_4
Jaune NoirNoir texte
Variant 1 Variant 2Interpretation of messages
25302Message 1
“Oil level OK”
OIL LEVEL
OOOOOOO
The message “oil” is
displayed, alternating with dashes No display
Message 2
“Adjust oil level”
If the level is at minimum: depending
on the vehicle, the message “top up oil
level” or “oil” appears on the display, al-
ternating with dashes and the
©
warning light on the instrument panel
comes on: message 2.
It is vital to top up the oil as soon as
possible.
Engine oil level: general information
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
Minimum oil level warning on instru-
ment panel
When the ignition is switched on, if the
level is above the minimum level, the
message “oil ok” or “oil level correct” is
shown on the display for approximately
15 seconds.
For more information, press the trip
computer readout button: the message
“oil level” will be shown on the display
with squares which are replaced by
dashes when the level drops.
To advance to trip computer reading,
press the button again.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
Check the oil level at regular inter
-
vals and before any long journey
to avoid the risk of damaging your
engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
The dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
ENGINE OIL LEVEL: general information (1/2)
