Balais d essuie-vitres (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Rear screen wiper blade 5
– With the ignition off, lift wiper arm 6;
– pivot blade 5 until some resistance is
met;
– remove the blade by pulling it.
WINDSCREEN WIPER BLADES (2/2)
5
6
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.

towing hitch........................................... (up to the end of the DU)
towing breakdown ...................................... (up to the end of the DU)
5.38
ENG_UD27405_4
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
Insert the key in the ignition switch, or
the card in the reader, to unlock the
steering wheel and use the signalling
lights (brake lights, hazard warning
lights, etc.). The towed vehicle’s lights
must be switched on at night.
The speed specified by current legis -
lation for towing must always be ob -
served. If your vehicle is the towing
vehicle, do not exceed the maximum
towing weight for your vehicle (refer
to the information on “Weights” in
Section 6).
Only use:– at the rear, towing point 4 (depend-
ing on the vehicle);
– at the front, towing hitch 3 (never
the drive shafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.Access to towing points
Unclip by pulling towards you and lift
cover 1 or 5 (depending on the vehicle).
Tighten towing hitch 2 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace or,
depending on the vehicle, the lever.
Use only the towing eye 2 and the
wheelbrace located under the lug -
gage compartment carpet in the tool kit
(please refer to the information under
“Tool kit” in Section 5).
Towing
TOWING: breakdown (1/3)
3
1
2
1
5
2
4
1

JauneNoirNoir texte
5.39
ENG_UD27405_4
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Towing a vehicle with an
automatic gearbox
With the engine switched off: the
transmission is no longer lubricated. It
is preferable to tow this type of vehi -
cle on a trailer or tow it with the front
wheels off the ground.
Under exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going
forward, with the gear lever in the
Neutral position, and for a distance
not exceeding 30 miles (50 km).
If the lever is stuck in P,
even though you are de -
pressing the brake pedal,
the lever can be released
manually.
To do this, unclip the upper section
of the cover at the base of the lever.
Press simultaneously on the mark
on the gaiter and the unlocking
button on the lever.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
– Do not push the vehicle if the
steering column is locked.
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button for five seconds without press-
ing on the pedals. The steering column
unlocks and the vehicle accessories
functions are supplied.
Leave the card in the reader while
towing.
Press the Start/Stop button twice in
succession once towing is finished (risk
of running down the battery).
TOWING: breakdown (2/3)
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op -
erational.
Do not remove the key from
the ignition switch or the
card from the reader during
towing.

towingtowing a caravan .............................................. (current page)
towing towing equipment ............................................. (current page)
towing equipment fitting ................................................................ (current page)
5.40
ENG_UD27405_4
Remorquage : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Permissible nose weight, maxi -
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
For fitting and conditions of use,
refer to the equipment’s fitting in -
structions.
Please keep these instructions with
the rest of the vehicle documenta -
tion.

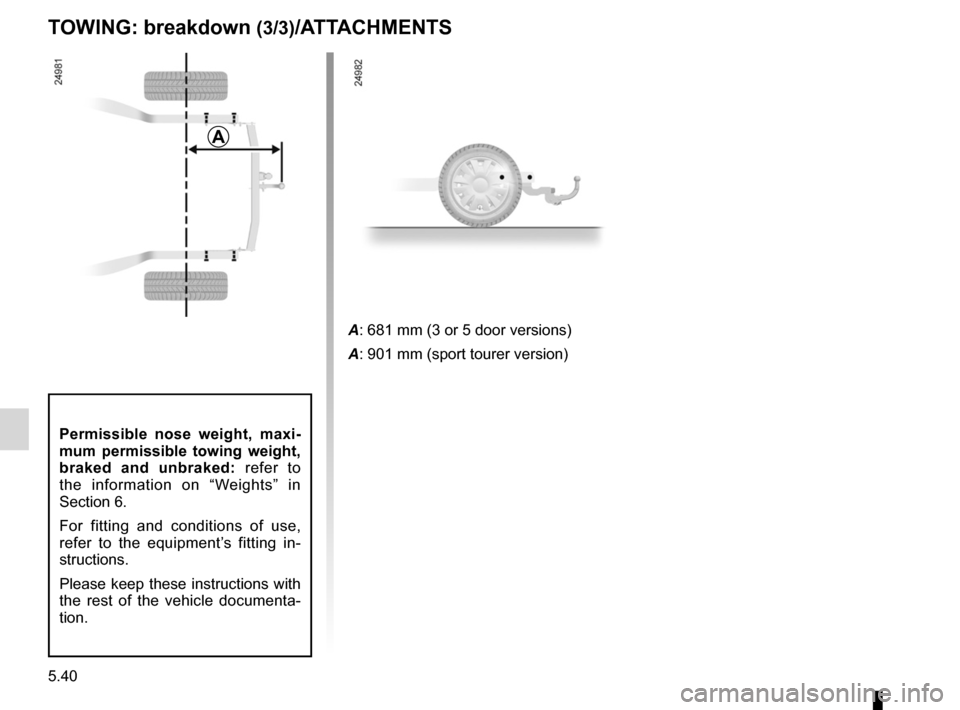

TOWING: breakdown (3/3)/ATTACHMENTS
A
A: 681 mm (3 or 5 door versions)
A: 901 mm (sport tourer version)

operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.41
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Operating faults
OPERATING FAULTS (1/8)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the RENAULT card POSSIBLE CAUSES ACTION REQUIRED
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Use the emergency key (refer to the in-
formation on the Emergency key in
Section 1).
Use of appliances operating on the same
frequency as the card (mobile phone, etc.). Stop using the equipment or use the emer-
gency key (refer to the information on the
Emergency key in Section 1).
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on the same
frequency as the remote control (mobile
phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).

5.42
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte

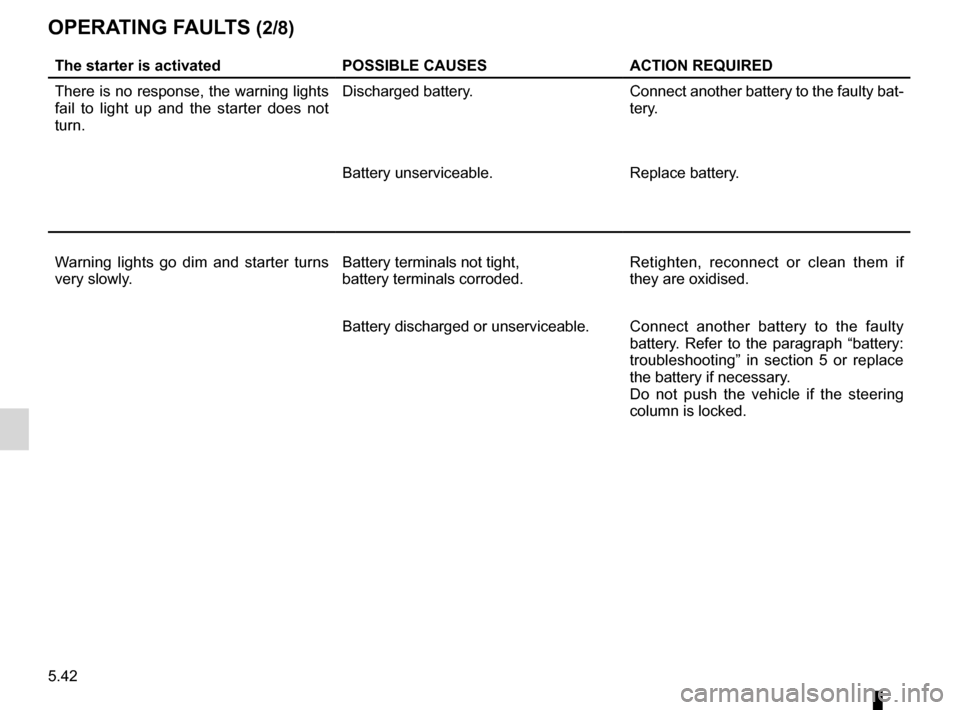

OPERATING FAULTS (2/8)
The starter is activated POSSIBLE CAUSESACTION REQUIRED
There is no response, the warning lights
fail to light up and the starter does not
turn. Discharged battery.
Connect another battery to the faulty bat-
tery.
Battery unserviceable. Replace battery.
Warning lights go dim and starter turns
very slowly. Battery terminals not tight,
battery terminals corroded.Retighten, reconnect or clean them if
they are oxidised.
Battery discharged or unserviceable. Connect another battery to the faulty
battery. Refer to the paragraph “battery:
troubleshooting” in section 5 or replace
the battery if necessary.
Do not push the vehicle if the steering
column is locked.

JauneNoirNoir texte
5.43
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
OPERATING FAULTS (3/8)
The starter is activated POSSIBLE CAUSESACTION REQUIRED
The engine will not start
(vehicle with RENAULT card). Starting conditions are not fulfilled.
Refer to the information on “Starting/
stopping the engine” in Section 2.
The hands-free RENAULT card is not de-
tected. Move the card inside the passenger
compartment.
The hands-free RENAULT card does not
work. Insert the card in the card reader in order
to start the engine.
Refer to the information on “Starting/
stopping the engine” in Section 2.
It is difficult to start the engine in wet
weather or after washing the vehicle. Poor ignition, ignition system damp.
Dry the spark plug and coil wires.
The engine is difficult to start when hot. Faulty carburation (bubbles of vaporised
fuel in the circuit).Let the engine cool down.
Poor compression. Consult an approved dealer.
The engine cannot be switched off
(vehicle with RENAULT card). Electronic fault.
Press the starter button quickly five
times.
The steering column remains locked. Steering wheel locked.Move the steering wheel while press-
ing the engine start button (refer to the
information on Starting the engine in
Section 2).

5.44
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
On the road POSSIBLE CAUSESACTION REQUIRED
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Refer to the information on “Special fea-
tures of diesel versions” in Section 2.
Vibrations. Tyres not inflated to correct pressures,
incorrectly balanced or damaged.Check the tyre pressures. If this is not the
problem, have them checked by an ap
-
proved Dealer.
Coolant boiling in the coolant reservoir. Mechanical fault: cylinder head gasket
blown, faulty coolant pump.Stop the engine.
Consult an approved dealer.
OPERATING FAULTS (4/8)
