Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_5

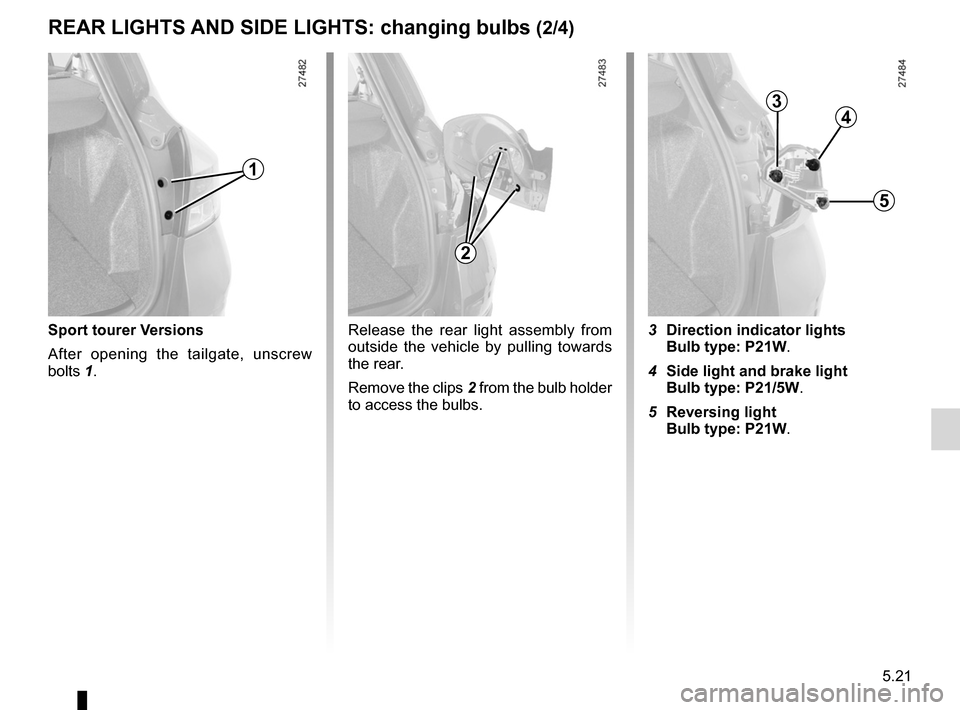

Sport tourer Versions
After opening the tailgate, unscrew
bolts 1.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (2/4)
3 Direction indicator lights
Bulb type: P21W.
4 Side light and brake light
Bulb type: P21/5W.
5 Reversing light
Bulb type: P21W.
Release the rear light assembly from
outside the vehicle by pulling towards
the rear.
Remove the clips 2 from the bulb holder
to access the bulbs.
1
2
43
5

5.22
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte

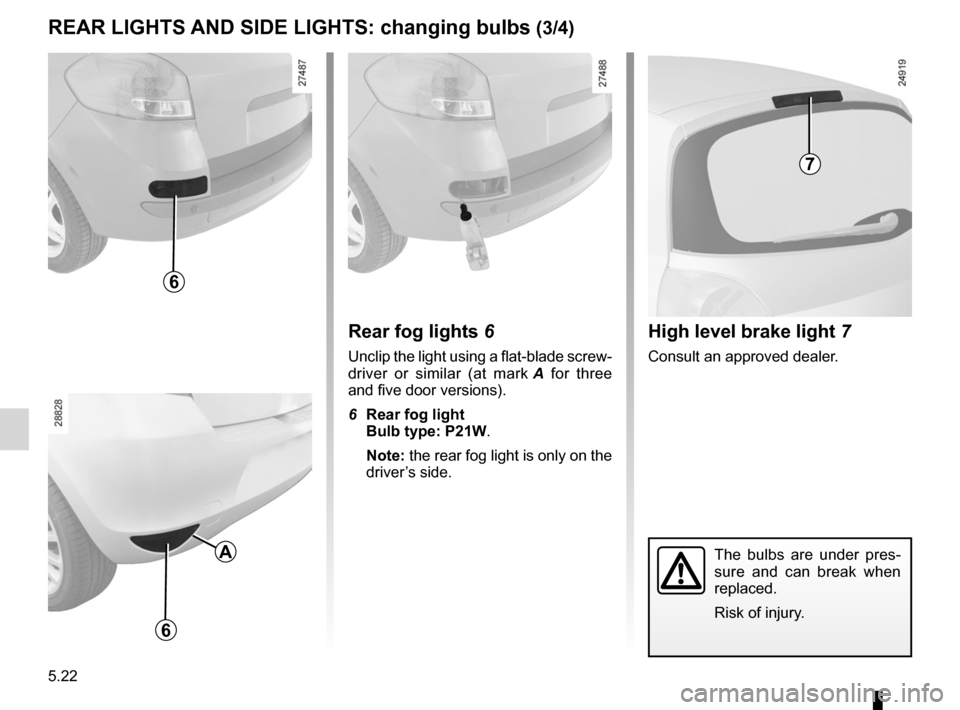

Rear fog lights 6
Unclip the light using a flat-blade screw-
driver or similar (at mark A for three
and five door versions).
6 Rear fog light
Bulb type: P21W.
Note: the rear fog light is only on the
driver’s side.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (3/4)
7
6
High level brake light 7
Consult an approved dealer.
6
AThe bulbs are under pres -
sure and can break when
replaced.
Risk of injury.

lights:number plate lights .......................................... (current page)
indicator lights ........................................................ (current page)
JauneNoirNoir texte
5.23
ENG_UD16854_3
Feux arrière : remplacement des lampes (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-8_BCSK85_Renault_5

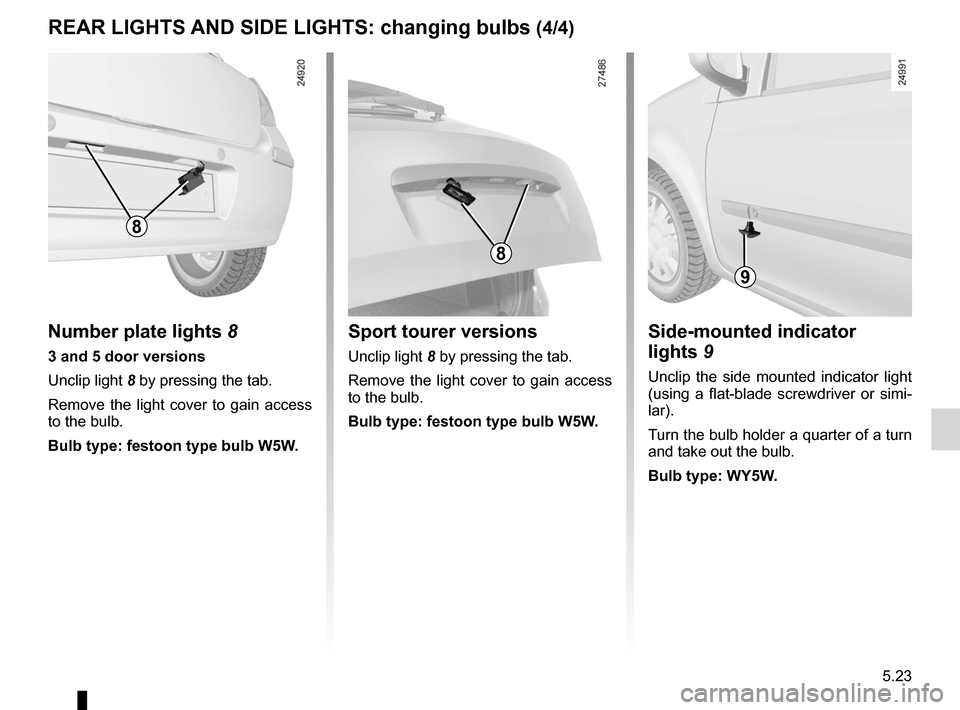

Indicator lights (changing bulbs)
Side-mounted indicator
lights 9
Unclip the side mounted indicator light
(using a flat-blade screwdriver or simi-
lar).
Turn the bulb holder a quarter of a turn
and take out the bulb.
Bulb type: WY5W.
Number plate lights 8
3 and 5 door versions
Unclip light 8 by pressing the tab.
Remove the light cover to gain access
to the bulb.
Bulb type: festoon type bulb W5W.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (4/4)
9
8
Sport tourer versions
Unclip light 8 by pressing the tab.
Remove the light cover to gain access
to the bulb.
Bulb type: festoon type bulb W5W.
8

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
courtesy light ......................................................... (current page)
5.24
ENG_UD10606_1
Eclairage intérieur : remplacement des lampes (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte

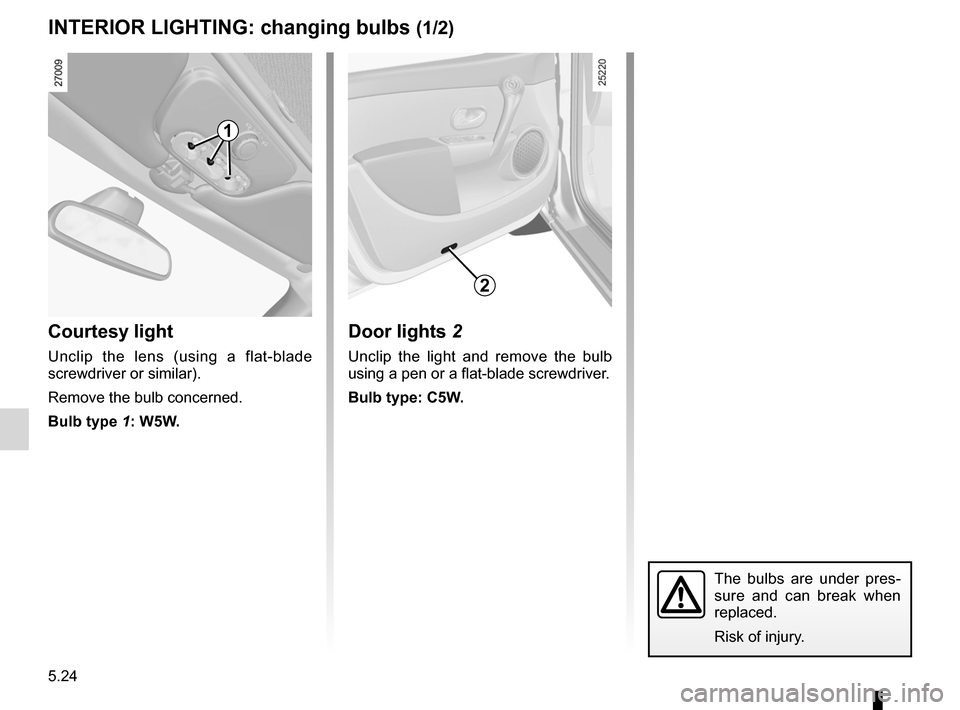

Interior lighting (changing bulbs)
Door lights 2
Unclip the light and remove the bulb
using a pen or a flat-blade screwdriver.
Bulb type: C5W.
Courtesy light
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb concerned.
Bulb type 1: W5W.
INTERIOR LIGHTING: changing bulbs (1/2)
2
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1

JauneNoirNoir texte
5.25
ENG_UD10606_1
Eclairage intérieur : remplacement des lampes (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5

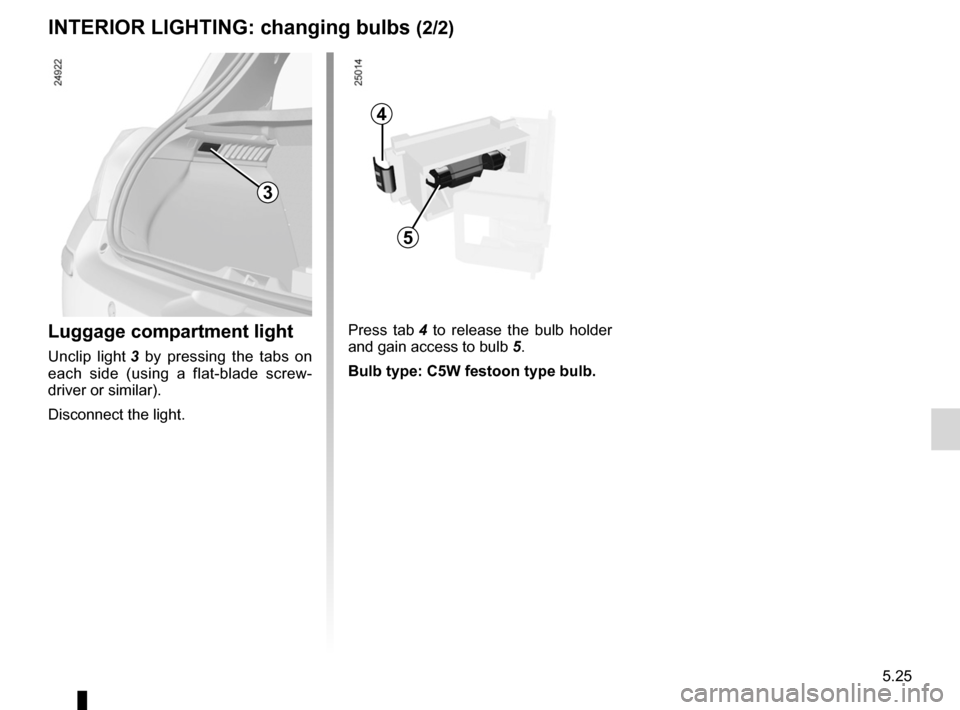

Press tab 4 to release the bulb holder
and gain access to bulb 5.
Bulb type: C5W festoon type bulb.Luggage compartment light
Unclip light 3 by pressing the tabs on
each side (using a flat-blade screw -
driver or similar).
Disconnect the light.
INTERIOR LIGHTING: changing bulbs (2/2)
3
4
5

fuses ..................................................... (up to the end of the DU)
5.26
ENG_UD24921_5
Fusibles (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
Remove the fuse using tweezers 2, lo-
cated on the cover.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Fuses
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted with too high a
rating, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
Fuse box 1
If any electrical component does not
work, check the condition of the fuses.
Depending on the vehicle, open the
cover to the right of the steering wheel
or the glove box.
To identify the fuses, refer to the fuse
allocation sticker (shown on the follow -
ing page).
FUSES (1/2)
1
In accordance with local legislation
or as a precautionary measure:
obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
2

JauneNoirNoir texte
5.27
ENG_UD24921_5
Fusibles (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Some accessories are protected by
fuses located in the engine compart -
ment.
However, due to their reduced acces -
sibility, we advise you to have your
fuses replaced by an approved
Dealer .
FUSES (2/2)

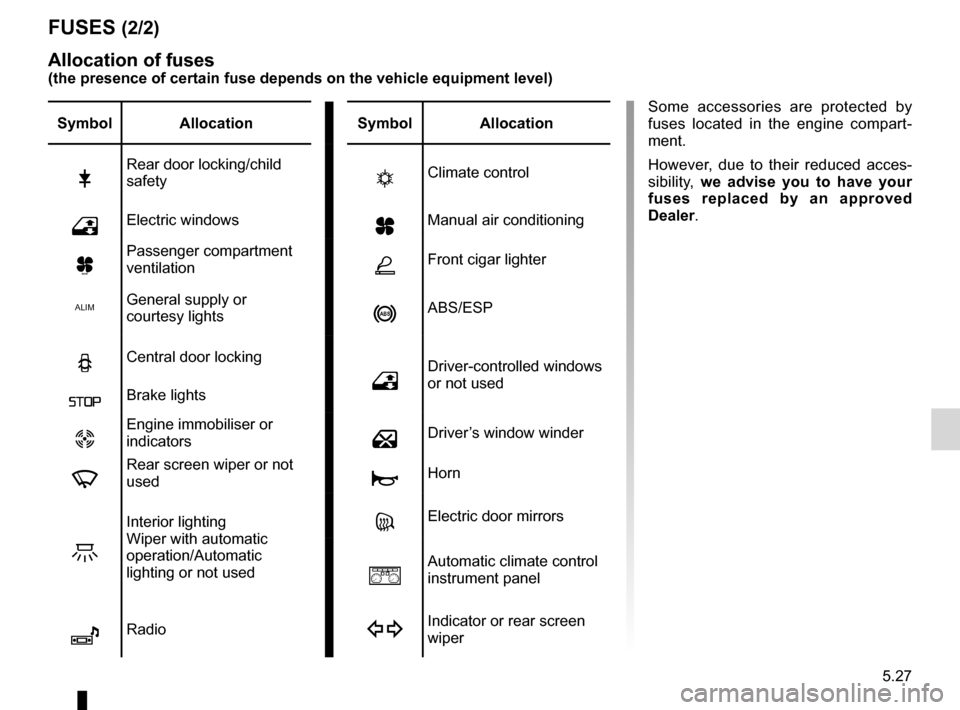

Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
Symbol Allocation SymbolAllocation
2Rear door locking/child
safetytClimate control
hElectric windowsyManual air conditioning
ÚPassenger compartment
ventilationÆFront cigar lighter
ALIMGeneral supply or
courtesy lightsnABS/ESP
NCentral door locking
hDriver-controlled windows
or not used
ßBrake lights
ÙEngine immobiliser or
indicatorsæDriver’s window winder
fRear screen wiper or not
usedÌHorn
Z
Interior lighting
Wiper with automatic
operation/Automatic
lighting or not usedgElectric door mirrors
aAutomatic climate control
instrument panel
îRadioIndicator or rear screen
wiper

5.28
ENG_UD12592_2
Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
To avoid all risk of sparks:
– ensure that any consumers are
switched off before disconnecting or
reconnecting the battery;
– when charging, stop the charger
before connecting or disconnecting
the battery;
– to avoid creating a short circuit be -
tween the terminals, do not place
metal objects on the battery;
– always wait at least one minute after
the engine has been switched off
before disconnecting a battery;
– make sure that you reconnect the
battery terminals after refitting.
Battery
Refitting the battery covers
– position cover C in its hinges and clip
it in place;
– then position cover B in its hinges
and clip it in place;
Check that the two covers B and C are
correctly locked.
Depending on the vehicle, reposition
block A, clipping first the rear, then the
front. Ensure it is correctly locked in
place.
Access to the battery
Depending on the vehicle, press tab 1
and tilt block A backwards to unclip it.
Unclip cover B and remove it, then
unclip cover C and remove it.
BATTERY: troubleshooting (1/4)
AB
C
1
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
