2012 RENAULT CLIO SPORT TOURER Owners Manual

JauneNoirNoir texte
1.43
ENG_UD24917_5
Sécurité enfants : installation du siège enfant (X85 - B85 - C\
85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
³ Check the status of the airbag
before fitting a child seat or allowing a
passenger to use the seat.

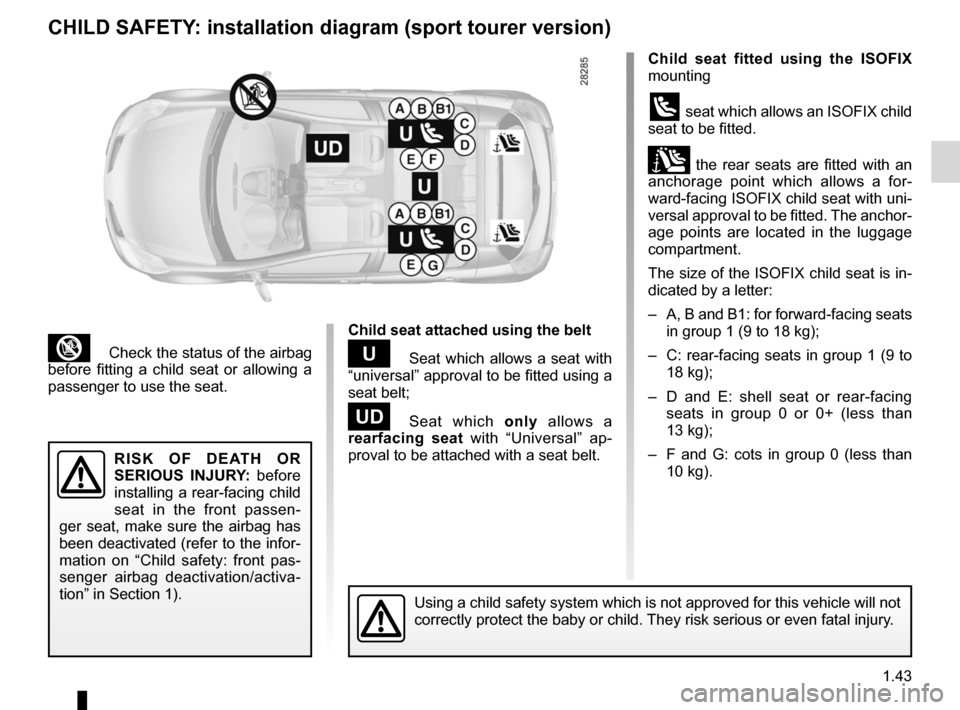

CHILD SAFETY : installation diagram (sport tourer version)
Child seat fitted using the ISOFIX
mounting
ü seat which allows an ISOFIX child
seat to be fitted.
± the rear seats are fitted with an
anchorage point which allows a for -
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The anchor-
age points are located in the luggage
compartment.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Child seat attached using the belt
¬
Seat which allows a seat with
“universal” approval to be fitted using a
seat belt;
− Seat which only allows a
rearfacing seat with “Universal” ap -
proval to be attached with a seat belt.
Using a child safety system which is not approved for this vehicle will not
correctly protect the baby or child. They risk serious or even fatal injury.
R I S K O F D E AT H O R
SERIOUS INJURY: before
installing a rear-facing child
seat in the front passen -
ger seat, make sure the airbag has
been deactivated (refer to the infor-
mation on “Child safety: front pas -
senger airbag deactivation/activa -
tion” in Section 1).

1.44
ENG_UD24917_5
Sécurité enfants : installation du siège enfant (X85 - B85 - C\
85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
CHILD SAFETY : installation table (3- and 5-door versions) (1/2)
(1) RISK OF DEATH OR SERIOUS INJURY: before installing a rear-facing child seat in the front passenger seat,
make sure the airbag has been deactivated (refer to the information on “Child safety: front passenger airbag deactiva -
tion/activation” in Section 1).
Type of child seat Weight of
the child Seat size ISOFIX Front passenger
seat (1) (2) Rear side
seats (6) (7) Rear centre seat
C a r r y c o t f i t t e d
across the vehicle
Group 0 < 10 kg
F, GXU - IL (3) X
Shell seat/rear-facing
seat
Groups 0, 0 + and 1 < 13 kg and 9 to
18 kg
C, D, E
UD - IL (6) U - IL (4) U (4)
Forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (5) U (5)
Booster seat
Groups 2 and 3 15 to 25 kg and
22 to 36 kg
X
U (5) U (5)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

JauneNoirNoir texte
1.45
ENG_UD24917_5
Sécurité enfants : installation du siège enfant (X85 - B85 - C\
85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

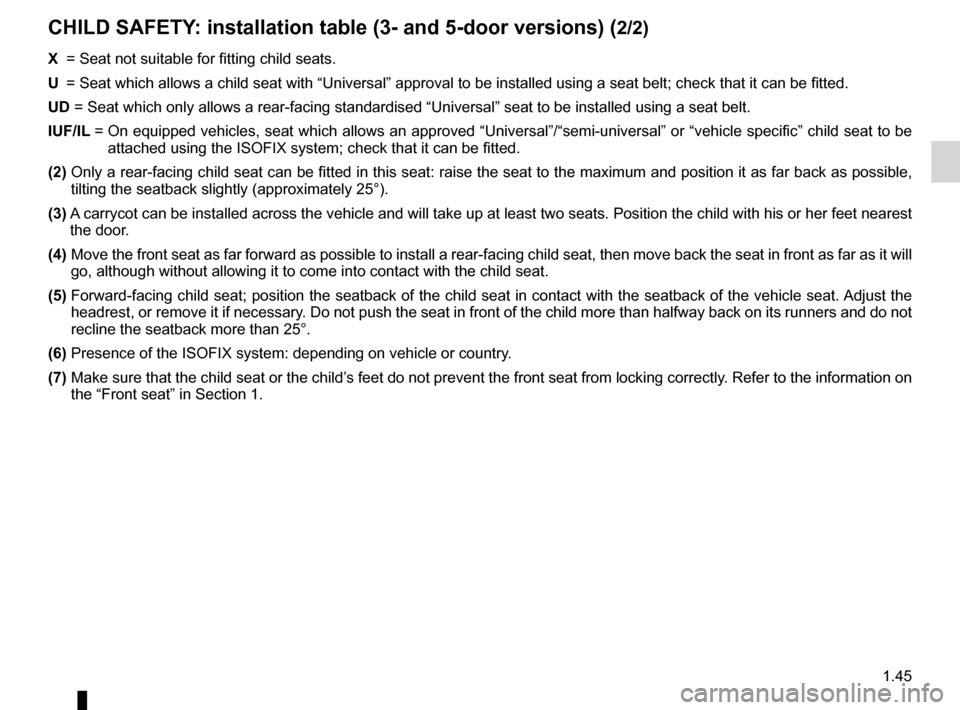

CHILD SAFETY : installation table (3- and 5-door versions) (2/2)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
UD = Seat which only allows a rear-facing standardised “Universal” seat\
to be installed using a seat belt.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(3) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(4) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(5) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not
recline the seatback more than 25°.
(6) Presence of the ISOFIX system: depending on vehicle or country.
(7) Make sure that the child seat or the child’s feet do not prevent the front seat from locking correctly. Refer to the information on
the “Front seat” in Section 1.

1.46
ENG_UD24917_5
Sécurité enfants : installation du siège enfant (X85 - B85 - C\
85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
CHILD SAFETY : installation table (sport tourer versions) (1/2)
(1) RISK OF DEATH OR SERIOUS INJURY: before installing a rear-facing child seat in the front passenger seat,
make sure the airbag has been deactivated (refer to the information on “Child safety: front passenger airbag deactiva -
tion/activation” in Section 1).
Type of child seat Weight of
the child Seat size ISOFIX Front passenger
seat (1) (2) Rear side seats (6)
Rear centre seat
Carrycot fitted across
the vehicle
Group 0 < 10 kg
F, GXU - IL (3) X
Shell seat/rear-facing
seat
Group 0, 0+ and 1 < 13 kg and 9 to
18 kg
C, D, E
UDU - IL (4) U (4)
Forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (5) U (5)
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg
X
U (5) U (5)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

JauneNoirNoir texte
1.47
ENG_UD24917_5
Sécurité enfants : installation du siège enfant (X85 - B85 - C\
85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

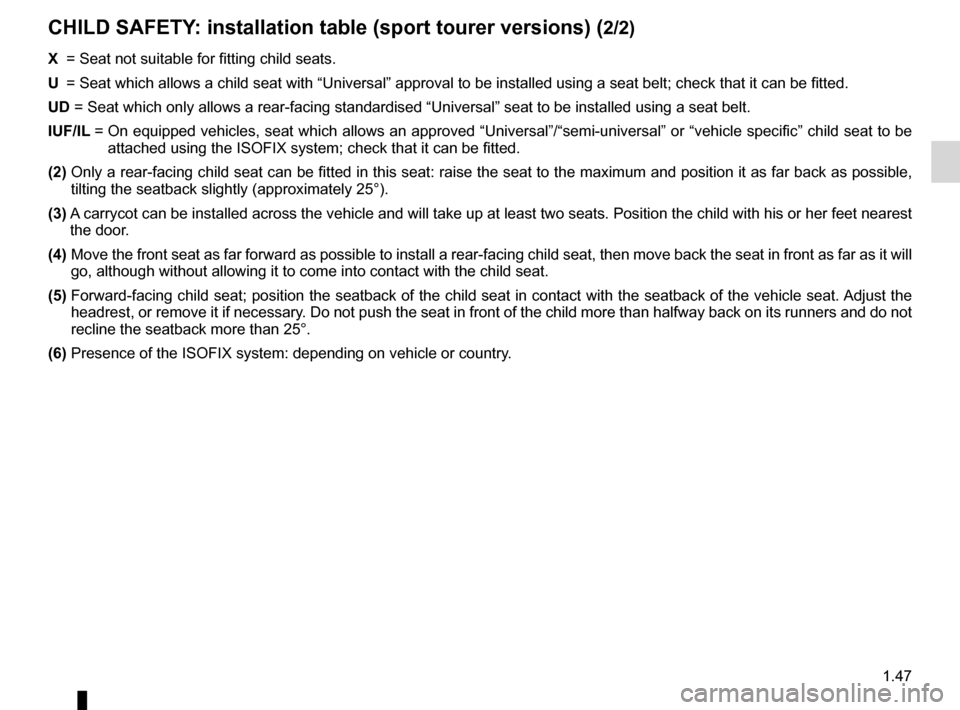

CHILD SAFETY : installation table (sport tourer versions) (2/2)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
UD = Seat which only allows a rear-facing standardised “Universal” seat\
to be installed using a seat belt.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(3) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(4) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(5) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not
recline the seatback more than 25°.
(6) Presence of the ISOFIX system: depending on vehicle or country.

air bagdeactivating the front passenger air bags ........ (current page)
front passenger air bag deactivation ..................... (current page)
child restraint/seat ................................................. (current page)
child safety ............................................................. (current page)
child restraint/seat ................................................. (current page)
transporting children .............................................. (current page)
1.48
ENG_UD19903_3
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte

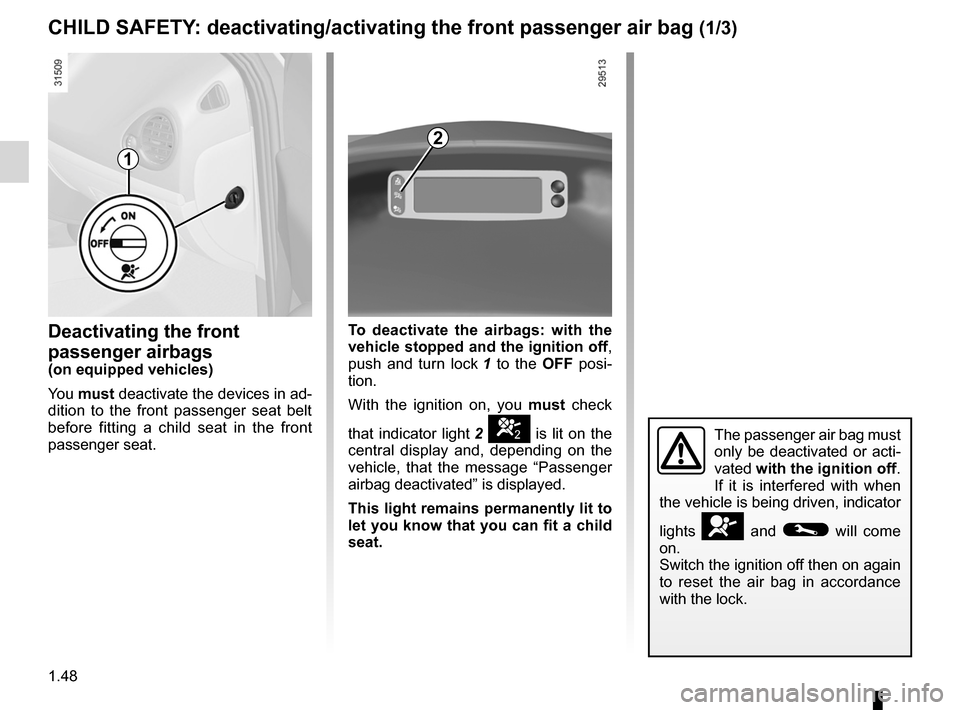

Deactivating and activating the front passenger airbag
CHILD SAFETY : deactivating/activating the front passenger air bag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
You must deactivate the devices in ad-
dition to the front passenger seat belt
before fitting a child seat in the front
passenger seat. To deactivate the
airbags: with the
vehicle stopped and the ignition off,
push and turn lock 1 to the OFF posi -
tion.
With the ignition on, you must check
that indicator light 2
] is lit on the
central display and, depending on the
vehicle, that the message “Passenger
airbag deactivated” is displayed.
This light remains permanently lit to
let you know that you can fit a child
seat.
1
2
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.

JauneNoirNoir texte
1.49
ENG_UD19903_3
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
3
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.
A
A
CHILD SAFETY : deactivating/activating the front passenger air bag (2/3)

air bagactivating the front passenger air bags ............ (current page)
1.50
ENG_UD19903_3
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
CHILD SAFETY : deactivating/activating the front passenger air bag (3/3)

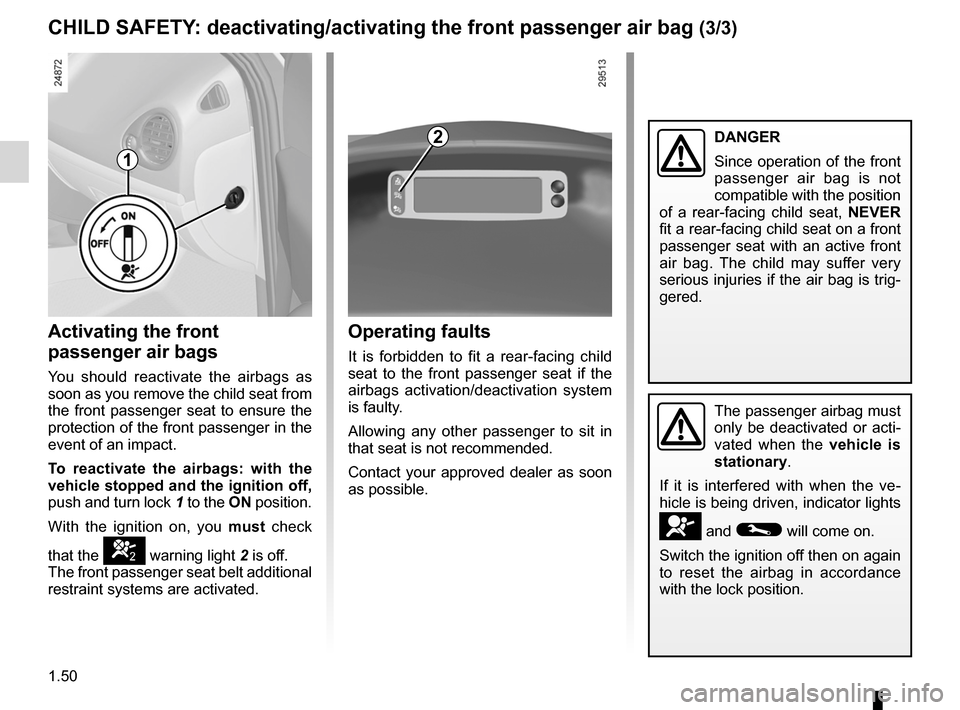

Activating the front
passenger air bags
You should reactivate the airbags as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the airbags: with the
vehicle stopped and the ignition off,
push and turn lock 1 to the ON position.
With the ignition on, you must check
that the
] warning light 2 is off.
The front passenger seat belt additional
restraint systems are activated.
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
airbags activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
The passenger airbag must
only be deactivated or acti-
vated when the vehicle is
stationary.
If it is interfered with when the ve -
hicle is being driven, indicator lights
å and © will come on.
Switch the ignition off then on again
to reset the airbag in accordance
with the lock position.
1
2DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
