2012 RENAULT CLIO SPORT TOURER Owners Manual

child safety............................................................. (current page)
children .................................................................. (current page)
JauneNoirNoir texte
1.11
ENG_UD12573_2
Carte Renault en mode mains libres : utilisation (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
If you wish to check that the doors are
locked after locking with the RENAULT
card or buttons on the handles, you
have approximately three seconds to
try the door handles without unlocking
them.
After this delay, the hands-free mode
is activated once again and any move-
ment of the handle will unlock the doors.
If a door or the tailgate is open or not
properly shut, or if a card is in the
reader, the doors or tailgate lock then
quickly unlock and the hazard warning
lights and indicator lights do not flash.Locking the vehicle
With the RENAULT card in your pos -
session and with the doors and tailgate
closed, press button 4 located on one
of the handles 2 or button 5 on the tail-
gate.
The indicator lights and hazard warning
lights flash twice to indicate that the
doors have locked.
Note: the RENAULT card must be
within the vehicle's access zone to be
able to use the buttons for locking.
HANDS-FREE RENAULT CARD: use (2/2)
245
Driver’s responsibility
Never leave your vehicle with the RENAULT card inside and never leave
a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Risk of serious injury.

RENAULT carduse .................................................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
deadlocking the doors .......................... (up to the end of the DU)

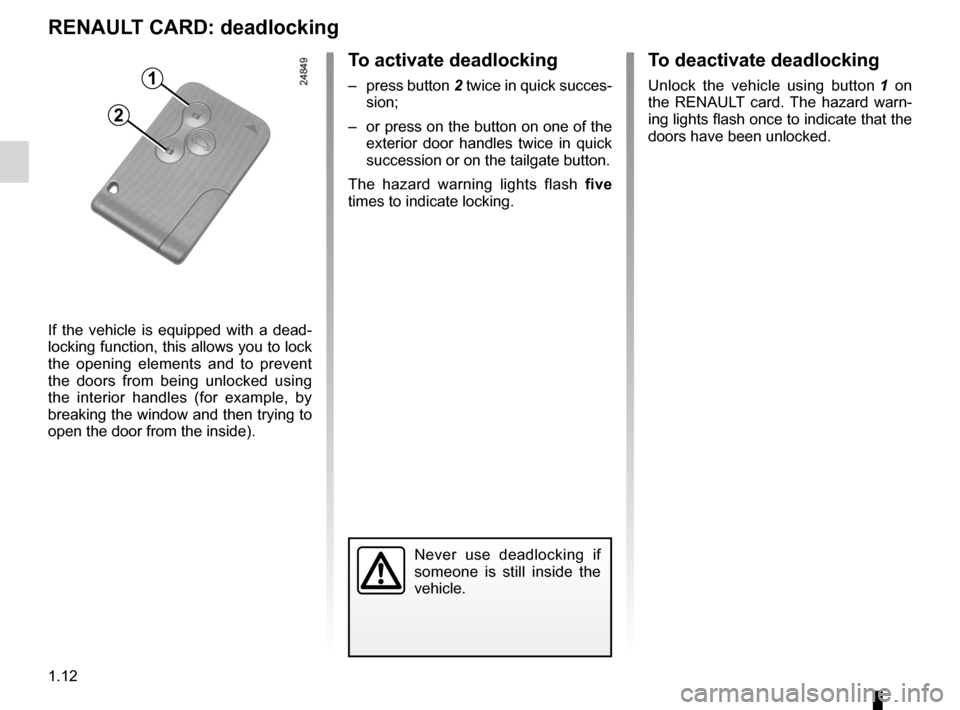

1.12
ENG_UD10514_1
Carte Renault : super condamnation (X85 - B85 - C85 - S85 - K85 - Renau\
lt)
ENG_NU_853-8_BCSK85_Renault_1
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
– press button 2 twice in quick succes-
sion;
– or press on the button on one of the
exterior door handles twice in quick
succession or on the tailgate button.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead -
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
RENAULT CARD: deadlocking
2
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card. The hazard warn -
ing lights flash once to indicate that the
doors have been unlocked.1

doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
children ................................................. (up to the end of the DU)
lights-on warning buzzer ........................................ (current page)
closing the doors .................................. (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
1.13
ENG_UD22281_3
Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_1
Doors
Opening from the inside
Pull handle 2.
Opening the doors from the
outside
With the doors unlocked or the “hands -
free” RENAULT card in your posses -
sion, hold handle 1 and pull it towards
you. In some cases, it may be neces -
sary to pull the handle twice to open the
door.
OPENING AND CLOSING THE DOORS (1/2)
12
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on a re -
minder buzzer will sound when a door
is opened.
Door/tailgate open buzzer
If a door or the tailgate is open or not
properly closed, as soon as the vehi -
cle reaches 4 mph (7 km/h), a warning
light appears on the instrument panel
accompanied by the message ‘Tailgate
open’ or ‘Doors open’ depending on the
vehicle.
Card reminder buzzer
A beep will let you know if you have left
the card in the reader when you open
the driver ’s door, and the ‘Remove
card’ message will appear on the instru-
ment panel.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.14
ENG_UD22281_3
Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_1
Child safety
Vehicles fitted with switch 3
Press switch 3 to inhibit operation of
the rear electric windows and opening
of the rear doors from the inside. The
indicator light in the switch lights up.
Other cases
Lower lever 4 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
OPENING AND CLOSING THE DOORS (2/2)
3
4
Safety of rear occupants
The driver can authorise
operation of the rear doors
and, depending on the ve -
hicle, the electric windows by press-
ing switch 3; the integrated indicator
light goes out.
Depending on the vehicle, in the
event of a fault:
– a beep sounds;
– a message is displayed on the in-
strument panel;
– the integrated indicator does not
light up.
If the battery has been discon -
nected, press switch 3 on the side
with the symbol to lock the rear
doors.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.

central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
unlocking the doors .............................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
1.15
ENG_UD19715_3
Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Use of key 1 or 3
Insert the key into lock 2 then lock or
unlock.
–
depending on the vehicle, use of
remote control key 1 , separate
key 3 , or the emergency key inte -
grated in the card for the front left-
hand door;
– manual locking of each of the doors;
– using the interior door locking/un -
locking control.
Locking/unlocking from the
outside
This is done using the RENAULT remote
control unit: refer to the information on
“Radio frequency remote control: gen -
eral information” and “RENAULT card:
general information”.
In some cases, the key/radio frequency
remote control and the RENAULT card
may not work:
– when the RENAULT card battery is
drained, flat battery, etc.
– use of appliances operating on the
same frequency as the card (mobile
phone, etc.);
– vehicle located in an area with high
electromagnetic radiation.
There are four options:
– use of the key/remote control unit or
the RENAULT card near to the left -
hand door mirror;
LOCKING/UNLOCKING THE DOORS (1/3)
1
2
3
2

1.16
ENG_UD19715_3
Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
LOCKING/UNLOCKING THE DOORS (2/3)
Manual locking of each of the doors
With the door open, turn screw 6 using
key 4 and close the door again. This
means that the doors are then locked
from the outside.
The doors can only be opened from the
inside or outside of the vehicle using
the key for the front left-hand door.
Insert key
4 into the lock of the front
left-hand door and lock or unlock.
Use of emergency key
4 integrated
in the RENAULT card
Insert the end of emergency key 4 into
hole 5.
Move it upwards to remove cover A.
A
5446

JauneNoirNoir texte
1.17
ENG_UD19715_3
Verrouillage / Déverrouillage des portes (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-8_BCSK85_Renault_1
Driver’s responsibility
Never leave your vehicle
with the key or RENAULT
card inside.
If you decide to keep the doors
locked whilst driving, remember that
it may be more difficult for those as-
sisting you to gain access to your
vehicle in the event of an emer -
gency.
To lock the vehicle leaving a door
open (e.g. when transporting some-
thing in the luggage compartment
which prevents it from closing),
or when the vehicle is located in a
zone where there is a high level of
electromagnetic radiation, or if the
key or RENAULT card fails: with the
ignition off, press switch 7 for more
than five seconds.
Doors and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 7 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail-
gate are locked;
– light off, the doors and tailgate are
unlocked.
When the ignition is off, the indicator
light remains lit and then goes out when
you lock the doors.
Using the door locking/unlocking in-
terior control.
With the ignition off and a front door
open, press switch 7 for more than five
seconds.
Make sure you have your key or
RENAULT card with you before leaving
your vehicle.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking from outside the vehicle is
only possible with the key, RENAULT
card or emergency key.
Locking/unlocking from the
inside: switch
7
This simultaneously controls the open -
ing elements (doors and tailgate) and
the fuel filler flap.
If a door is open or not properly closed,
the doors lock and then quickly unlock.
LOCKING/UNLOCKING THE DOORS (3/3)
7

central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
RENAULT ANTI-INTRUDER DEVICE (RAID) .......(current page)
closing the doors ................................................... (current page)
1.18
ENG_UD19716_2
Condamnation automatique des ouvrants en roulage (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Operating principle
After the vehicle is started, the system
automatically locks the doors once your
speed reaches approximately 5 mph
(7 km/h).
The door can be unlocked:
– by pressing the door unlocking
button 1.
– when stationary, by opening a front
door.
Note: if a door is opened, it will auto-
matically lock again when the vehicle
reaches a speed of 5 mph (7 km/h).
Operating faults
If you find an operating fault (no auto -
matic locking, the indicator light incor -
porated in button 1 does not light up
when trying to lock the doors and tail -
gate, etc.), firstly check that the doors
and tailgate are properly closed. If they
are closed correctly, contact an ap -
proved Dealer.
To activate it
Depending on the vehicle, with the
ignition on or the engine running,
press and hold central door locking
button 1 for approximately 5 seconds,
until you hear a beep.
To deactivate
Depending on the vehicle, with the
ignition on or the engine running,
press and hold central door locking
button 1 for approximately 5 seconds,
until you hear a beep.
Automatic locking when driving
RENAULT ANTI-INTRUDER DEVICE (RAID)
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.
