2012 RENAULT CLIO SPORT TOURER Owners Manual

JauneNoirNoir texte
5.29
ENG_UD12592_2
Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Depending on the battery, reposition
block A in the runners and slide it until it
is positioned between the two marks 1.
Pull block A slightly to the right to clip it
on pin E, press, and check that it locks
properly.
Refitting the battery covers
– position cover C in its hinges and clip
it in place;
– then position cover B in its hinges
and clip it in place;
Check that the two covers B and C are
correctly locked.
Access to the battery
Depending on the vehicle, in the engine
compartment:
– lift block A to unclip it, then, while
holding pipe D , slide block A to -
wards you;
– unclip cover B and remove it;
– then unclip cover C and remove it.
BATTERY: troubleshooting (2/4)
D
A
B
C
E
1
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.

5.30
ENG_UD12592_2
Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
BATTERY: troubleshooting (3/4)
Special procedures may be
required to charge some
batteries. Contact your ap-
proved Dealer.
Avoid all risk of sparks which may
cause an immediate explosion and
charge the battery in a well-venti -
lated area. Risk of serious injury.
If your vehicle is to be left stationary for
a relatively long time, disconnect the
battery or have it recharged regularly,
particularly during cold weather. It will
then be necessary, with the engine run-
ning, to move the steering wheel slowly,
from lock to lock and to reprogram the
electronic equipment with a memory
feature, radio, etc. The battery should
be stored in a cool and dry location pro-
tected from frost.
Note: if you have disconnected or re -
charged a battery, move the steering
wheel slowly from lock to lock to reset
the system.
Have the battery’s charge status
checked regularly:
–
especially if you use your vehicle for
short journeys or for frequent driving
in town;
– when the exterior temperature drops
(in winter), the charge decreases .
In winter, only use the electrical
equipment that is really necessary;
– finally, you should understand that
the charge decreases naturally as a
result of certain permanent electrical
consumers such as the clock, after-
sales accessories, etc.
When many accessories are fitted to
the vehicle, have them connected to
the + after ignition feed. In this case, it
is advisable to have your vehicle fitted
with a battery which has an increased
nominal capacity. Contact an approved
Dealer.Connecting a battery charger
The battery charger must be com -
patible with a battery with nominal
voltage of 12 volts.
Switch the engine off and then discon -
nect both battery leads starting with
the negative terminal.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer for
the battery charger you are using.
Only a fully charged and well-main -
tained battery will have a long and
useful life and enable you to start the
vehicle’s engine normally.
The battery must be kept clean and dry.

JauneNoirNoir texte
5.31
ENG_UD12592_2
Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Start the engine as you would normally.
As soon as it is running, disconnect
leads A and B in the reverse order (5-
4-3-2).Attach the positive lead A on support 1
to terminal 2 (+) of the discharged bat-
tery, then to terminal 3 (+) of the bat -
tery supplying the current.
Attach negative lead B to terminal 4
(–) of the battery supplying the current,
then to terminal 5 (–) of the discharged
battery.
Starting the vehicle using the
battery from another vehicle
Proceed as follows when starting your
vehicle from another vehicle’s battery:
Obtain suitable jump leads (large) from
an approved Dealer or, if you already
have jump leads, ensure that they are
in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply -
ing the current and run it at an interme-
diate engine speed.
BATTERY: troubleshooting (4/4)
A
4
B
3
25
1
1
Leads A and B must only be con -
nected to the terminals indicated.
Check that there is no con-
tact between leads A and B
and that the positive lead A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of injury and/or damage to the
vehicle.

battery (remote control) ........................ (up to the end of the DU)
5.32
ENG_UD12595_2
Télécommandes à radiofréquence : piles (X85 - B85 - C85 - S\
85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Remote controls A and B
Replacing the battery
Remove screw 1 , open the case at
slot 2 using a coin, and replace the bat-
tery 3 , observing the type and polarity
shown on the back of the cover. Note:
It is not advisable to touch the
electrical circuit in the key cover when
replacing the battery.
Radio frequency remote control: battery
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.
RADIO FREQUENCY REMOTE CONTROL: battery
2
1
3
AAB
3
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy -
cles used batteries.
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.

RENAULT cardbattery ............................................. (up to the end of the DU)
RENAULT card battery .........................(up to the end of the DU)
5.33
ENG_UD19814_3
Carte Renault : pile (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
RENAULT card: battery
Do not dispose of your used
batteries in the countryside.
Give them to an organisa -
tion that collects and recy -
cles used batteries.
Replacing the battery
The message “Change card battery”
appears on the instrument panel.
Pull firmly on emergency key 2.
Replace battery 1, observing the type
and polarity shown on the emergency
key.
After the procedure, the “Change card
battery” message no longer appears on
the instrument panel.
RENAULT CARD: battery
1
2
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri -
cal contact.

speakerslocation ........................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
radio
multimedia equipment .......................... (up to the end of the DU)
5.34
ENG_UD16853_2
Prééquipement radio (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Radio location 1
Unclip the blanking cover. The aerial, +
and – supply and speaker wire connec -
tions are located behind it.

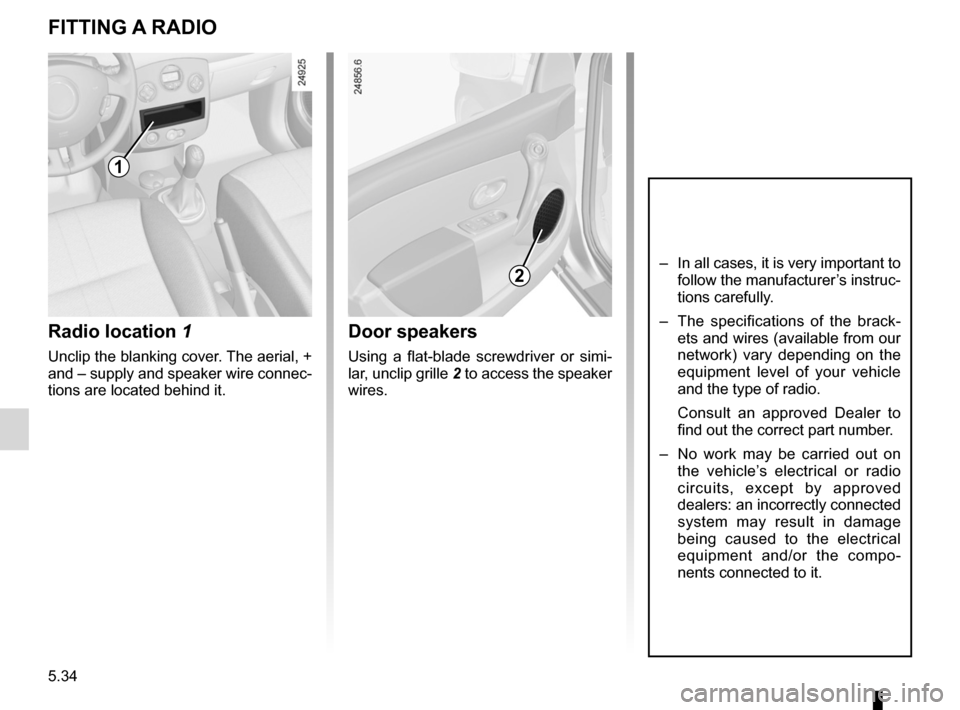

Fitting a radio
Door speakers
Using a flat-blade screwdriver or simi -
lar, unclip grille 2 to access the speaker
wires.
FITTING A RADIO
1
2– In all cases, it is very important to
follow the manufacturer’s instruc-
tions carefully.
– The specifications of the brack -
ets and wires (available from our
network) vary depending on the
equipment level of your vehicle
and the type of radio.
Consult an approved Dealer to
find out the correct part number.
– No work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
dealers: an incorrectly connected
system may result in damage
being caused to the electrical
equipment and/or the compo -
nents connected to it.

accessories...........................................(up to the end of the DU)
5.35
ENG_UD12965_3
Accessoires (S65 - X84 - B84 - C84 - E84 - L84 - K84 - J84 - X85 - B85 \
- C85 - S85 - X91 - B91 - K91 - D91 - B65 - C65 - K85 - X95 - B95 - D95 \
- J95 - R95 - X33 - X38 -
ENG_NU_853-8_BCSK85_Renault_5

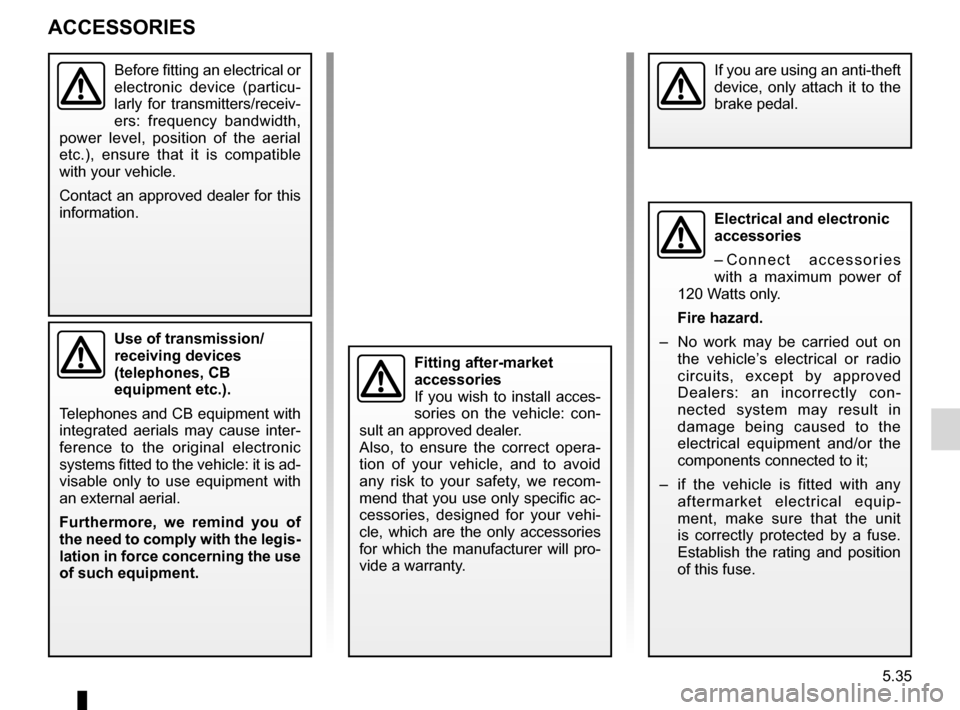

Accessories
ACCESSORIES
Use of transmission/
receiving devices
(telephones, CB
equipment etc.).
Telephones and CB equipment with
integrated aerials may cause inter -
ference to the original electronic
systems fitted to the vehicle: it is ad-
visable only to use equipment with
an external aerial.
Furthermore, we remind you of
the need to comply with the legis-
lation in force concerning the use
of such equipment.
Electrical and electronic
accessories
– C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
– No work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
Dealers: an incorrectly con -
nected system may result in
damage being caused to the
electrical equipment and/or the
components connected to it;
– if the vehicle is fitted with any
aftermarket electrical equip -
ment, make sure that the unit
is correctly protected by a fuse.
Establish the rating and position
of this fuse.
Before fitting an electrical or
electronic device (particu -
larly for transmitters/receiv-
ers: frequency bandwidth,
power level, position of the aerial
etc.), ensure that it is compatible
with your vehicle.
Contact an approved dealer for this
information.
Fitting after-market
accessories
If you wish to install acces-
sories on the vehicle: con -
sult an approved dealer.
Also, to ensure the correct opera -
tion of your vehicle, and to avoid
any risk to your safety, we recom -
mend that you use only specific ac-
cessories, designed for your vehi -
cle, which are the only accessories
for which the manufacturer will pro-
vide a warranty.
If you are using an anti-theft
device, only attach it to the
brake pedal.

wiper blades ......................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.36
ENG_UD19909_3
Balais d essuie-vitres (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
Jaune NoirNoir texte
Wipers (replacing blades)
Lower tab 3 , by pressing on either
side A.
Then push the blade forwards B, to re-
lease hook 4.
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Replacing windscreen wiper
blades 1
– With the ignition off, lift wiper arm 2;
– turn blade 1.
Driver’s side special note: stop turning
before it touches the bonnet.
WINDSCREEN WIPER BLADES (1/2)
2
1
4
3B
A
A
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
