2012 RENAULT CLIO SPORT TOURER check engine light

child safety............................................................. (current page)
children .................................................................. (current page)
JauneNoirNoir texte
1.11
ENG_UD12573_2
Carte Renault en mode mains libres : utilisation (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
If you wish to check that the doors are
locked after locking with the RENAULT
card or buttons on the handles, you
have approximately three seconds to
try the door handles without unlocking
them.
After this delay, the hands-free mode
is activated once again and any move-
ment of the handle will unlock the doors.
If a door or the tailgate is open or not
properly shut, or if a card is in the
reader, the doors or tailgate lock then
quickly unlock and the hazard warning
lights and indicator lights do not flash.Locking the vehicle
With the RENAULT card in your pos -
session and with the doors and tailgate
closed, press button 4 located on one
of the handles 2 or button 5 on the tail-
gate.
The indicator lights and hazard warning
lights flash twice to indicate that the
doors have locked.
Note: the RENAULT card must be
within the vehicle's access zone to be
able to use the buttons for locking.
HANDS-FREE RENAULT CARD: use (2/2)
245
Driver’s responsibility
Never leave your vehicle with the RENAULT card inside and never leave
a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Risk of serious injury.

1.14
ENG_UD22281_3
Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_1

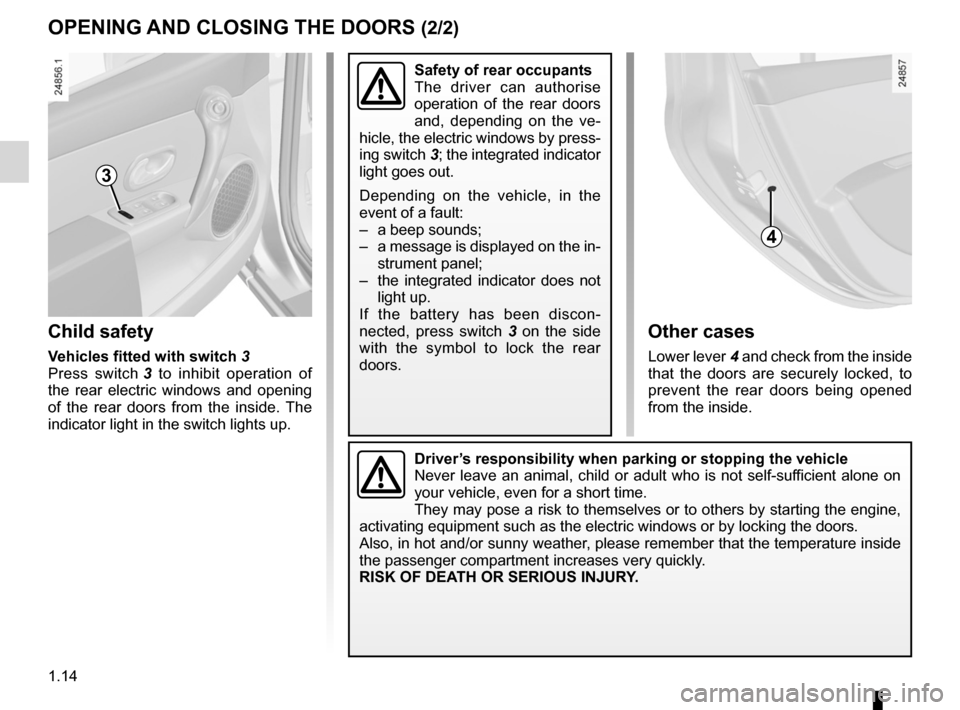

Child safety
Vehicles fitted with switch 3
Press switch 3 to inhibit operation of
the rear electric windows and opening
of the rear doors from the inside. The
indicator light in the switch lights up.
Other cases
Lower lever 4 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
OPENING AND CLOSING THE DOORS (2/2)
3
4
Safety of rear occupants
The driver can authorise
operation of the rear doors
and, depending on the ve -
hicle, the electric windows by press-
ing switch 3; the integrated indicator
light goes out.
Depending on the vehicle, in the
event of a fault:
– a beep sounds;
– a message is displayed on the in-
strument panel;
– the integrated indicator does not
light up.
If the battery has been discon -
nected, press switch 3 on the side
with the symbol to lock the rear
doors.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.

central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
RENAULT ANTI-INTRUDER DEVICE (RAID) .......(current page)
closing the doors ................................................... (current page)
1.18
ENG_UD19716_2
Condamnation automatique des ouvrants en roulage (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1

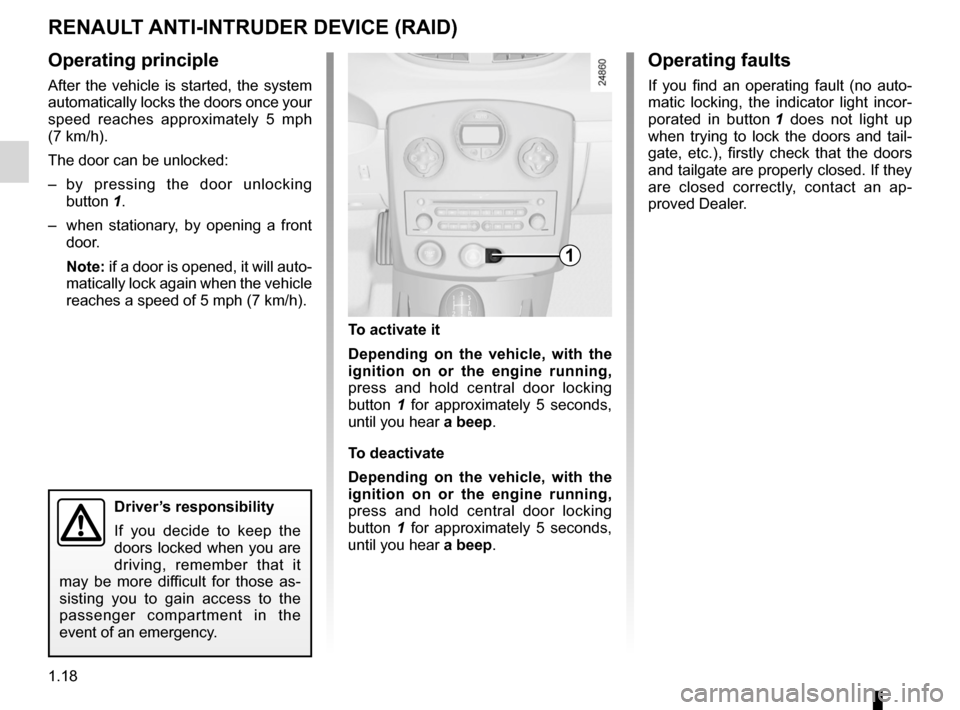

Operating principle
After the vehicle is started, the system
automatically locks the doors once your
speed reaches approximately 5 mph
(7 km/h).
The door can be unlocked:
– by pressing the door unlocking
button 1.
– when stationary, by opening a front
door.
Note: if a door is opened, it will auto-
matically lock again when the vehicle
reaches a speed of 5 mph (7 km/h).
Operating faults
If you find an operating fault (no auto -
matic locking, the indicator light incor -
porated in button 1 does not light up
when trying to lock the doors and tail -
gate, etc.), firstly check that the doors
and tailgate are properly closed. If they
are closed correctly, contact an ap -
proved Dealer.
To activate it
Depending on the vehicle, with the
ignition on or the engine running,
press and hold central door locking
button 1 for approximately 5 seconds,
until you hear a beep.
To deactivate
Depending on the vehicle, with the
ignition on or the engine running,
press and hold central door locking
button 1 for approximately 5 seconds,
until you hear a beep.
Automatic locking when driving
RENAULT ANTI-INTRUDER DEVICE (RAID)
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.

JauneNoirNoir texte
1.57
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1
WARNING LIGHTS (2/4)
®STOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, it in-
dicates a fault in the anti-lock braking
system.
Braking will then be as normal, without
the ABS. Contact an approved Dealer
as soon as possible.
©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an approved dealer as soon as
possible. If you fail to follow this recom-
mendation, you risk damaging your ve-
hicle.
êEngine immobiliser system
warning light
Refer to the information on the “Engine
immobiliser” in Section 1.
ÔCoolant temperature warn -
ing light
This lights up when the ignition is
switched on and goes out after a few
seconds.
– If this light flashes, it indicates a fault
in the injection system. Stop as soon
as traffic conditions allow and con -
tact an approved Dealer;
– If it shows a steady light, stop and let
the engine idle for a minute or two.
The temperature should lower and the
warning light should go out. If not, stop
the engine. Let the engine cool down
before checking the coolant.
Contact an approved Dealer.
äæGear change warning
light
This lights up to advise you to change
to a higher gear (up arrow) or lower
gear (down arrow).
A
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

JauneNoirNoir texte
1.59
ENG_UD26547_3
Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-8_BCSK85_Renault_1

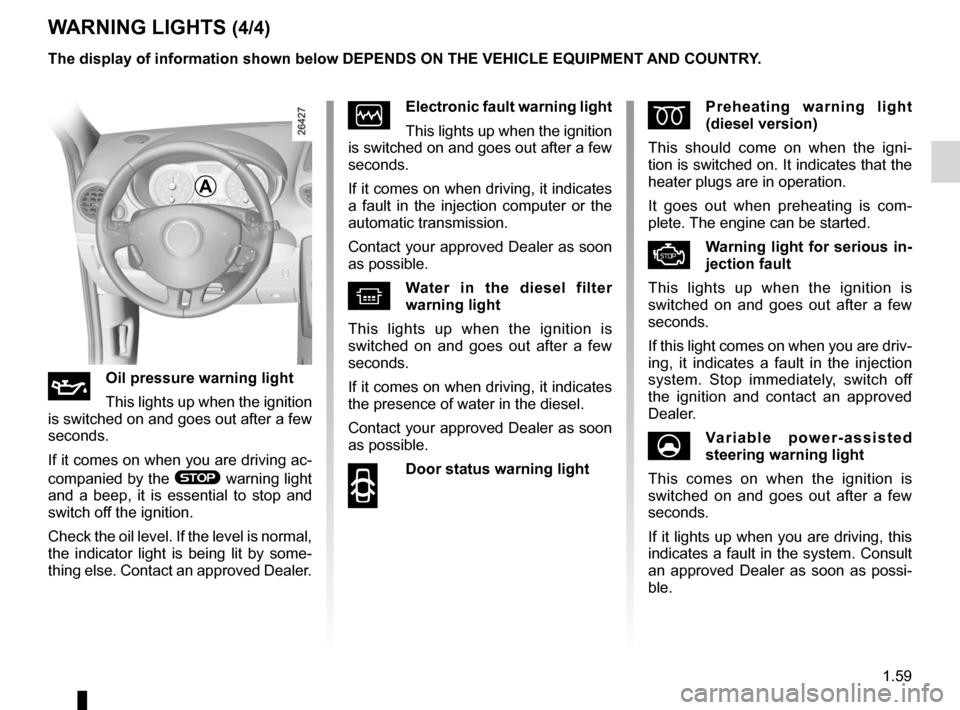

WARNING LIGHTS (4/4)
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when you are driving ac-
companied by the
® warning light
and a beep, it is essential to stop and
switch off the ignition.
Check the oil level. If the level is normal,
the indicator light is being lit by some-
thing else. Contact an approved Dealer.
ÒElectronic fault warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
a fault in the injection computer or the
automatic transmission.
Contact your approved Dealer as soon
as possible.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
2
Door status warning light
A
ÉPreheating warning light
(diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation.
It goes out when preheating is com -
plete. The engine can be started.
ÆWarning light for serious in-
jection fault
This lights up when the ignition is
switched on and goes out after a few
seconds.
If this light comes on when you are driv-
ing, it indicates a fault in the injection
system. Stop immediately, switch off
the ignition and contact an approved
Dealer.
UVa r i a b l e p o w e r - a s s i s t e d
steering warning light
This comes on when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, this
indicates a fault in the system. Consult
an approved Dealer as soon as possi-
ble.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

driving ................................................... (up to the end of the DU)
filter particle filter .................................... (up to the end of the DU)
special features of diesel vehicles with particle filter
(up to the end of the DU)
2.11
ENG_UD19899_2
Particularités des versions diesel avec filtre à particules (X85 \
- B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

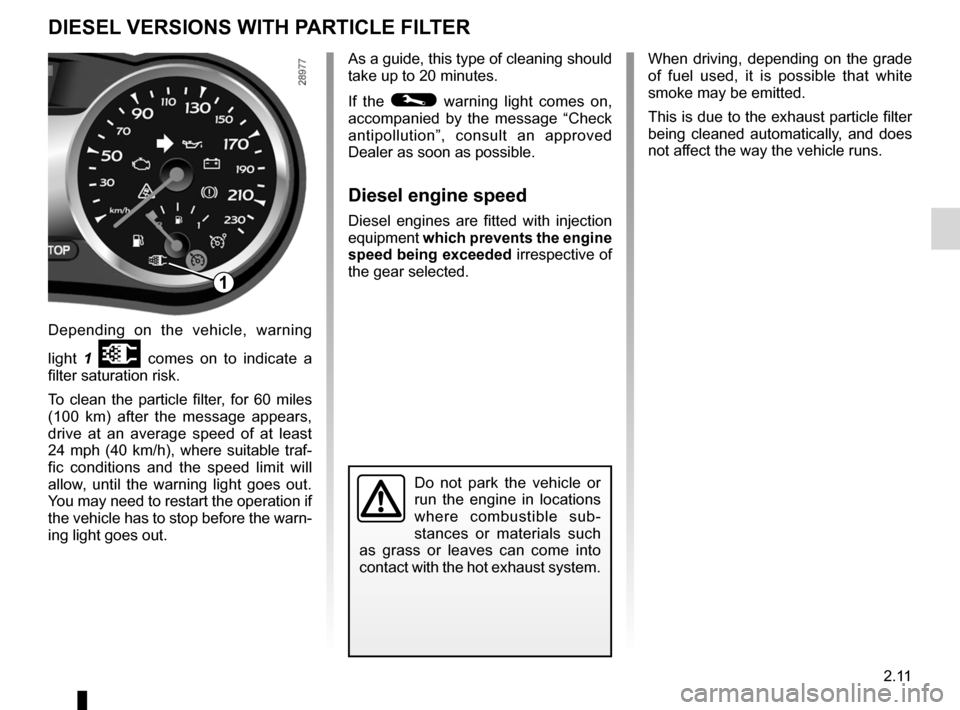

As a guide, this type of cleaning should
take up to 20 minutes.
If the
© warning light comes on,
accompanied by the message “Check
antipollution”, consult an approved
Dealer as soon as possible.
Diesel engine speed
Diesel engines are fitted with injection
equipment which prevents the engine
speed being exceeded irrespective of
the gear selected.
Special features of diesel versions fitted with a particle filter
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
When driving, depending on the grade
of fuel used, it is possible that white
smoke may be emitted.
This is due to the exhaust particle filter
being cleaned automatically, and does
not affect the way the vehicle runs.
Depending on the vehicle, warning
light 1
Ü comes on to indicate a
filter saturation risk.
To clean the particle filter, for 60 miles
(100 km) after the message appears,
drive at an average speed of at least
24 mph (40 km/h), where suitable traf-
fic conditions and the speed limit will
allow, until the warning light goes out.
You may need to restart the operation if
the vehicle has to stop before the warn-
ing light goes out.
DIESEL VERSIONS WITH PARTICLE FILTER
1

driving ................................................... (up to the end of the DU)
fuel economy ........................................ (up to the end of the DU)

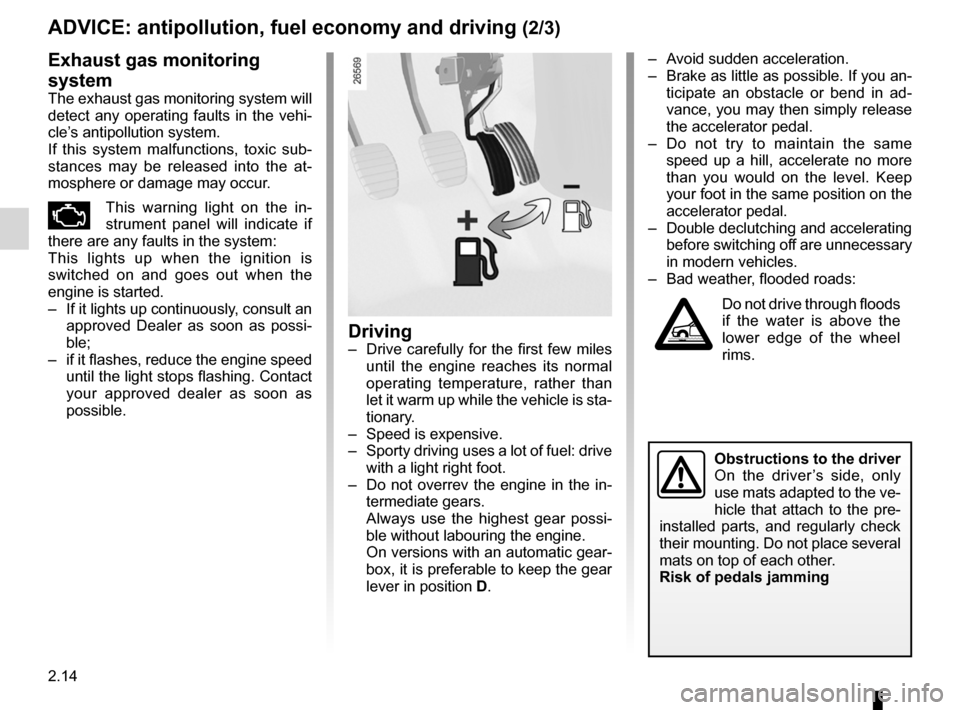

advice on antipollution .......................... (up to the end of the DU)
antipollution advice .............................................................. (current page)
fuel advice on fuel economy ................................... (current page)
2.13
ENG_UD19886_6
Conseils antipollution, économie de carburant, conduite (X45 - H45 -\
X85 - B85 - C85 - S85 - X91 - X83 - X61 - F61 - K61 - K85 - X95 - B95 -\
D95 - J95 - R95 - L38 - X61
ENG_NU_853-8_BCSK85_Renault_2
Advice: antipollution and fuel economy
ADVICE: antipollution, fuel economy and driving (1/3)
Your vehicle complies with criteria for
recycling and recovering vehicles at the
end of their service life which will come
into force in 2015.
Some parts of your vehicle have there-
fore been designed to facilitate future
recycling.
These parts are easy to remove so
that they can be recovered and reproc-
essed by recycling companies.
By virtue of its design, moderate fuel
consumption and initial settings, your
vehicle also conforms to current anti-
pollution regulations. The manufac -
turer is actively striving to reduce pol -
lutant exhaust gas emissions and to
save energy. But the fuel consumption
of your vehicle and the level of pollutant
exhaust gas emissions are also your
responsibility. Ensure that it is main -
tained and used correctly.Aiding fuel economy
Depending on the vehicle, in order to
optimise consumption, an indicator light
on the instrument panel will inform you
of the best moment to upshift or down -
shift gears:
\ shift up a gear;
[ shift down a gear.
Maintenance
It is important to remember that failure to
respect antipollution regulations could
lead to legal action being taken against
the vehicle owner. In addition, replacing
engine, fuel supply system and exhaust
components with parts other than those
originally recommended by the manu -
facturer may alter your vehicle so that
it no longer complies with antipollution
regulations. Have your vehicle adjusted and
checked by an approved Dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
Engine adjustments–
ignition: this does not require ad -
justment.
– spark plugs: for optimum fuel econ-
omy, efficiency and performance
the specifications laid down by our
Design Department must be strictly
applied.
If the spark plugs have to be
changed, use the make, type and
gap specified for your vehicle’s
engine. Contact an approved dealer
for this.
– idle: this does not require adjust -
ment.
– air filter, diesel filter: a clogged ele-
ment reduces performance. It must
be replaced.

2.14
ENG_UD19886_6
Conseils antipollution, économie de carburant, conduite (X45 - H45 -\
X85 - B85 - C85 - S85 - X91 - X83 - X61 - F61 - K61 - K85 - X95 - B95 -\
D95 - J95 - R95 - L38 - X61
ENG_NU_853-8_BCSK85_Renault_2
Jaune NoirNoir texte
ADVICE: antipollution, fuel economy and driving (2/3)
– Avoid sudden acceleration.
– Brake as little as possible. If you an-
ticipate an obstacle or bend in ad -
vance, you may then simply release
the accelerator pedal.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary
in modern vehicles.
– Bad weather, flooded roads:
Do not drive through floods
if the water is above the
lower edge of the wheel
rims.
Driving– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
– Do not overrev the engine in the in-
termediate gears.
Always use the highest gear possi -
ble without labouring the engine.
On versions with an automatic gear-
box, it is preferable to keep the gear
lever in position D.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub -
stances may be released into the at -
mosphere or damage may occur.
ÄThis warning light on the in -
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an
approved Dealer as soon as possi -
ble;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved dealer as soon as
possible.
Obstructions to the driver
On the driver ’s side, only
use mats adapted to the ve-
hicle that attach to the pre-
installed parts, and regularly check
their mounting. Do not place several
mats on top of each other.
Risk of pedals jamming
