2012 RENAULT CLIO SPORT TOURER mirror controls

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
demisting rear screen ....................................................... (current page)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
3.4
ENG_UD19786_3
Chauffage / air conditionné (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
Heating and air conditioning
E Heated rear screen and heated
door mirror control and indicator
light (depending on vehicle).
F Air conditioning operation control
and indicator light (depending on
vehicle).
information and advice on use: refer
to the information on “Air conditioning:
information and advice on use”.the controls
A Adjusting the passenger compart -
ment air distribution.
B Air temperature adjustment.
C Ventilation speed adjustment.
D Air recirculation control.

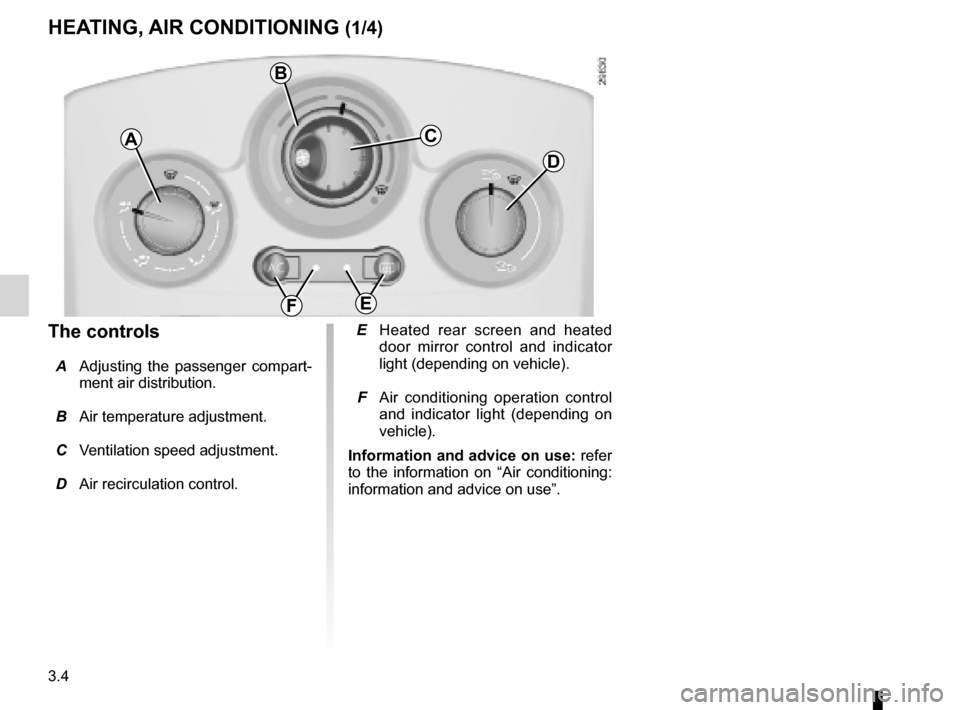

HeatinG, air COnDitiOninG (1/4)
a
B
C
D
eF

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
heated windscreen ............................... (up to the end of the DU)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
3.8
ENG_UD19787_3
Air conditionné automatique (X85 - B85 - C85 - S85 - K85 - Renault)\
ENG_NU_853-8_BCSK85_Renault_3
Jaune NoirNoir texte
12 Heated rear screen and heated
door mirrors (depending on vehi -
cle).
13 Heated rear screen indicator light.
14 Air recirculation control.
information and advice on use: refer
to information on “Air conditioning: in -
formation and advice on use”.
Buttons 1 and 12 are comple -
mented by operating indicator lights
(2 and 13):
– indicator light on, the function is
switched on;
– indicator light off, the function is
switched off.
5 Display.
6 Starting automatic mode.
8 and 10 Passenger compartment air
distribution adjustment.
9 and 11 A d j u s t i n g t h e v e n t i l a t i o n
speed.the controls
1 Clear View button to demist and
de-ice the windows.
2 Clear View function indicator light.
3 Switching the air conditioning on
and off.
4 and 7 Adjusting the air temperature.

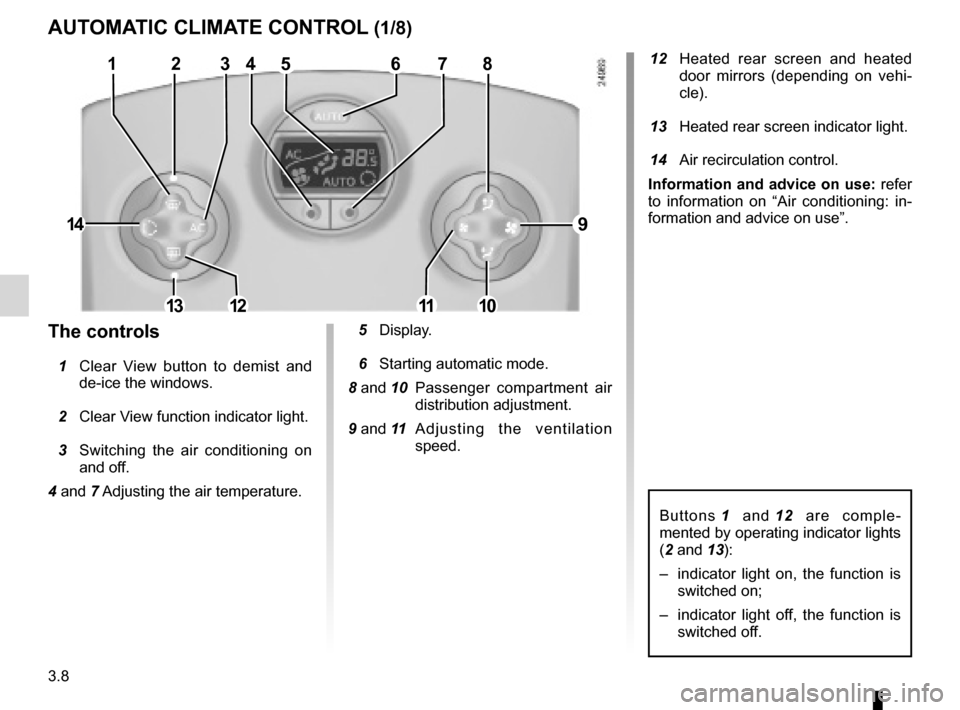

aUtOMatiC CLiMate COntrOL (1/8)
12345678
9
10111213
14

7.1
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
AlphAbeticAl index (1/5)
A
ABS ........................................................................\
2.17 – 2.18
accessories........................................................................\
5.35
accessories socket ............................................................ 3.28
additional methods of restraint .......................................... 1.35
side protection ............................................................. 1.34
to the front seat belts ....................................... 1.29 → 1.32
to the rear seat belts .................................................... 1.33
adjusting your driving position 1.20 → 1.23, 1.25 → 1.28, 3.29
advice on antipollution ........................................... 2.13 → 2.15
air bag .................................................................... 1.29 → 1.35
activating the front passenger air bags ........................ 1.50
deactivating the front passenger air bags .................... 1.48
air conditioning ........................................................ 3.4 → 3.16
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.15 → 6.20
anti-corrosion protection .................................................... 4.13
anti-lock braking system: ABS ................................2.17 – 2.18
antipollution advice .......................................................................... 2.13
ashtray ........................................................................\
....... 3.28
audible and visual signals .................................................. 1.51
automatic gearbox (use) ........................................ 2.31 → 2.33
automatic gearbox selector lever ...........................2.31 → 2.33
b
battery ........................................................... 4.12, 5.28 → 5.31
battery (remote control) ..................................................... 5.32
bonnet ........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.9
bulbs changing .......................................................... 5.16 → 5.25
c
catalytic converter ................................................................ 2.9
central door locking .................... 1.6, 1.9 → 1.12, 1.15 → 1.18 changing a bulb
..................................................... 5.16 → 5.25
changing a wheel .................................................... 5.11 – 5.12
changing gear ........................................................ 2.31 → 2.33
child restraint/seat ............................. 1.36 – 1.37, 1.39 → 1.48
child safety .......1.2 – 1.3, 1.11, 1.13 – 1.14, 1.32, 1.36 – 1.37,
1.39 → 1.48, 2.5, 3.17 → 3.19
child seats .......................................... 1.36 – 1.37, 1.39 → 1.47
children .............. 1.2 – 1.3, 1.7, 1.11, 1.13 – 1.14, 1.36 – 1.37,
3.17 → 3.20
cigar lighter ........................................................................\
3.28
clock ....................................................................... 1.73 – 1.74
closing the doors ................................................... 1.13 → 1.18
control instruments ............................ 1.56 → 1.65, 1.73 – 1.74
controls .................................................................. 1.52 → 1.55
courtesy light ............................................................ 3.23, 5.24
courtesy mirrors ................................................................. 3.22
cruise control ......................................................... 2.27 → 2.30
cruise control-speed limiter.................................... 2.24 → 2.30
d
dashboard .............................................................. 1.52 → 1.55
deadlocking the doors ................................................ 1.6, 1.12
demisting rear screen ............................................................ 3.4, 3.13
windscreen ............................................................ 3.5, 3.14
dimensions ................................................................. 6.4 – 6.5
dipstick........................................................................\
......... 4.5
doors/tailgate ........................................................... 1.2 → 1.18
driver’s position ..................................................... 1.52 → 1.59
driving .................... 2.2, 2.4 → 2.11, 2.13 → 2.15, 2.17 → 2.35
driving position settings ............................................................ 1.25 → 1.28
e
electric windows .................................................... 3.17 → 3.19
Electronic Stability Program: ESP .......................... 2.19 – 2.20
