2011 Hyundai Accent Owner's Manual - RHD (UK. Australia)

1FEATURES OF YOUR HYUNDAI
78
Applying the hand brake To engage the hand brake, first apply the foot brake and then without press-ing the release button in, pull the hand brake lever up as far as possible. In addition it is recommended that whenparking the vehicle on a gradient, the shift lever should be positioned in the appropriate low gear on manual transaxlevehicles or in the P (Park) position on automatic transaxle vehicles.
!WARNING:
o The transaxle gear shift lever should be in neutral position with the hand brake fully engaged when the vehicle is being transported on a car carrier. During transpor-tation the vehicle should be loaded on a flat deck and not on an incline position of the car carrier.
o Whenever leaving vehicle or park- ing always set the hand brake asfar as possible and fully engagethe vehicle's transaxle into the park position. Vehicles not fully en- gaged in park with the hand brakeset are at risk for moving inadvert- ently and injuring yourself or oth- ers.
CAUTION:
Driving with the hand brake applied will cause excessive brake pad (or lining) and brake rotor wear.
! Releasing the hand brake To release the hand brake, first apply the foot brake and pull up the handbrake lever slightly. Secondly, depress the release button and lower the hand brake lever while holding the button.
HAND BRAKE
Always engage the hand brake before leaving the car. This also turns on the hand brake indicator light when thekey is in the "ON" or "START" position. Before driving away, be sure that the hand brake is fully released and theindicator light is off. B530A03A-DAT
OMC035017R

1
FEATURES OF YOUR HYUNDAI
79HIGH-MOUNTED REAR STOP LIGHT
B550A01S-DAT
In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in the centre of the rear window or inserted inthe rear spoiler also lights when the brakes are applied.
B550A01MC
4 Door
B550A01MC-1
3 DoorB570A02MC
4. Hold the bonnet open with the sup- port rod.
3. Pull the support rod from the bonnet.
B570A01MC
BONNET RELEASE
B570A01MC-DAT
1. Pull the release knob to unlatch the bonnet.
OMC025019R
OMC025020
2. Pull the secondary latch lever up and lift the bonnet.

1FEATURES OF YOUR HYUNDAI
80REMOTE FUEL-FILLER LID RELEASE
B560A01MC-DAT The fuel filler lid may be opened from inside the vehicle by pulling up on the fuel filler lid opener located on the frontfloor area on the right side of the car. NOTE: If the fuel filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze), or move the vehicle to a warm place and allowthe ice to melt.
OMC025017R
Before closing the bonnet, return the support rod to its clip to prevent it fromrattling. Lower the bonnet until it is about 30 cm (1 ft.) above the closed position and let it drop. Make sure thatit locks into place.
!
CAUTION:
Make sure that the support rod has been released prior to closing the bonnet.
!WARNING:
o Always double check to be sure that the bonnet is firmly latched before driving away. If it is not latched, the bonnet could fly open while the vehicle is being driven,causing a total loss of visibility, which might result in an acci- dent.
o The support rod must be inserted completely into the hole providedin the bonnet whenever you in-spect the engine compartment. This will prevent the bonnet from falling and possibly injuring you.
o Do not move the vehicle with the bonnet in the raised position, asvision is obstructed and the bon-net could fall or be damaged.

1
FEATURES OF YOUR HYUNDAI
81
!WARNING:

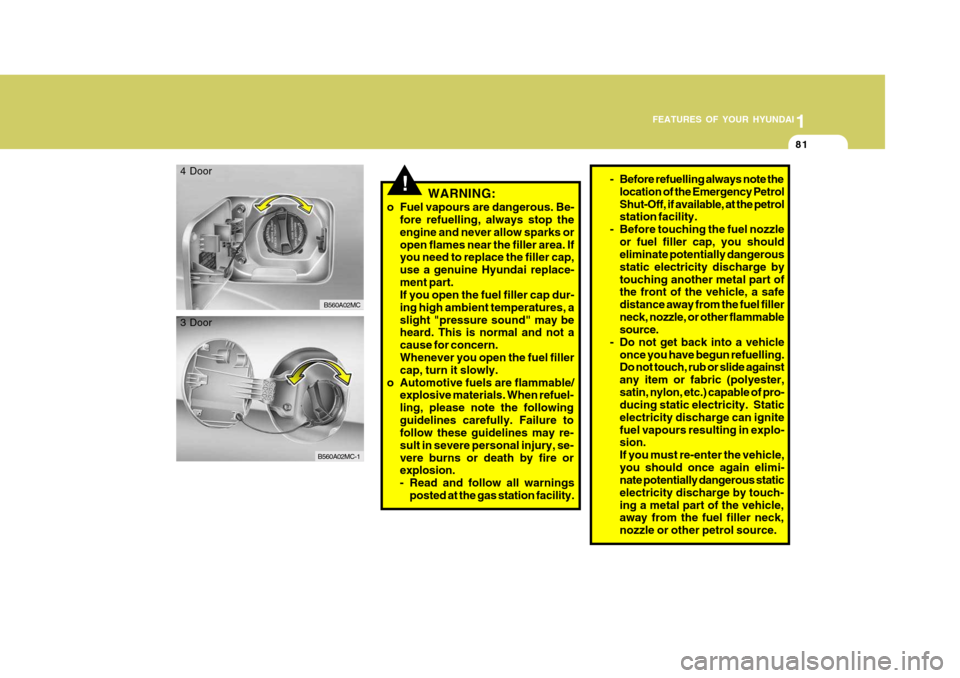

o Fuel vapours are dangerous. Be- fore refuelling, always stop the engine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern. Whenever you open the fuel filler cap, turn it slowly.
o Automotive fuels are flammable/ explosive materials. When refuel-ling, please note the followingguidelines carefully. Failure to follow these guidelines may re- sult in severe personal injury, se-vere burns or death by fire or explosion.
- Read and follow all warnings
posted at the gas station facility.
B560A02MC
4 Door
B560A02MC-1
3 Door
- Before refuelling always note the
location of the Emergency Petrol Shut-Off, if available, at the petrol station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other flammable source.
- Do not get back into a vehicle
once you have begun refuelling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapours resulting in explo- sion. If you must re-enter the vehicle,you should once again elimi- nate potentially dangerous static electricity discharge by touch-ing a metal part of the vehicle, away from the fuel filler neck, nozzle or other petrol source.

1FEATURES OF YOUR HYUNDAI
82
!
BOOT LID / TAIL GATE
B540A01MC-DAT
WARNING:
The boot lid or tail gate should always be kept completely closedwhile the vehicle is in motion. If it is left open or ajar, poisonous ex- haust gases may enter the car re-sulting in serious injury or death to the occupants. See additional warn- ings concerning exhaust gases onpage 2-2.
- When using a portable fuel con- tainer be sure to place the con- tainer on the ground prior to refuelling. Static electricity dis- charge from the container canignite fuel vapours causing a fire. Once refuelling has begun, contact with the vehicle shouldbe maintained until the filling is complete. Use only portable fuel containers designed to carry andstore petrol.
- Do not use mobile phones
around a petrol station or whilerefuelling any vehicle. Electric current and/or electronic inter- ference from mobile phones canpotentially ignite fuel vapours causing a fire. If you must use your mobile phone use it in aplace away from the petrol sta- tion.- When refuelling always shut theengine off. Sparks produced by electrical components related tothe engine can ignite fuel vapours causing a fire. Always insure that the engine is OFF before andduring refuelling. Once refuel- ling is complete, check to make sure the fuel filler cap and doorare securely closed, before start- ing the engine.
- Do not light any fire around a petrol station. DO NOT usematches or a lighter and DO NOT SMOKE or leave a lit ciga-rette in your vehicle while at a petrol station especially during refuelling. Automotive fuel ishighly flammable and can, when ignited, result in explosion by flames.
- If a fire breaks out during refuel- ling, leave the vicinity of thevehicle, and immediately con-tact the manager of the petrol station or contact the police and local fire department. Followany safety instructions they pro- vide.

1
FEATURES OF YOUR HYUNDAI
83
OMC025010
Boot Lid (4 Door)
B540D01MC-DAT Remote Boot Lid Release (4 Door) (If Installed)
To open the boot lid without using the key, pull up the lid release lever. To close, lower the boot lid, then press down on it until it locks. To be sure theboot lid is securely fastened, check by trying to pull it up again.
OMC025011R
!WARNING:
The boot lid should always be kept completely closed while the vehicle is in motion. If it is left open or ajar, exhaust gases may enter the car andserious illness may result.
o The boot lid is opened by first turning
the key clockwise to release the lock, then raising the door manually.
o To close, lower the boot lid, then
press down on it until it locks. To besure the boot lid is securely fas- tened, try to pull it up again. Tail Gate (3 Door)
o To open the tail gate, unlock it by
turning the key clockwise, then pull the outside handle toward you.
o To close, lower the tail gate and shut firmly to engage the latch. Lock thetail gate by turning the key counter-clockwise.
o If the vehicle is equipped with central
door locking, the tail gate can belocked without a key. Push the front portion of the central door locking switch after closing the tail gate.
o If the tail gate is open when the front portion of the central door lockingswitch is pushed, the tail gate will belocked when it is fully closed.
OMC025010-1

1FEATURES OF YOUR HYUNDAI
84
!
CAUTION:
To prevent damage to goods or the vehicle, care should be taken when carrying fragile or bulky objects inthe luggage compartment.!
WARNING:
Avoid eye injury. DO NOT overstretch the luggage net. ALWAYS keep your face and body out of its recoil path. DO NOT use when the strap hasvisible signs of wear or damage.
When loading objects in the luggage compartment, use the four rings lo-cated in the luggage compartment to attach the luggage net as shown in the illustration. This will help prevent theobjects from sliding.
LUGGAGE NET
B540D02O-DAT (If Installed)
Type A
Type B
1JBA3113
B540D01MC
CARGO AREA COVER
B650A01A-GAT (3 Door)
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupantsduring sudden braking.
B650A01MC

1
FEATURES OF YOUR HYUNDAI
85SUN VISOR
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade.To reduce glare or to shut out direct rays of the sun, turn the sun visor down. Ticket holders and vanity mirrors areprovided on the back of the sun visor forthe driver and the front passenger (If Installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on the topside of the sun visor.
B580A02MC-AAT
B580A01MCB580A02MCR
FLOOR MAT ANCHOR(S)
B571A03Y-AAT (If Installed)
When using a floor mat on the front floor carpet, make sure it attaches to the floor mat anchor(s) in your vehicle. This keeps the floor mat from sliding forward.
OCM039200N
!WARNING:
o Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident.
o Don't put an additional floor mat on the top of the anchored floormat, otherwise the additional matmay slide forward and interfere with the movement of the pedals.
