1FEATURES OF YOUR HYUNDAI
38
!
B240A01MC

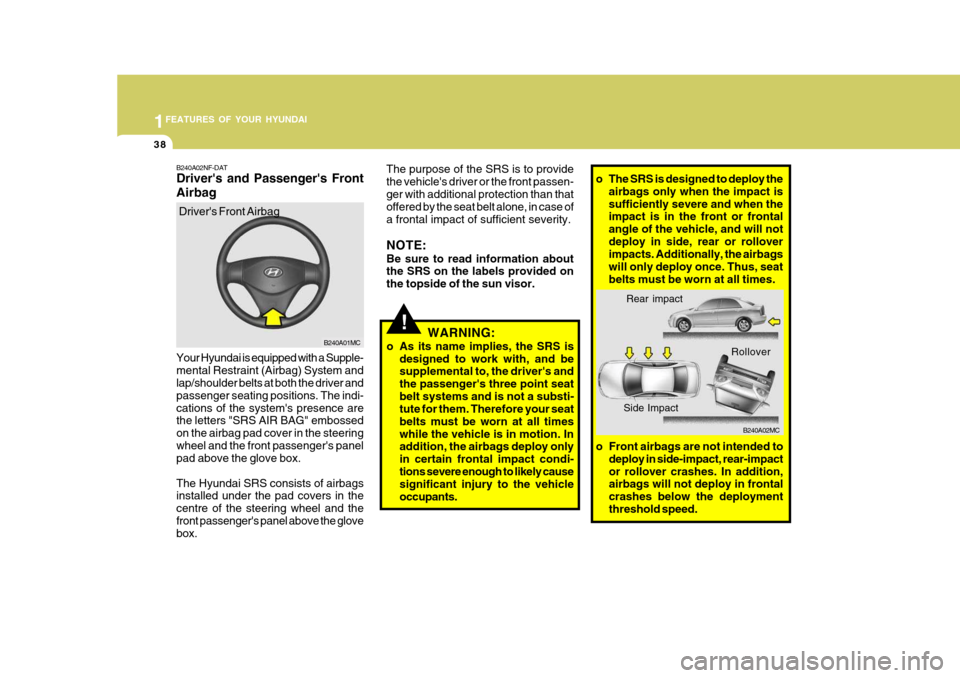

o Front airbags are not intended todeploy in side-impact, rear-impact or rollover crashes. In addition, airbags will not deploy in frontal crashes below the deploymentthreshold speed.
o The SRS is designed to deploy the
airbags only when the impact issufficiently severe and when the impact is in the front or frontal angle of the vehicle, and will notdeploy in side, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seatbelts must be worn at all times.
WARNING:
o As its name implies, the SRS is designed to work with, and be supplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore your seat belts must be worn at all timeswhile the vehicle is in motion. In addition, the airbags deploy only in certain frontal impact condi-tions severe enough to likely cause significant injury to the vehicle occupants.
Your Hyundai is equipped with a Supple-mental Restraint (Airbag) System and lap/shoulder belts at both the driver and passenger seating positions. The indi-cations of the system's presence are the letters "SRS AIR BAG" embossed on the airbag pad cover in the steeringwheel and the front passenger's panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the centre of the steering wheel and thefront passenger's panel above the glove box.
B240A02NF-DAT Driver's and Passenger's Front Airbag
Driver's Front Airbag The purpose of the SRS is to provide the vehicle's driver or the front passen-ger with additional protection than that offered by the seat belt alone, in case of a frontal impact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the topside of the sun visor.
B240A02MC
Rear impact
Side Impact Rollover

1
FEATURES OF YOUR HYUNDAI
39

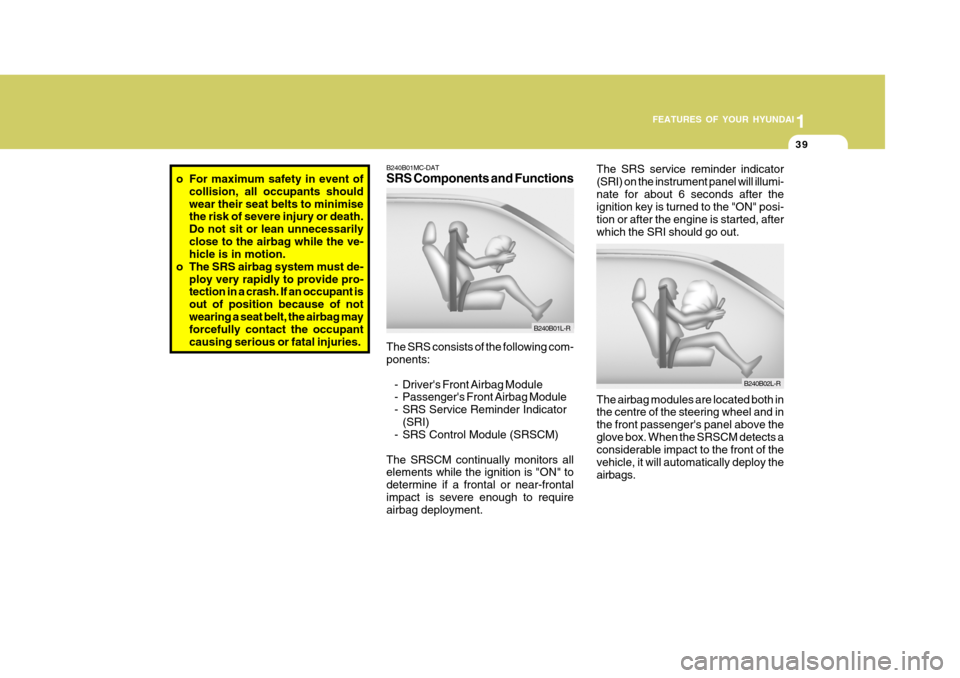

o For maximum safety in event of
collision, all occupants should wear their seat belts to minimise the risk of severe injury or death. Do not sit or lean unnecessarilyclose to the airbag while the ve- hicle is in motion.
o The SRS airbag system must de- ploy very rapidly to provide pro-tection in a crash. If an occupant is out of position because of notwearing a seat belt, the airbag may forcefully contact the occupant causing serious or fatal injuries. The SRS consists of the following com- ponents:
- Driver's Front Airbag Module
- Passenger's Front Airbag Module
- SRS Service Reminder Indicator(SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment.
B240B01MC-DAT SRS Components and Functions
The SRS service reminder indicator (SRI) on the instrument panel will illumi-nate for about 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out.
B240B01L-R
B240B02L-R
The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above theglove box. When the SRSCM detects a considerable impact to the front of the vehicle, it will automatically deploy theairbags.

1FEATURES OF YOUR HYUNDAI
40
!!
Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of theairbags. Further opening of the covers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows thedriver's or the passenger's forward mo- tion, thus reducing the risk of head or chest injury. After complete inflation, the airbag im- mediately starts deflating, enabling thedriver to maintain forward visibility.
B240B03L-R
CAUTION:
When installing a container of liq- uid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panelsurface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrumentpanel or air ventilator), it may dam- age these parts. If the liquid from the air freshener does leak ontothese areas, wash them with water immediately.B240B01MCR
Passenger's Front AirbagB240B05L-R
Passenger's Front Airbag
WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are nor-mal and are not hazardous. How- ever, the fine dust generated dur- ing airbag deployment may causeskin irritation. Wash your hands and face thoroughly with lukewarm water and a mild soap after anaccident in which the airbags were deployed.

1
FEATURES OF YOUR HYUNDAI
41

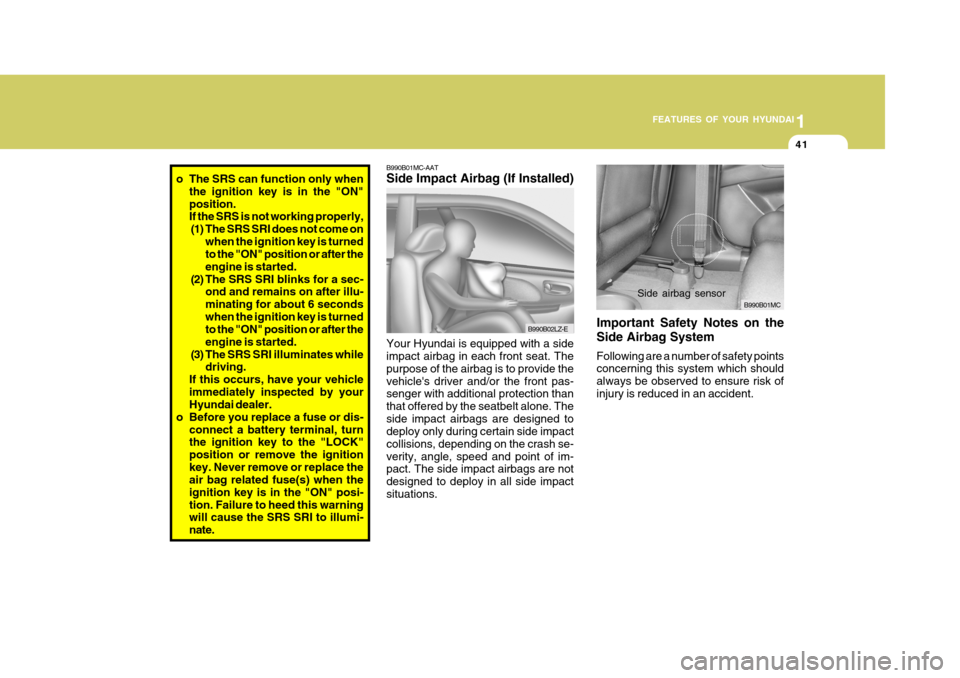

B990B01MC
o The SRS can function only when
the ignition key is in the "ON" position. If the SRS is not working properly,(1) The SRS SRI does not come on when the ignition key is turnedto the "ON" position or after the engine is started.
(2) The SRS SRI blinks for a sec- ond and remains on after illu-minating for about 6 secondswhen the ignition key is turned to the "ON" position or after the engine is started.
(3) The SRS SRI illuminates while driving.
If this occurs, have your vehicleimmediately inspected by your Hyundai dealer.
o Before you replace a fuse or dis- connect a battery terminal, turnthe ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate. B990B01MC-AAT Side Impact Airbag (If Installed) Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide thevehicle's driver and/or the front pas- senger with additional protection than that offered by the seatbelt alone. Theside impact airbags are designed to deploy only during certain side impact collisions, depending on the crash se-verity, angle, speed and point of im- pact. The side impact airbags are not designed to deploy in all side impactsituations.
Side airbag sensor
B990B02LZ-E
Important Safety Notes on the Side Airbag System Following are a number of safety points concerning this system which should always be observed to ensure risk ofinjury is reduced in an accident.

1FEATURES OF YOUR HYUNDAI
42

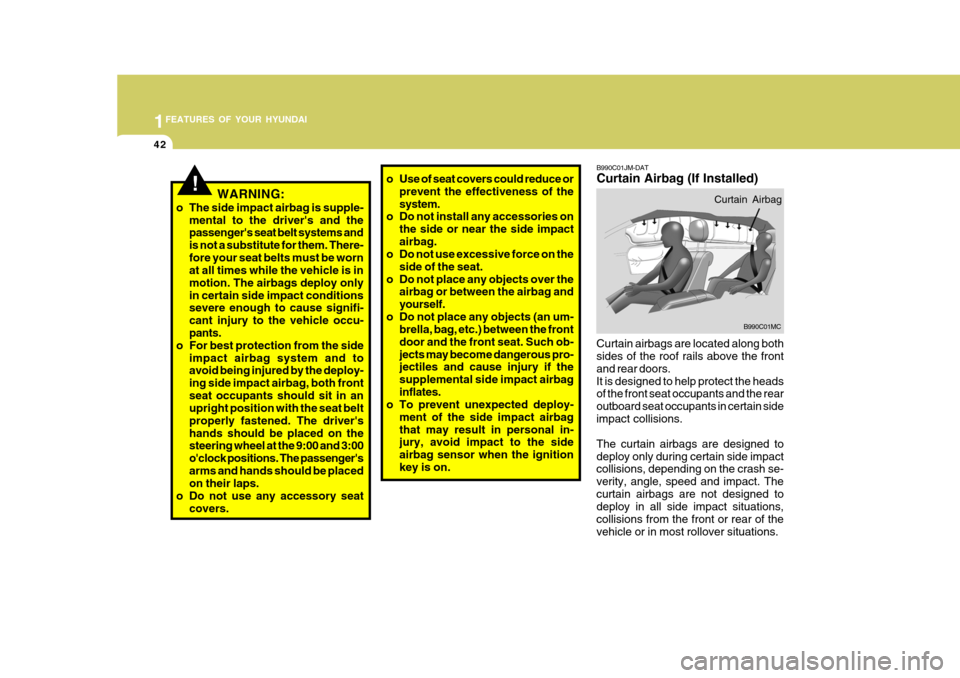

!o Use of seat covers could reduce or
prevent the effectiveness of the system.
o Do not install any accessories on
the side or near the side impactairbag.
o Do not use excessive force on the
side of the seat.
o Do not place any objects over the airbag or between the airbag andyourself.
o Do not place any objects (an um- brella, bag, etc.) between the frontdoor and the front seat. Such ob-jects may become dangerous pro- jectiles and cause injury if the supplemental side impact airbaginflates.
o To prevent unexpected deploy-
ment of the side impact airbagthat may result in personal in- jury, avoid impact to the side airbag sensor when the ignitionkey is on.
WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's seat belt systems and is not a substitute for them. There-fore your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy onlyin certain side impact conditions severe enough to cause signifi- cant injury to the vehicle occu-pants.
o For best protection from the side
impact airbag system and to avoid being injured by the deploy- ing side impact airbag, both frontseat occupants should sit in an upright position with the seat belt properly fastened. The driver'shands should be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger'sarms and hands should be placed on their laps.
o Do not use any accessory seat covers.
B990C01JM-DAT Curtain Airbag (If Installed)
Curtain airbags are located along both sides of the roof rails above the front and rear doors.It is designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain sideimpact collisions. The curtain airbags are designed to deploy only during certain side impact collisions, depending on the crash se- verity, angle, speed and impact. Thecurtain airbags are not designed to deploy in all side impact situations, collisions from the front or rear of thevehicle or in most rollover situations. B990C01MC
Curtain Airbag

1
FEATURES OF YOUR HYUNDAI
43
!
o Do not install any accessories or
children’s toys in the Curtain Airbag deployment zones, as this may impair the operation of the system or throw parts of them intothe vehicle cabin causing injury to occupants if the system is de- ployed.
o To maintain the integrity of the Curtain Airbag system, any work,removal or installation of theairbag and associated compo- nents (such as roof lining and side trims) should only be performedby a qualified vehicle repairer.
WARNING:
o Before installing child restraints, always refer to "Child RestraintSystem" section to ensure correct installation and that occupant pro- tection is maximised.
o Make sure that the occupant does
not have any body parts (head,arms & legs) protruding outside the restraining system. If an inflat- ing airbag was to strike an infantor child, it may cause serious in- jury.
o Ensure the opening for the Cur- tain Airbag System remains unob-structed at all times, so that the airbags can inflate properly ifneeded.
Important Safety Notes for Cur- tain Airbag Systems Following are a number of safety points concerning this system which shouldalways be observed to ensure risk of injury is reduced in an accident.
o The built in coat hooks should
only be used for light weight cloth- ing, ensure that pockets are free of any heavy or sharp objects. When using coat hooks, do not hangclothes on coat hangers.
o The space between the occupant
and the curtain airbag must neverbe occupied by children, passen- gers or pets. Occupants should never lean out or have any parts oftheir body protruding from the window whilst the engine is run- ning.
o Do not move the sun visor out to cover the side window if there isan item attached to it such asgarage door remote control, pens, air fresheners or the like. These objects may cause injury if theCurtain Airbag is deployed.
o Do not install sun blinds to the
rear doors, these must not ob-struct or impair the airbag in any way.

1FEATURES OF YOUR HYUNDAI
44

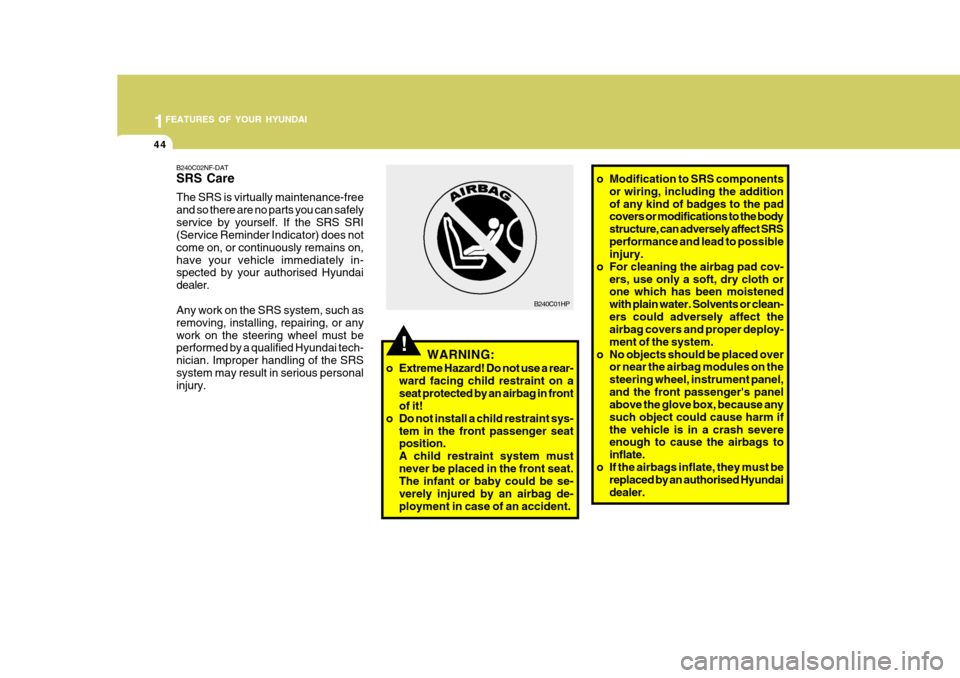

o Modification to SRS components
or wiring, including the addition of any kind of badges to the pad covers or modifications to the body structure, can adversely affect SRSperformance and lead to possible injury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth orone which has been moistened with plain water. Solvents or clean-ers could adversely affect the airbag covers and proper deploy- ment of the system.
o No objects should be placed over or near the airbag modules on thesteering wheel, instrument panel,and the front passenger's panel above the glove box, because any such object could cause harm ifthe vehicle is in a crash severe enough to cause the airbags to inflate.
o If the airbags inflate, they must be replaced by an authorised Hyundaidealer.
!
B240C01HP
WARNING:
o Extreme Hazard! Do not use a rear- ward facing child restraint on a seat protected by an airbag in front of it!
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint system mustnever be placed in the front seat. The infant or baby could be se- verely injured by an airbag de-ployment in case of an accident.
B240C02NF-DAT SRS Care The SRS is virtually maintenance-free and so there are no parts you can safelyservice by yourself. If the SRS SRI (Service Reminder Indicator) does not come on, or continuously remains on,have your vehicle immediately in- spected by your authorised Hyundai dealer. Any work on the SRS system, such as removing, installing, repairing, or anywork on the steering wheel must be performed by a qualified Hyundai tech- nician. Improper handling of the SRSsystem may result in serious personal injury.

1
FEATURES OF YOUR HYUNDAI
45

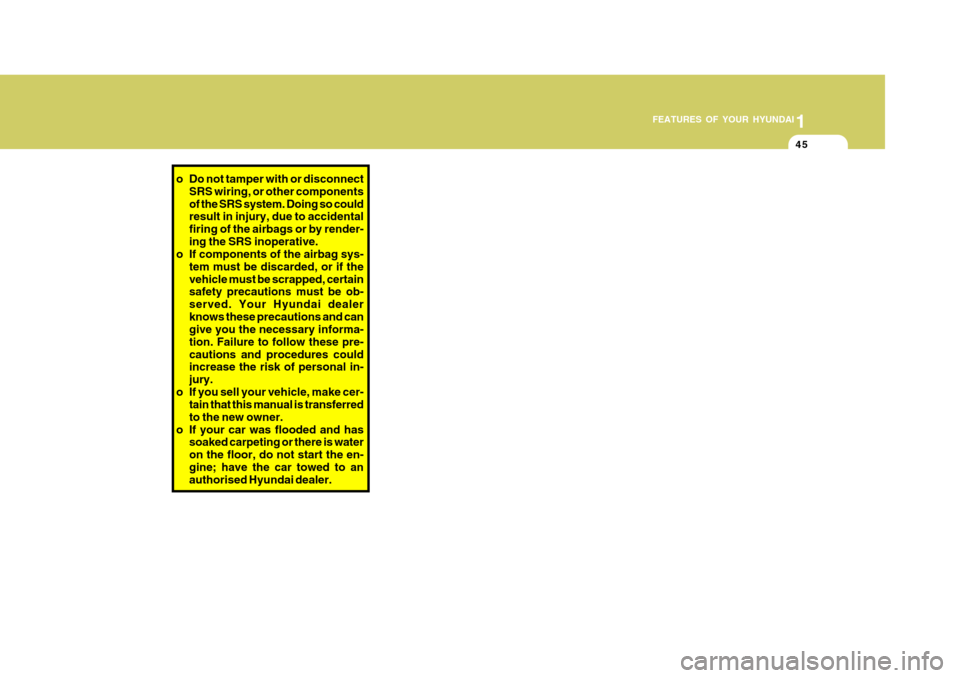

o Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by render-ing the SRS inoperative.
o If components of the airbag sys-
tem must be discarded, or if thevehicle must be scrapped, certain safety precautions must be ob- served. Your Hyundai dealerknows these precautions and can give you the necessary informa- tion. Failure to follow these pre-cautions and procedures could increase the risk of personal in- jury.
o If you sell your vehicle, make cer- tain that this manual is transferredto the new owner.
o If your car was flooded and has soaked carpeting or there is wateron the floor, do not start the en-gine; have the car towed to an authorised Hyundai dealer.
