2011 FORD FIESTA Owners Manual

Page 113 of 357

FORD FIESTA 2011 6.G Owners Manual 1. Remove the bulb cover.
2. Turn the bulb holder
counterclockwise and remove it.
3. Disconnect the electrical connector.
4. Reverse the procedure to install the new bulb.
Replacing the high beam head

Page 114 of 357

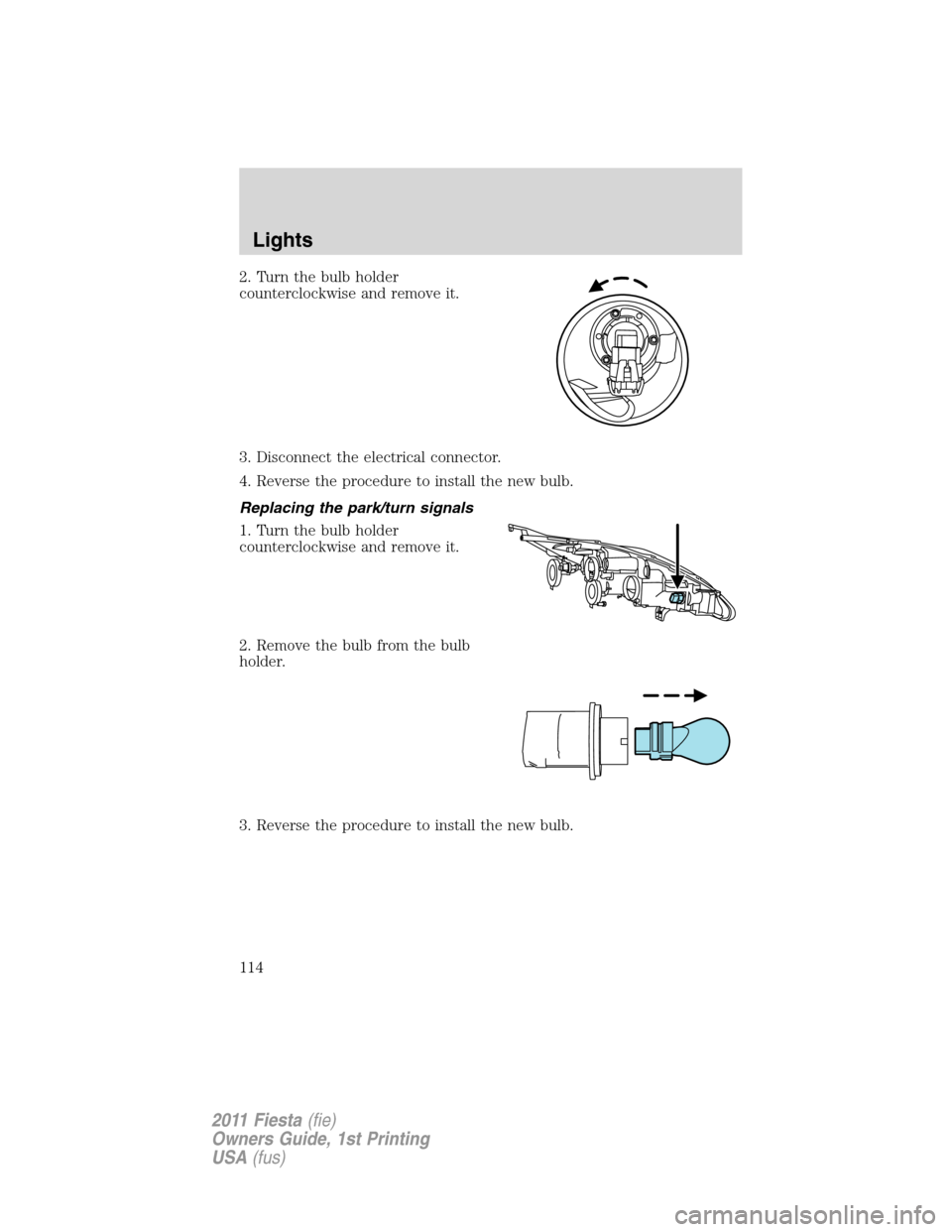

FORD FIESTA 2011 6.G Owners Manual 2. Turn the bulb holder
counterclockwise and remove it.
3. Disconnect the electrical connector.
4. Reverse the procedure to install the new bulb.
Replacing the park/turn signals
1. Turn the bulb holde

Page 115 of 357

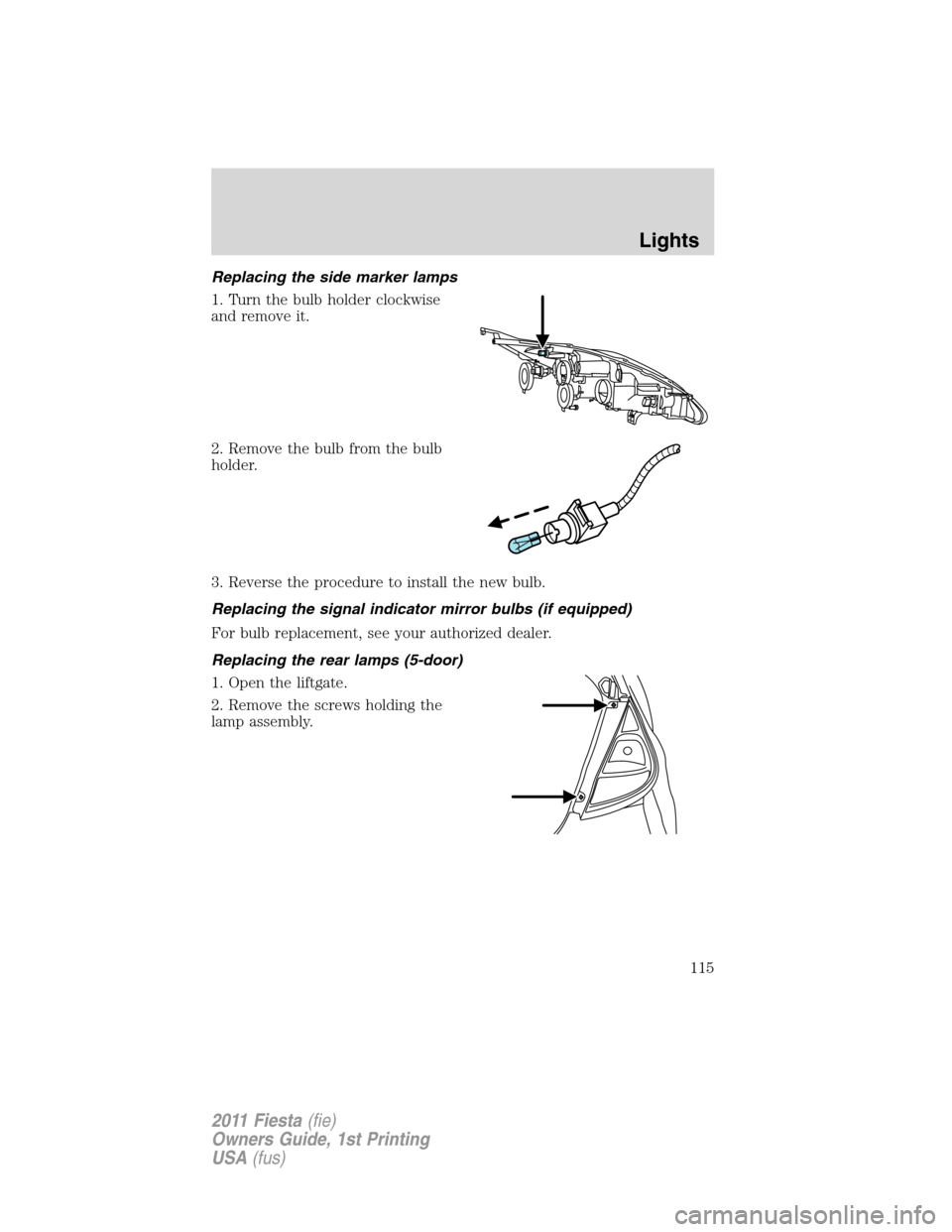

FORD FIESTA 2011 6.G Owners Manual Replacing the side marker lamps
1. Turn the bulb holder clockwise
and remove it.
2. Remove the bulb from the bulb
holder.
3. Reverse the procedure to install the new bulb.
Replacing the signal indicat

Page 116 of 357

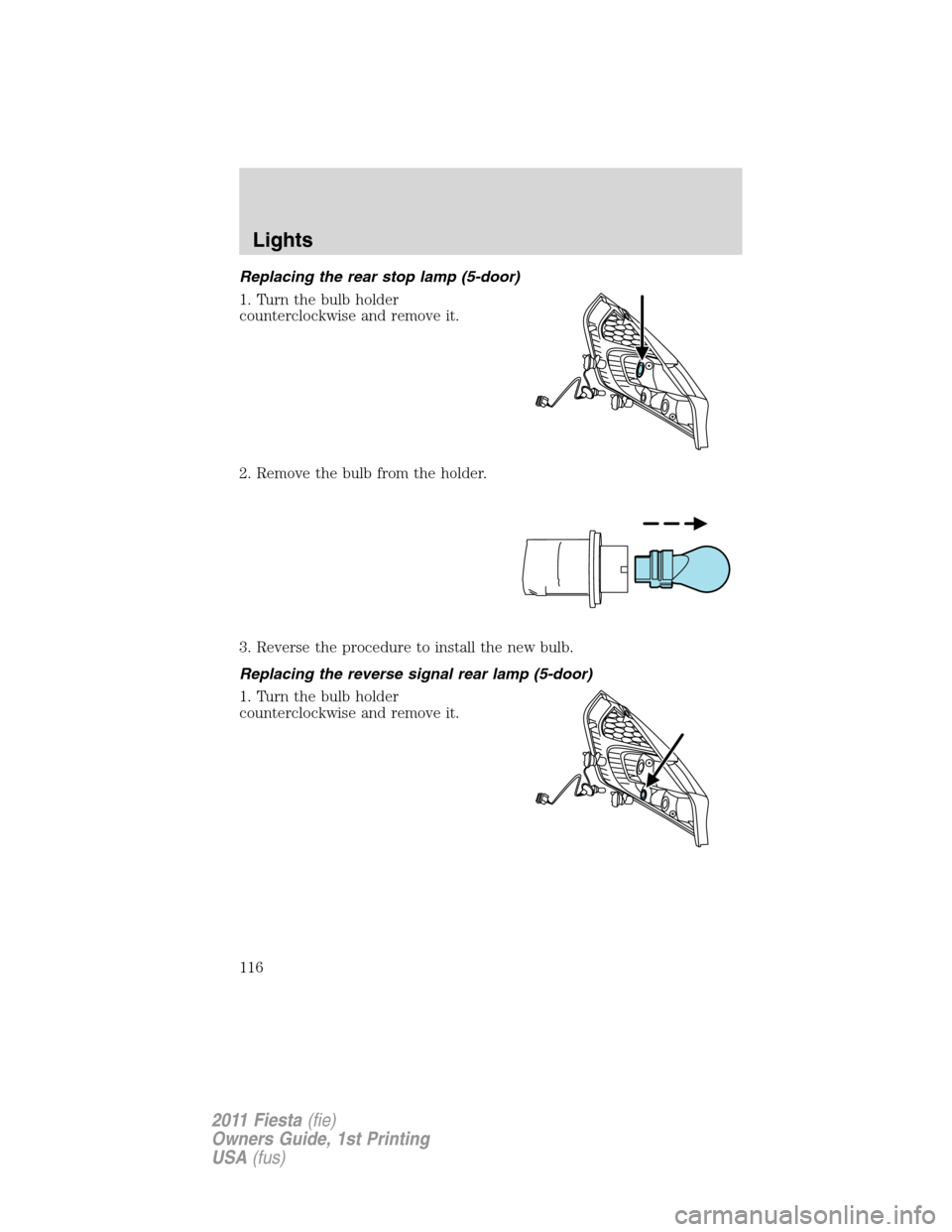

FORD FIESTA 2011 6.G Owners Manual Replacing the rear stop lamp (5-door)
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
Replacing the revers

Page 117 of 357

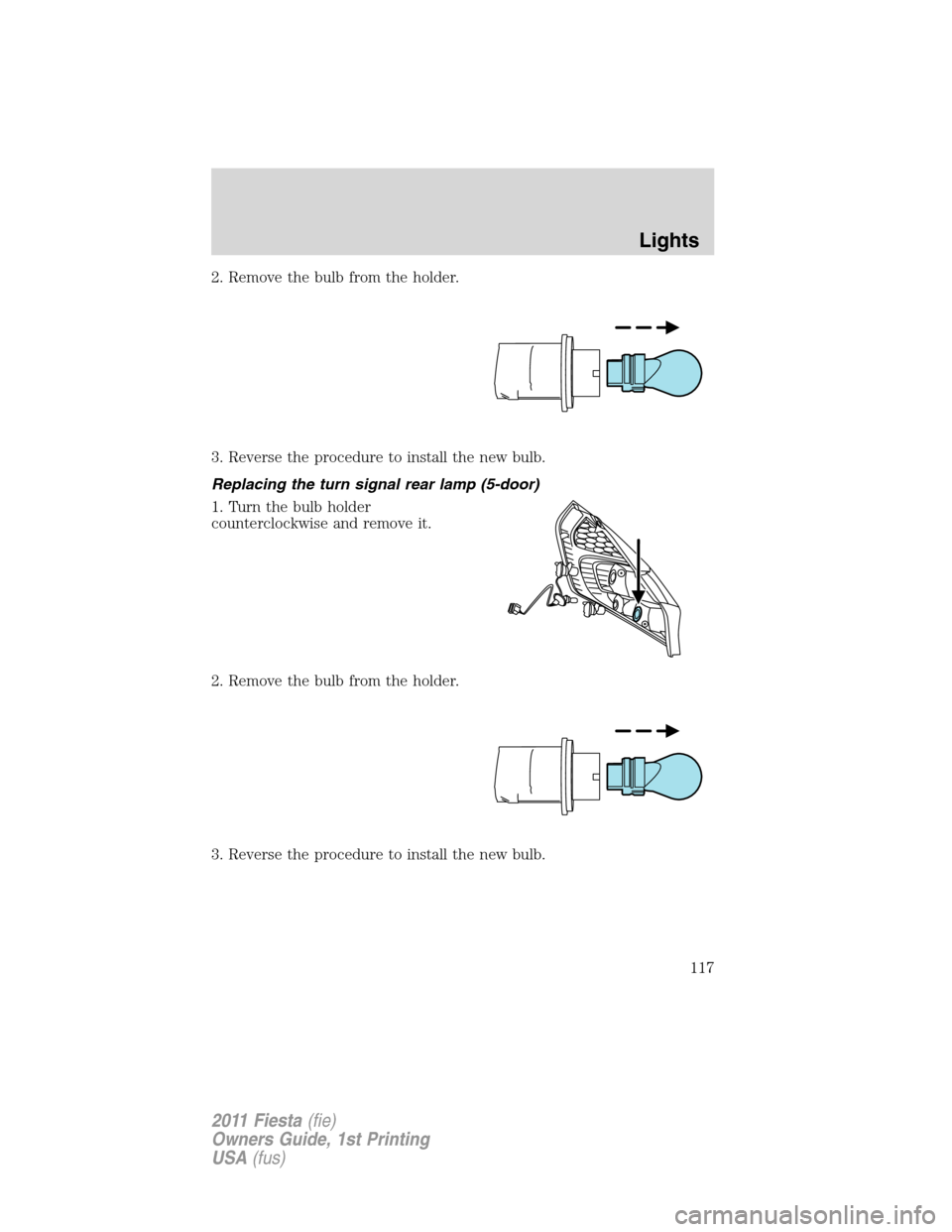

FORD FIESTA 2011 6.G Owners Manual 2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
Replacing the turn signal rear lamp (5-door)
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the

Page 118 of 357

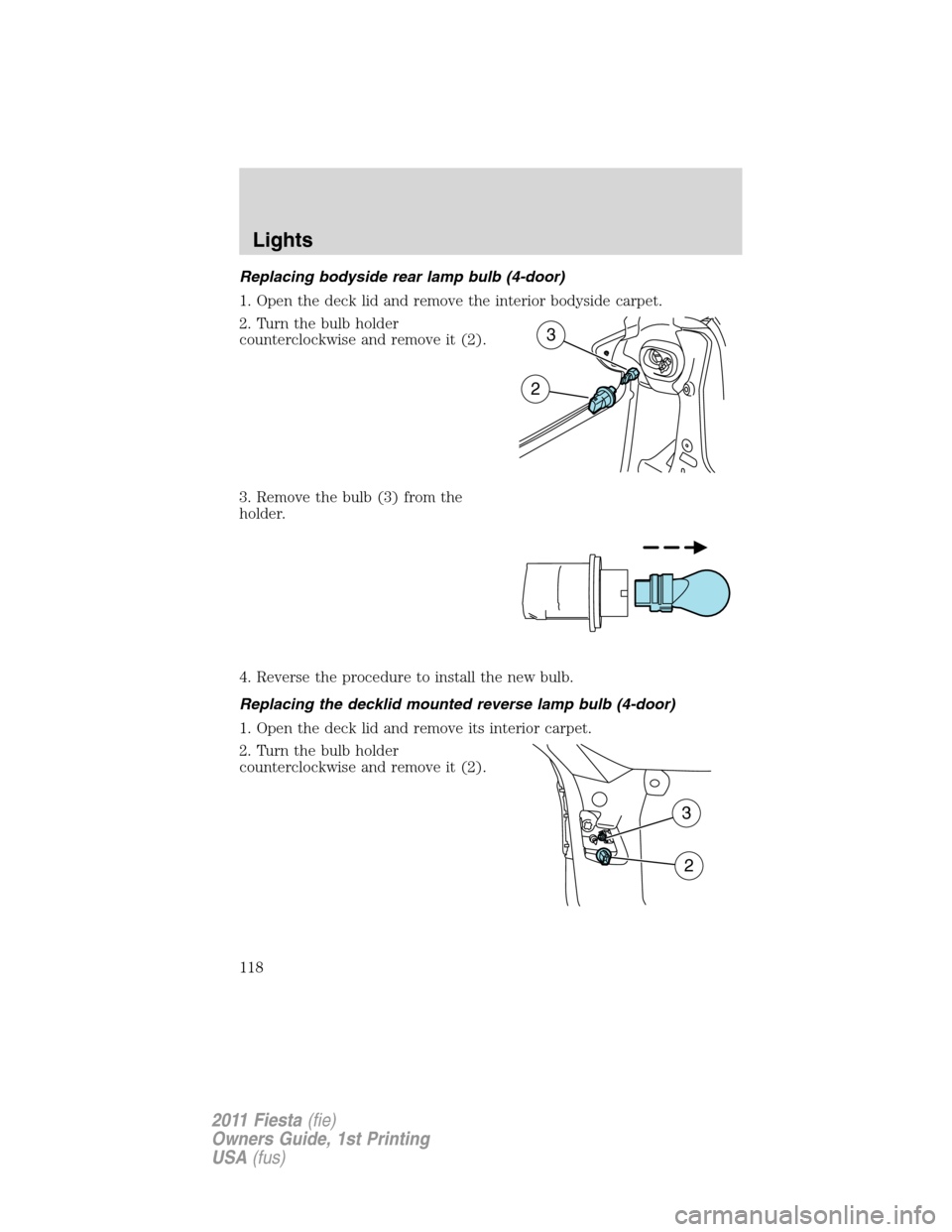

FORD FIESTA 2011 6.G Owners Manual Replacing bodyside rear lamp bulb (4-door)
1. Open the deck lid and remove the interior bodyside carpet.
2. Turn the bulb holder
counterclockwise and remove it (2).
3. Remove the bulb (3) from the
hol

Page 119 of 357

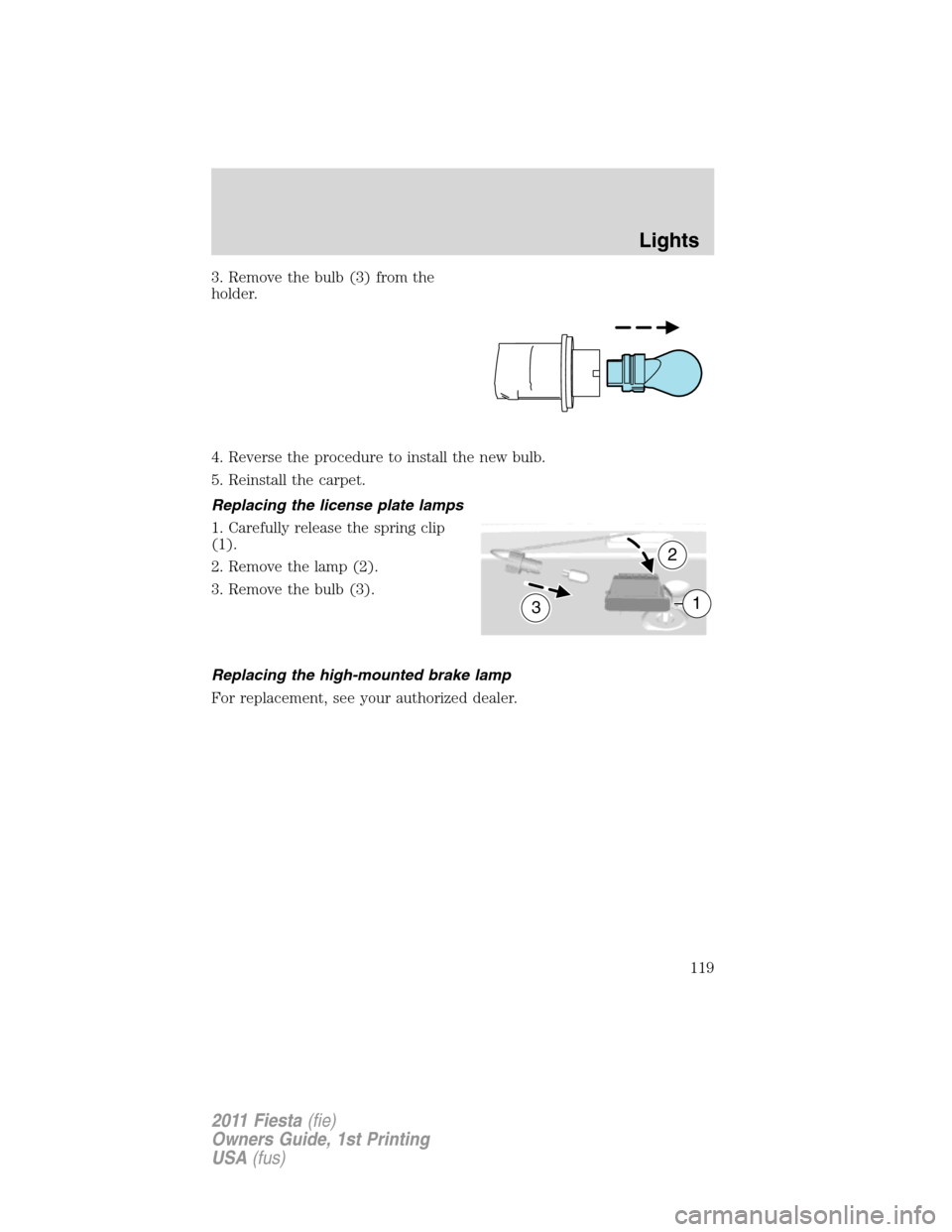

FORD FIESTA 2011 6.G Owners Manual 3. Remove the bulb (3) from the
holder.
4. Reverse the procedure to install the new bulb.
5. Reinstall the carpet.
Replacing the license plate lamps
1. Carefully release the spring clip
(1).
2. Remove

Page 120 of 357

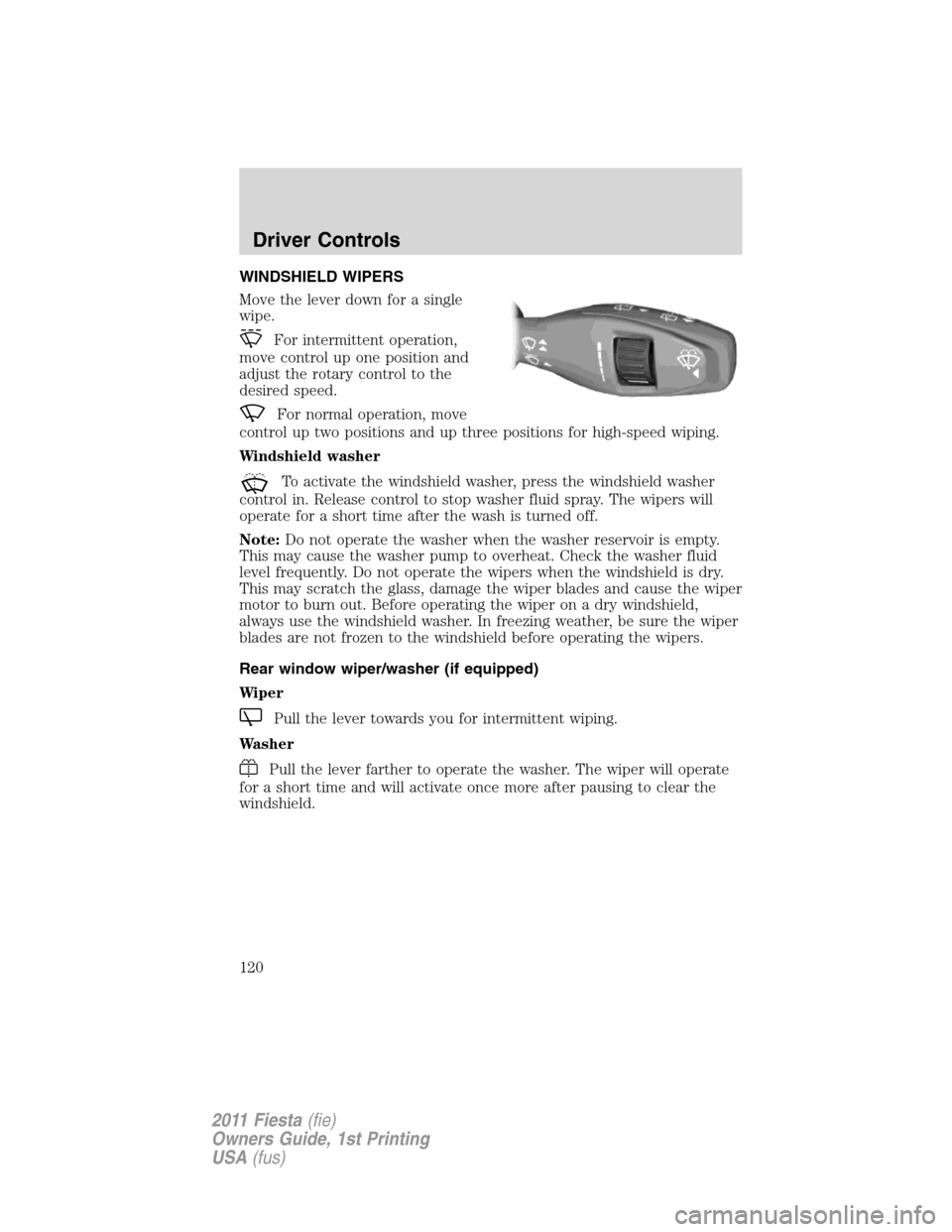

FORD FIESTA 2011 6.G Owners Manual WINDSHIELD WIPERS
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control
