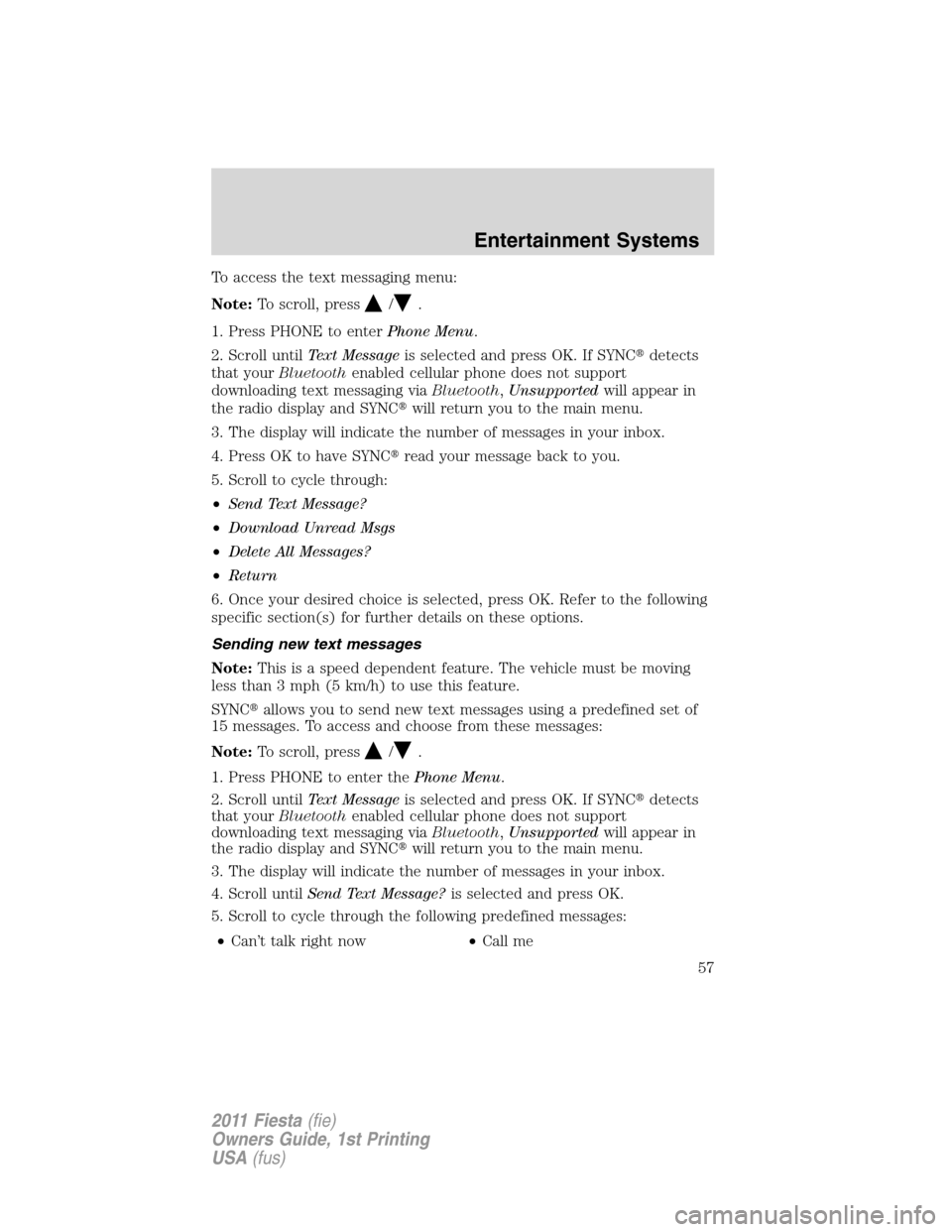

Page 57 of 357

To access the text messaging menu:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilText Messageis selected and press OK. If SYNCdetects
that yourBluetoothenabled cellular phone does not support
downloading text messaging viaBluetooth,Unsupportedwill appear in
the radio display and SYNCwill return you to the main menu.
3. The display will indicate the number of messages in your inbox.
4. Press OK to have SYNCread your message back to you.
5. Scroll to cycle through:
•Send Text Message?
•Download Unread Msgs
•Delete All Messages?
•Return
6. Once your desired choice is selected, press OK. Refer to the following
specific section(s) for further details on these options.
Sending new text messages
Note:This is a speed dependent feature. The vehicle must be moving
less than 3 mph (5 km/h) to use this feature.
SYNCallows you to send new text messages using a predefined set of
15 messages. To access and choose from these messages:
Note:To scroll, press
/.
1. Press PHONE to enter thePhone Menu.
2. Scroll untilText Messageis selected and press OK. If SYNCdetects
that yourBluetoothenabled cellular phone does not support
downloading text messaging viaBluetooth,Unsupportedwill appear in
the radio display and SYNCwill return you to the main menu.
3. The display will indicate the number of messages in your inbox.
4. Scroll untilSend Text Message?is selected and press OK.
5. Scroll to cycle through the following predefined messages:
•Can’t talk right now•Call me
Entertainment Systems
57
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 58 of 357

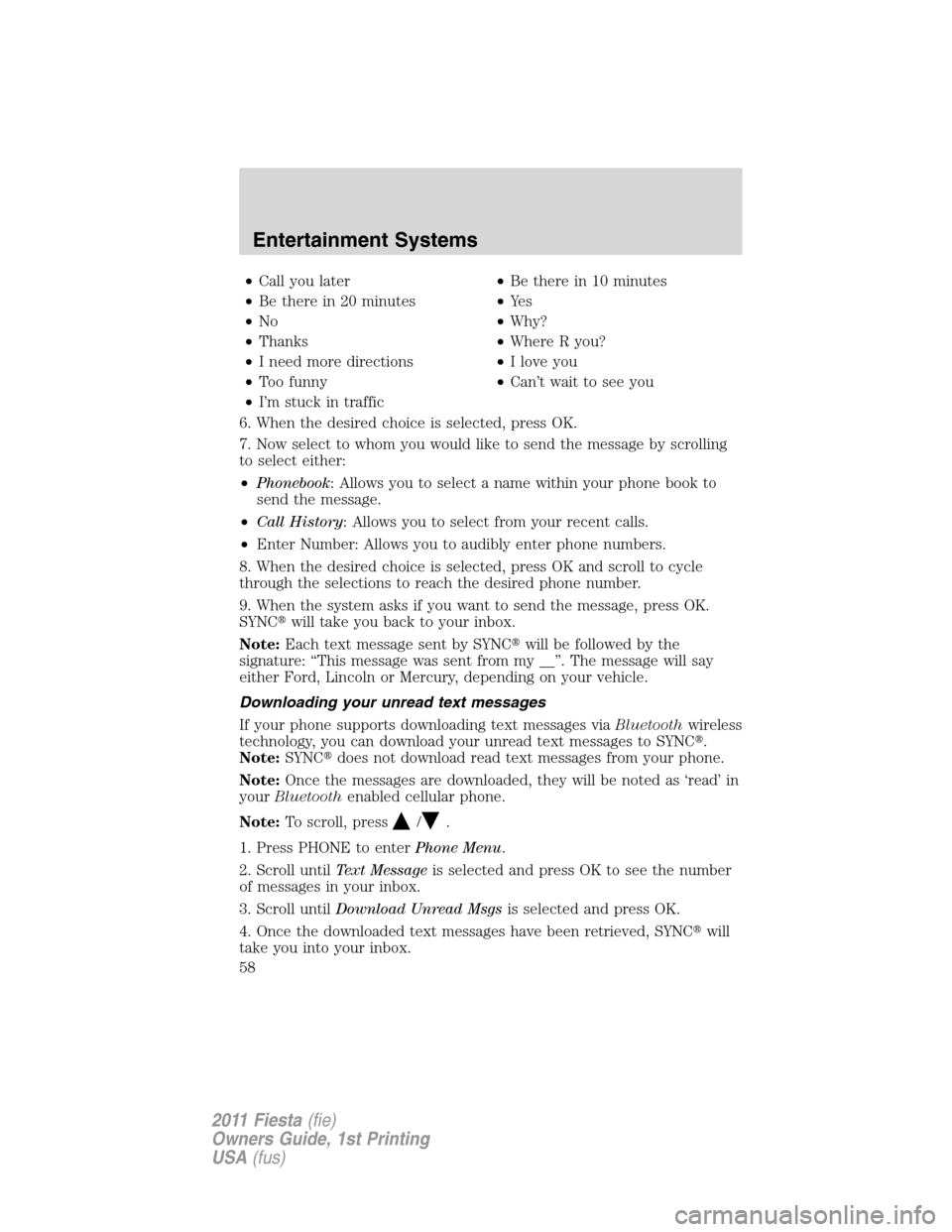

•Call you later•Be there in 10 minutes
•Be there in 20 minutes•Ye s
•No•Why?
•Thanks•Where R you?
•I need more directions•I love you
•Too funny•Can’t wait to see you
•I’m stuck in traffic
6. When the desired choice is selected, press OK.
7. Now select to whom you would like to send the message by scrolling
to select either:
•Phonebook: Allows you to select a name within your phone book to
send the message.
•Call History: Allows you to select from your recent calls.
•Enter Number: Allows you to audibly enter phone numbers.
8. When the desired choice is selected, press OK and scroll to cycle
through the selections to reach the desired phone number.
9. When the system asks if you want to send the message, press OK.
SYNCwill take you back to your inbox.
Note:Each text message sent by SYNCwill be followed by the
signature: “This message was sent from my __”. The message will say
either Ford, Lincoln or Mercury, depending on your vehicle.
Downloading your unread text messages
If your phone supports downloading text messages viaBluetoothwireless
technology, you can download your unread text messages to SYNC.
Note:SYNCdoes not download read text messages from your phone.
Note:Once the messages are downloaded, they will be noted as ‘read’ in
yourBluetoothenabled cellular phone.
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilText Messageis selected and press OK to see the number
of messages in your inbox.
3. Scroll untilDownload Unread Msgsis selected and press OK.
4. Once the downloaded text messages have been retrieved, SYNCwill
take you into your inbox.
Entertainment Systems
58
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 59 of 357

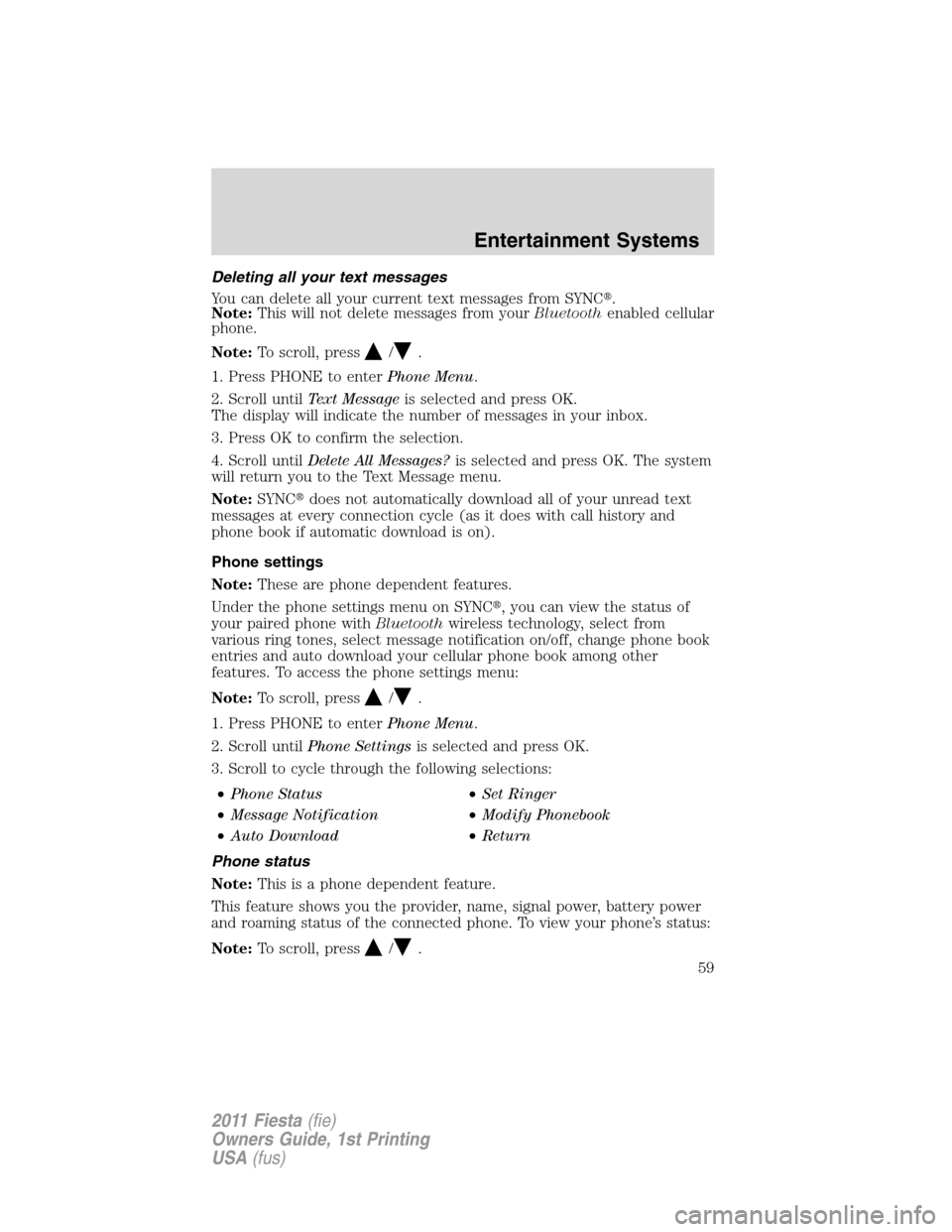

Deleting all your text messages
You can delete all your current text messages from SYNC.
Note:This will not delete messages from yourBluetoothenabled cellular
phone.
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilText Messageis selected and press OK.
The display will indicate the number of messages in your inbox.
3. Press OK to confirm the selection.
4. Scroll untilDelete All Messages?is selected and press OK. The system
will return you to the Text Message menu.
Note:SYNCdoes not automatically download all of your unread text
messages at every connection cycle (as it does with call history and
phone book if automatic download is on).
Phone settings
Note:These are phone dependent features.
Under the phone settings menu on SYNC, you can view the status of
your paired phone withBluetoothwireless technology, select from
various ring tones, select message notification on/off, change phone book
entries and auto download your cellular phone book among other
features. To access the phone settings menu:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll to cycle through the following selections:
•Phone Status•Set Ringer
•Message Notification•Modify Phonebook
•Auto Download•Return
Phone status
Note:This is a phone dependent feature.
This feature shows you the provider, name, signal power, battery power
and roaming status of the connected phone. To view your phone’s status:
Note:To scroll, press
/.
Entertainment Systems
59
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 60 of 357

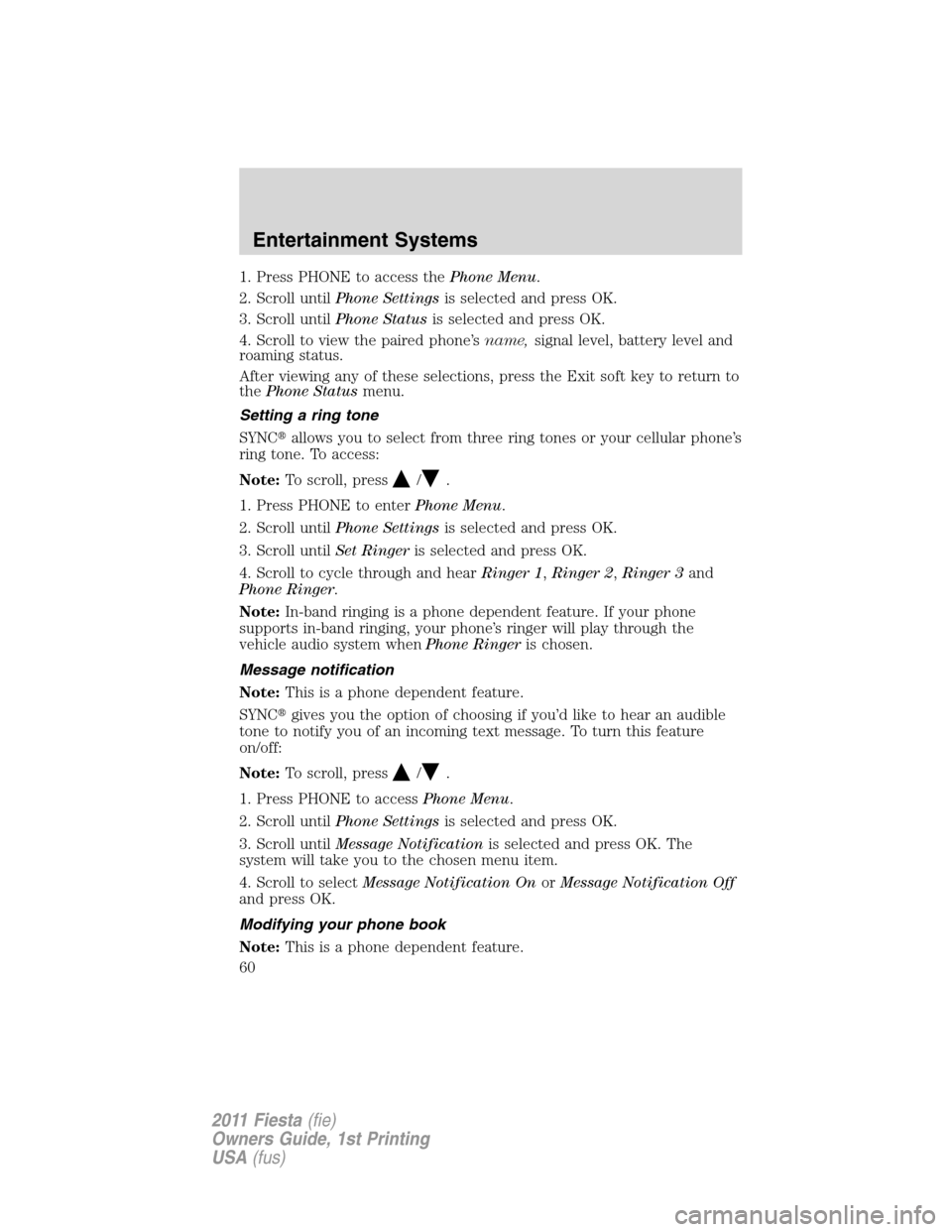

1. Press PHONE to access thePhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll untilPhone Statusis selected and press OK.
4. Scroll to view the paired phone’sname,signal level, battery level and
roaming status.
After viewing any of these selections, press the Exit soft key to return to
thePhone Statusmenu.
Setting a ring tone
SYNCallows you to select from three ring tones or your cellular phone’s
ring tone. To access:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll untilSet Ringeris selected and press OK.
4. Scroll to cycle through and hearRinger 1,Ringer 2,Ringer 3and
Phone Ringer.
Note:In-band ringing is a phone dependent feature. If your phone
supports in-band ringing, your phone’s ringer will play through the
vehicle audio system whenPhone Ringeris chosen.
Message notification
Note:This is a phone dependent feature.
SYNCgives you the option of choosing if you’d like to hear an audible
tone to notify you of an incoming text message. To turn this feature
on/off:
Note:To scroll, press
/.
1. Press PHONE to accessPhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll untilMessage Notificationis selected and press OK. The
system will take you to the chosen menu item.
4. Scroll to selectMessage Notification OnorMessage Notification Off
and press OK.
Modifying your phone book
Note:This is a phone dependent feature.
Entertainment Systems
60
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 61 of 357

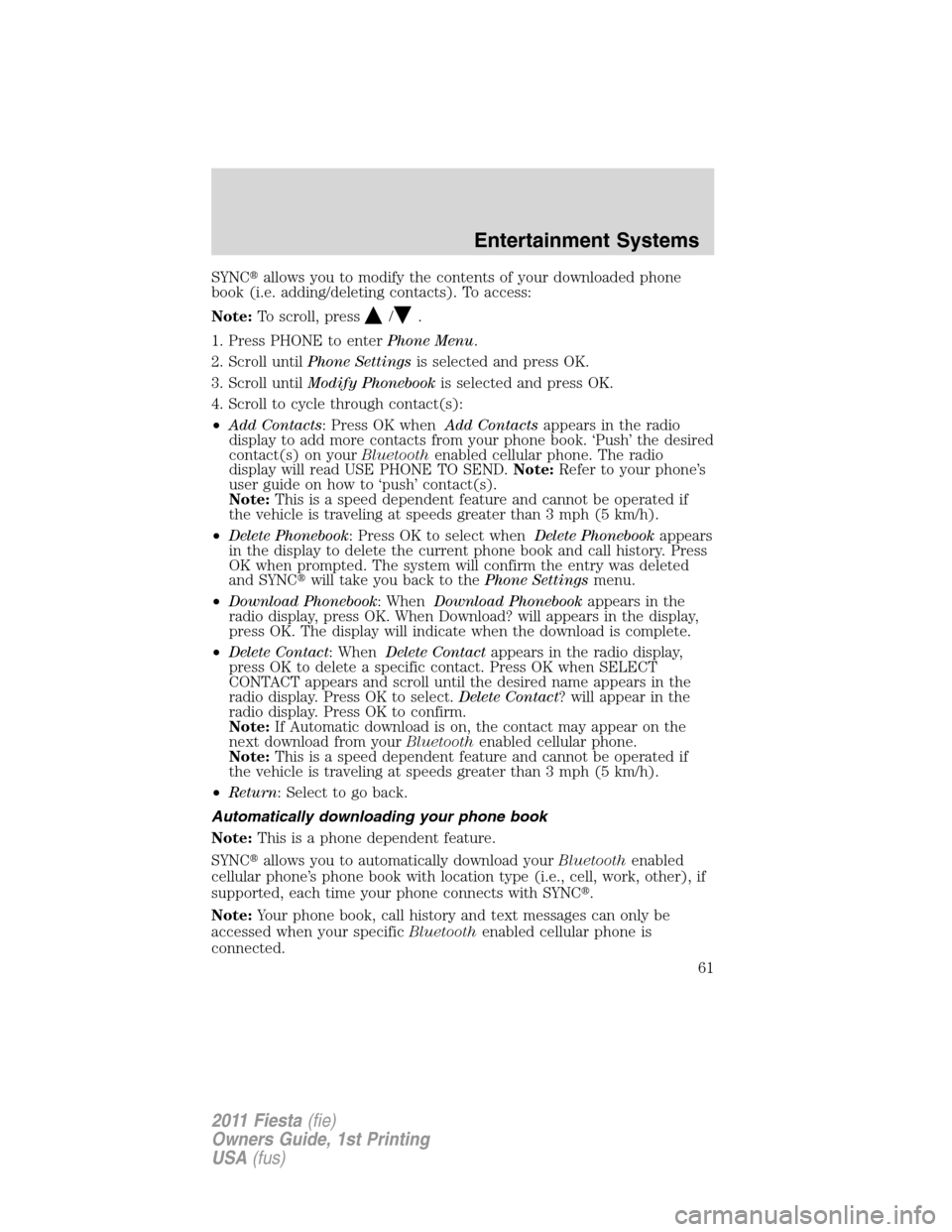

SYNCallows you to modify the contents of your downloaded phone
book (i.e. adding/deleting contacts). To access:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll untilModify Phonebookis selected and press OK.
4. Scroll to cycle through contact(s):
•Add Contacts: Press OK whenAdd Contactsappears in the radio
display to add more contacts from your phone book. ‘Push’ the desired
contact(s) on yourBluetoothenabled cellular phone. The radio
display will read USE PHONE TO SEND.Note:Refer to your phone’s
user guide on how to ‘push’ contact(s).
Note:This is a speed dependent feature and cannot be operated if
the vehicle is traveling at speeds greater than 3 mph (5 km/h).
•Delete Phonebook: Press OK to select whenDelete Phonebookappears
in the display to delete the current phone book and call history. Press
OK when prompted. The system will confirm the entry was deleted
and SYNCwill take you back to thePhone Settingsmenu.
•Download Phonebook: WhenDownload Phonebookappears in the
radio display, press OK. When Download? will appears in the display,
press OK. The display will indicate when the download is complete.
•Delete Contact: WhenDelete Contactappears in the radio display,
press OK to delete a specific contact. Press OK when SELECT
CONTACT appears and scroll until the desired name appears in the
radio display. Press OK to select.Delete Contact? will appear in the
radio display. Press OK to confirm.
Note:If Automatic download is on, the contact may appear on the
next download from yourBluetoothenabled cellular phone.
Note:This is a speed dependent feature and cannot be operated if
the vehicle is traveling at speeds greater than 3 mph (5 km/h).
•Return: Select to go back.
Automatically downloading your phone book
Note:This is a phone dependent feature.
SYNCallows you to automatically download yourBluetoothenabled
cellular phone’s phone book with location type (i.e., cell, work, other), if
supported, each time your phone connects with SYNC.
Note:Your phone book, call history and text messages can only be
accessed when your specificBluetoothenabled cellular phone is
connected.
Entertainment Systems
61
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 62 of 357

Note:To scroll, press/.
1. Press PHONE to access thePhone Menu.
2. Scroll untilPhone Settingsis selected and press OK.
3. Scroll untilAuto Downloadis selected and press OK.
4. WhenAuto Download On?appears, press OK. Auto Download set to
on will appear and your phone book will be automatically downloaded
each time yourBluetoothenabled cellular phone connects with SYNC.
Or, select Auto Download Off and press OK. Your phone book will not be
automatically downloaded each time your phone connects with SYNC.
Note:Downloading times are phone and quantity dependent.
Note:If you choose to automatically download your cellular phone’s
phone book every time yourBluetoothenabled phone reconnects to
SYNC, any changes, additions or deletions that have been saved since
your last download will be deleted.
Traffic, Directions and Information (if equipped, U.S. only)
Note: Your Traffic, Directions and Information feature requires
activation prior to use. Visit www.SyncMyRide.com to register.
There is a free introductory period associated with the Traffic, Directions
and Information feature, but youmustregister to use this feature.
Stay connected — even in your car. Using advanced vehicle sensors,
integrated GPS technology and comprehensive map and traffic data,
SYNCwith Traffic, Directions and Information connects you to
personalized traffic reports, precise turn-by-turn directions, business
search, news, sports and weather. For a complete list of services, or to
learn more, please visit www.SyncMyRide.com.
Note:To scroll, press
/.
To connect using voice commands:
1. Press
.
2. When prompted, say, “Services”.
3. Once connected, follow the voice prompts to request your desired
service such as “Traffic” or “Directions”. You can also say, “What are my
choices?” to receive a complete list of available services from which to
choose.
4. To return to the services menu, say “Services” or for help, simply say,
“Help”.
Entertainment Systems
62
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 63 of 357

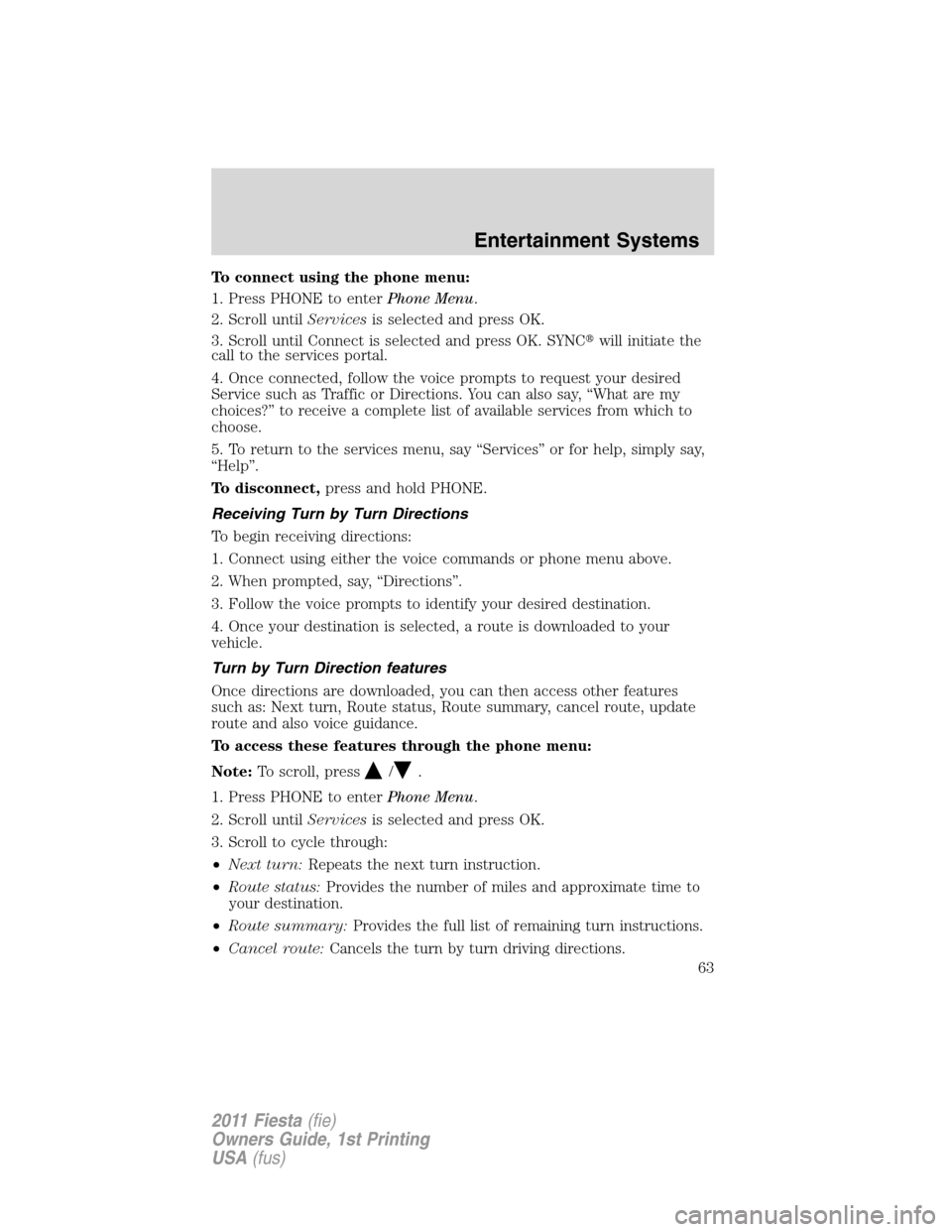

To connect using the phone menu:
1. Press PHONE to enterPhone Menu.
2. Scroll untilServicesis selected and press OK.
3. Scroll until Connect is selected and press OK. SYNCwill initiate the
call to the services portal.
4. Once connected, follow the voice prompts to request your desired
Service such as Traffic or Directions. You can also say, “What are my
choices?” to receive a complete list of available services from which to
choose.
5. To return to the services menu, say “Services” or for help, simply say,
“Help”.
To disconnect,press and hold PHONE.
Receiving Turn by Turn Directions
To begin receiving directions:
1. Connect using either the voice commands or phone menu above.
2. When prompted, say, “Directions”.
3. Follow the voice prompts to identify your desired destination.
4. Once your destination is selected, a route is downloaded to your
vehicle.
Turn by Turn Direction features
Once directions are downloaded, you can then access other features
such as: Next turn, Route status, Route summary, cancel route, update
route and also voice guidance.
To access these features through the phone menu:
Note:To scroll, press
/.
1. Press PHONE to enterPhone Menu.
2. Scroll untilServicesis selected and press OK.
3. Scroll to cycle through:
•Next turn:Repeats the next turn instruction.
•Route status:Provides the number of miles and approximate time to
your destination.
•Route summary:Provides the full list of remaining turn instructions.
•Cancel route:Cancels the turn by turn driving directions.
Entertainment Systems
63
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 64 of 357

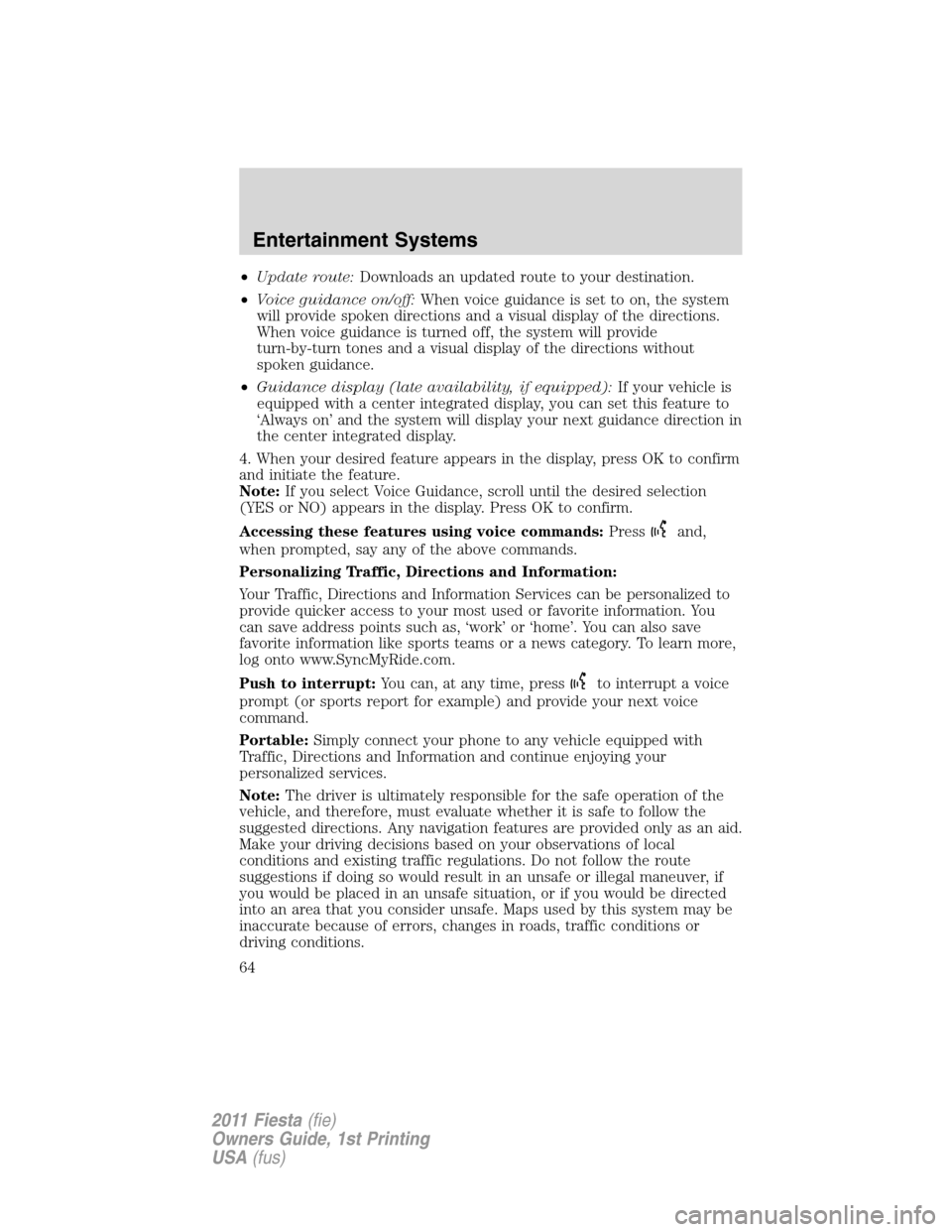

•Update route:Downloads an updated route to your destination.
•Voice guidance on/off:When voice guidance is set to on, the system
will provide spoken directions and a visual display of the directions.
When voice guidance is turned off, the system will provide
turn-by-turn tones and a visual display of the directions without
spoken guidance.
•Guidance display (late availability, if equipped):If your vehicle is
equipped with a center integrated display, you can set this feature to
‘Always on’ and the system will display your next guidance direction in
the center integrated display.
4. When your desired feature appears in the display, press OK to confirm
and initiate the feature.
Note:If you select Voice Guidance, scroll until the desired selection
(YES or NO) appears in the display. Press OK to confirm.
Accessing these features using voice commands:Press
and,
when prompted, say any of the above commands.
Personalizing Traffic, Directions and Information:
Your Traffic, Directions and Information Services can be personalized to
provide quicker access to your most used or favorite information. You
can save address points such as, ‘work’ or ‘home’. You can also save
favorite information like sports teams or a news category. To learn more,
log onto www.SyncMyRide.com.
Push to interrupt:You can, at any time, press
to interrupt a voice
prompt (or sports report for example) and provide your next voice
command.
Portable:Simply connect your phone to any vehicle equipped with
Traffic, Directions and Information and continue enjoying your
personalized services.
Note:The driver is ultimately responsible for the safe operation of the
vehicle, and therefore, must evaluate whether it is safe to follow the
suggested directions. Any navigation features are provided only as an aid.
Make your driving decisions based on your observations of local
conditions and existing traffic regulations. Do not follow the route
suggestions if doing so would result in an unsafe or illegal maneuver, if
you would be placed in an unsafe situation, or if you would be directed
into an area that you consider unsafe. Maps used by this system may be
inaccurate because of errors, changes in roads, traffic conditions or
driving conditions.
Entertainment Systems
64
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
