2011 FORD FIESTA Owners Manual

Page 209 of 357

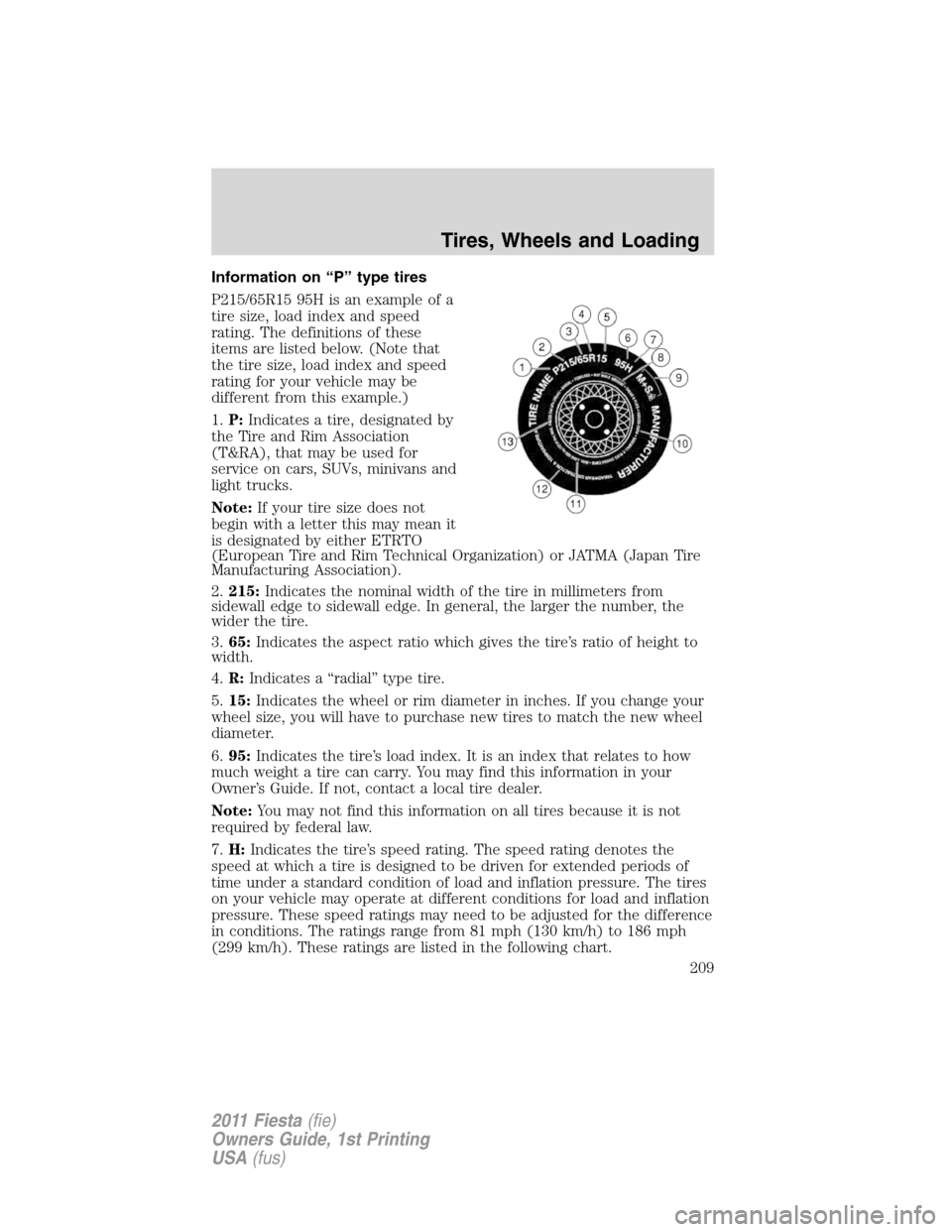

FORD FIESTA 2011 6.G Owners Manual Information on “P” type tires
P215/65R15 95H is an example of a
tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and sp

Page 210 of 357

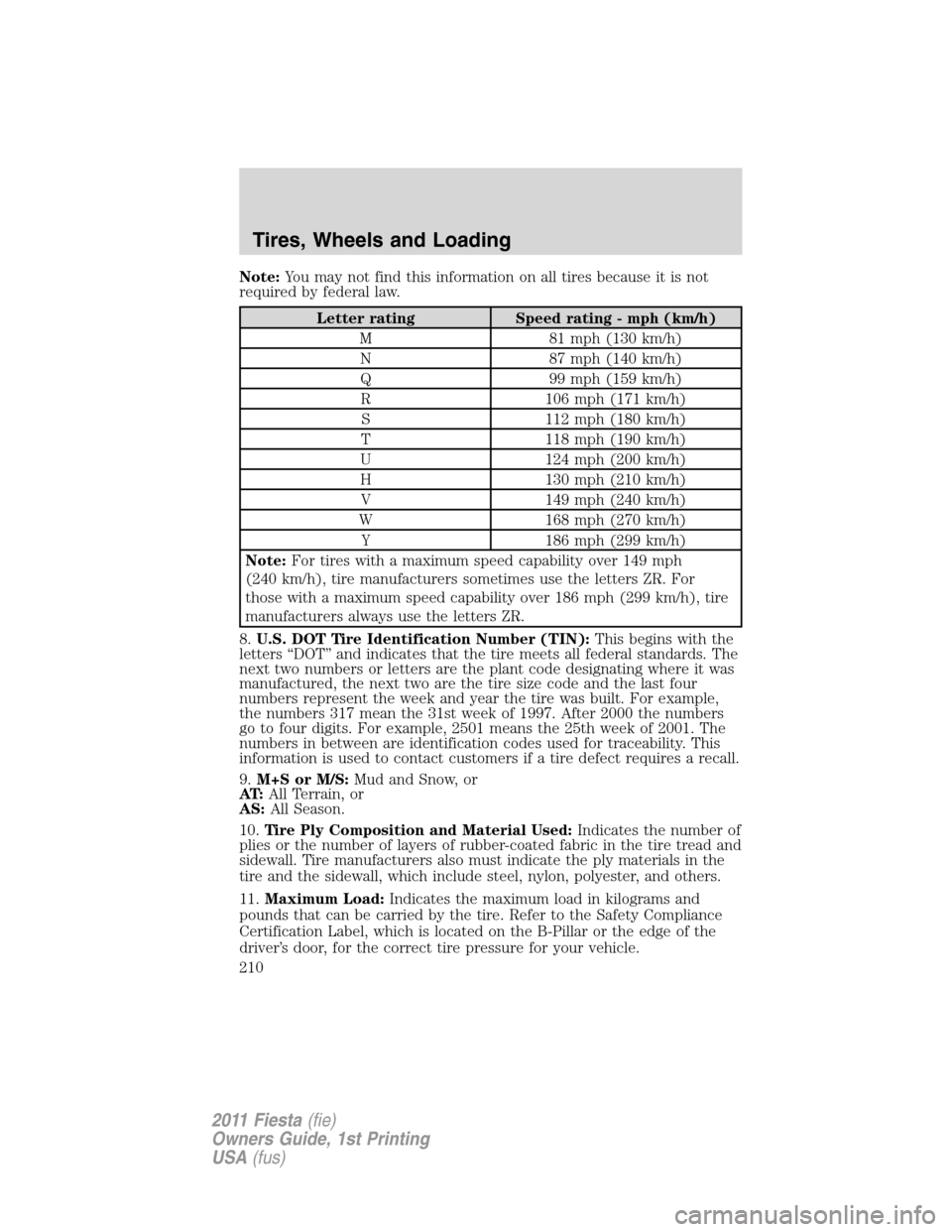

FORD FIESTA 2011 6.G Owners Manual Note:You may not find this information on all tires because it is not
required by federal law.
Letter rating Speed rating - mph (km/h)
M 81 mph (130 km/h)
N 87 mph (140 km/h)
Q 99 mph (159 km/h)
R 106

Page 211 of 357

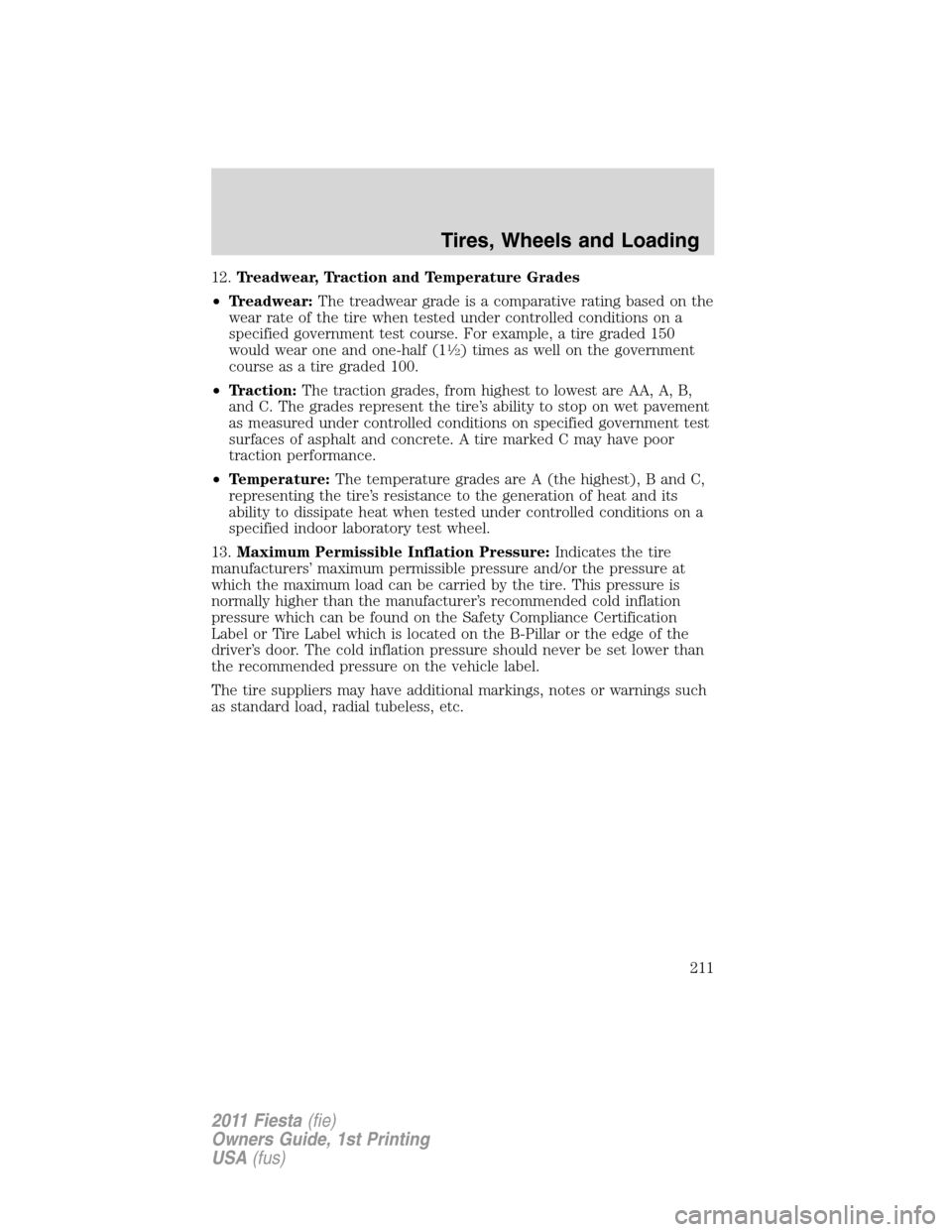

FORD FIESTA 2011 6.G Owners Manual 12.Treadwear, Traction and Temperature Grades
•Treadwear:The treadwear grade is a comparative rating based on the
wear rate of the tire when tested under controlled conditions on a
specified governm

Page 212 of 357

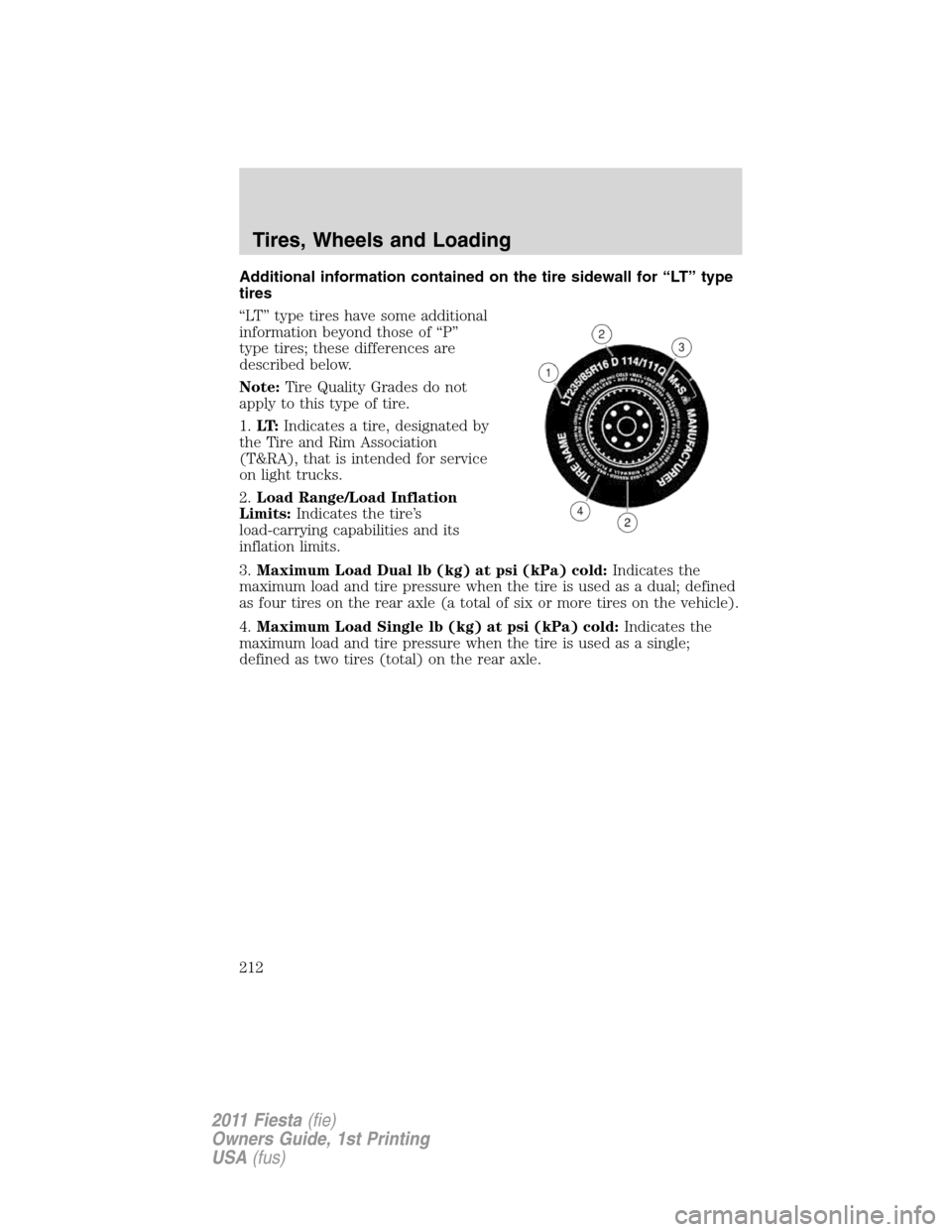

FORD FIESTA 2011 6.G Owners Manual Additional information contained on the tire sidewall for “LT” type
tires
“LT” type tires have some additional
information beyond those of “P”
type tires; these differences are
described b

Page 213 of 357

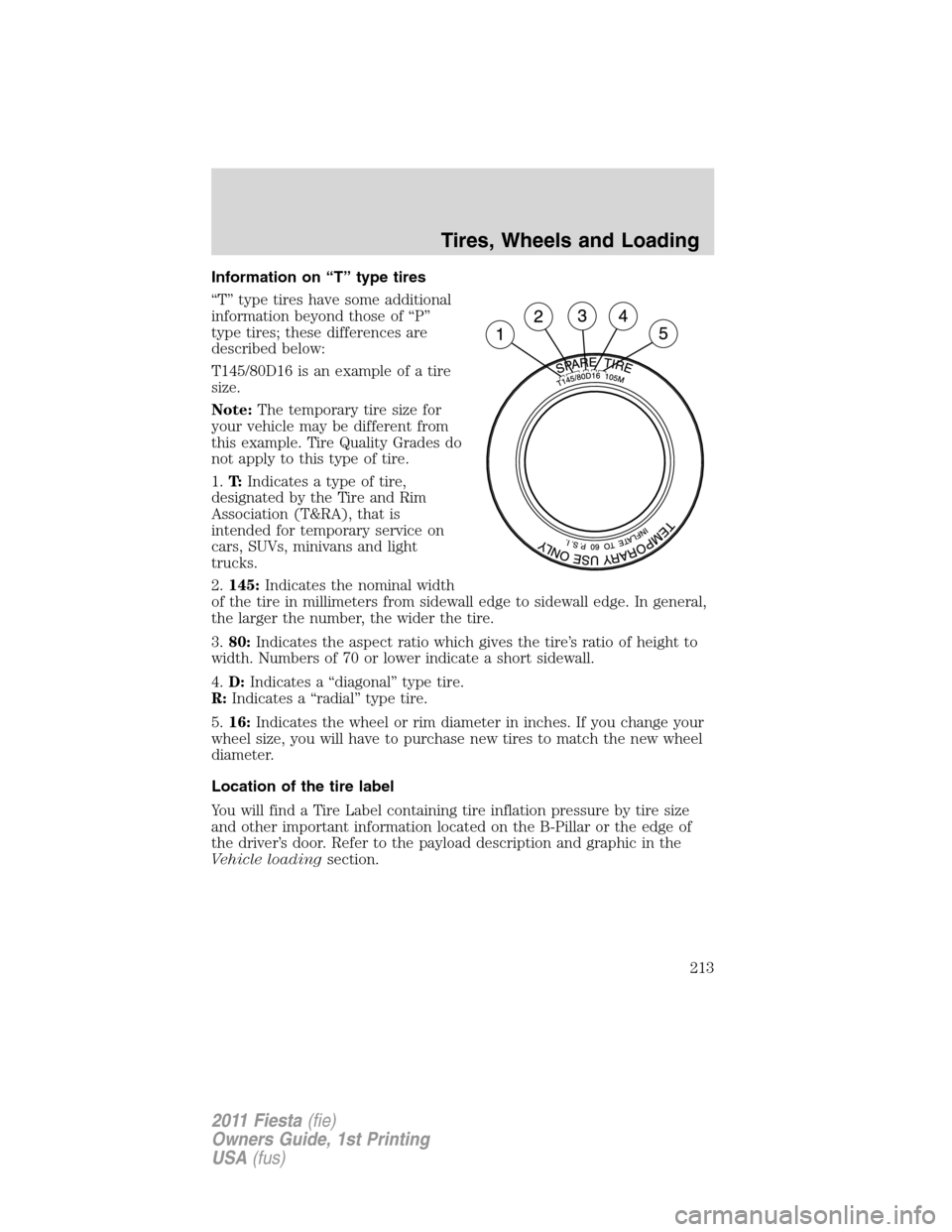

FORD FIESTA 2011 6.G Owners Manual Information on “T” type tires
“T” type tires have some additional
information beyond those of “P”
type tires; these differences are
described below:
T145/80D16 is an example of a tire
size

Page 214 of 357

FORD FIESTA 2011 6.G Owners Manual TIRE PRESSURE MONITORING SYSTEM (TPMS)
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer

Page 215 of 357

FORD FIESTA 2011 6.G Owners Manual The tire pressure monitoring system complies with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harm

Page 216 of 357

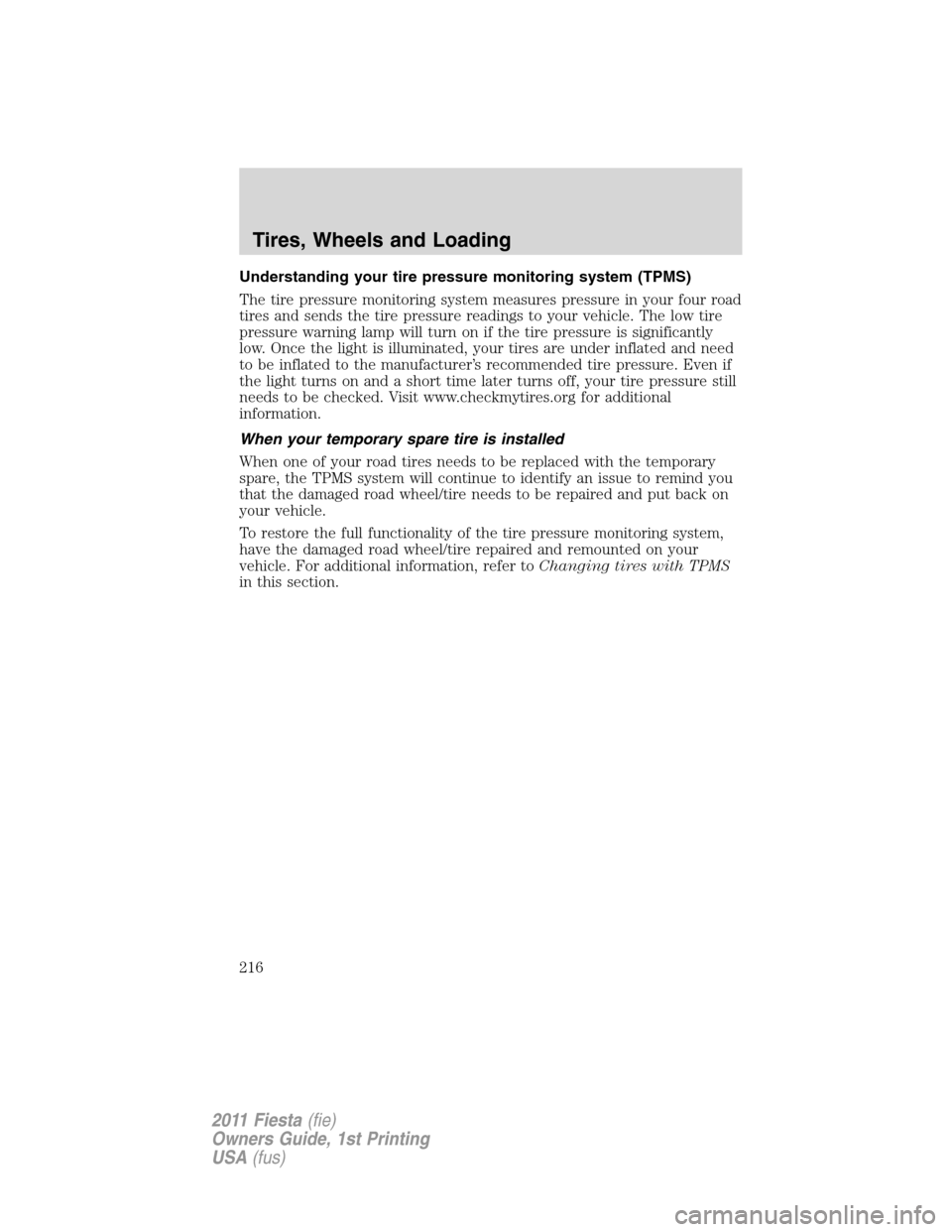

FORD FIESTA 2011 6.G Owners Manual Understanding your tire pressure monitoring system (TPMS)
The tire pressure monitoring system measures pressure in your four road
tires and sends the tire pressure readings to your vehicle. The low ti
