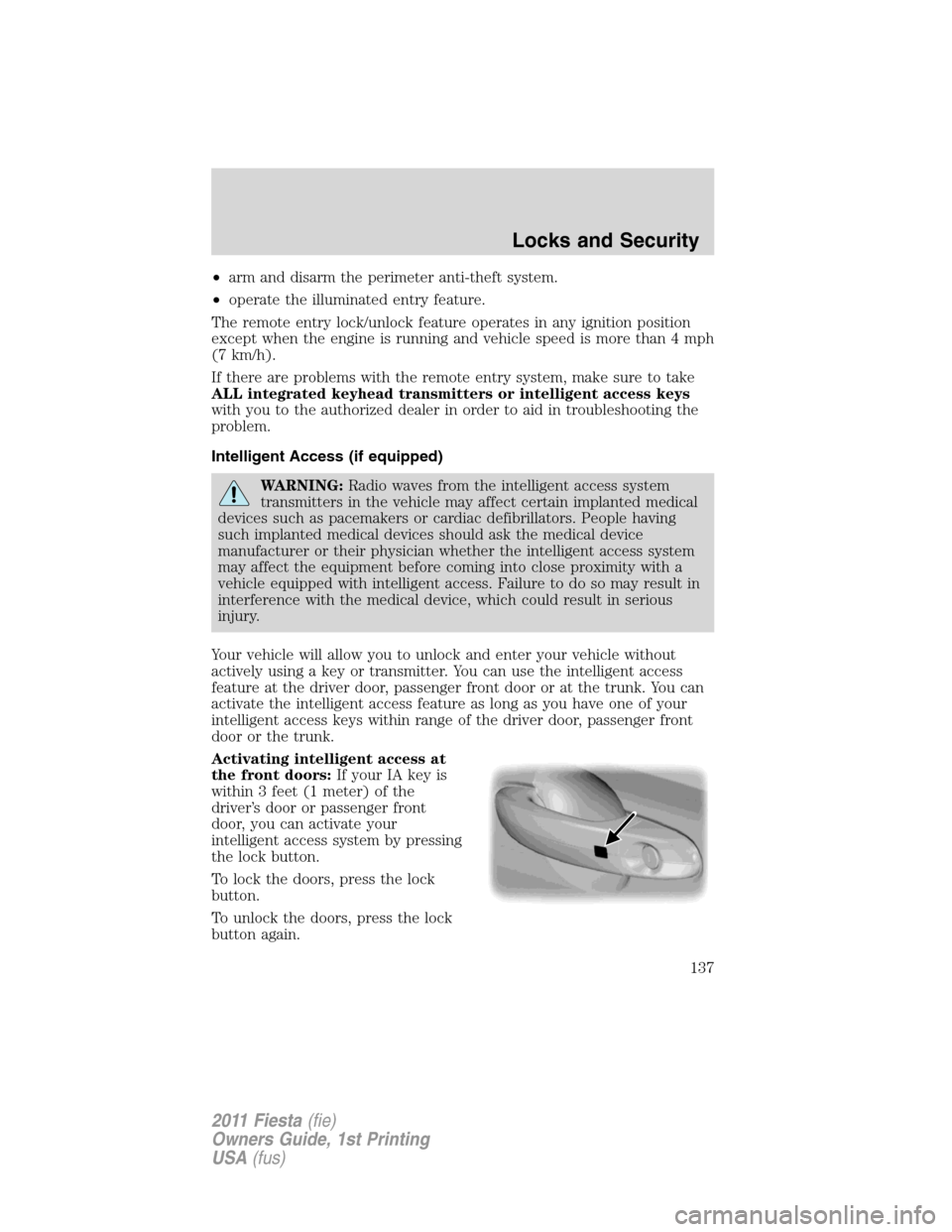

Page 137 of 357

•arm and disarm the perimeter anti-theft system.
•operate the illuminated entry feature.
The remote entry lock/unlock feature operates in any ignition position
except when the engine is running and vehicle speed is more than 4 mph
(7 km/h).
If there are problems with the remote entry system, make sure to take
ALL integrated keyhead transmitters or intelligent access keys
with you to the authorized dealer in order to aid in troubleshooting the
problem.
Intelligent Access (if equipped)
WARNING:Radio waves from the intelligent access system
transmitters in the vehicle may affect certain implanted medical
devices such as pacemakers or cardiac defibrillators. People having
such implanted medical devices should ask the medical device
manufacturer or their physician whether the intelligent access system
may affect the equipment before coming into close proximity with a
vehicle equipped with intelligent access. Failure to do so may result in
interference with the medical device, which could result in serious
injury.
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or transmitter. You can use the intelligent access
feature at the driver door, passenger front door or at the trunk. You can
activate the intelligent access feature as long as you have one of your
intelligent access keys within range of the driver door, passenger front
door or the trunk.
Activating intelligent access at
the front doors:If your IA key is
within 3 feet (1 meter) of the
driver’s door or passenger front
door, you can activate your
intelligent access system by pressing
the lock button.
To lock the doors, press the lock
button.
To unlock the doors, press the lock
button again.
Locks and Security
137
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 138 of 357

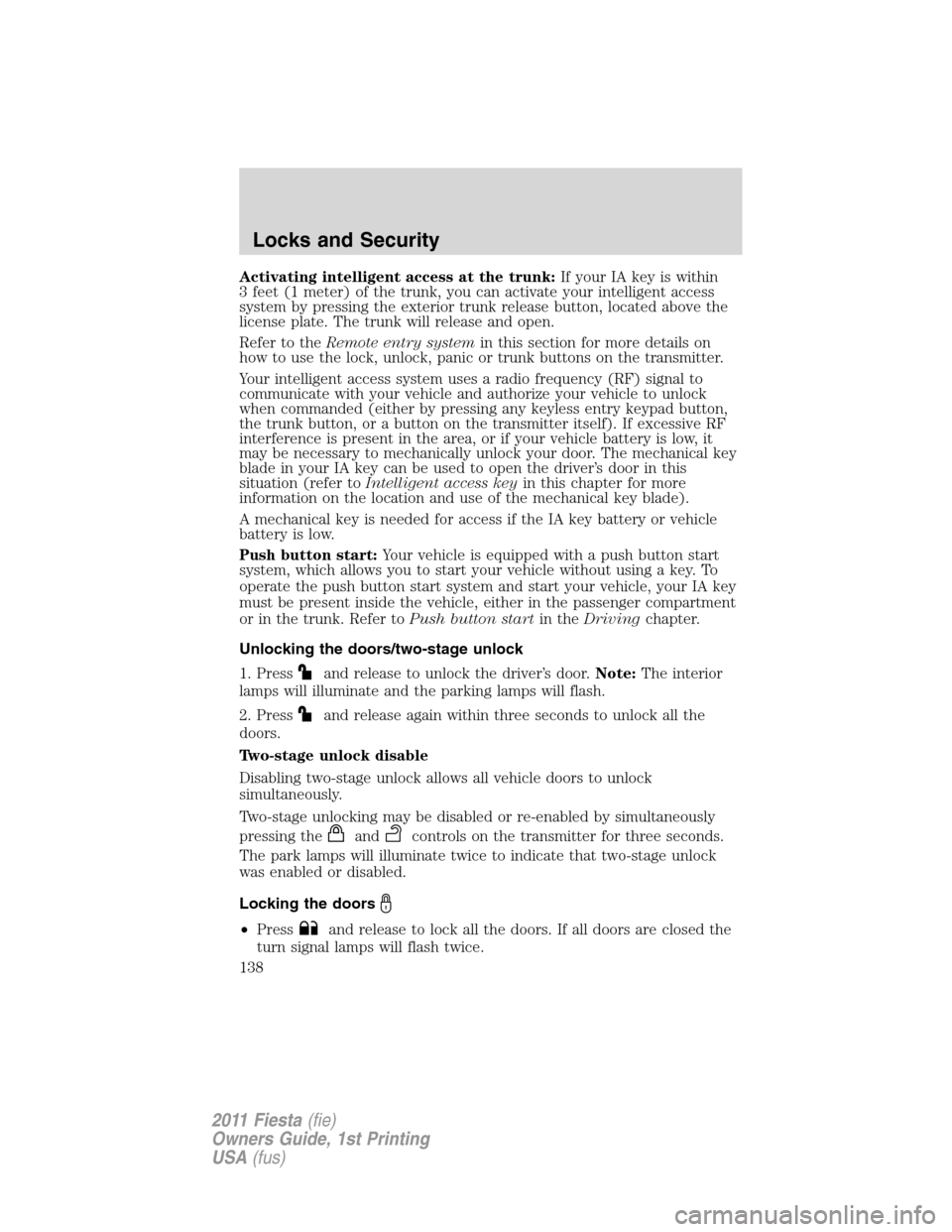

Activating intelligent access at the trunk:If your IA key is within
3 feet (1 meter) of the trunk, you can activate your intelligent access
system by pressing the exterior trunk release button, located above the
license plate. The trunk will release and open.
Refer to theRemote entry systemin this section for more details on
how to use the lock, unlock, panic or trunk buttons on the transmitter.
Your intelligent access system uses a radio frequency (RF) signal to
communicate with your vehicle and authorize your vehicle to unlock
when commanded (either by pressing any keyless entry keypad button,
the trunk button, or a button on the transmitter itself). If excessive RF
interference is present in the area, or if your vehicle battery is low, it
may be necessary to mechanically unlock your door. The mechanical key
blade in your IA key can be used to open the driver’s door in this
situation (refer toIntelligent access keyin this chapter for more
information on the location and use of the mechanical key blade).
A mechanical key is needed for access if the IA key battery or vehicle
battery is low.
Push button start:Your vehicle is equipped with a push button start
system, which allows you to start your vehicle without using a key. To
operate the push button start system and start your vehicle, your IA key
must be present inside the vehicle, either in the passenger compartment
or in the trunk. Refer toPush button startin theDrivingchapter.
Unlocking the doors/two-stage unlock
1. Press
and release to unlock the driver’s door.Note:The interior
lamps will illuminate and the parking lamps will flash.
2. Press
and release again within three seconds to unlock all the
doors.
Two-stage unlock disable
Disabling two-stage unlock allows all vehicle doors to unlock
simultaneously.
Two-stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the transmitter for three seconds.
The park lamps will illuminate twice to indicate that two-stage unlock
was enabled or disabled.
Locking the doors
•Pressand release to lock all the doors. If all doors are closed the
turn signal lamps will flash twice.
Locks and Security
138
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 139 of 357

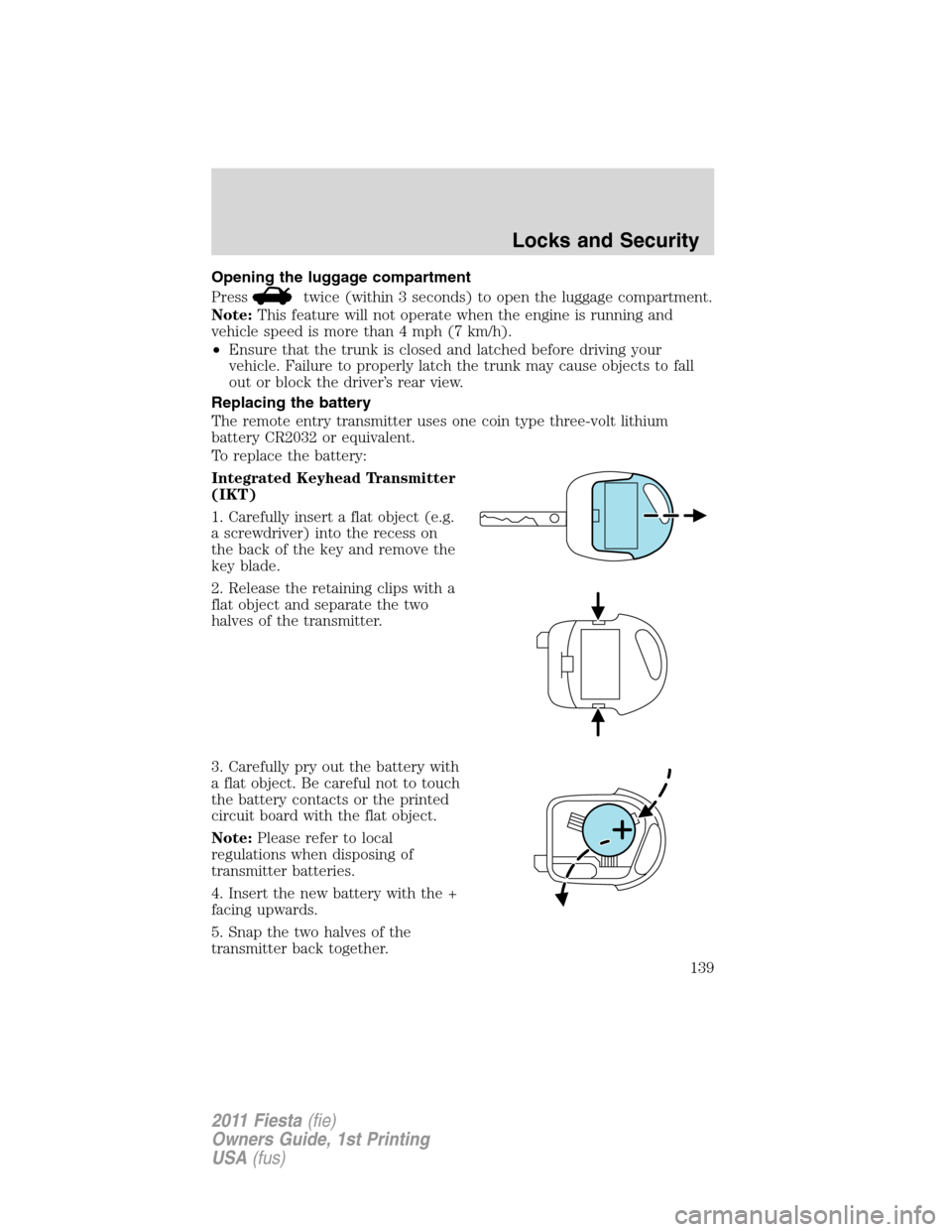

Opening the luggage compartment
Press
twice (within 3 seconds) to open the luggage compartment.
Note:This feature will not operate when the engine is running and
vehicle speed is more than 4 mph (7 km/h).
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
Integrated Keyhead Transmitter
(IKT)
1. Carefully insert a flat object (e.g.
a screwdriver) into the recess on
the back of the key and remove the
key blade.
2. Release the retaining clips with a
flat object and separate the two
halves of the transmitter.
3. Carefully pry out the battery with
a flat object. Be careful not to touch
the battery contacts or the printed
circuit board with the flat object.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery with the +
facing upwards.
5. Snap the two halves of the
transmitter back together.
Locks and Security
139
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 140 of 357

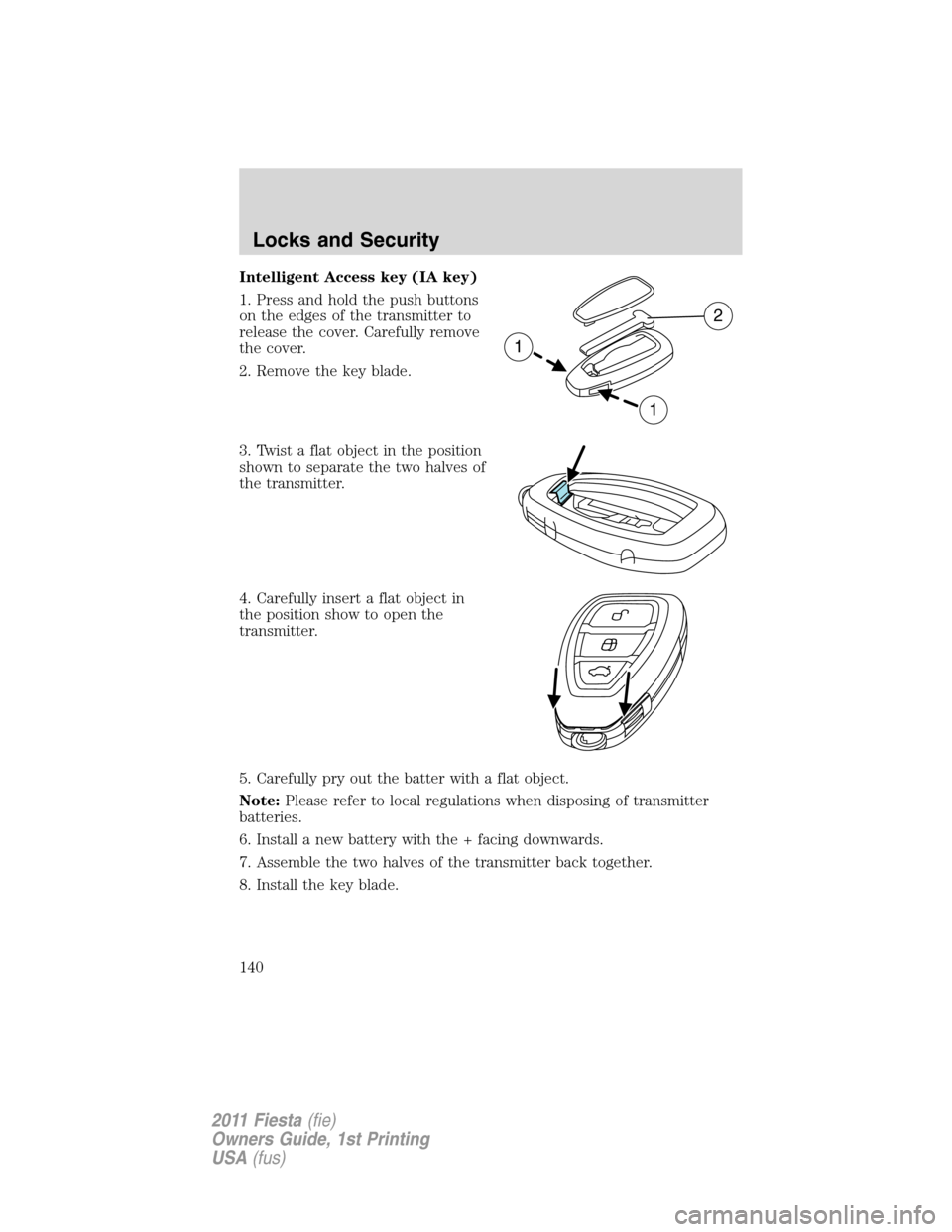

Intelligent Access key (IA key)
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
3. Twist a flat object in the position
shown to separate the two halves of
the transmitter.
4. Carefully insert a flat object in
the position show to open the
transmitter.
5. Carefully pry out the batter with a flat object.
Note:Please refer to local regulations when disposing of transmitter
batteries.
6. Install a new battery with the + facing downwards.
7. Assemble the two halves of the transmitter back together.
8. Install the key blade.
1
1
2
Locks and Security
140
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 141 of 357

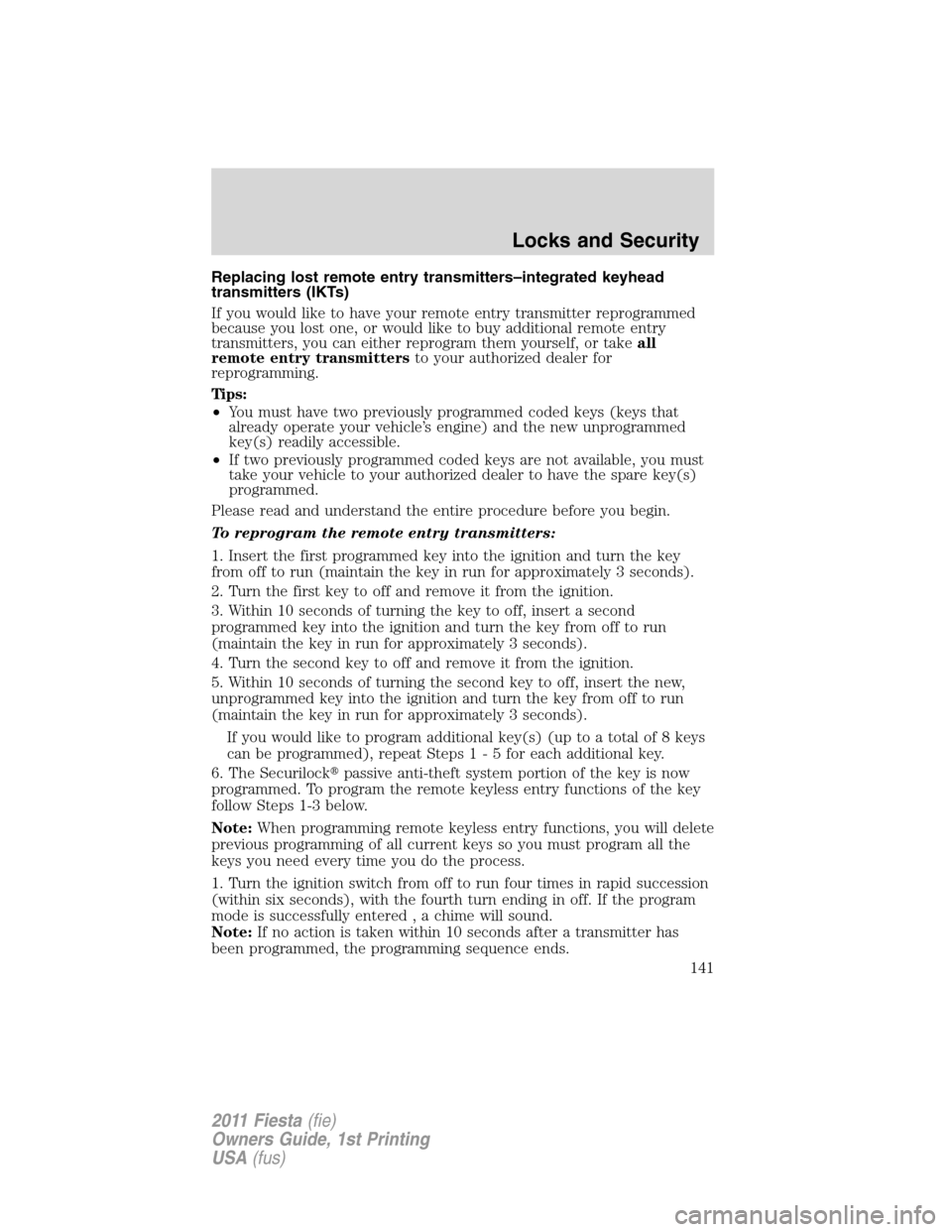

Replacing lost remote entry transmitters–integrated keyhead
transmitters (IKTs)
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
Tips:
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
To reprogram the remote entry transmitters:
1. Insert the first programmed key into the ignition and turn the key
from off to run (maintain the key in run for approximately 3 seconds).
2. Turn the first key to off and remove it from the ignition.
3. Within 10 seconds of turning the key to off, insert a second
programmed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
4. Turn the second key to off and remove it from the ignition.
5. Within 10 seconds of turning the second key to off, insert the new,
unprogrammed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
If you would like to program additional key(s) (up to a total of 8 keys
can be programmed), repeat Steps1-5foreach additional key.
6. The Securilockpassive anti-theft system portion of the key is now
programmed. To program the remote keyless entry functions of the key
follow Steps 1-3 below.
Note:When programming remote keyless entry functions, you will delete
previous programming of all current keys so you must program all the
keys you need every time you do the process.
1. Turn the ignition switch from off to run four times in rapid succession
(within six seconds), with the fourth turn ending in off. If the program
mode is successfully entered , a chime will sound.
Note:If no action is taken within 10 seconds after a transmitter has
been programmed, the programming sequence ends.
Locks and Security
141
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 142 of 357

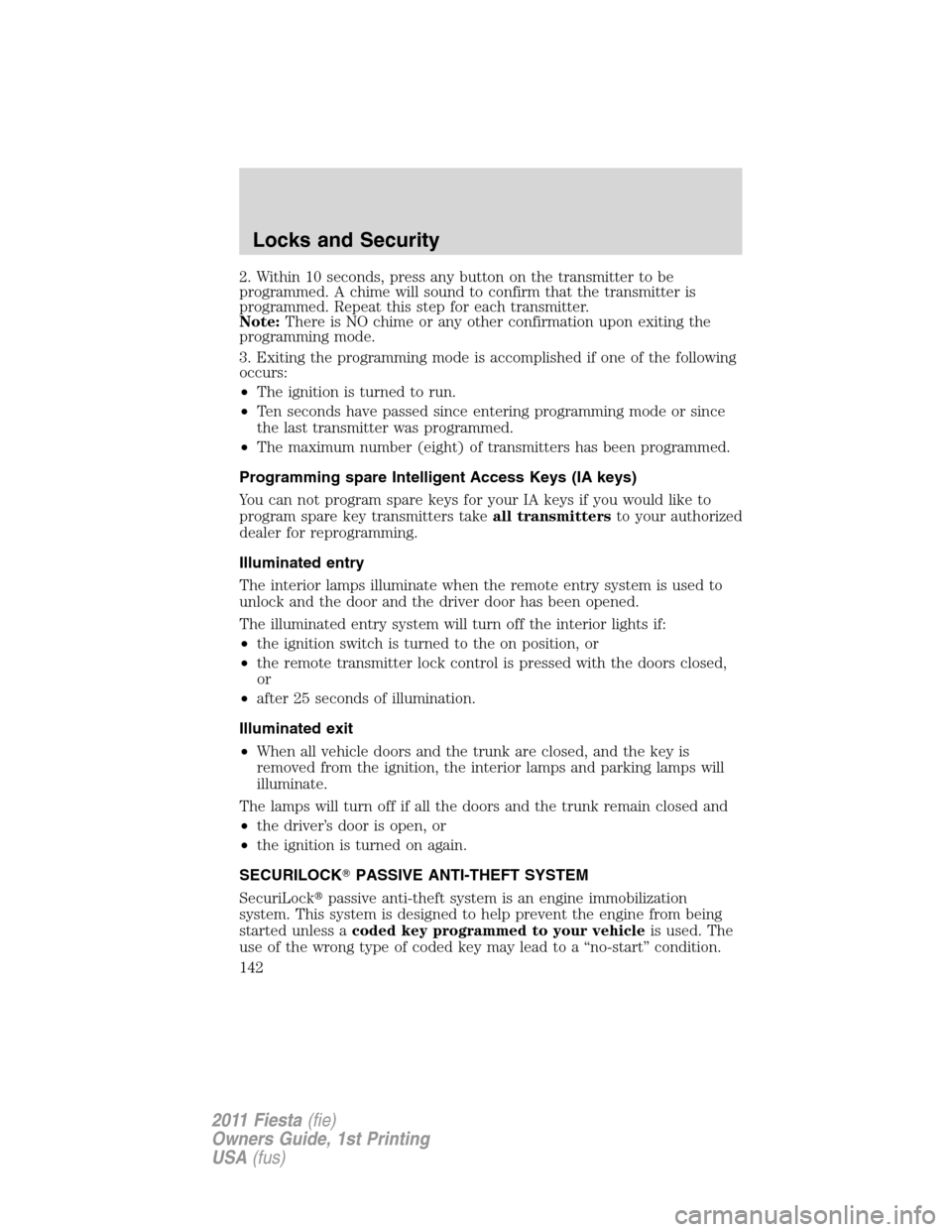

2. Within 10 seconds, press any button on the transmitter to be
programmed. A chime will sound to confirm that the transmitter is
programmed. Repeat this step for each transmitter.
Note:There is NO chime or any other confirmation upon exiting the
programming mode.
3. Exiting the programming mode is accomplished if one of the following
occurs:
•The ignition is turned to run.
•Ten seconds have passed since entering programming mode or since
the last transmitter was programmed.
•The maximum number (eight) of transmitters has been programmed.
Programming spare Intelligent Access Keys (IA keys)
You can not program spare keys for your IA keys if you would like to
program spare key transmitters takeall transmittersto your authorized
dealer for reprogramming.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock and the door and the driver door has been opened.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on position, or
•the remote transmitter lock control is pressed with the doors closed,
or
•after 25 seconds of illumination.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior lamps and parking lamps will
illuminate.
The lamps will turn off if all the doors and the trunk remain closed and
•the driver’s door is open, or
•the ignition is turned on again.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Locks and Security
142
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 143 of 357

Your vehicle comes with two coded keys; additional coded keys may be
purchased from and programmed by your authorized dealer.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Anti-theft indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is in the off
position, the indicator will flash
once every two seconds to
indicate the SecuriLocksystem
is functioning as a theft
deterrent.
•When the ignition is in the on position, the indicator will glow for
three seconds, then turn off, to indicate normal system functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, turn the ignition off then back to on to make sure there was no
electronic interference with the programmed key. If the vehicle doesn’t
start, try to start it with the 2nd programmed key and if successful
contact your authorized dealership for key replacement. If the indicator
still flashes rapidly or glows steadily, and the vehicle will not start,
contact your authorized dealer as soon as possible for service.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
Automatic disarming
Switching the ignition to the on position with acoded keydisarms the
vehicle.
Locks and Security
143
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 144 of 357

Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the lock control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the on or start position with a programmed coded
ignition key.
Pressing the power door unlock control within the 20 second pre-armed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
Locks and Security
144
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
