HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the low beam headlamps
on.
High beams
Pull the lever to the second detent
to activate. Pull the lever again to
deactivate.
Flash-to-pass
Pull the lever toward you slightly to activate and release to deactivate.
Headlamp exit delay
Switch the ignition off and pull the lever toward you slightly to activate.
You will hear a short tone.
The headlamps will turn off automatically after 3 minutes with any door
open or 30 seconds after the last door has been closed. With all doors
closed, but within the 30 second delay, opening any door will result in
the three minute timer starting again.
The headlamp exit delay can be cancelled by either pulling the lever
towards the steering wheel again or buy turning the ignition switch on.
Lights
105
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 106 of 357

Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the headlamp control is in the off or parking lamp position.
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
Battery saver feature (exterior lamps)
The battery saver feature turns off the headlamps 10 minutes after the
ignition has been turned to the 1 (off) position.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tapthetoporbottomofthe
control to brighten/dim all interior
lit components incrementally, or
•Press and hold at the first position the top or bottom of the control
until the desired lighting level is reached.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Lights
106
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 107 of 357

Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line. If not, the beam will
need to be adjusted.
5. Locate the vertical adjuster on
each headlamp, then use a Phillips
#2 screwdriver or 10 mm
wrench/socket to adjust the
headlamp up or down.
6. Close the hood and turn off the
lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
Lights
107
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 108 of 357

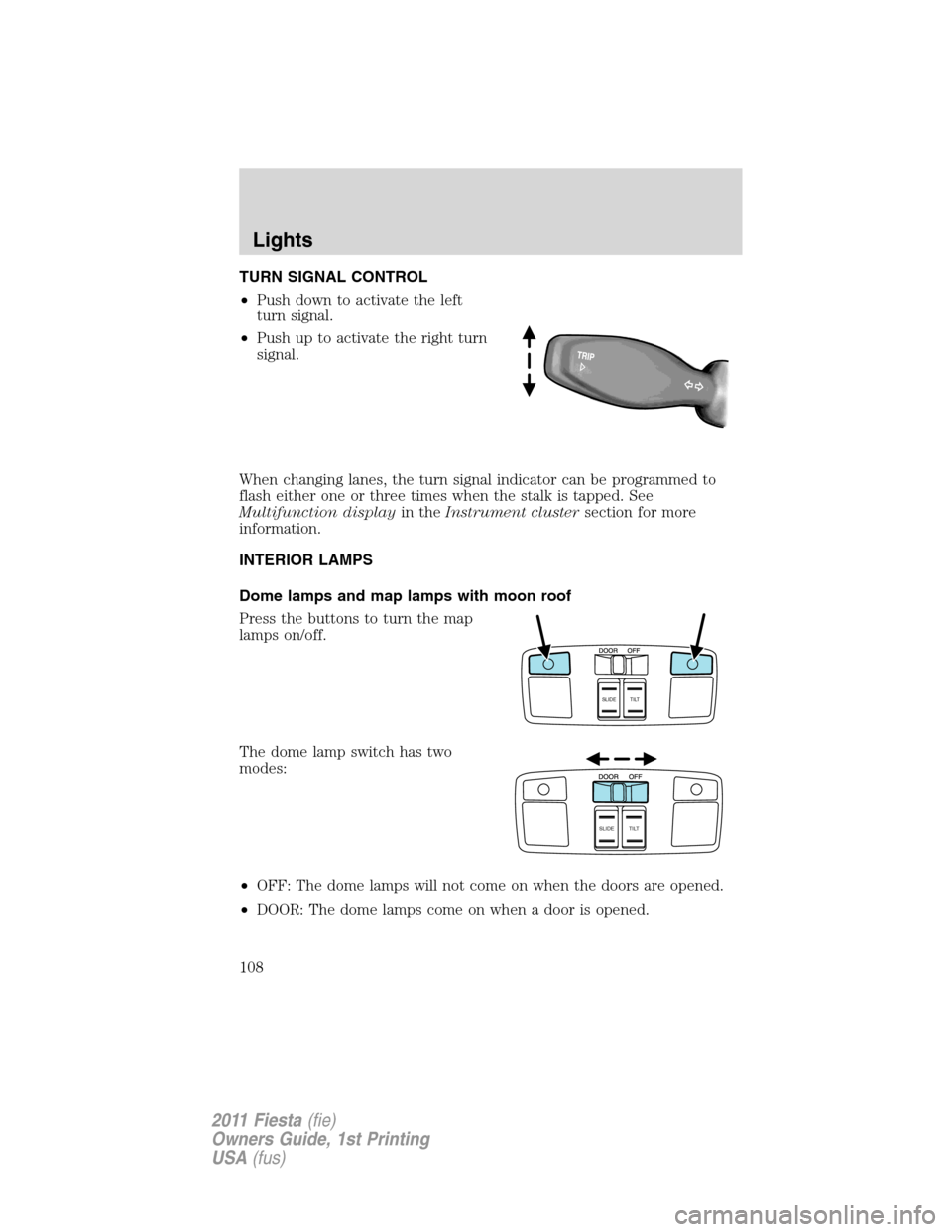

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
When changing lanes, the turn signal indicator can be programmed to
flash either one or three times when the stalk is tapped. See
Multifunction displayin theInstrument clustersection for more
information.
INTERIOR LAMPS
Dome lamps and map lamps with moon roof
Press the buttons to turn the map
lamps on/off.
The dome lamp switch has two
modes:
•OFF: The dome lamps will not come on when the doors are opened.
•DOOR: The dome lamps come on when a door is opened.
SLIDE TILT
SLIDE TILT
Lights
108
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 109 of 357

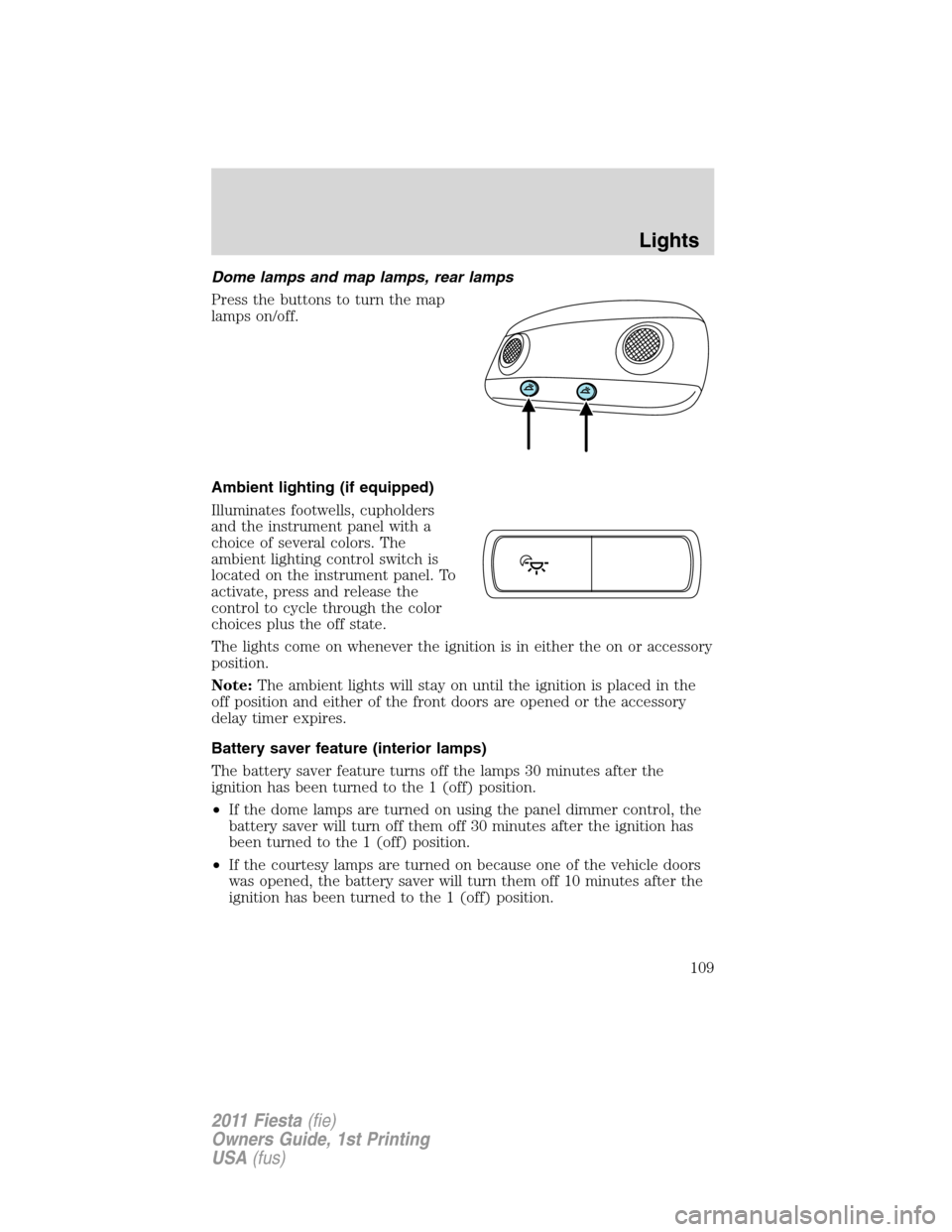

Dome lamps and map lamps, rear lamps
Press the buttons to turn the map
lamps on/off.
Ambient lighting (if equipped)
Illuminates footwells, cupholders
and the instrument panel with a
choice of several colors. The
ambient lighting control switch is
located on the instrument panel. To
activate, press and release the
control to cycle through the color
choices plus the off state.
The lights come on whenever the ignition is in either the on or accessory
position.
Note:The ambient lights will stay on until the ignition is placed in the
off position and either of the front doors are opened or the accessory
delay timer expires.
Battery saver feature (interior lamps)
The battery saver feature turns off the lamps 30 minutes after the
ignition has been turned to the 1 (off) position.
•If the dome lamps are turned on using the panel dimmer control, the
battery saver will turn off them off 30 minutes after the ignition has
been turned to the 1 (off) position.
•If the courtesy lamps are turned on because one of the vehicle doors
was opened, the battery saver will turn them off 10 minutes after the
ignition has been turned to the 1 (off) position.
Lights
109
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 110 of 357

BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbs Trade number
Headlamp (low beam) 1 H11B
Headlamp (high beam) 1 HB3-9005LL
Headlamp (park/turn) 1 3157A
(amber)
Headlamp (side
marker)1
168
Lights
110
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 111 of 357

Function Number of bulbs Trade number
4-door rear bodyside
lamp
(park/turn/sidemarker)1 3157K
4-door rear deck lamp
(backup)1 921
5-door rear lamp
(stop/reverse)2 3157K
5-door rear lamp
(turn)1 3157A
(amber)
License plate lamp 1 W5W
* High-mount brake
lamp1 LED
Interior lamp 1 W6W
Reading lamp 1 W5W
Luggage compartment
lamp1 W5W
To replace all instrument panel lights - see your authorized dealer.
All replacement bulbs are clear in color, except where noted.
* To replace these lamps, see your authorized dealer.
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing bulbs
Note:Before changing bulb, verify the corresponding fuse is not blown.
The low beam headlamps, high beam headlamps, front turn signals and
side marker lamps are located in the lamp assembly and can be replaced
individually by removing the lamp assembly as a unit.
Removing the front lamp assembly
Note:The front lamp assembly must be removed in order to replace
bulbs.
Lights
111
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 112 of 357
1. Make sure the headlamp control
is in the off position, then open the
hood.
2. Remove the screws and pushpin
holding the lamp assembly (1).
(Driver side shown)
3. Detach the lamp harness clips
from the lamp assembly and
disconnect the electrical connectors
(2).
4. Remove the lamp assembly (3).
Note:When lamp is removed, you
will hear a clicking sound.
5. Reverse the procedure to install
the lamp assembly.
Note:When installing the front
lamp assembly, the front flange must
be placed under the fascia. Ensure
that the bottom tab gets placed into
the white clip.
Replacing the low beam headlamps
Note:The low beam headlamp is the outboard lamp.
Note:Never hold a bulb by the glass. This is particularly valid for
halogen bulbs as the intensity of the light may be reduced if the hands
touch the bulb. If the glass has been handled, clean it with alcohol.
