2011 FORD FIESTA Owners Manual

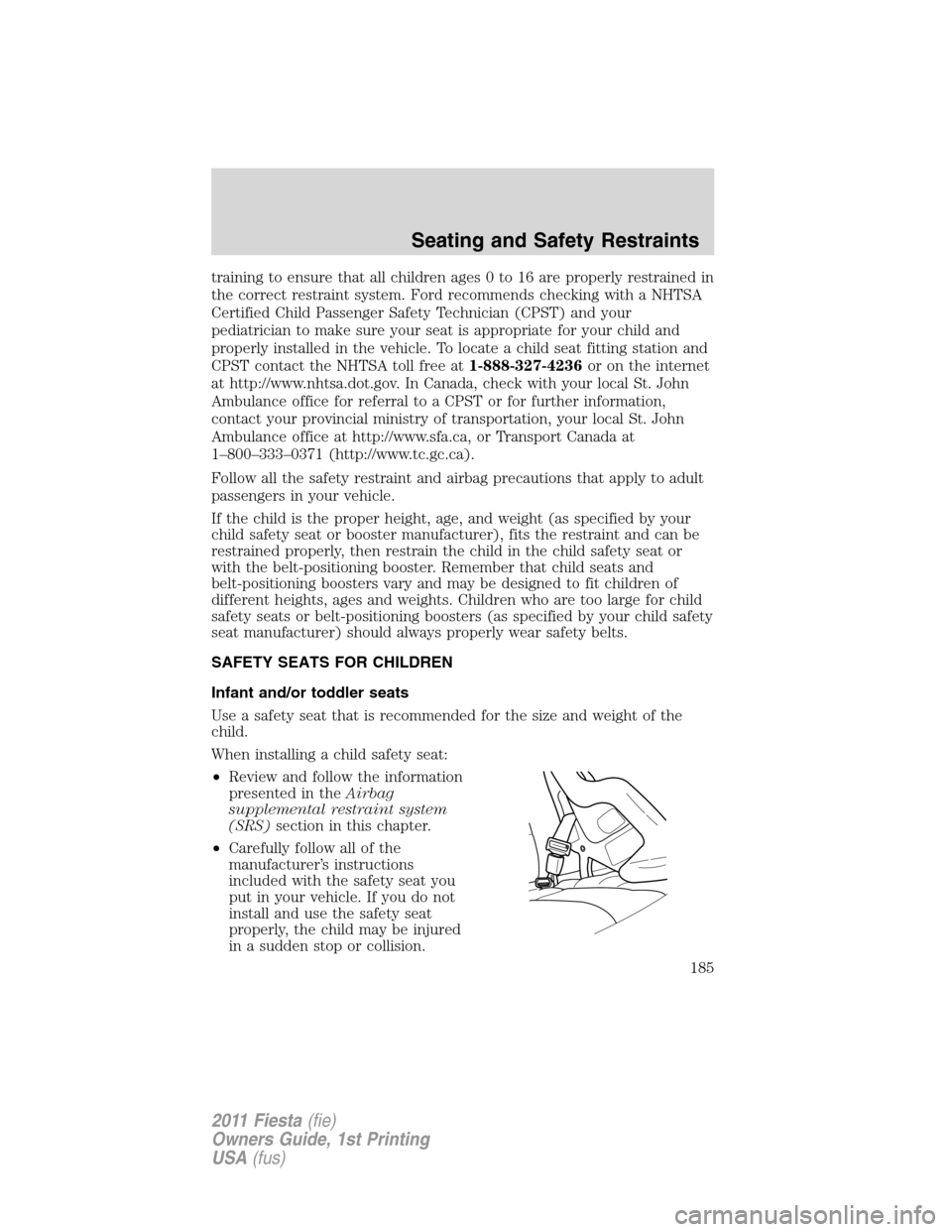

Page 185 of 357

FORD FIESTA 2011 6.G Owners Manual training to ensure that all children ages 0 to 16 are properly restrained in
the correct restraint system. Ford recommends checking with a NHTSA
Certified Child Passenger Safety Technician (CPST) and

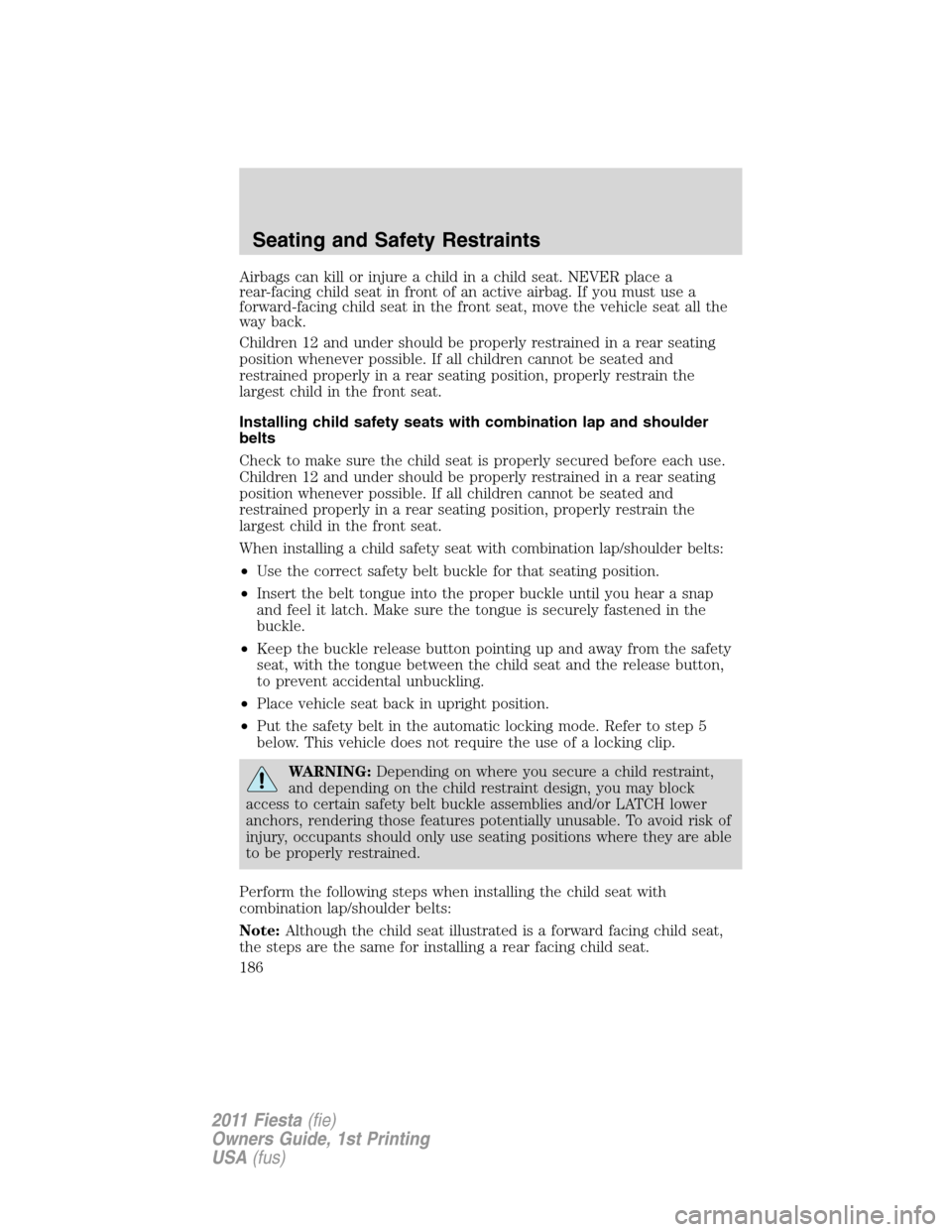

Page 186 of 357

FORD FIESTA 2011 6.G Owners Manual Airbags can kill or injure a child in a child seat. NEVER place a
rear-facing child seat in front of an active airbag. If you must use a
forward-facing child seat in the front seat, move the vehicle s

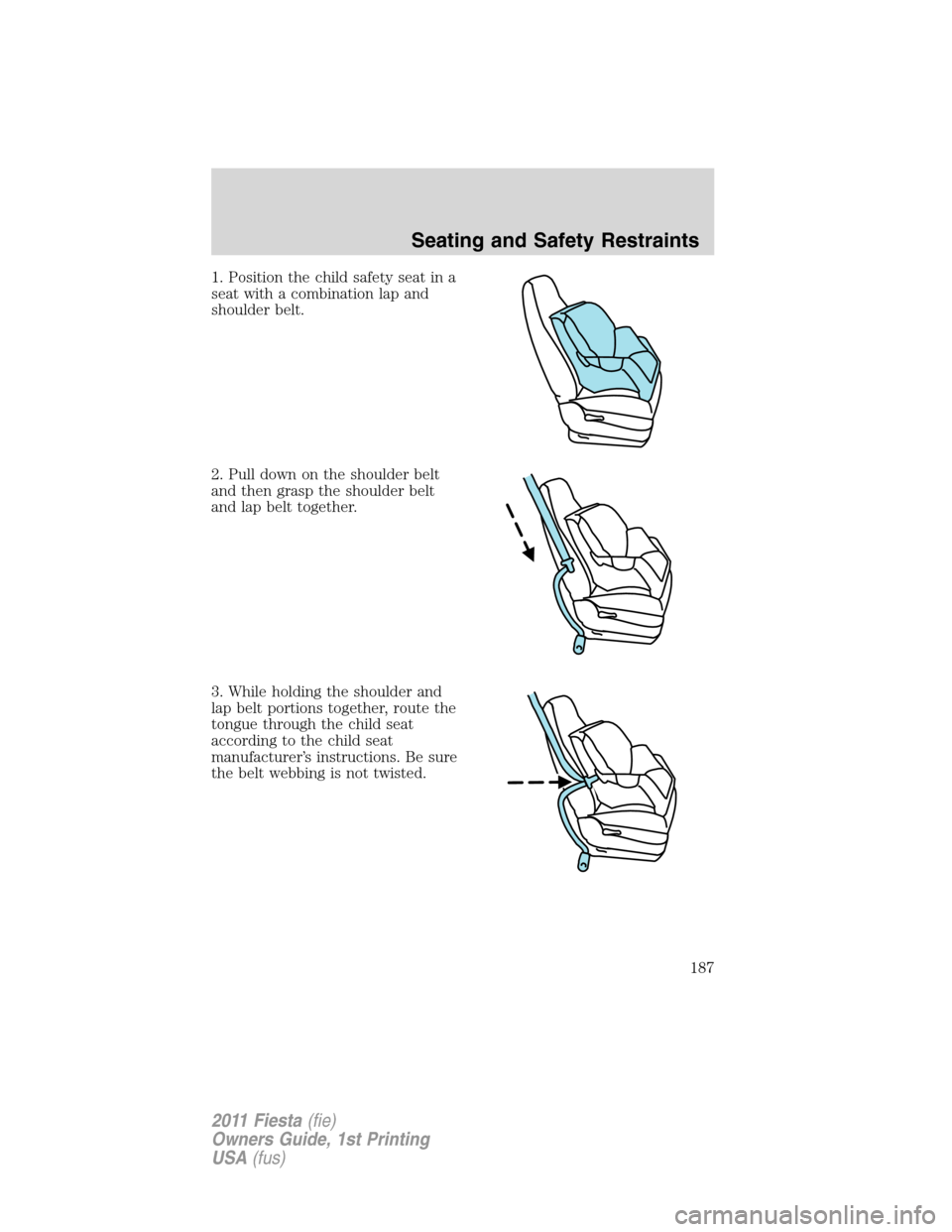

Page 187 of 357

FORD FIESTA 2011 6.G Owners Manual 1. Position the child safety seat in a
seat with a combination lap and
shoulder belt.
2. Pull down on the shoulder belt
and then grasp the shoulder belt
and lap belt together.
3. While holding the sho

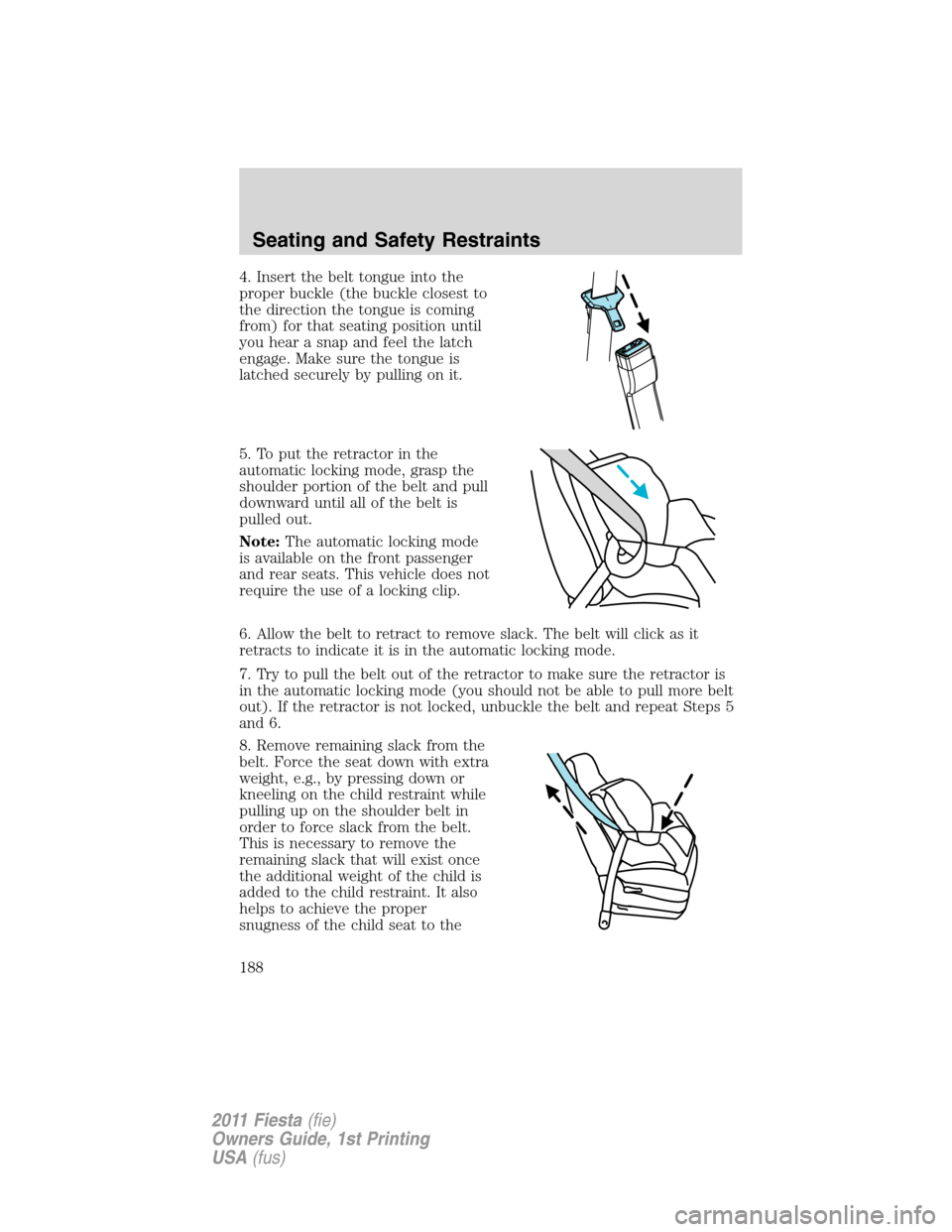

Page 188 of 357

FORD FIESTA 2011 6.G Owners Manual 4. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) for that seating position until
you hear a snap and feel the latch
engage. Make sure th

Page 189 of 357

FORD FIESTA 2011 6.G Owners Manual vehicle. Sometimes, a slight lean towards the buckle will additionally help
to remove remaining slack from the belt.
9. Attach the tether strap (if the child seat is equipped). Refer to
Attaching chil

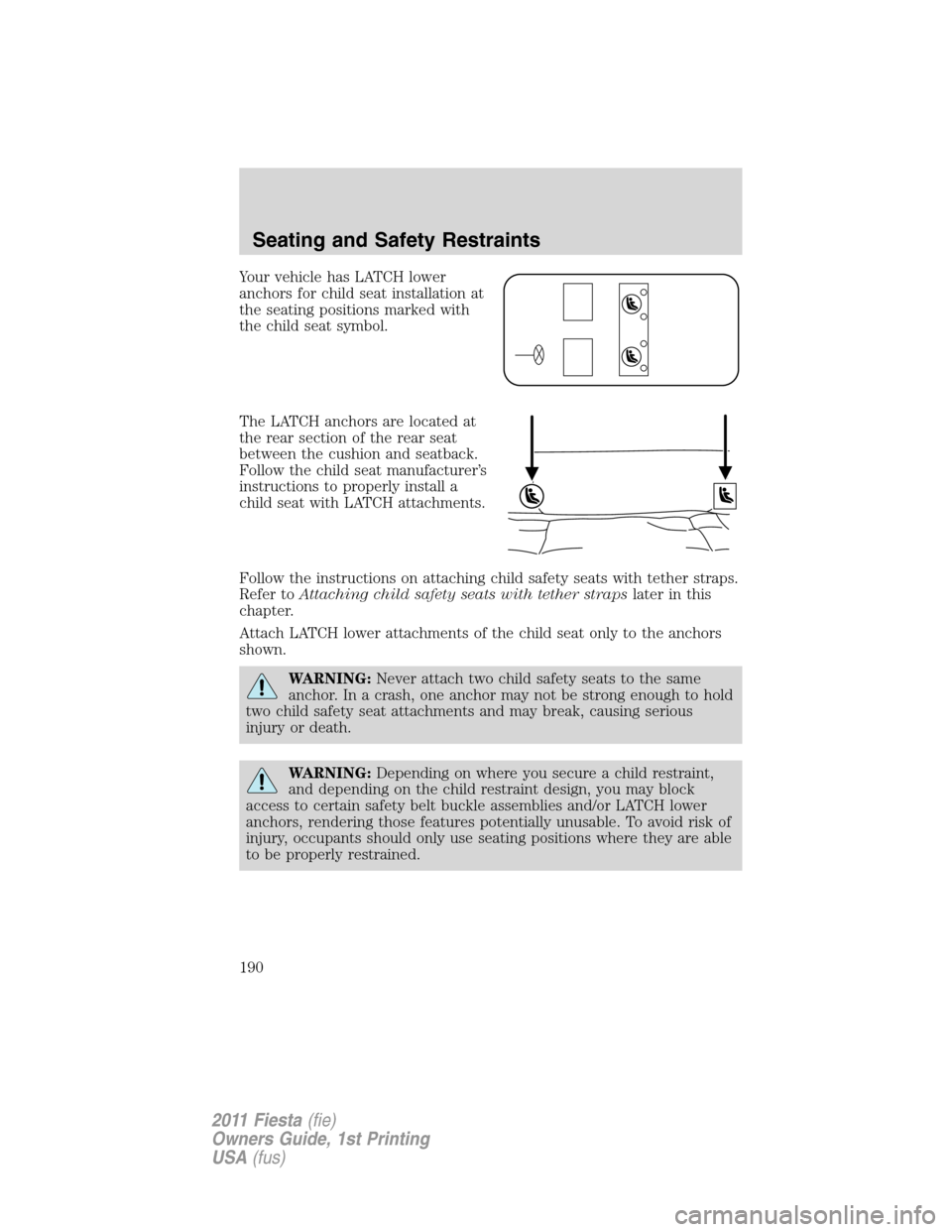

Page 190 of 357

FORD FIESTA 2011 6.G Owners Manual Your vehicle has LATCH lower
anchors for child seat installation at
the seating positions marked with
the child seat symbol.
The LATCH anchors are located at
the rear section of the rear seat
between

Page 191 of 357

FORD FIESTA 2011 6.G Owners Manual Use of inboard lower anchors from the outboard seating positions
(center seating use)
The lower anchors at the center of the second row rear seat are spaced
390 mm (15 inches) apart. The standardized

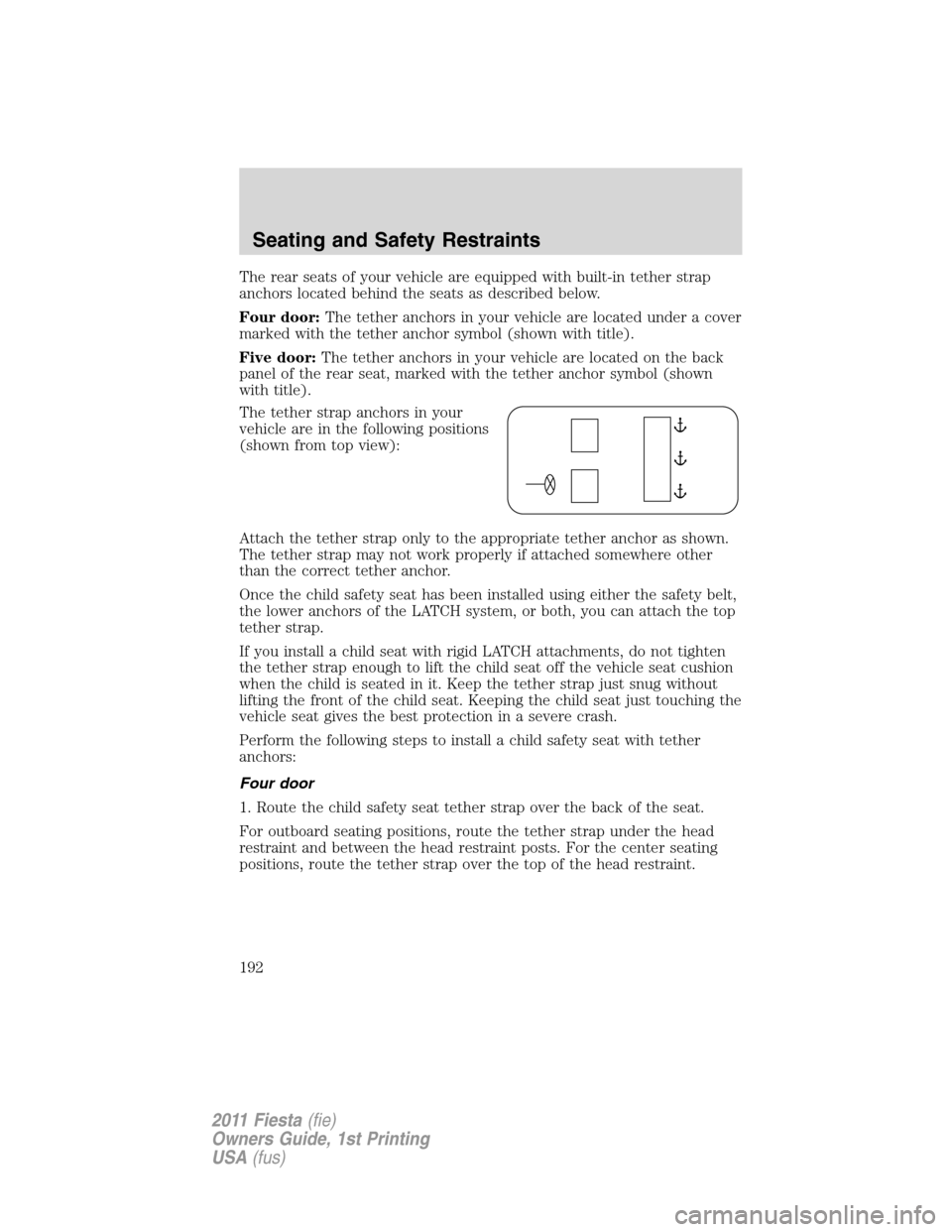

Page 192 of 357

FORD FIESTA 2011 6.G Owners Manual The rear seats of your vehicle are equipped with built-in tether strap
anchors located behind the seats as described below.
Four door:The tether anchors in your vehicle are located under a cover
marke
