Page 129 of 357
To open the moon roof:Press and
hold the rear of the SLIDE control.
If the sliding shade is closed, it will
open along with the moon roof.
To close the moon roof:Press and
hold the front of the SLIDE control.
To vent the moon roof:Press and
hold the rear of the TILT control.
Press and hold the front of the TILT control to close the moon roof.
The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut.
POSITIVE RETENTION FLOOR MAT
WARNING:Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelet is over the retention post and
press down to lock in. Make sure
that the mat does not interfere with
the operation of the accelerator or
the brake pedal. To remove the floor
mat, reverse the installation
procedure.
Driver Controls
129
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 130 of 357

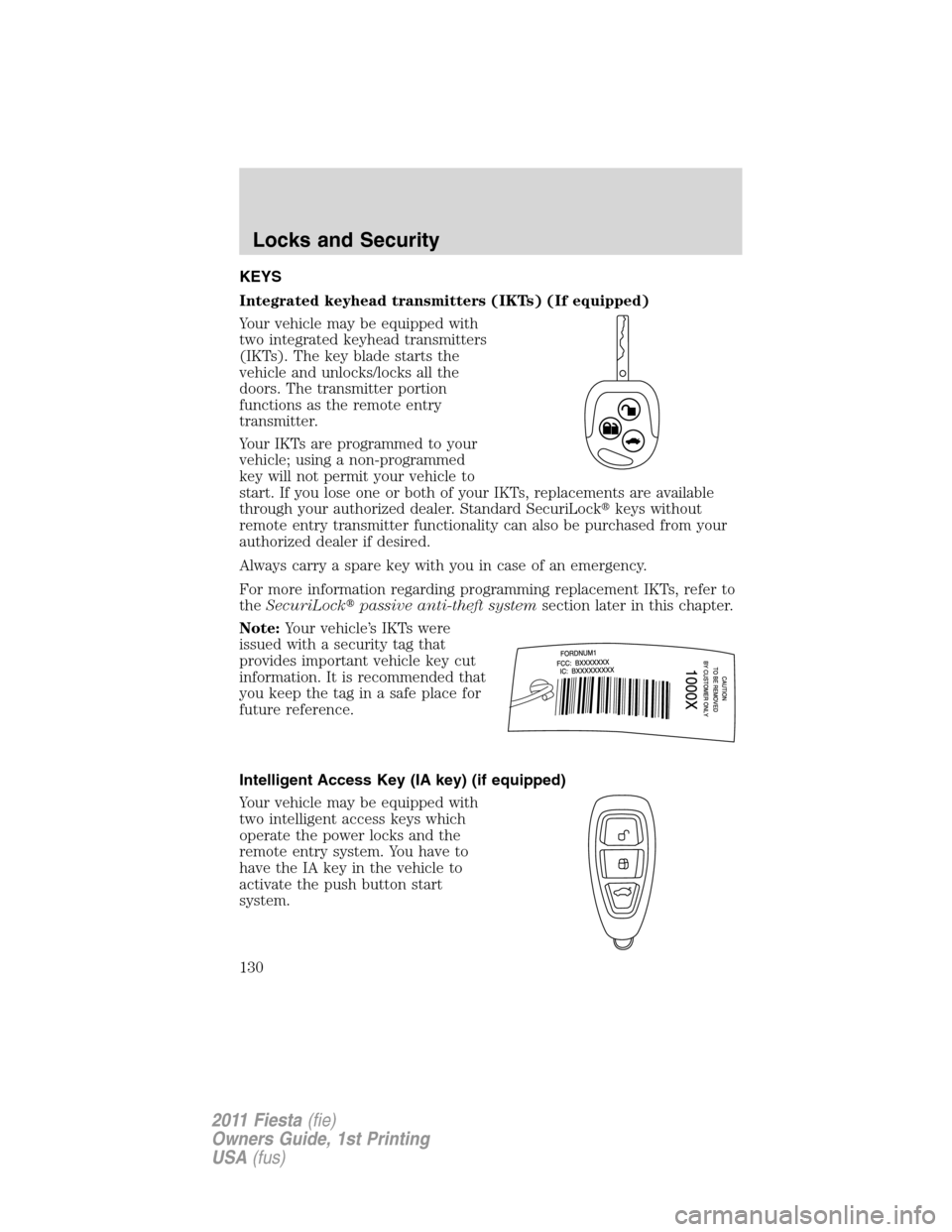

KEYS
Integrated keyhead transmitters (IKTs) (If equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade starts the
vehicle and unlocks/locks all the
doors. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your
vehicle; using a non-programmed
key will not permit your vehicle to
start. If you lose one or both of your IKTs, replacements are available
through your authorized dealer. Standard SecuriLockkeys without
remote entry transmitter functionality can also be purchased from your
authorized dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote entry system. You have to
have the IA key in the vehicle to
activate the push button start
system.
Locks and Security
130
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 131 of 357

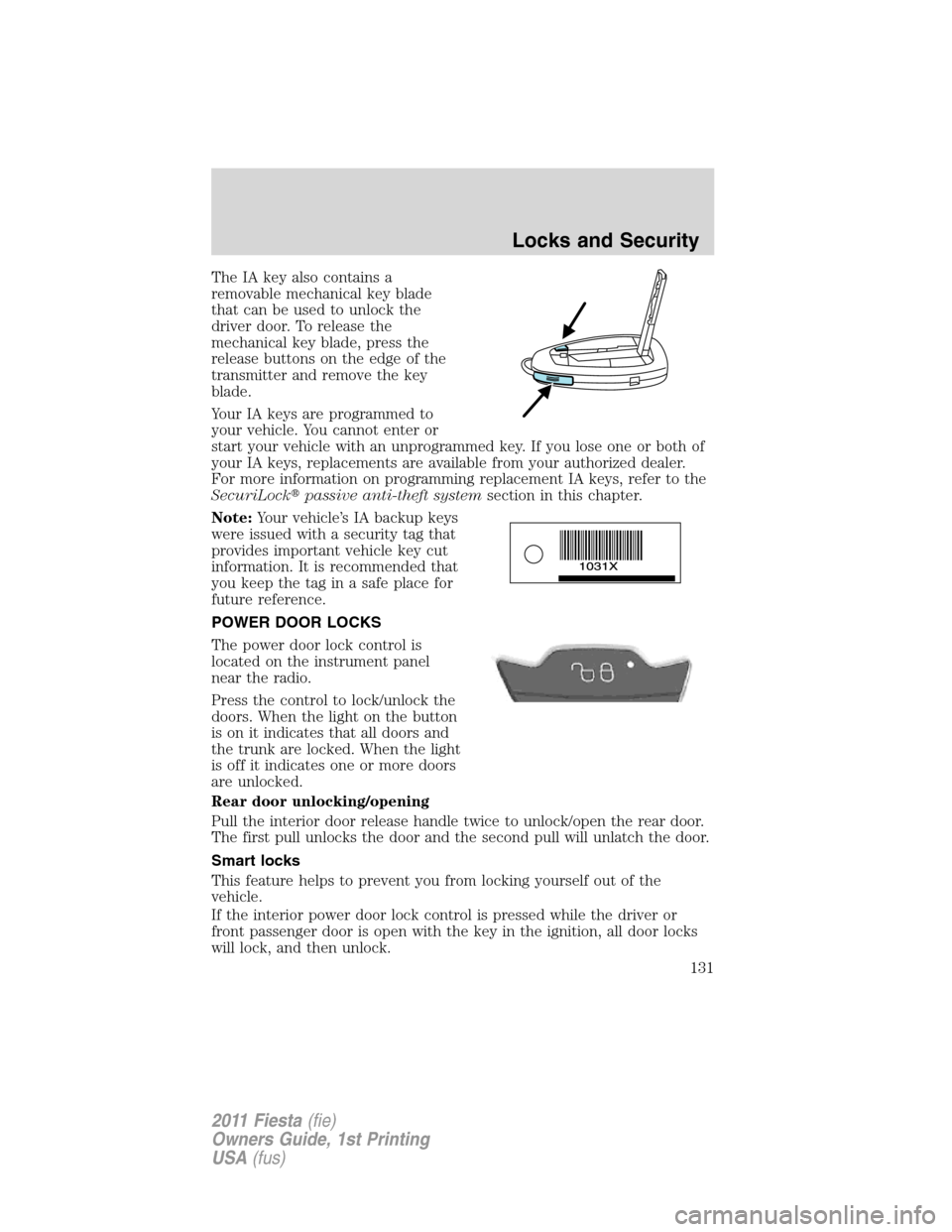

The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, press the
release buttons on the edge of the
transmitter and remove the key
blade.
Your IA keys are programmed to
your vehicle. You cannot enter or
start your vehicle with an unprogrammed key. If you lose one or both of
your IA keys, replacements are available from your authorized dealer.
For more information on programming replacement IA keys, refer to the
SecuriLockpassive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA backup keys
were issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
POWER DOOR LOCKS
The power door lock control is
located on the instrument panel
near the radio.
Press the control to lock/unlock the
doors. When the light on the button
is on it indicates that all doors and
the trunk are locked. When the light
is off it indicates one or more doors
are unlocked.
Rear door unlocking/opening
Pull the interior door release handle twice to unlock/open the rear door.
The first pull unlocks the door and the second pull will unlatch the door.
Smart locks
This feature helps to prevent you from locking yourself out of the
vehicle.
If the interior power door lock control is pressed while the driver or
front passenger door is open with the key in the ignition, all door locks
will lock, and then unlock.
Locks and Security
131
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 132 of 357

If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart locks for intelligent access keys (IA key) (if equipped)
This feature is intended to prevent you from unintentionally locking your
IA key inside your vehicle’s trunk.
If your vehicle’s perimeter alarm is in the armed state, the smart locks
feature will not allow you to lock your IA key inside the trunk. When the
alarm is armed, if the IA key is detected in the trunk, the trunk lid will
automatically be released when you attempt to close it, as a reminder
that the IA key is inside. If you would like to intentionally lock your IA
key in the trunk of your vehicle, first disarm the perimeter alarm by
unlocking the vehicle, then place the IA key in the trunk, close the
trunk, and rearm your perimeter alarm system by locking the vehicle
with the power door locks. For more information on arming/disarming of
the perimeter alarm system, refer toPerimeter alarm systemin this
chapter.
Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
•Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash twice.
•Turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash once.
If the central locking function fails
to operate, the doors can be
individually locked using the key in
the position shown.
On the driver’s side, turn the key
clockwise to lock, and on the
passenger’s side turn the key
counterclockwise to lock.
Delayed Locking
If you try to electrically lock the doors while they are open, they will not
lock until the doors are closed. This feature only works when smart locks
are not active. SeeSmart locksin this section for more information
Locks and Security
132
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 133 of 357

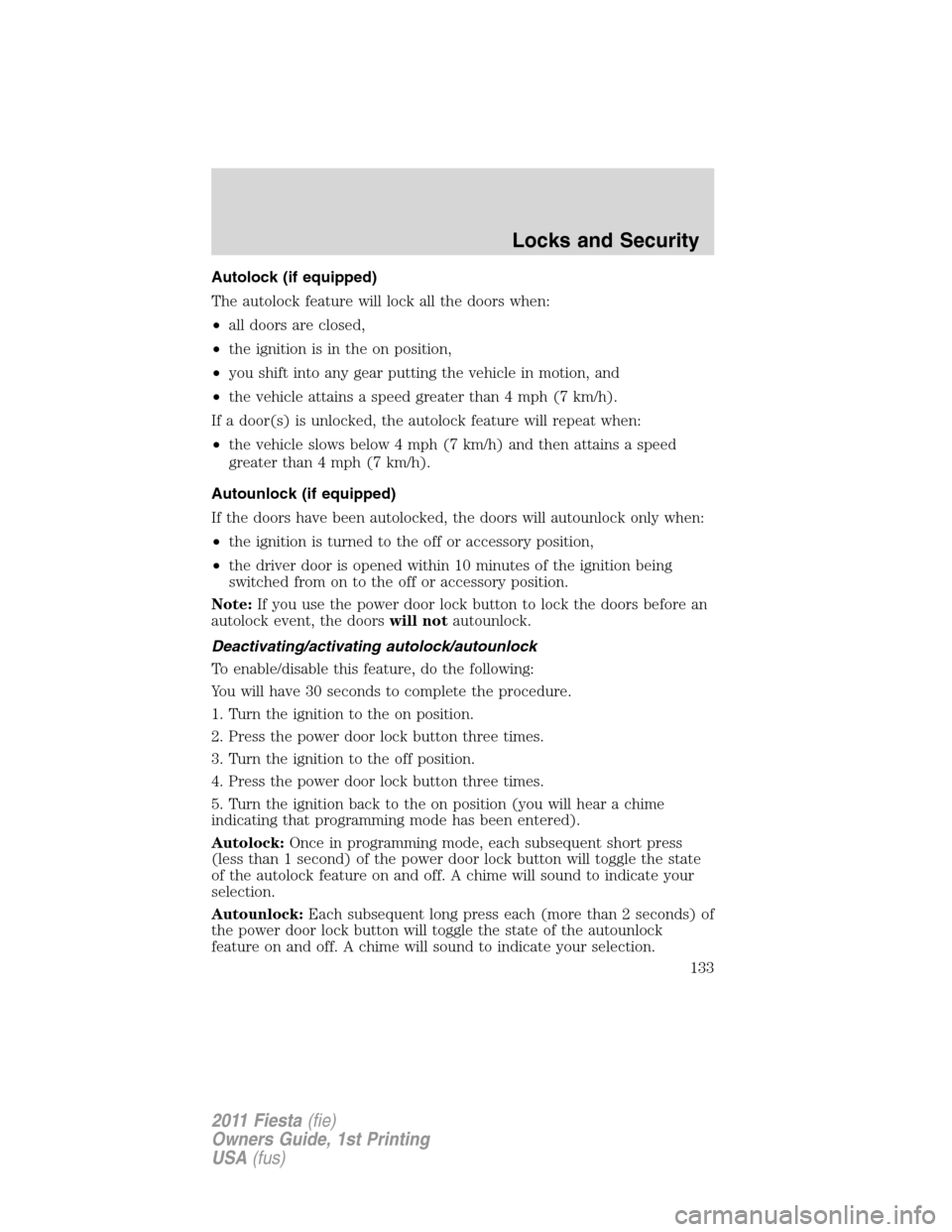

Autolock (if equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 4 mph (7 km/h).
If a door(s) is unlocked, the autolock feature will repeat when:
•the vehicle slows below 4 mph (7 km/h) and then attains a speed
greater than 4 mph (7 km/h).
Autounlock (if equipped)
If the doors have been autolocked, the doors will autounlock only when:
•the ignition is turned to the off or accessory position,
•the driver door is opened within 10 minutes of the ignition being
switched from on to the off or accessory position.
Note:If you use the power door lock button to lock the doors before an
autolock event, the doorswill notautounlock.
Deactivating/activating autolock/autounlock
To enable/disable this feature, do the following:
You will have 30 seconds to complete the procedure.
1. Turn the ignition to the on position.
2. Press the power door lock button three times.
3. Turn the ignition to the off position.
4. Press the power door lock button three times.
5. Turn the ignition back to the on position (you will hear a chime
indicating that programming mode has been entered).
Autolock:Once in programming mode, each subsequent short press
(less than 1 second) of the power door lock button will toggle the state
of the autolock feature on and off. A chime will sound to indicate your
selection.
Autounlock:Each subsequent long press each (more than 2 seconds) of
the power door lock button will toggle the state of the autounlock
feature on and off. A chime will sound to indicate your selection.
Locks and Security
133
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 134 of 357

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door will not automatically set the lock for
both doors.
•On the driver side, turn counterclockwise to lock and clockwise to
unlock.
•On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
INTERIOR LUGGAGE COMPARTMENT RELEASE ( 4–DOOR ONLY)
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
Locks and Security
134
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 135 of 357

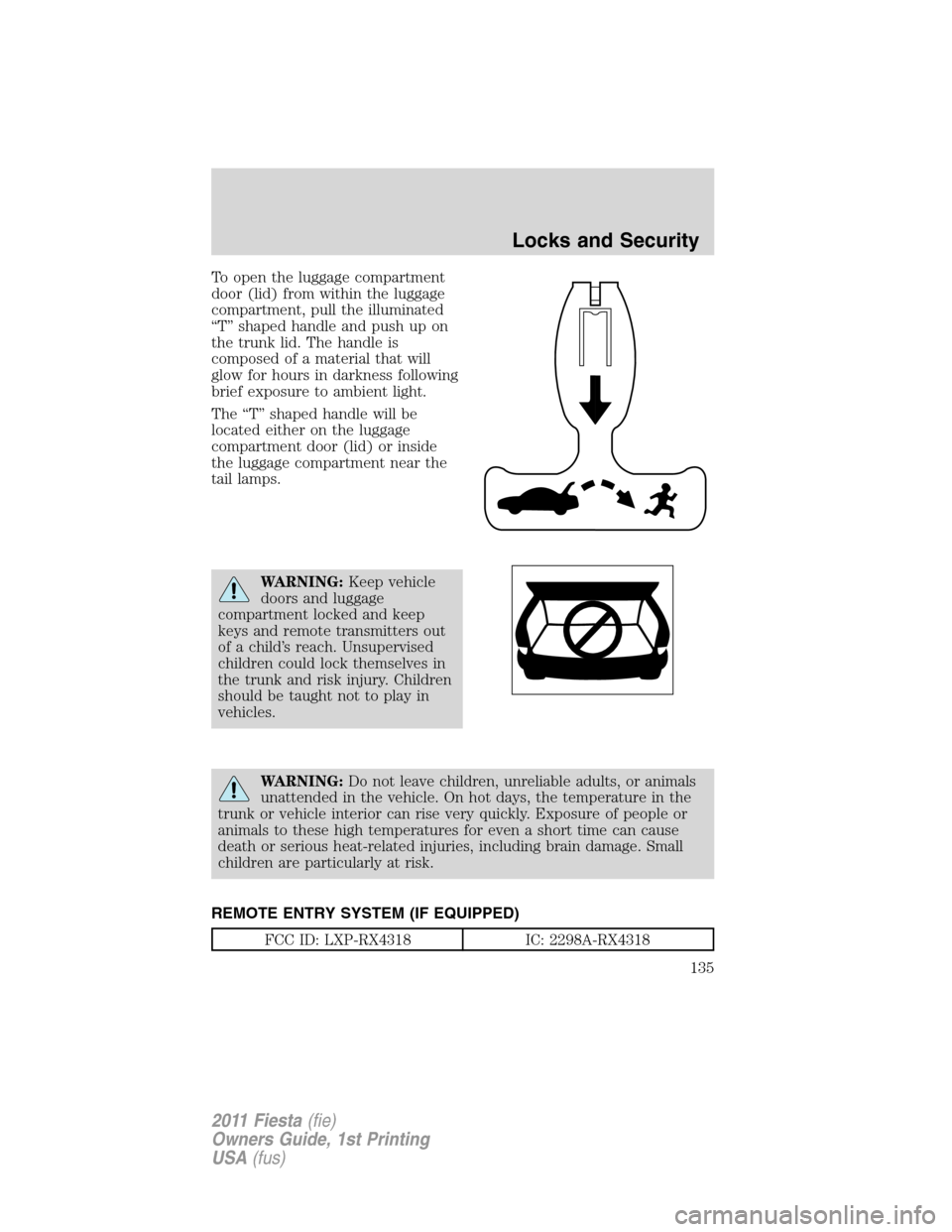

To open the luggage compartment
door (lid) from within the luggage
compartment, pull the illuminated
“T” shaped handle and push up on
the trunk lid. The handle is
composed of a material that will
glow for hours in darkness following
brief exposure to ambient light.
The “T” shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
WARNING:Keep vehicle
doors and luggage
compartment locked and keep
keys and remote transmitters out
of a child’s reach. Unsupervised
children could lock themselves in
the trunk and risk injury. Children
should be taught not to play in
vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
REMOTE ENTRY SYSTEM (IF EQUIPPED)
FCC ID: LXP-RX4318 IC: 2298A-RX4318
Locks and Security
135
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 136 of 357

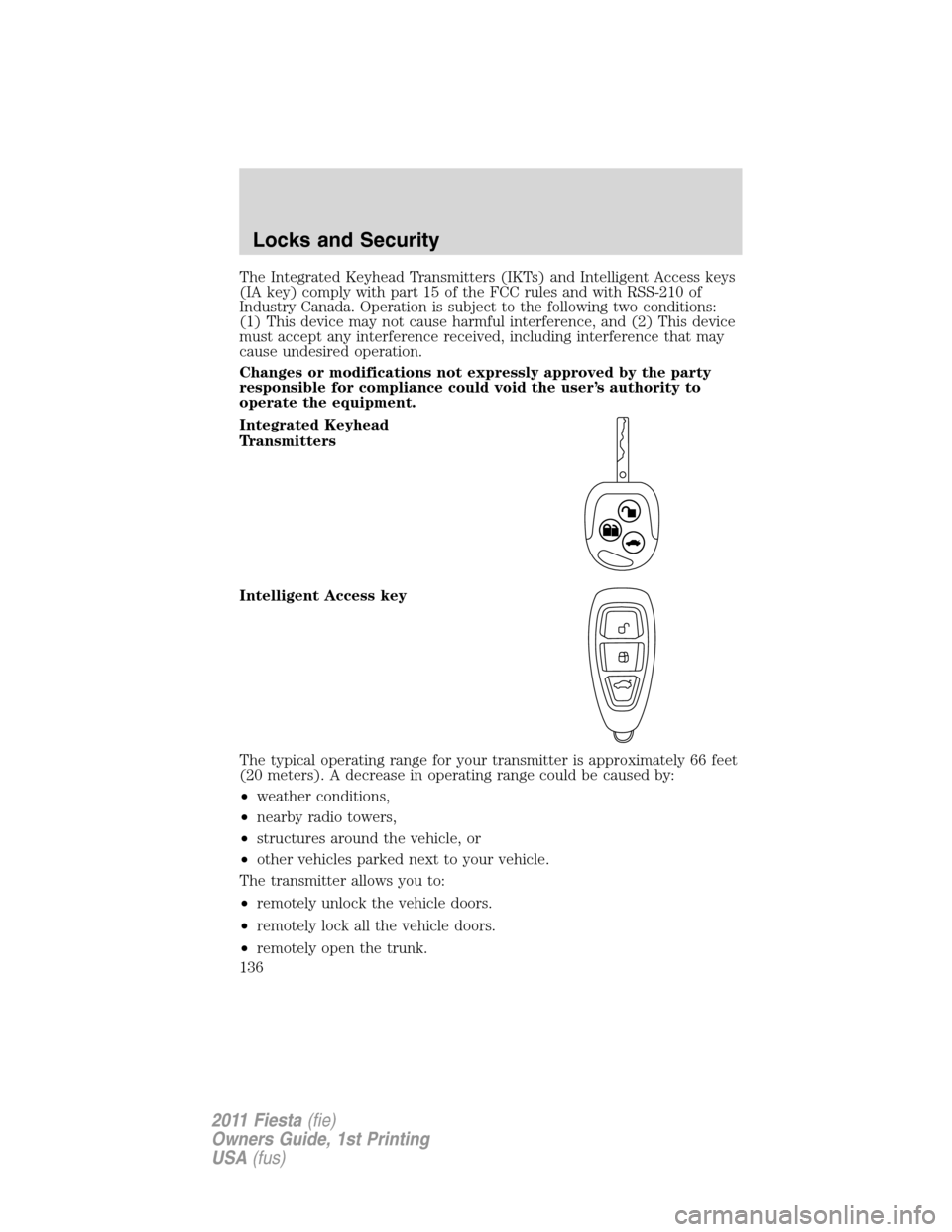

The Integrated Keyhead Transmitters (IKTs) and Intelligent Access keys
(IA key) comply with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Integrated Keyhead
Transmitters
Intelligent Access key
The typical operating range for your transmitter is approximately 66 feet
(20 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The transmitter allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the trunk.
Locks and Security
